SR-14

< REMOVAL AND INSTALLATION >

SPIRAL CABLE

SPIRAL CABLE

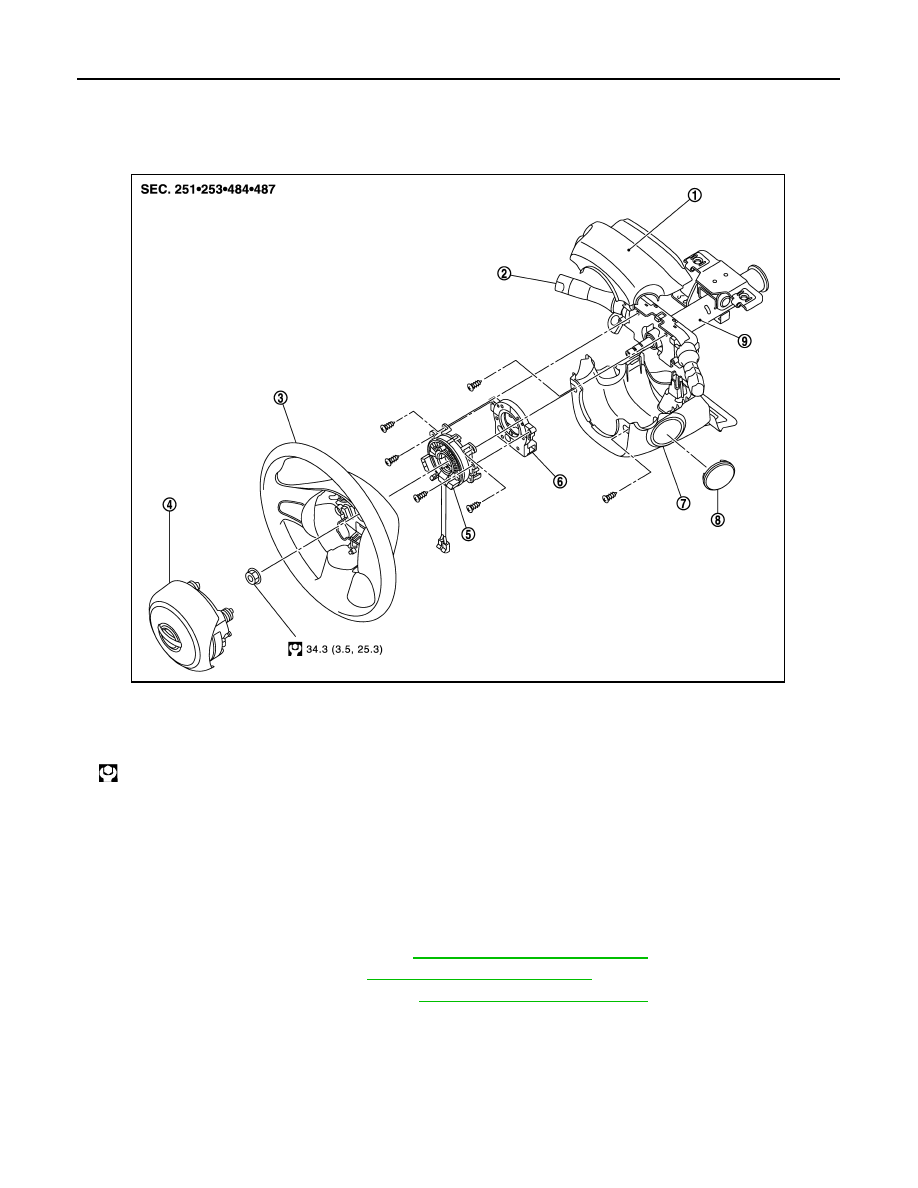

Exploded View

INFOID:0000000009946904

Removal and Installation

INFOID:0000000009946905

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the driver air bag module. Refer to

SR-11, "Removal and Installation"

.

2.

Remove the steering wheel. Refer to

ST-9, "Removal and Installation"

.

3.

Remove the steering column cover. Refer to

IP-14, "Removal and Installation"

.

1.

Steering column upper cover

2.

Lighting & turn signal switch

3.

Steering wheel

4.

Driver air bag module

5.

Spiral cable

6.

Steering angle sensor

7.

Steering column lower cover

8.

Steering lock escutcheon

9.

Steering column assembly

: N·m (kg-m, ft-lb)

JMHIA1081GB

SPIRAL CABLE

SR-15

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

4.

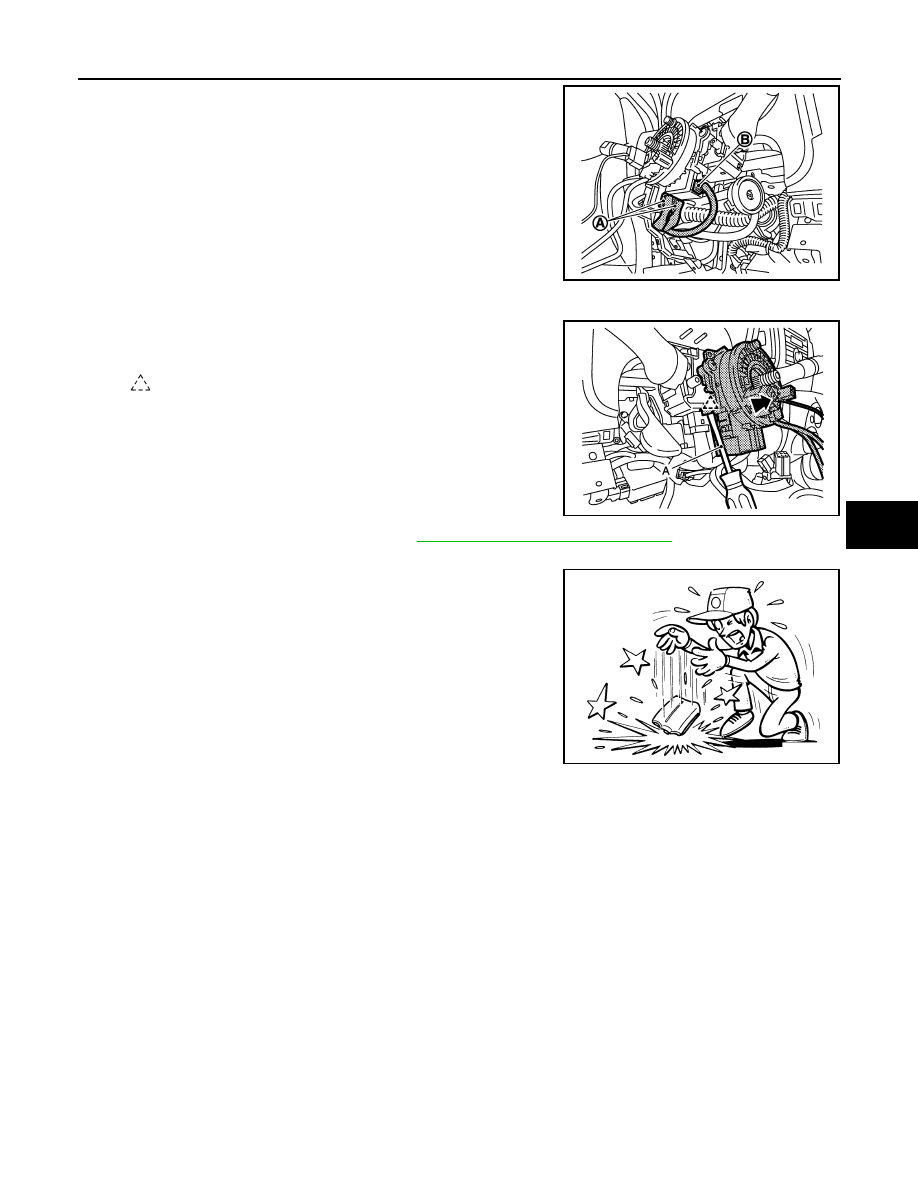

Disconnect the spiral cable body side harness connectors (A)
and steering angle sensor harness connector (B).

5.

Remove the spiral cable fixing screws.

6.

Disengage the pawls with flat-bladed screwdriver, and then pull
out forward the spiral cable and steering angle sensor.

7.

Remove the steering angle sensor. Refer to

BRC-116, "Removal and Installation"

.

CAUTION:

• Never impact the spiral cable.
• Replace the spiral cable if it has been dropped or sustained

an impact.

• Never disassemble the spiral cable.
• Never apply lubricant to the spiral cable.
• Never allow oil, grease, detergent, or water to come in contact with the spiral cable.

INSTALLATION

Note the following items, and then install in the reverse order of removal.

CAUTION:

JMHIA1084ZZ

: Pawl

JMHIA1085ZZ

JMHIA0009ZZ

SR-16

< REMOVAL AND INSTALLATION >

SPIRAL CABLE

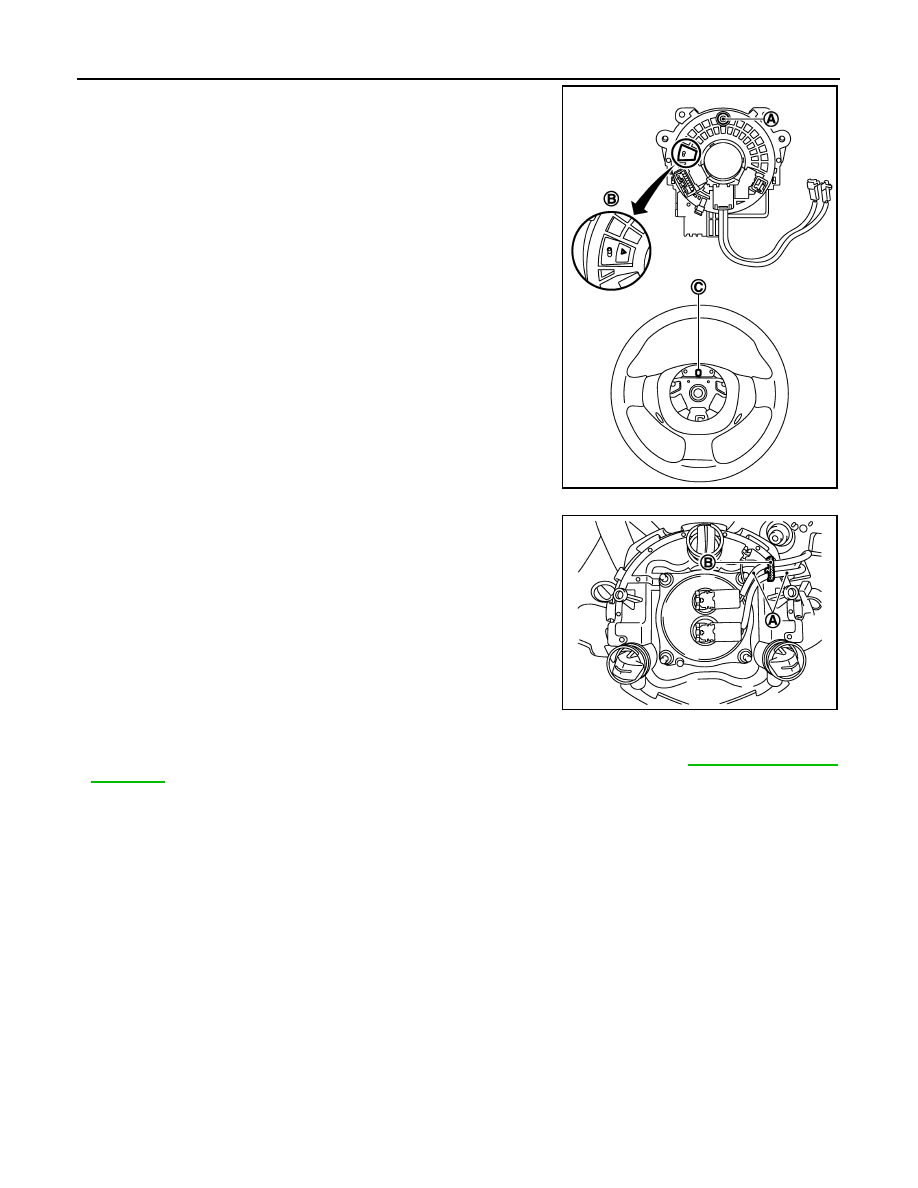

• The spiral cable may snap during steering operation if the

cable is installed in an improper position.
The neutral position is set as follows.

• Carefully turn the spiral cable clockwise to the end position.

Then turn it counterclockwise (about 2 and a half turns) and
stop turning at the mark (B) on which the stopper insertion
holes are in the same position.

• The service part is installed in the neutral position by the

stopper and can be set without adjusting after the stopper is
removed.

• Never over turn the spiral cable or go beyond the number of

turns required. (This will cause the cable to snap)

• Adjust the spiral cable locating pin (A) to the steering wheel

locating pin hole (C).

• Fix the driver air bag module harnesses (A) to the harness fix-

ing hook (B).

• If malfunction is detected by the air bag warning lamp, after repair or replacement of the malfunc-

tioning parts, reset the memory using self-diagnosis or CONSULT. Refer to

SRC-24, "CONSULT

Function"

.

• After the work is completed, check that no system malfunction is detected by air bag warning lamp.

JMHIA0657ZZ

JMHIA1083ZZ

PASSENGER AIR BAG MODULE

SR-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

I

J

K

L

M

A

B

SR

N

O

P

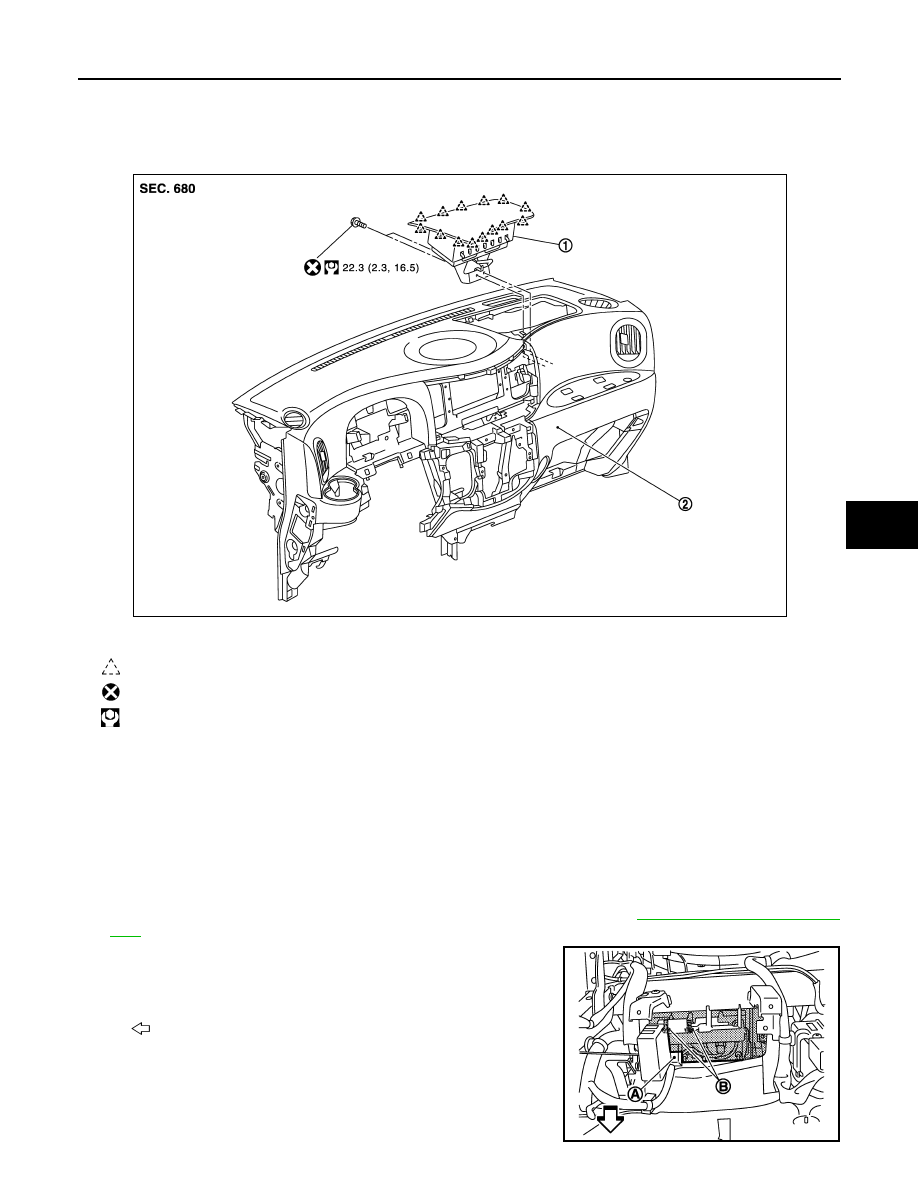

PASSENGER AIR BAG MODULE

Exploded View

INFOID:0000000009946906

Removal and Installation

INFOID:0000000009946907

WARNING:

• Before servicing, turn ignition switch OFF, disconnect battery negative terminal and wait 3 minutes

or more.

• Always work from the side of air bag module. Never work in front of it.
• Never use the air tools or electric tools for servicing.

REMOVAL

1.

Remove the glove box lid assembly and glove box cover assembly. Refer to

IP-14, "Removal and Installa-

tion"

.

2.

Disconnect the passenger air bag module harness connector
(A) from passenger air bag module.

3.

Remove the passenger air bag module fixing bolts (B).

1.

Passenger air bag module

2.

Instrument panel assembly

: Pawl

: Always replace after every disassembly.

: N·m (kg-m, ft-lb)

JMHIA1086GB

: Vehicle front

JMHIA1087ZZ
