Nissan Cube. Manual - part 591





HAC-202

< PRECAUTION >

[MANUAL AIR CONDITIONING]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009951106

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIR BAG” and “SEAT BELT” of this
Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precautions for Removing of Battery Terminal

INFOID:0000000010269364

•  When removing the 12V battery terminal, turn OFF the ignition

switch and wait at least 30 seconds.
NOTE:
ECU may be active for several tens of seconds after the ignition
switch is turned OFF. If the battery terminal is removed before ECU
stops, then a DTC detection error or ECU data corruption may
occur.

•  For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be
detected.

•  After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

SEF289H

A/C CONTROL

HAC-203

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REMOVAL AND INSTALLATION

A/C CONTROL

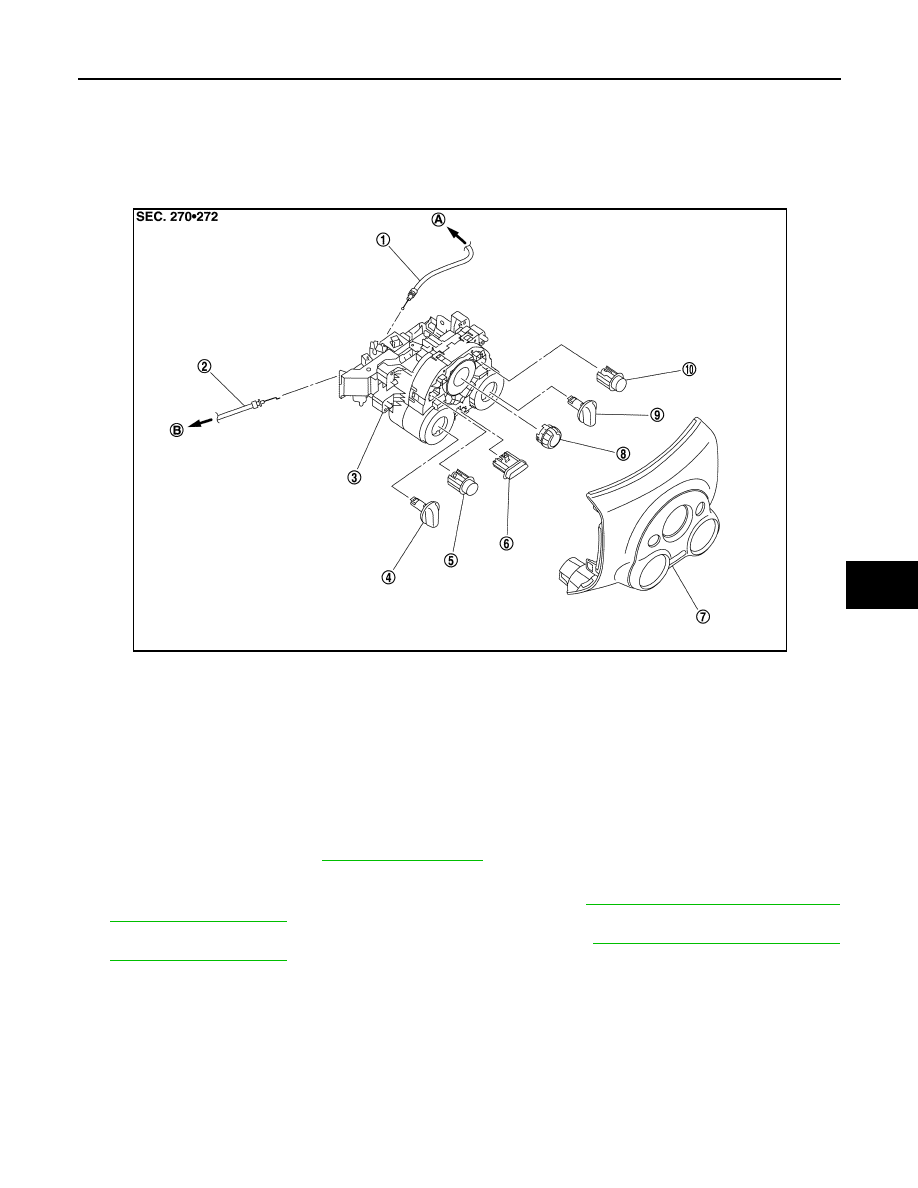

Exploded View

INFOID:0000000009951107

Removal and Installation

INFOID:0000000009951108

REMOVAL

1.

Remove A/C finisher. Refer to

IP-13, "Exploded View"

.

2.

Remove the A/C control mounting screws.

3.

Remove the air mix door cable from the A/C unit assembly. Refer to

HAC-211, "AIR MIX DOOR CABLE :

Removal and Installation"

.

4.

Remove the mode door cable from the A/C unit assembly. Refer to

HAC-211, "MODE DOOR CABLE :

Removal and Installation"

.

5.

Disconnect harness connector.

1.

Mode door cable

2.

Air mix door cable

3.

A/C control

4.

Mode dial

5.

Rear window defogger switch

6.

Intake switch

7.

A/C finisher

8.

Fan control dial

9.

Temperature dial

10. A/C switch

A.

To mode door link

B.

To air mix door link

JPIIA1720ZZ

HAC-204

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

A/C CONTROL

6.

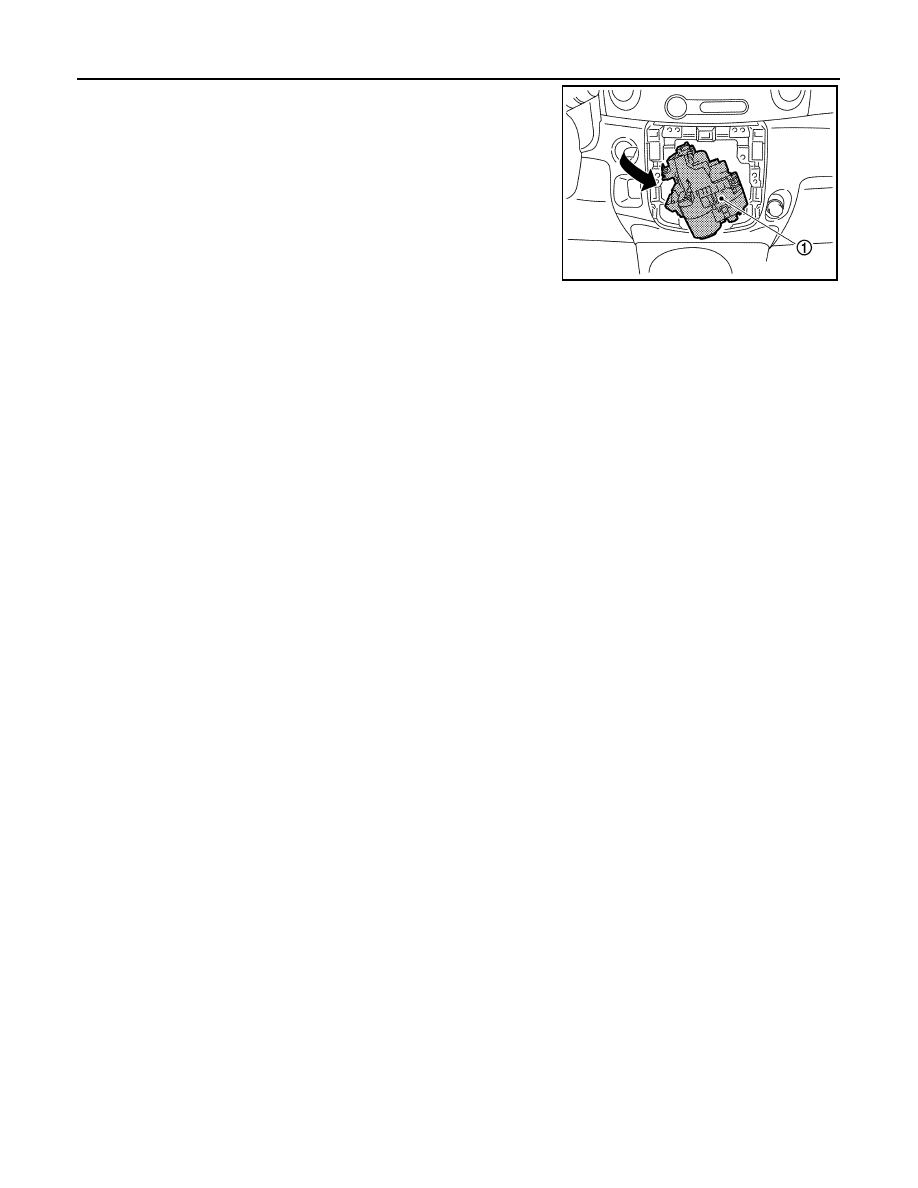

Turn the A/C control (1) as the following figure.

7.

Remove the A/C control.

INSTALLATION

Installation is basically the reverse order of removal.

JPIIA1735ZZ

THERMO CONTROL AMPLIFIER

HAC-205

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

THERMO CONTROL AMPLIFIER

Exploded View

INFOID:0000000009951109

Refer to

HA-44, "Exploded View (Manual Air Conditioner)"

.

Removal and Installation

INFOID:0000000009951110

REMOVAL

1.

Remove the evaporator. Refer to

HA-44, "Exploded View (Manual Air Conditioner)"

.

2.

Remove the thermo control amp. from the evaporator.

INSTALLATION

Installation is basically the reverse order of removal.

CAUTION:

• Replace O-ring with new one. Then apply compressor oil to them when installing.
• When install the thermo control amp., set the same position before replacement.
• When remove the thermo control amp., never turn the bracket which is equipped the top of the

thermo control amp.

• Check for the leakages when recharging refrigerant. Refer to

HA-22, "Leak Test"

.
