BODY ALIGNMENT

BRM-53

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Description

INFOID:0000000009949351

• All dimensions indicated in the figures are actual.
• When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself

to make sure there is no free play.

• When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
• Measurements should be taken at the center of the mounting holes.
• An asterisk (*) following the value at the measuring point indicates that the measuring point on the other side

is symmetrically the same value.

• The coordinates of the measurement points are the distances measured from the standard line of

″

X

″

,

″

Y

″

and

″

Z

″

.

•

″

Z

″

: Imaginary base line [200 mm (7.87 in) below datum line (

″

0Z

″

 at design plan)]

Engine Compartment

INFOID:0000000009949352

MEASUREMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

D

Parking brake reinforcement

Hole

φ

12 (0.47)

E

Rear panel

Indent

Points

Portion

Marks

1.

Vehicle center

2.

Front axle center

3.

Imaginary base line

JSKIA0073GB

BRM-54

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

«The others»

Unit: mm (in)

MEASUREMENT POINTS

Unit: mm (in)

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

Point

Dimension

Memo

A - C

711 (27.99)*

B - d

1238 (48.74)*

C - c

1377 (54.21)

F - f

1297 (51.06)

A - F

800 (31.50)*

B - e

1473 (57.99)*

D - d

1037 (40.83)

B - C

159 (6.26)*

B - F

547 (21.54)*

E - e

1400 (55.12)

JSKIA1142GB

BODY ALIGNMENT

BRM-55

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Unit: mm (in)

Underbody

INFOID:0000000009949353

MEASUREMENT

: Vehicle front

JSKIA1143ZZ

Point

Material

Point

Material

A

Cowl top flange end of center positioning mark

G, g

Upper radiator core support hole center

φ

9 (0.35)

B, b

Hood hinge installing hole center

φ

11 (0.43)

H

Front side member hole center

φ

11 (0.43)

C, c, F, f

Front fender installing hole center

φ

7 (0.28)

h

Engine mounting bracket hole center

φ

11 (0.43)

D, d

Front strut installing hole center 11

×

16

(0.43

×

0.63)

J, j

Front side member reinforcement extension hole
center
J:

φ

14 (0.55)

j: 10

×

14 (0.39

×

0.55)

E, e

Hoodledge reinforcement hole center

φ

12 (0.47)

K, k

Front side member connector hole center

φ

16

(0.63)

BRM-56

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Dimensions marked with

″

*

″

 indicate symmetrically identical dimensions on both the right and left hand of the

vehicle.

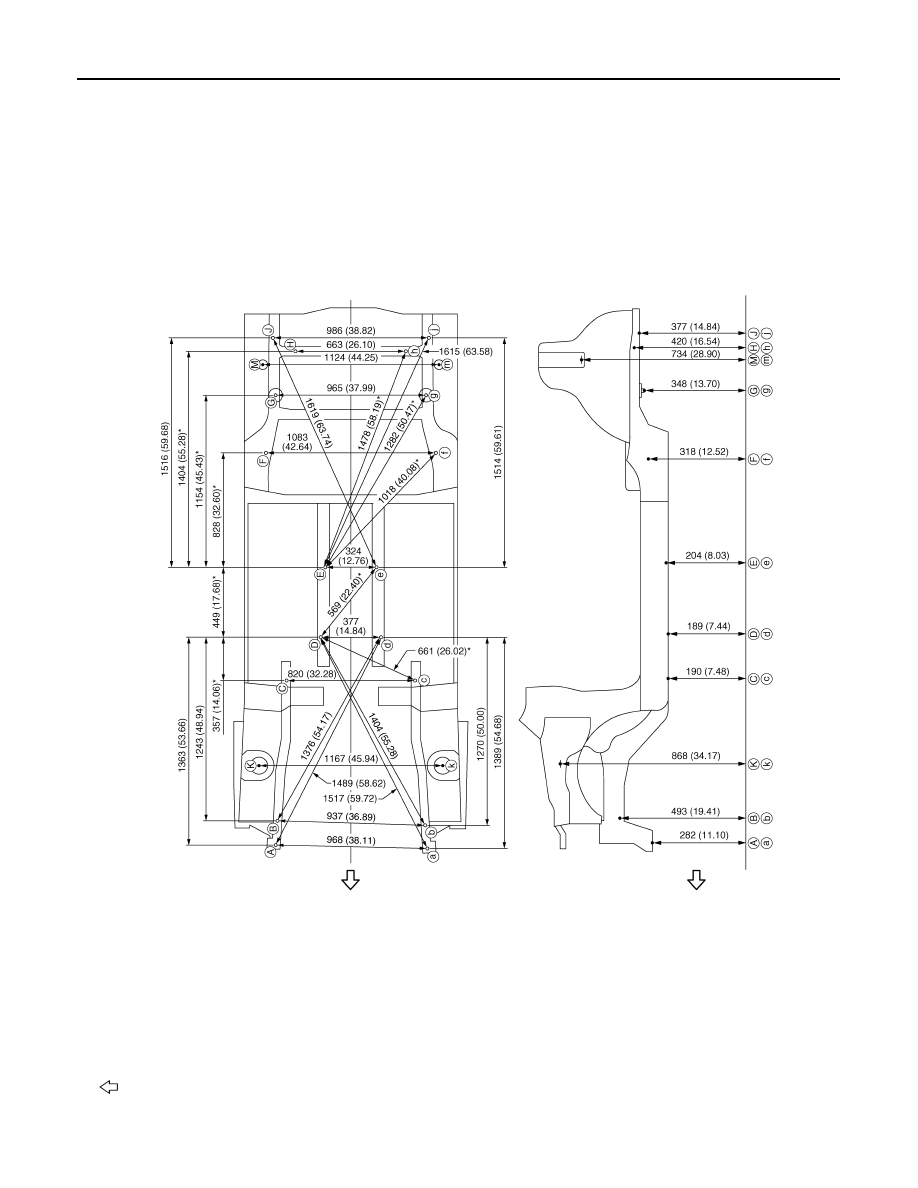

The following figure shows a bottom view and a side view of the vehicle.

MEASUREMENT POINTS

Unit: mm (in)

: Vehicle front

JSKIA1144GB
