Rear Fender (RH)

INFOID:0000000009949346

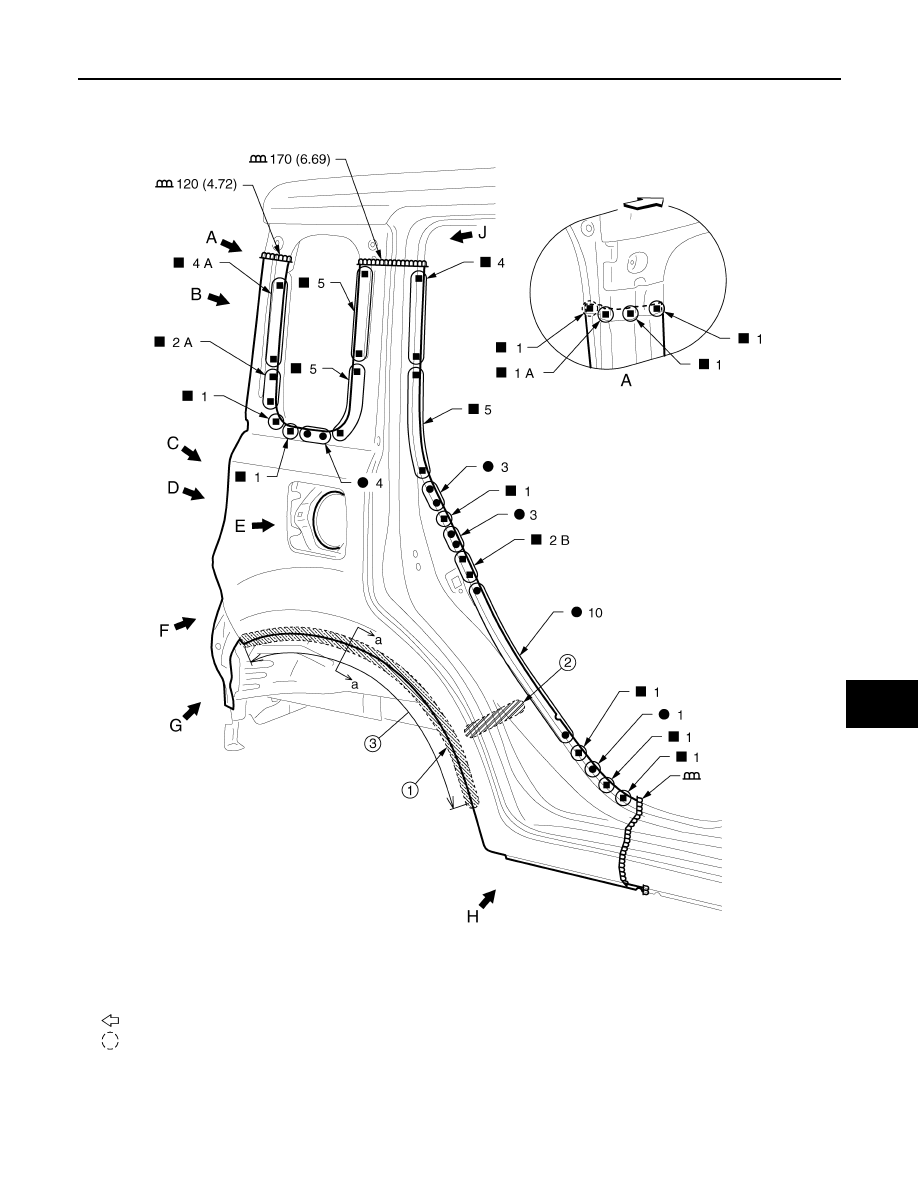

View A: Before installing rear fender assembly

1.

Adhesive

2.

Urethane foam

3.

Hemming portion

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

Replacement parts

z

Rear fender assembly (RH)

z

Back pillar assembly (RH)

JSKIA1170GB

BRM-46

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

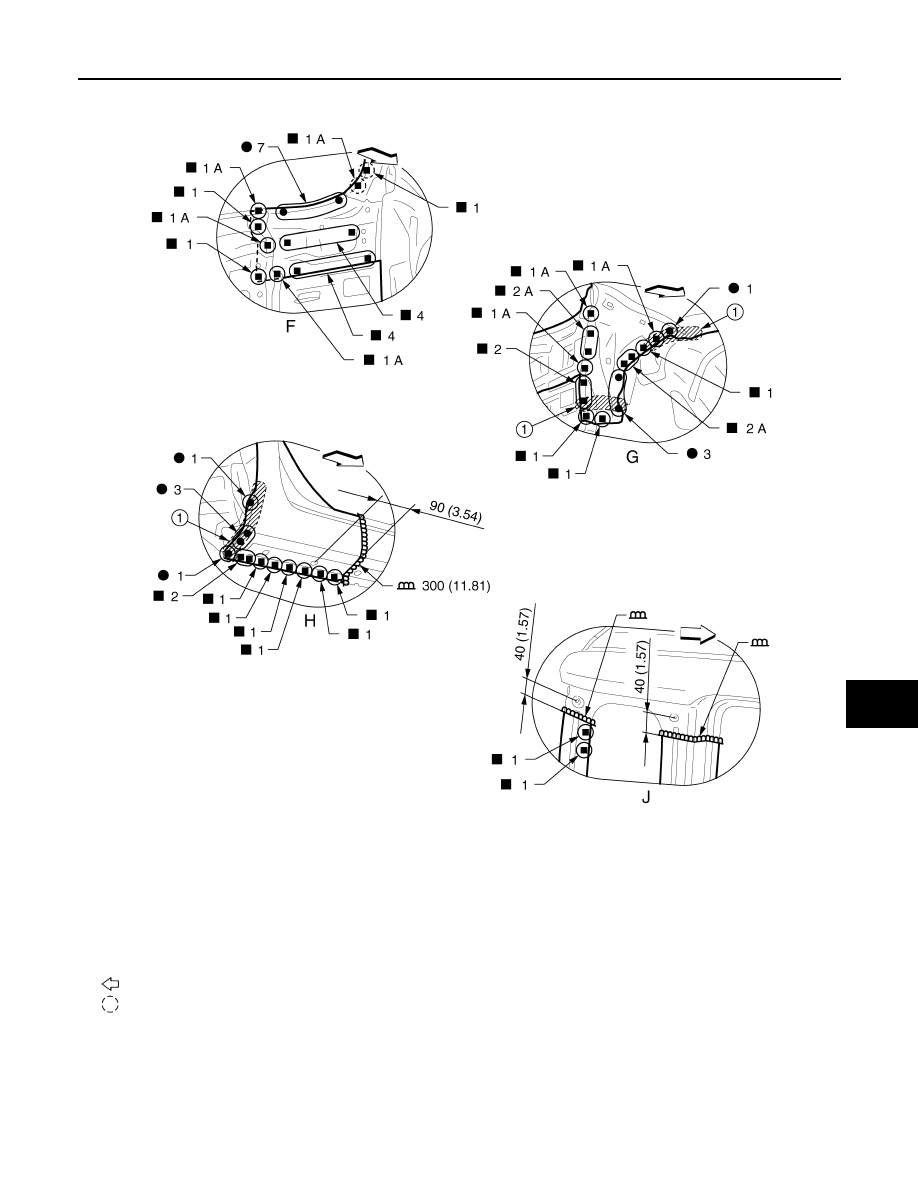

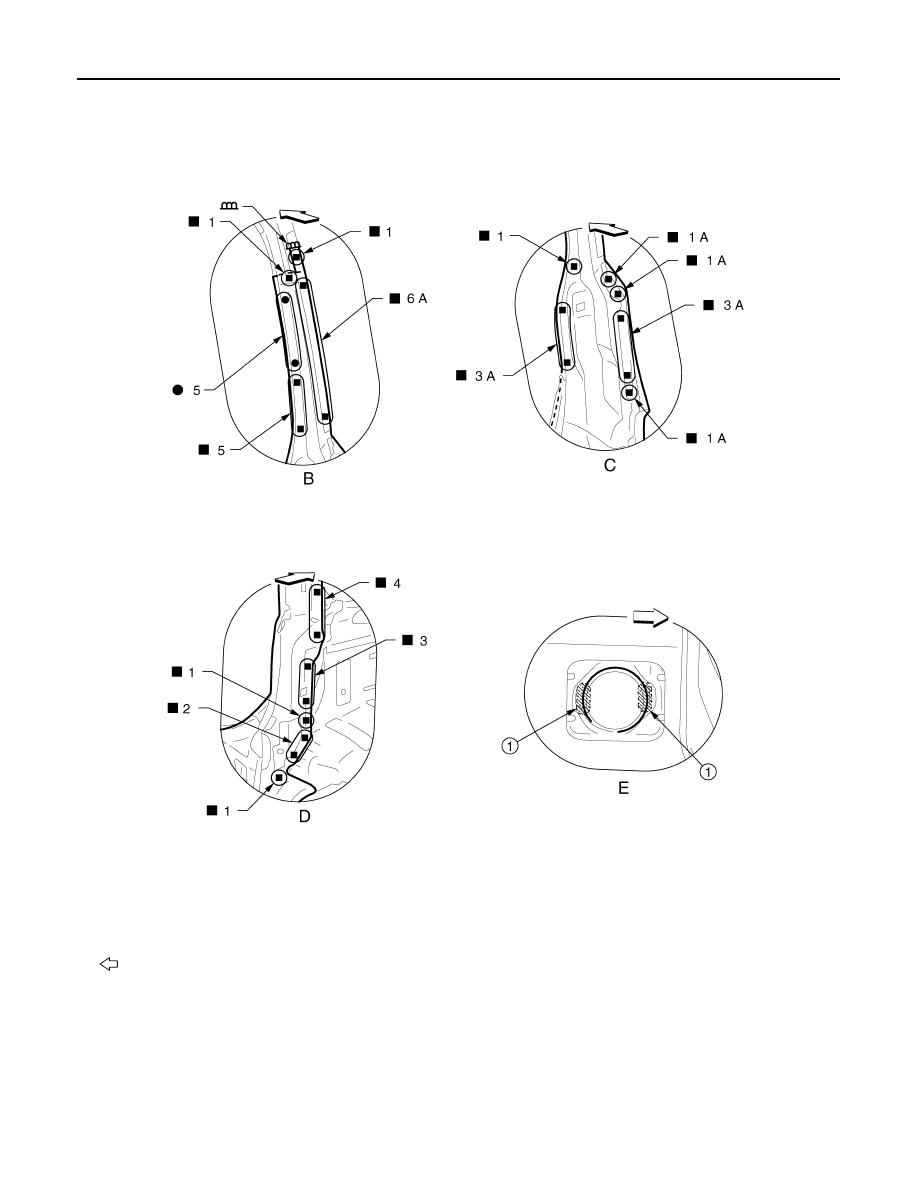

View D: Before installing rear fender assembly

1.

Adhesive

: Vehicle front

JSKIA1171ZZ

REPLACEMENT OPERATIONS

BRM-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

POINT

1.

Body sealing

Unit: mm (in)

: Vehicle front

: Weld the parts onto the back of the component part.

JSKIA1172GB

BRM-48

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

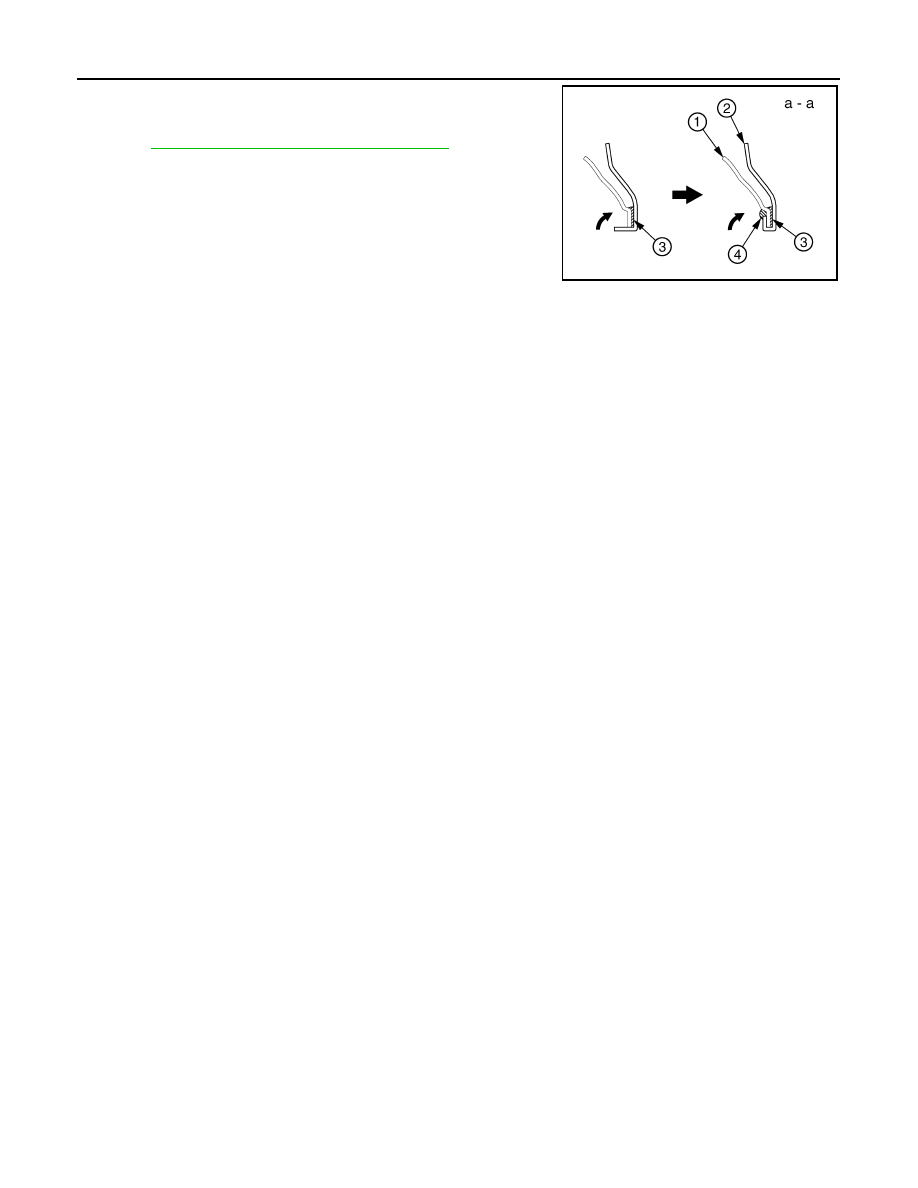

• Perform the hemming to the flange of wheelarch after applying the

adhesive.

• Apply the sealing to the flange end.
• Refer to

BRM-19, "Rear Fender Hemming Process"

.

1.

Outer rear wheelhouse

2.

Rear fender

3.

Adhesive

4.

Sealant

JSKIA0204GB
