WW-50

< REMOVAL AND INSTALLATION >

WASHER PUMP

WASHER PUMP

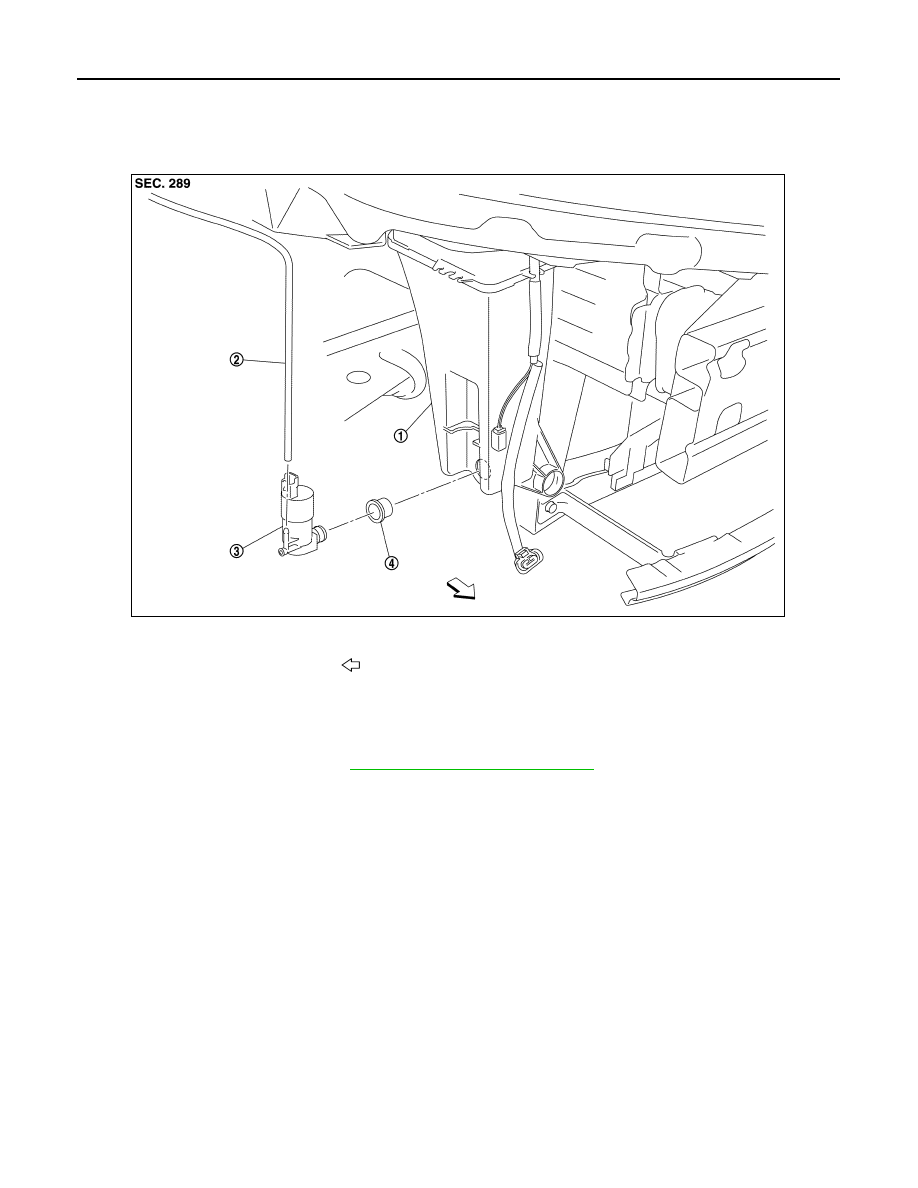

Exploded View

INFOID:0000000009269585

Removal and Installation

INFOID:0000000009269586

REMOVAL

1. Remove fender protector. Refer to

EXT-26, "Removal and Installation"

.

2. Disconnect the harness connector from the washer pump.
3. Remove front washer tube.
4. Remove washer pump from the washer tank assembly.
5. Remove seal from the washer tank assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Do not twist or damage the seal when installing the washer pump.

1.

Washer tank

2.

Front washer tube

3.

Washer pump

4.

Seal

Front

JMLIA2070ZZ

WASHER NOZZLE & TUBE

WW-51

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

WASHER NOZZLE & TUBE

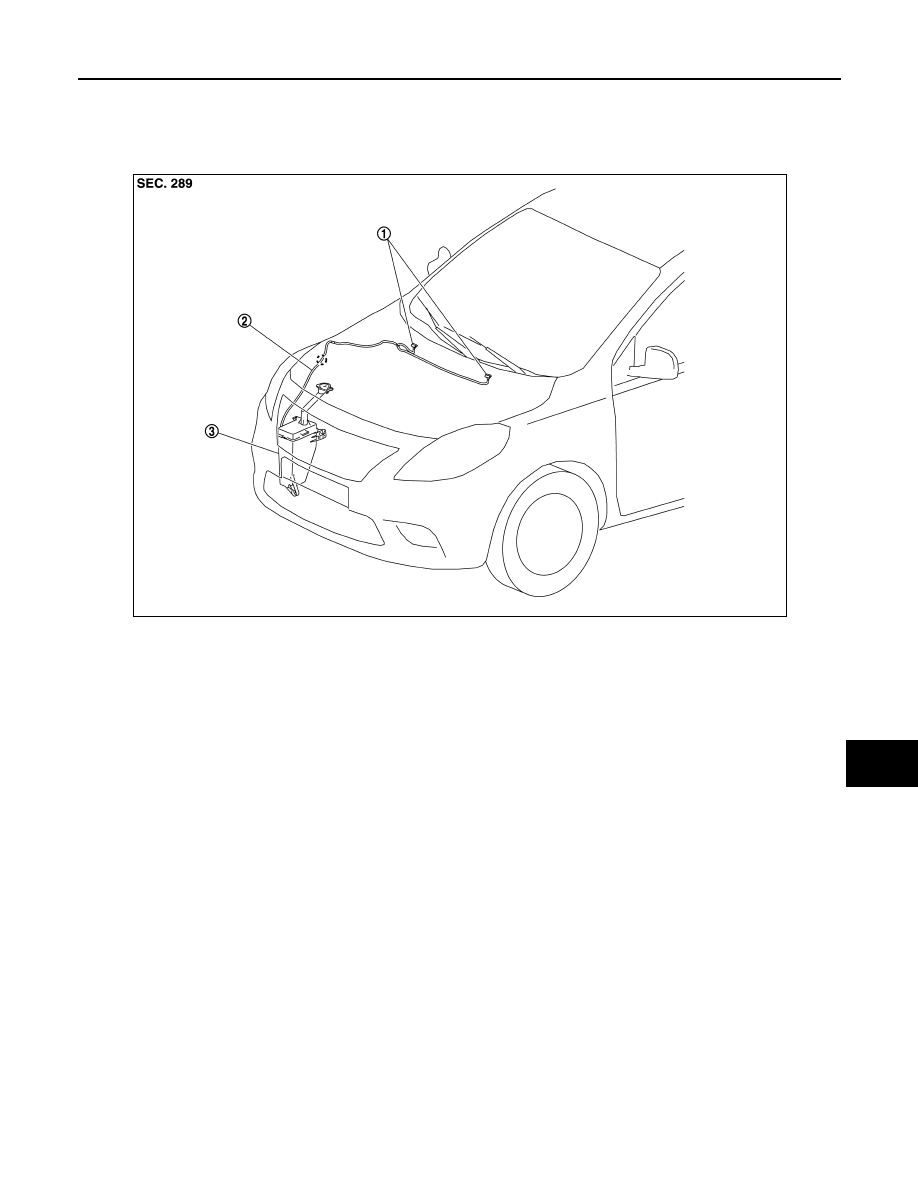

Washer System Layout

INFOID:0000000009269587

1.

Washer nozzle

2.

Washer tube

3.

Washer tank

JMLIA2078ZZ

WW-52

< REMOVAL AND INSTALLATION >

WASHER NOZZLE & TUBE

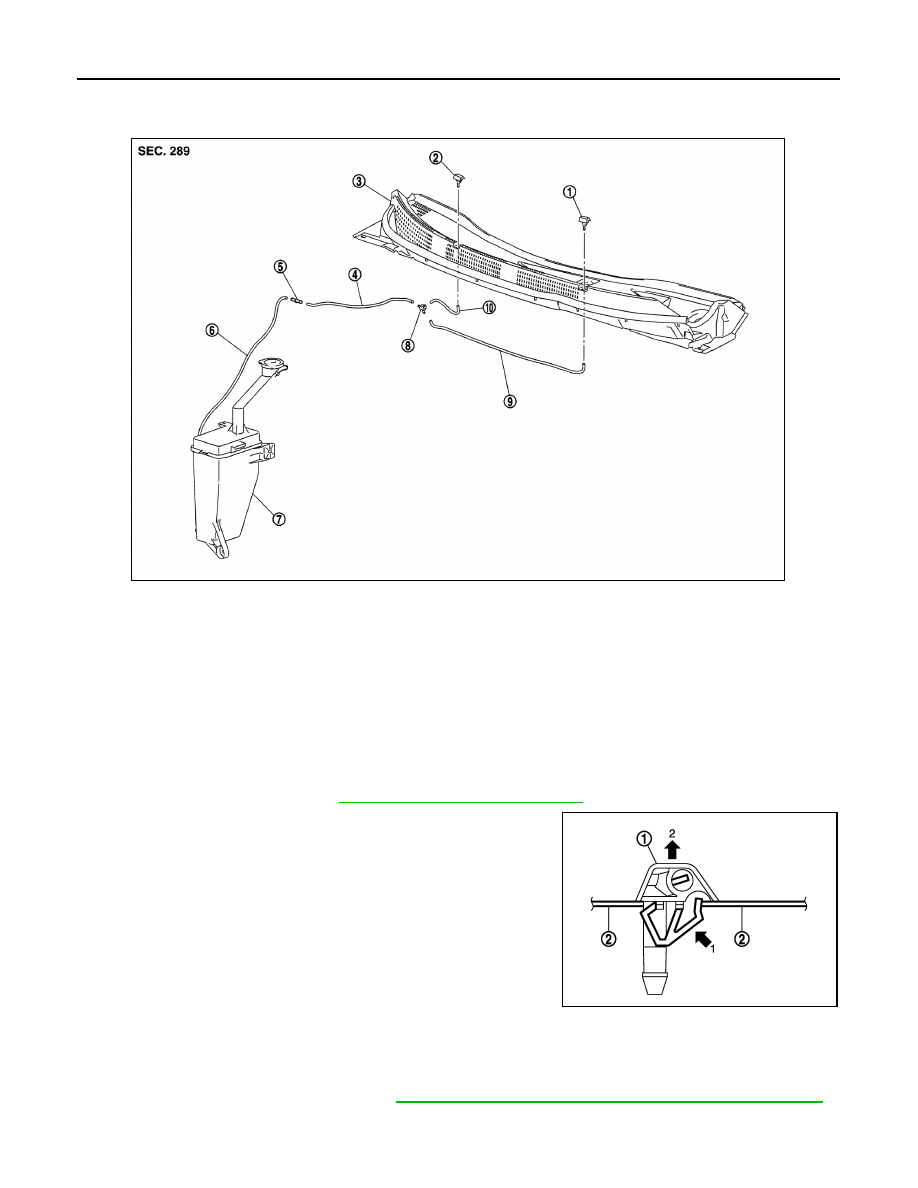

Exploded View

INFOID:0000000009269588

WASHER NOZZLE
WASHER NOZZLE : Removal and Installation

INFOID:0000000009269589

REMOVAL

1. Remove cowl top cover. Refer to

EXT-24, "Removal and Installation"

.

2. Disconnect washer tube from washer nozzle (1).
3. Place cowl top cover (2) up side down, then release washer

nozzle pawl to remove as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• The spray positions differ, check that left and right nozzles are installed correctly.

• Adjust the nozzle spray pattern. Refer to

WW-53, "WASHER NOZZLE : Inspection and Adjustment"

.

1.

Front washer nozzle (LH)

2.

Front washer nozzle (RH)

3.

Cowl top cover

4.

Front washer tube B

5.

Joint

6.

Front washer tube A

7.

Washer tank assembly

8.

Check valve

9.

Front washer tube C

10. Front washer tube D

AWLIA1878ZZ

JMLIA1325ZZ

WASHER NOZZLE & TUBE

WW-53

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

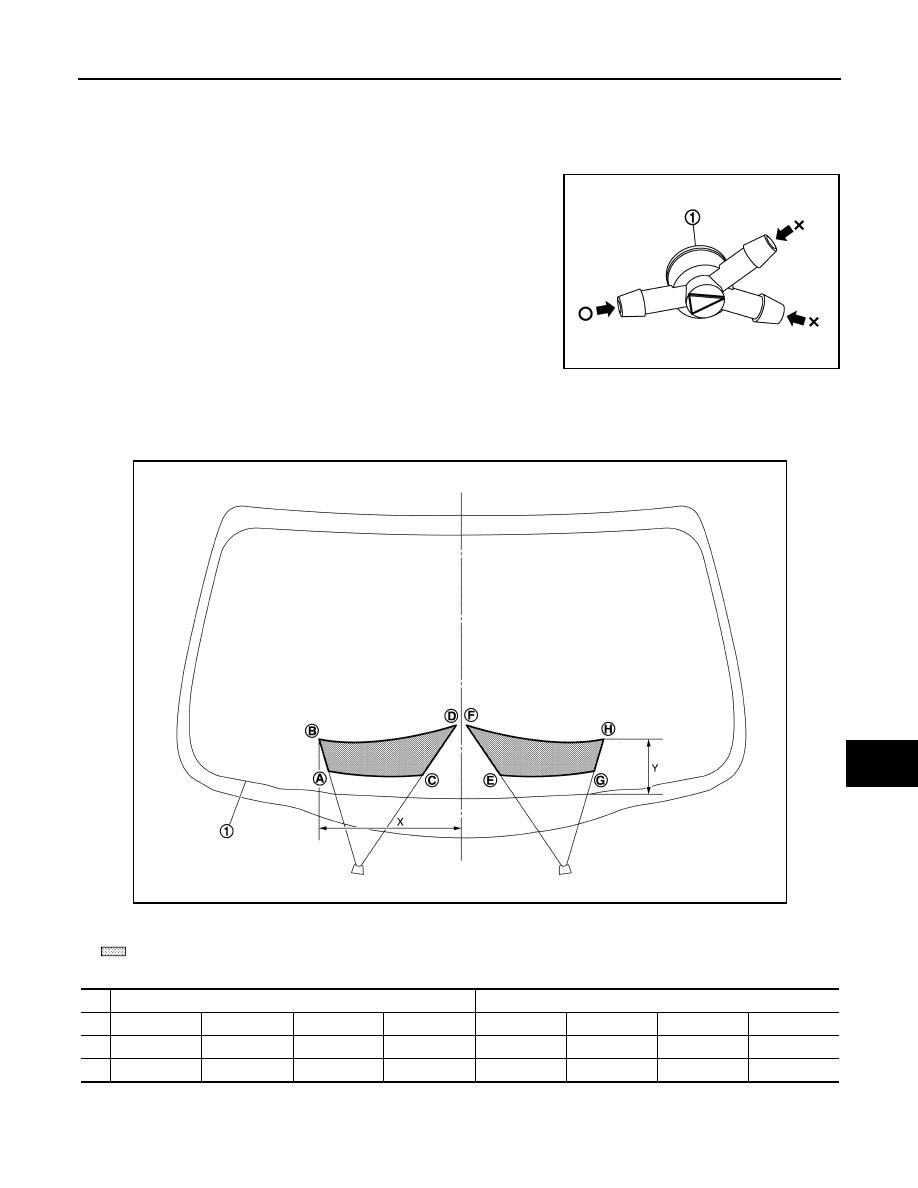

WASHER NOZZLE : Inspection and Adjustment

INFOID:0000000009269590

INSPECTION

Check valve Inspection

Check that air can pass through the nozzle by blowing into the noz-

zle and that air cannot flow in the opposite direction.

ADJUSTMENT

Washer Nozzle Spray Position Adjustment

Adjust spray positions to match the positions shown.

Unit: mm (in)

JMLIA1326ZZ

1.

Black printed frame line

: Spray area

Passenger side

Driver side

A

B

C

D

E

F

G

H

X

321 (12.64)

343 (13.50)

60 (2.36)

5 (0.20)

60 (2.36)

5 (0.20)

321 (12.64)

343 (13.50)

Y

62 (2.44)

129 (5.08)

80 (3.15)

184 (7.24)

80 (3.15)

184 (7.24)

62 (2.44)

129 (5.08)
