WW-46

< REMOVAL AND INSTALLATION >

FRONT WIPER

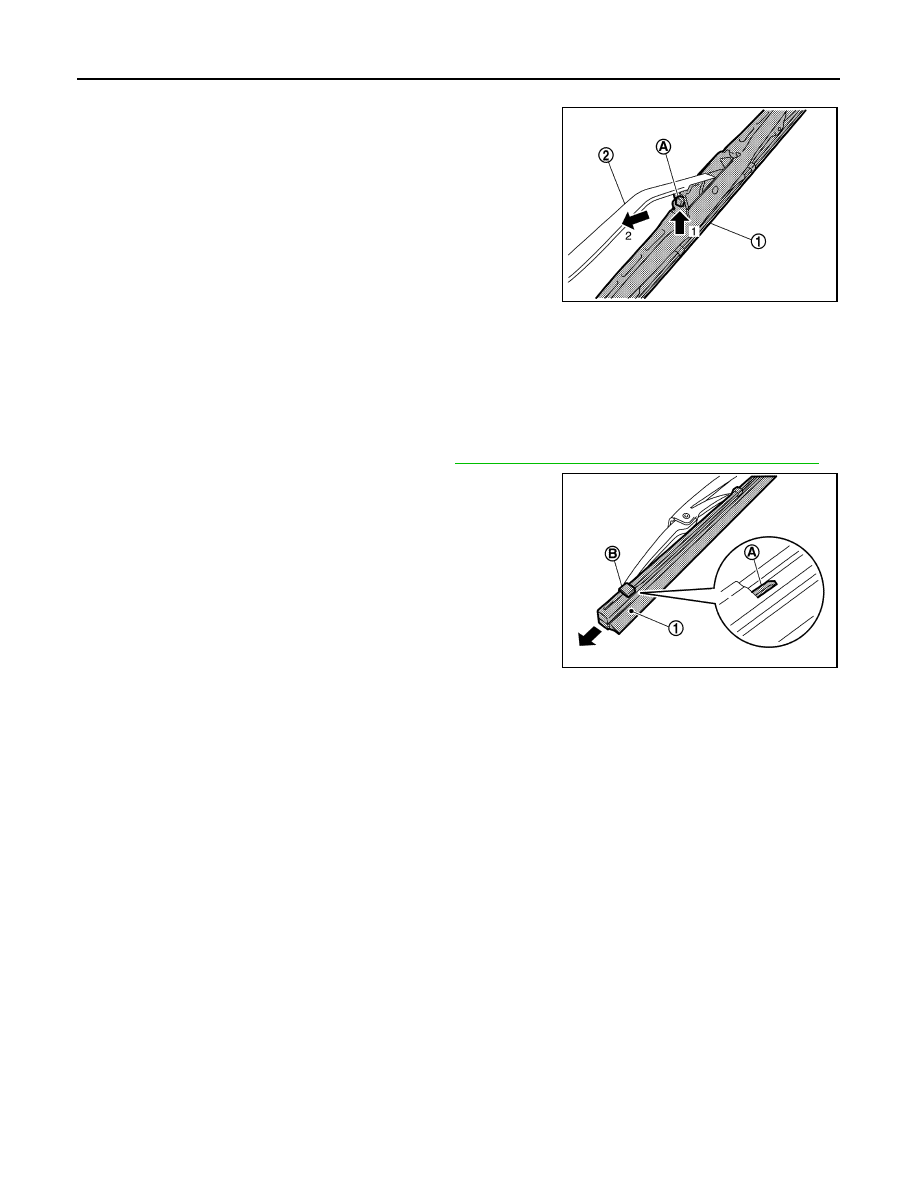

1. Lift up wiper arm and set to the position where wiper arm can be locked back.
2. Press and hold lever (A) of wiper blade (1). Pull in the direction

indicated by the arrow as shown and remove wiper blade from

wiper arm (2).

CAUTION:

Wrap wiper arm using a shop cloth so that wiper blade does

not damage windshield glass.

INSTALLATION

Installation is in the reverse order of removal.

WIPER REFILL
WIPER REFILL : Removal and Installation

INFOID:0000000009269580

REMOVAL

1. Remove wiper blade from the wiper arm. Refer to

WW-45, "WIPER BLADE : Removal and Installation"

.

2. From portion (A) of wiper refill (1), disengage wiper blade portion

(B) and remove wiper refill in the direction indicated by the arrow

as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• For installation of wiper refill, check that wiper refill was not twisted while installing.

• Check that wiper refill was inserted normally from the correct direction.

WIPER DRIVE ASSEMBLY
WIPER DRIVE ASSEMBLY : Removal and Installation

INFOID:0000000009269581

EXPLODED VIEW

JMLIA1990ZZ

JMLIA1992ZZ

FRONT WIPER

WW-47

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

REMOVAL

1. Remove cowl top cover. Refer to

EXT-24, "Removal and Installation"

.

2. Disconnect the harness connector from the wiper motor.
3. Remove the wiper drive assembly bolts.
4. Remove wiper drive assembly from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

WIPER DRIVE ASSEMBLY : Disassembly and Assembly

INFOID:0000000009269582

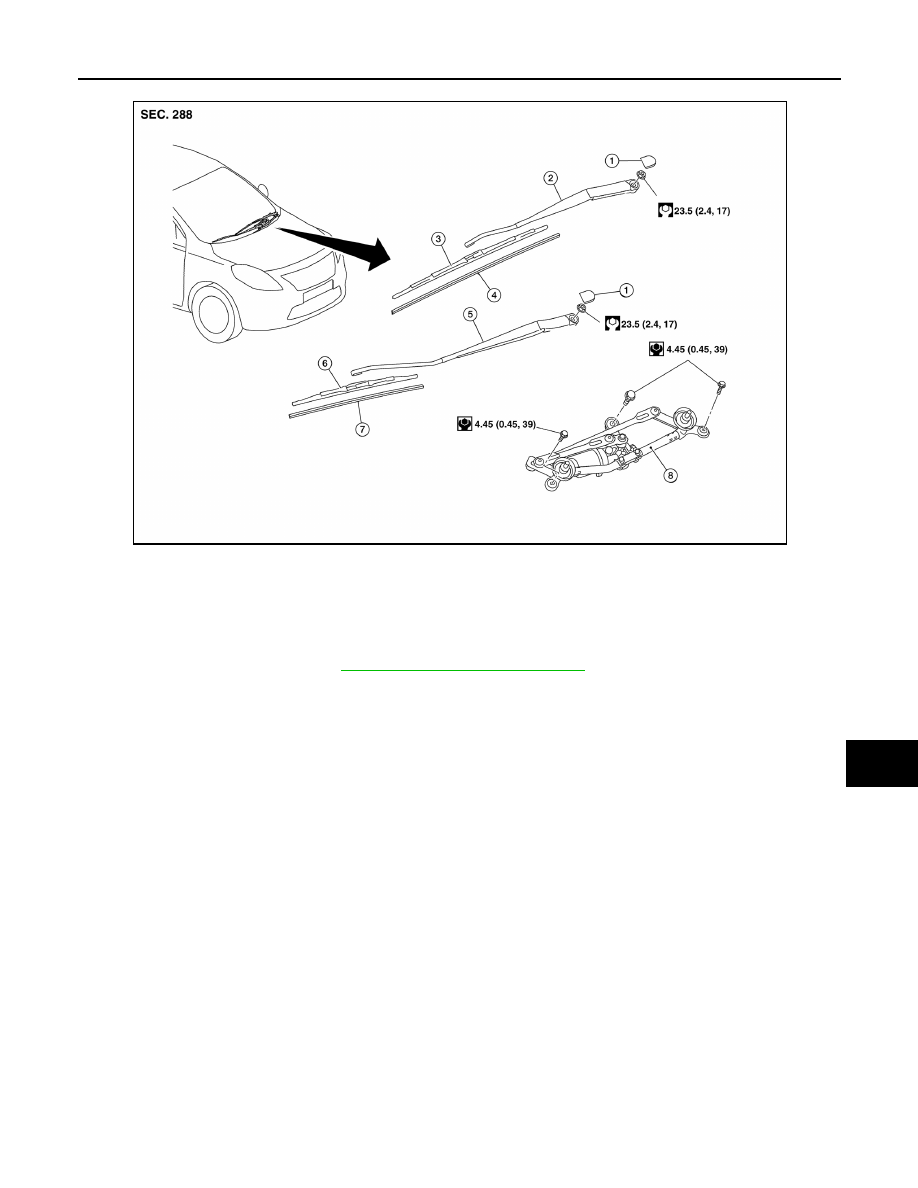

EXPLODED VIEW

1.

Wiper arm cap

2.

Wiper arm (LH)

3.

Wiper blade (LH)

4.

Wiper refill (LH)

5.

Wiper arm (RH)

6.

Wiper blade (RH)

7.

Wiper refill (RH)

8.

Wiper drive assembly

AWLIA1893ZZ

WW-48

< REMOVAL AND INSTALLATION >

FRONT WIPER

DISASSEMBLY

1. Remove wiper linkage 1 and wiper linkage 2 from the wiper frame.

CAUTION:

Do not bend the linkage or damage the plastic part of the ball joint when removing the wiper link-

age.

2. Remove wiper motor screws.
3. Remove the wiper motor from the wiper frame.

ASSEMBLY

1. Connect the harness connector to the wiper motor.
2. Operate wiper to move it to the auto stop position.
3. Disconnect the harness connector from the wiper motor.
4. Install wiper motor to wiper frame.
5. Install wiper linkage 1 to the wiper motor and the wiper frame.
6. Install wiper linkage 2 to the wiper frame.

CAUTION:

• Do not drop wiper motor or cause it to come into contact with other parts.

• Be careful of the grease condition at the wiper motor and wiper linkage joint (retainer). Apply

multi

−purpose grease or an equivalent if necessary.

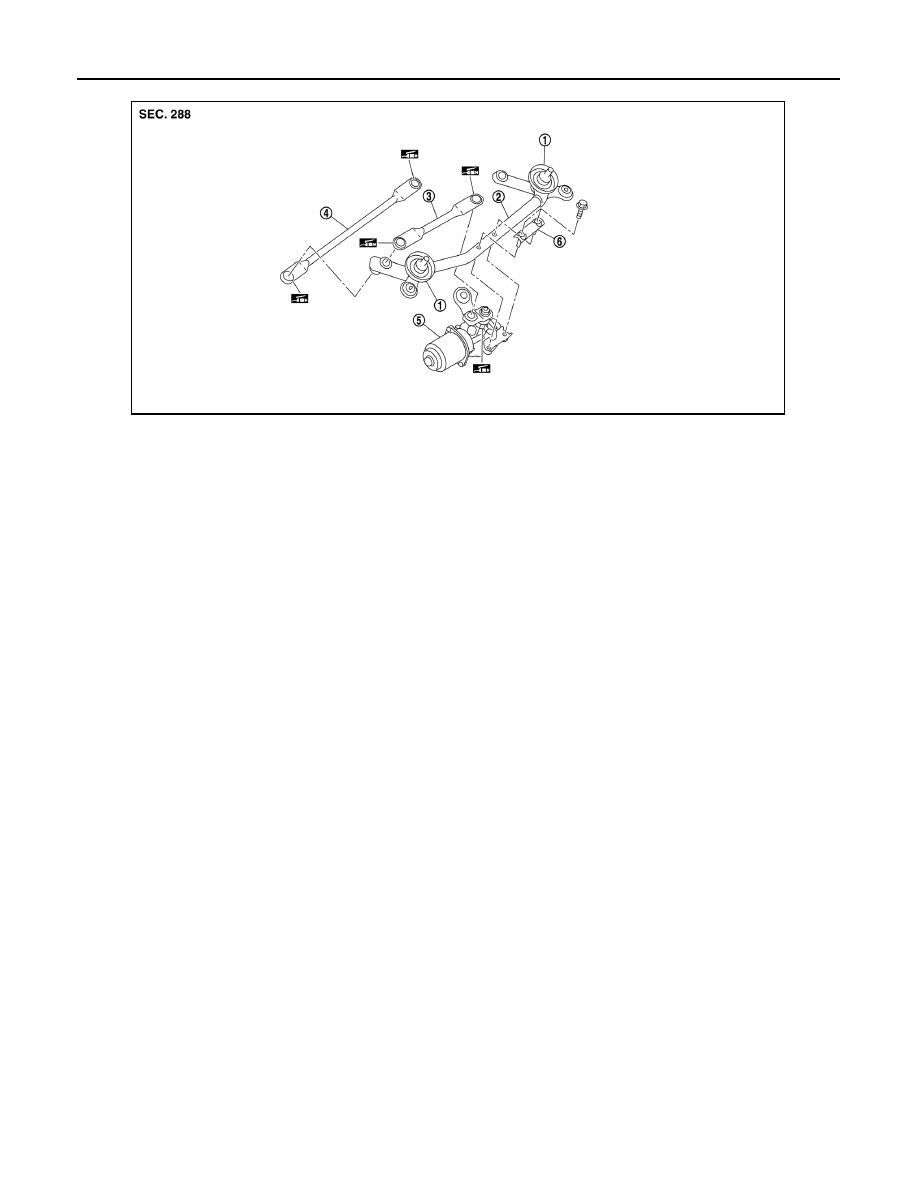

1.

Shaft seal

2.

Wiper frame

3.

Wiper linkage 1

4.

Wiper linkage 2

5.

Wiper motor assembly

6.

Wiper motor assembly bracket

AWLIA1894ZZ

WASHER TANK

WW-49

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

WW

N

O

P

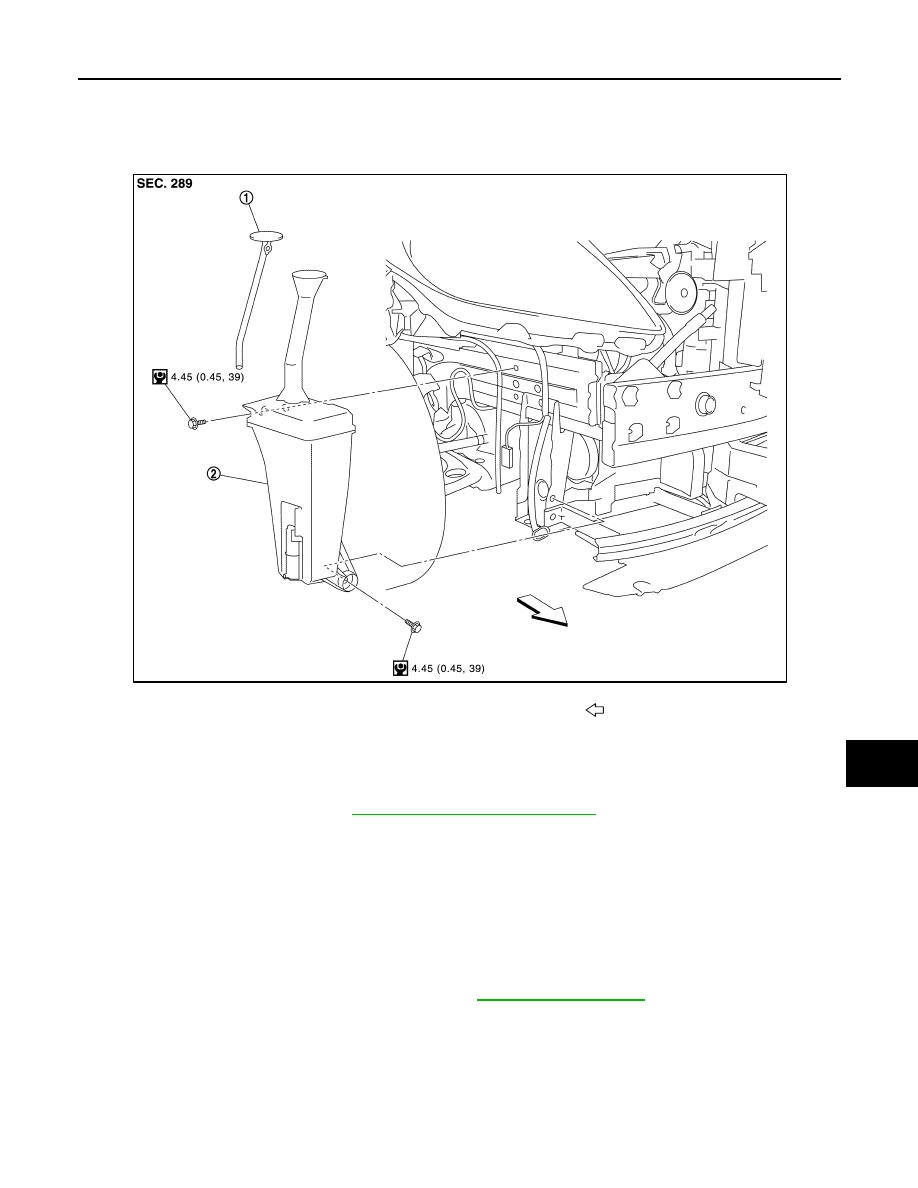

WASHER TANK

Exploded View

INFOID:0000000009269583

Removal and Installation

INFOID:0000000009269584

REMOVAL

1. Remove fender protector. Refer to

EXT-26, "Removal and Installation"

.

2. Disconnect the harness connector from the washer pump.
3. Remove front washer tube.
4. Remove washer tank assembly bolts.
5. Remove washer tank assembly from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• After installation, add water to the top of the washer tank inlet to check that no leaks exist.

• Fill washer tank with specified amount of fluid. Refer to

WW-56, "Specifications"

.

1.

Washer tank inlet cap

2.

Washer tank assembly

Front

JMLIA2076GB
