TRANSMITTER WAKE UP OPERATION

WT-19

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

TRANSMITTER WAKE UP OPERATION

Description

INFOID:0000000009267455

This procedure must be performed after replacement of a transmitter or the BCM, or rotation of the wheels.

Work Procedure

INFOID:0000000009267456

NOTE:

This procedure must be done after replacement of a TPMS transmitter or BCM. New replacement transmitters

are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 or Signal Tech II

Tool J-50190 before ID registration can be performed. Use the following procedure when using the Transmitter

Activation Tool J-45295.

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

1. Turn the ignition switch ON.

NOTE:

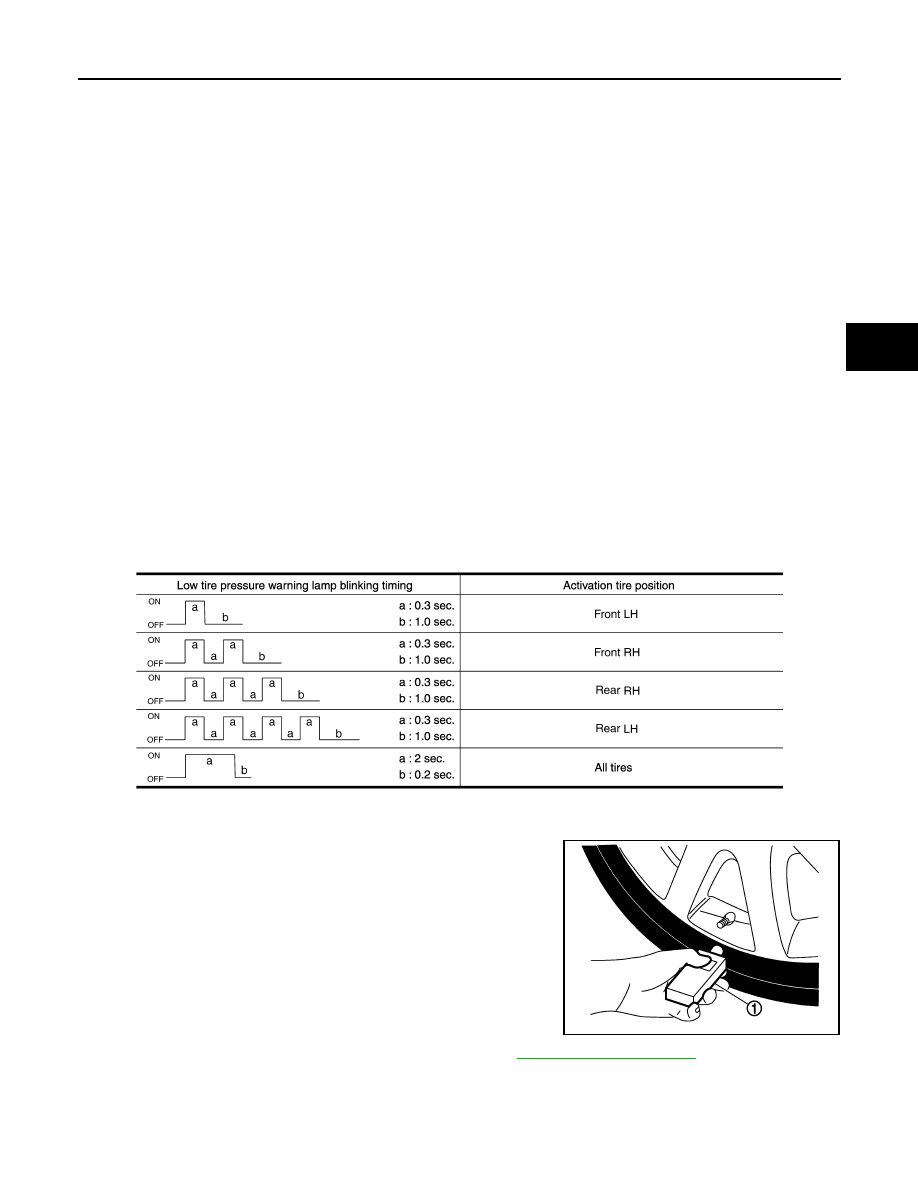

The position of an inactive transmitter can be identified by checking the blinking timing of the low tire pres-

sure warning lamp.

2. Place transmitter activation tool (J-45295) (1) against side of tire

at location closest to transmitter.

3. Press and hold transmitter activation tool button until indicator

lamp turns OFF (approximately 5 seconds).

NOTE:

Perform wake-up procedure starting from front left wheel, then

repeat procedure for front right wheel, rear right wheel, and rear

left wheel.

4. Check that turn signal lamps blink twice when transmitter wake-

up procedure for all wheels is completed.

5. Check that low tire pressure warning lamp turns OFF after trans-

mitter wake-up procedure is completed for all wheels.

6. Perform the transmitter ID registration procedure. Refer to

WT-20, "Work Procedure"

.

JPEIC0089GB

NNEIC0020ZZ

WT-20

< BASIC INSPECTION >

ID REGISTRATION PROCEDURE

ID REGISTRATION PROCEDURE

Description

INFOID:0000000009267457

This procedure must be performed after replacing wheels, transmitters or the BCM, or rotating wheels.

Work Procedure

INFOID:0000000009267458

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

WITH TRANSMITTER ACTIVATION TOOL

NOTE:

This procedure must be done after replacement of a TPMS transmitter or BCM. New replacement transmitters

are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 or Signal Tech II

Tool J-50190 before ID registration can be performed. Use the following procedure when using the Transmitter

Activation Tool J-45295.

With CONSULT.

1. Turn the ignition switch ON.

2. On “WORK SUPPORT” select “ID REGIST.”

3. Select Start on “ID REGIST” screen.

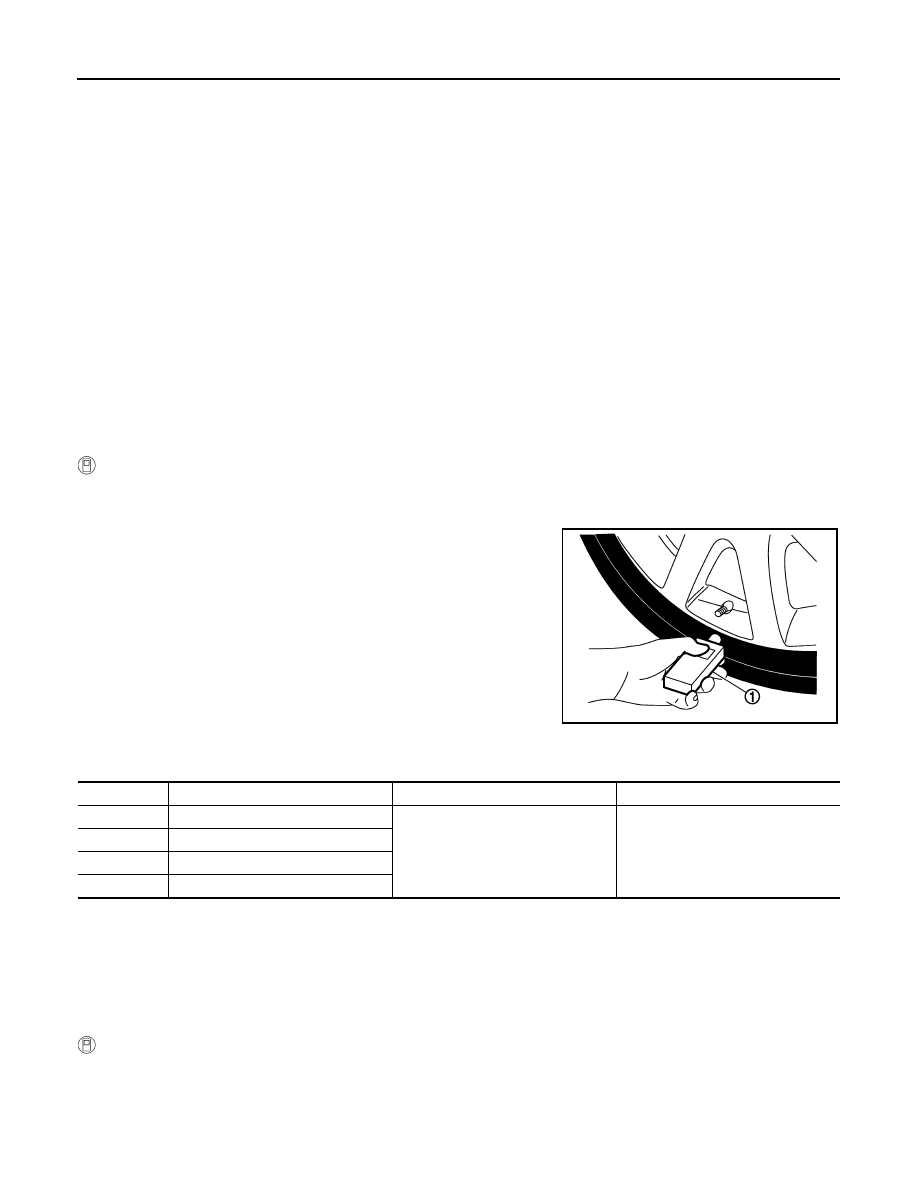

4. Place transmitter activation tool (J-45295) (1) against side of tire

at location closest to transmitter.

5. Press and hold transmitter activation tool button until indicator

lamp turns OFF (approximately 5 seconds).

NOTE:

Perform ID registration procedure starting from front left wheel,

then repeat procedure for front right wheel, rear right wheel, and

rear left wheel.

6. When ID registration is complete, check the following pattern at each wheel.

7. After the ID registration procedure for all wheels is complete, press “End” to finish ID registration, then

check that ID registration for all wheels is complete.

WITHOUT TRANSMITTER ACTIVATION TOOL

NOTE:

This procedure must be done after replacement of a TPMS transmitter or BCM. New replacement transmitters

are provided "asleep" and must first be "woken up" using Transmitter Activation Tool J-45295 or Signal Tech II

Tool J-50190 before ID registration can be performed.

With CONSULT.

1. Turn the ignition switch ON.

2. On “WORK SUPPORT” select “ID REGIST.”

3. Select Start on “ID REGIST” screen.

4. Adjust the tire pressure for all wheels to match the list below.

NNEIC0020ZZ

Sequence

ID registration position

Turn signal lamp

CONSULT

1

Front  LH

2 blinks

“Yet (red)”

↓

“Done (green)”

2

Front  RH

3

Rear  RH

4

Rear  LH

ID REGISTRATION PROCEDURE

WT-21

< BASIC INSPECTION >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

5. Drive the vehicle at a speed greater than 40 km/h (25 MPH) for 3 minutes or more.

6. After ID registration for all wheels is complete, press “End” to finish ID registration.

7. Adjust the tire pressures for all wheels to the specified value. Refer to

WT-45, "Tire Air Pressure"

.

Tire position

Tire pressure kPa (kg/cm

2

, psi)

Front LH

240 (2.4, 35)

Front RH

220 (2.2, 32)

Rear RH

200 (2.0, 29)

Rear LH

180 (1.8, 26)

ID registration position

CONSULT

Front LH

“Yet (red)”

↓

“Done (green)”

Front RH

Rear RH

Rear LH

WT-22

< DTC/CIRCUIT DIAGNOSIS >

C1704, C1705, C1706, C1707 LOW TIRE PRESSURE

DTC/CIRCUIT DIAGNOSIS

C1704, C1705, C1706, C1707 LOW TIRE PRESSURE

DTC Logic

INFOID:0000000009267459

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PERFORM SELF DIAGNOSTIC RESULT

 With CONSULT

1. Turn the ignition switch ON.

2. Check the tire pressure for all wheels and adjust to the specified value. Refer to

WT-45, "Tire Air Pres-

sure"

.

3. Perform “SELF DIAGNOSTIC RESULT”.
Is DTC “C1704”, “C1705”, “C1706”, or “C1707” detected?

YES

>> Proceed to

WT-22, "Diagnosis Procedure"

.

NO

>> Inspection End.

Diagnosis Procedure

INFOID:0000000009267460

1.

CHECK DATA MONITOR

 With CONSULT

1. Drive for 3 minutes at a speed of 40 km/h (25 MPH) or more, then drive normally for 10 minutes.

2. Stop the vehicle.

3. On “DATA MONITOR” select “AIR PRESS FL”, “AIR PRESS FR”, “AIR PRESS RR” and “AIR PRESS RL”.

4. Within 5 minutes after vehicle stopped, check that the tire pressures are within specification. Refer to

WT-

45, "Tire Air Pressure"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace error-detected parts.

DTC

Display item

Malfunction detected condition

Possible causes

C1704

LOW PRESSURE FL

Front LH tire pressure drops to 182.7 kPa (1.9 kg/cm

2

, 26 psi) or less.

Low tire pressure

C1705

LOW PRESSURE FR

Front RH tire pressure drops to 182.7 kPa (1.9 kg/cm

2

, 26 psi) or less.

C1706

LOW PRESSURE RR

Rear RH tire pressure drops to 182.7 kPa (1.9 kg/cm

2

, 26 psi) or less.

C1707

LOW PRESSURE RL

Rear LH tire pressure drops to 182.7 kPa (1.9 kg/cm

2

, 26 psi) or less.

Monitor item

Displayed value

AIR PRESS FL

Approximately equal to the indication on tire gauge value for front LH tire

AIR PRESS FR

Approximately equal to the indication on tire gauge value for front RH tire

AIR PRESS RR

Approximately equal to the indication on tire gauge value for rear RH tire

AIR PRESS RL

Approximately equal to the indication on tire gauge value for rear LH tire
