TM-430

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

CVT SHIFT SELECTOR

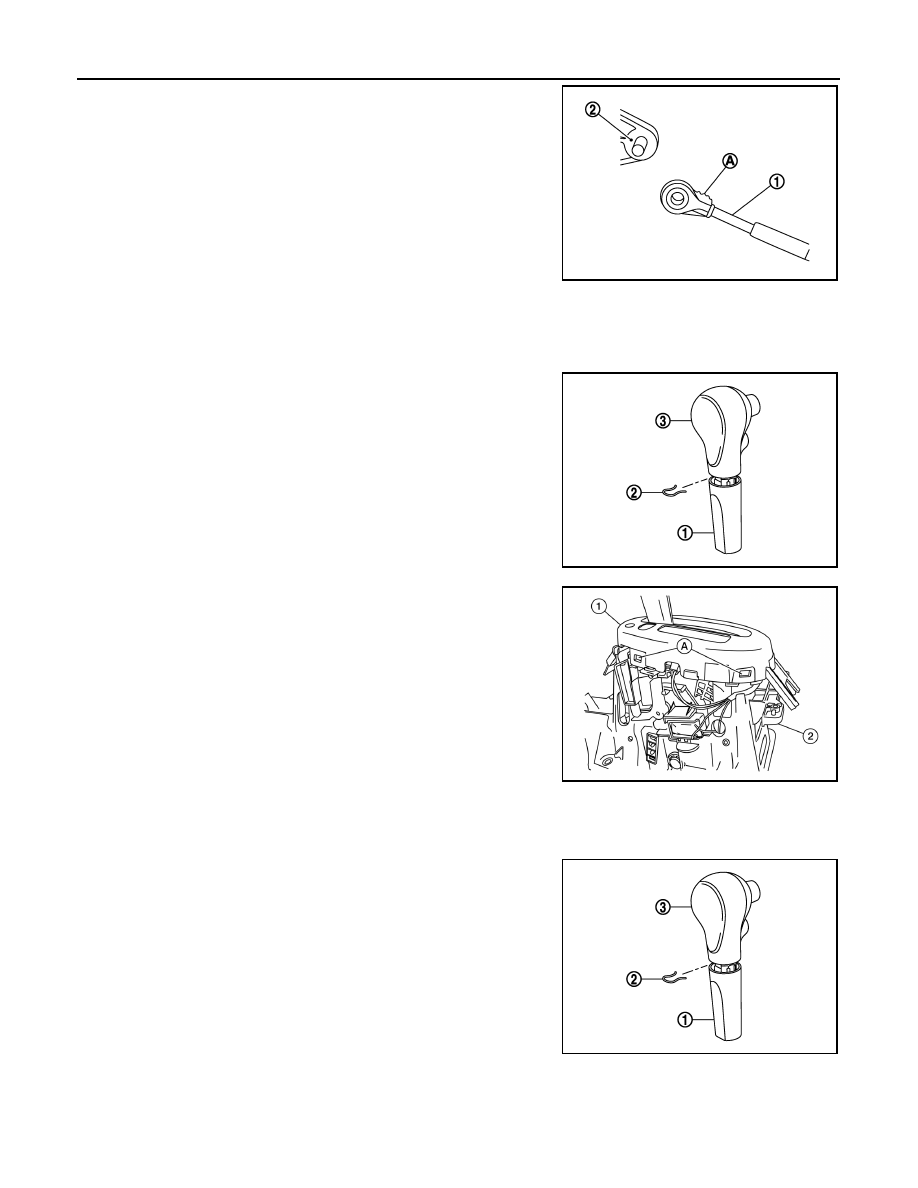

• When connecting the control cable (1) to the CVT shift selector

assembly (2), face the grooved surface of the rib (A) up and insert

the control cable until it stops.

Disassembly and Assembly

INFOID:0000000009268243

DISASSEMBLY

1. Slide the shift selector handle cover (1) down.

CAUTION:

Do not damage the shift selector handle cover.

2. Pull out the lock pin (2).
3. Pull the shift selector handle (3) and shift selector handle cover

upward to remove.

4. Remove the position lamp.

5. Disengage the hooks (A) (4 locations), and lift up the position

indication panel (1) to separate it from the CVT shift selector

assembly (2).

CAUTION:

Do not damage the CVT shift selector assembly.

ASSEMBLY

Assembly is in the reverse order of disassembly.

• Follow the procedure below to install the shift selector handle.

1. Install the lock pin (2) onto the shift selector handle (3).

2. Install the shift selector handle cover (1) onto the shift selector

handle.

3. Press the shift selector handle onto the shift selector until it

clicks.

CAUTION:

• When pressing the shift selector handle onto the shift

selector, do not press the shift selector handle button.

• Do not strike the shift selector handle to install it.

Inspection and Adjustment

INFOID:0000000009268244

INSPECTION

JSDIA1624ZZ

JSDIA1796ZZ

ALDIA0264ZZ

JSDIA1796ZZ

CVT SHIFT SELECTOR

TM-431

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

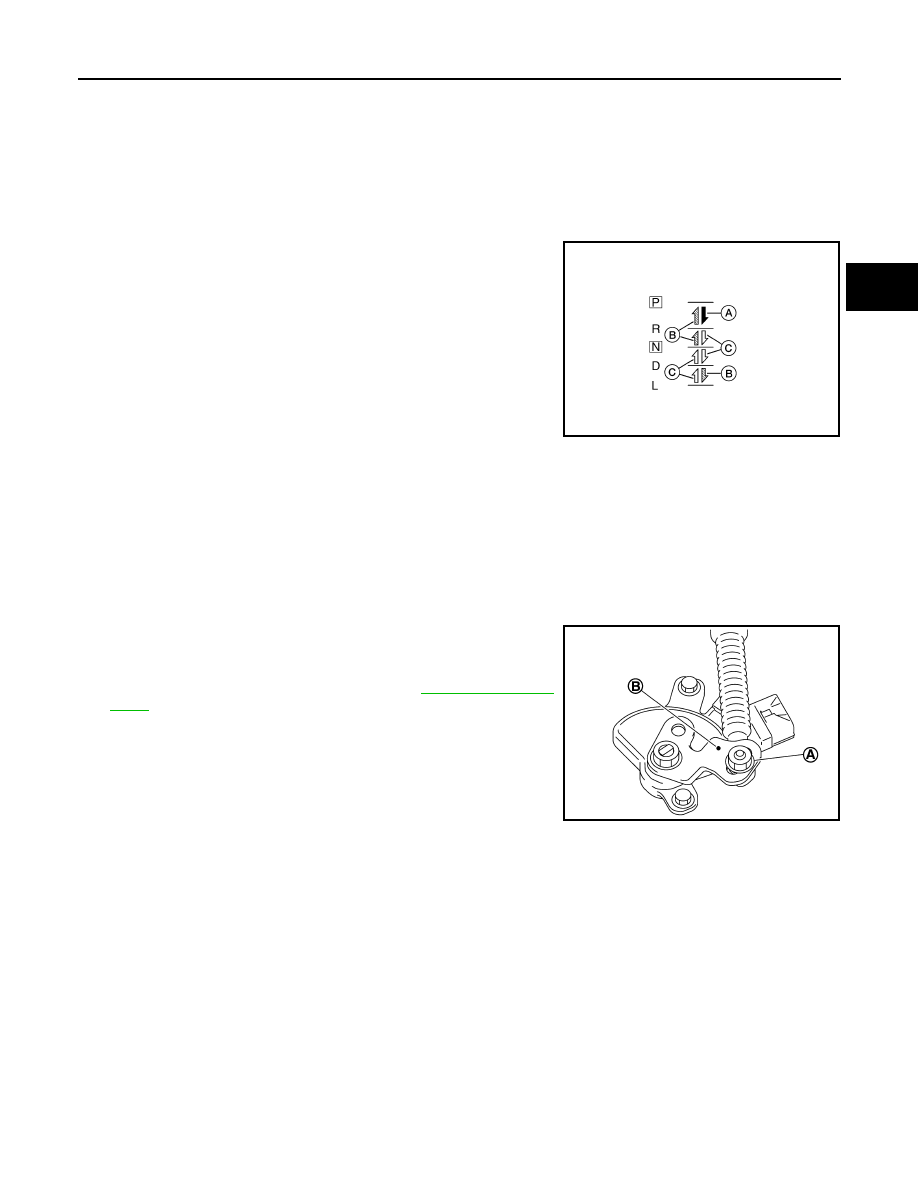

1. Turn ON the ignition switch with the shift selector in the "P" position.
2. Press the shift selector handle button with the brake pedal depressed, and confirm that the shift selector

can be moved from the "P" position. Also confirm that shift selector will not move from the "P" position

without depressing the brake pedal.

3. Move the shift selector and check for “excessive effort,” “sticking,” “noise” or “rattle”.
4. Confirm that shift selector stops at each position with the feel of engagement when it is moved through all

the positions. Check whether or not the actual position the shift selector is in matches the position shown

by the transaxle body.

5. The method of operating the shift selector to individual positions

correctly should be as shown.

• (A): Press shift selector button to operate shift selector, while

depressing the brake pedal.

• (B): Press shift selector button to operate shift selector.

• (C): Shift selector can be operated without pressing shift

selector button.

6. When the shift selector handle button is pressed without apply-

ing forward/backward force to the shift selector at “P”, “R”, “N”

and “D” positions, there should be no “sticking” of the button.

7. Confirm the back-up lamps illuminate only when shift selector is

placed in the “R” position. Confirm the back-up lamps do not illu-

minate when the shift selector is pushed toward the “R” position side when shift selector is in the “P” or “N”

position.

8. Check that the engine can be started only when the shift selector is in the “P” and “N” positions.
9. Check that the transaxle is locked when the shift selector is in the "P" position.

ADJUSTMENT

1. Move the shift selector to the “P” position.

CAUTION:

Rotate the wheels at least a quarter turn and be certain the transaxle is locked in the "P" position.

2. Remove nut (A) and set manual lever (B) to the “P” position.

CAUTION:

Do not apply force to the manual lever.

3. Tighten nuts to the specified torque. Refer to

TM-432, "Exploded

View"

.

CAUTION:

Do not move the manual lever when tightening.

WCIA0620E

JSDIA1875ZZ

TM-432

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

CONTROL CABLE

CONTROL CABLE

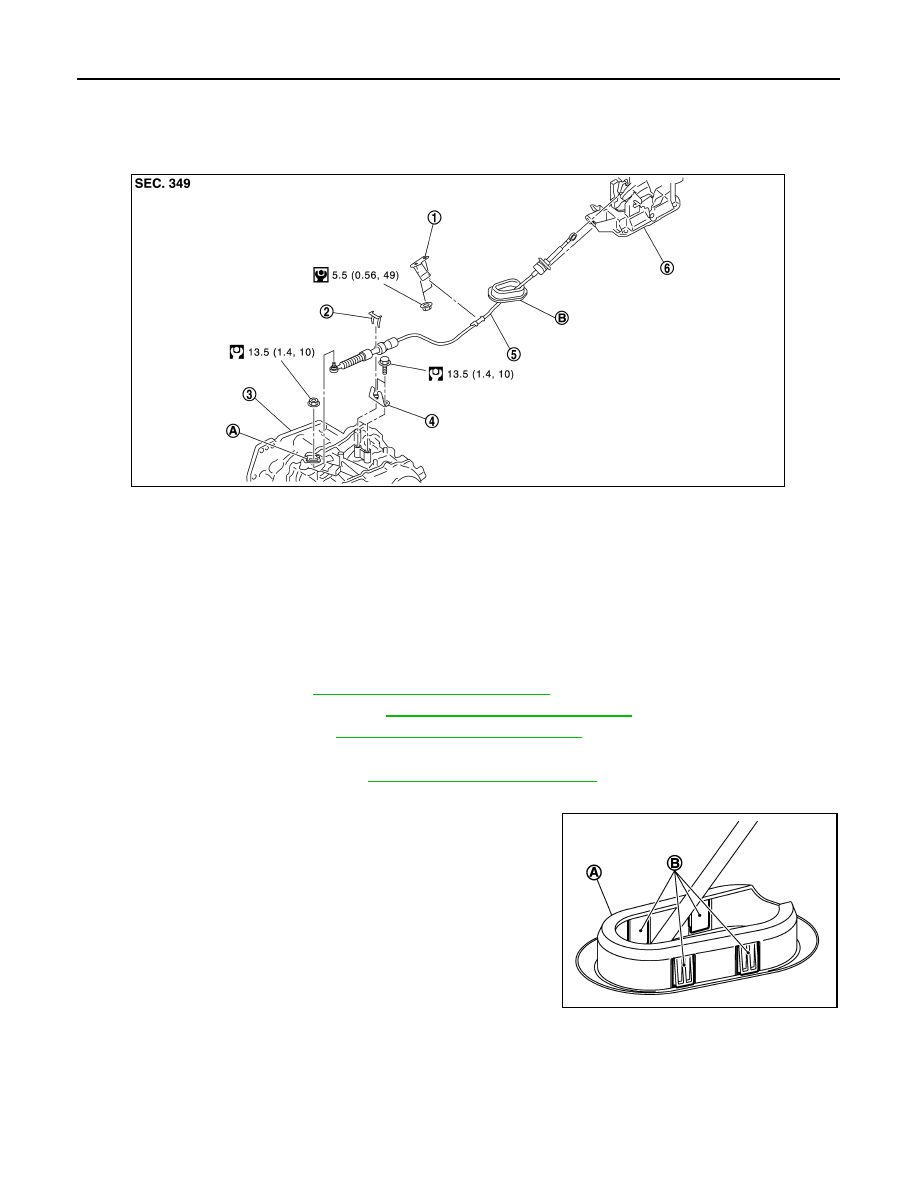

Exploded View

INFOID:0000000009268245

Removal and Installation

INFOID:0000000009268246

CAUTION:

Always apply the parking brake before performing removal and installation.

REMOVAL

1. Remove the battery. Refer to

PG-63, "Removal and Installation"

.

2. Remove the TCM and bracket. Refer to

TM-437, "Removal and Installation"

.

3. Remove the IPDM E/R. Refer to

PCS-56, "Removal and Installation"

.

4. Remove the battery tray and bracket.
5. Remove the center console. Refer to

IP-23, "Removal and Installation"

.

6. Remove the control cable from the CVT shift selector assembly.
7. Disengage the pawls (B) of the grommet (A), and pull downward

to remove.

8. Remove the control cable nut from the manual lever.

1.

Bracket B

2.

Lock plate

3.

Transaxle assembly

4.

Bracket A

5.

Control cable

6.

CVT shift selector assembly

A: Manual lever

B: Grommet

JSDIA1921GB

JSDIA1809ZZ

CONTROL CABLE

TM-433

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

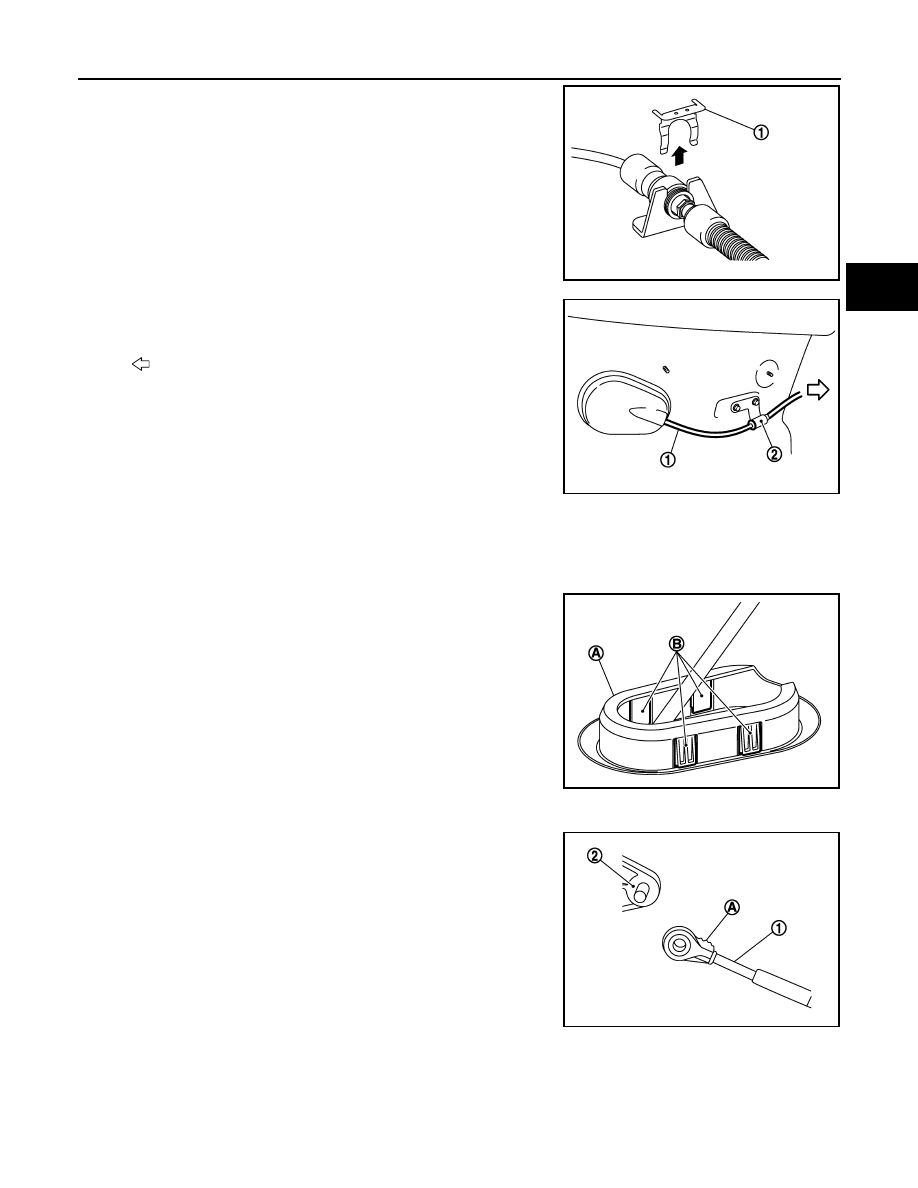

9. Remove the lock plate (1).

10. Lift up the heat plate.
11. Remove the control cable (1) from the bracket (2).

12. Remove the control cable from the vehicle.
13. Remove bracket.

INSTALLATION

Installation is in the reverse order of removal.

• From below the vehicle, press the grommet (A) into place until the

pawls (B) make a click sound.

CAUTION:

Check that pulling down on the grommet does not disconnect

it.

• Pay attention to the following when connecting the control cable to the CVT shift selector.

1. When connecting the control cable (1) to the CVT shift selector

assembly (2), face the grooved surface of the rib (A) up and

insert the control cable until it stops.

JSDIA1812ZZ

Front

JPDIA0107ZZ

JSDIA1809ZZ

JSDIA1624ZZ
