Nissan Versa Sedan. Manual - part 880

TM-426

< PERIODIC MAINTENANCE >

[CVT: RE0F11A]

CVT FLUID

PERIODIC MAINTENANCE

CVT FLUID

Inspection

INFOID:0000000009268240

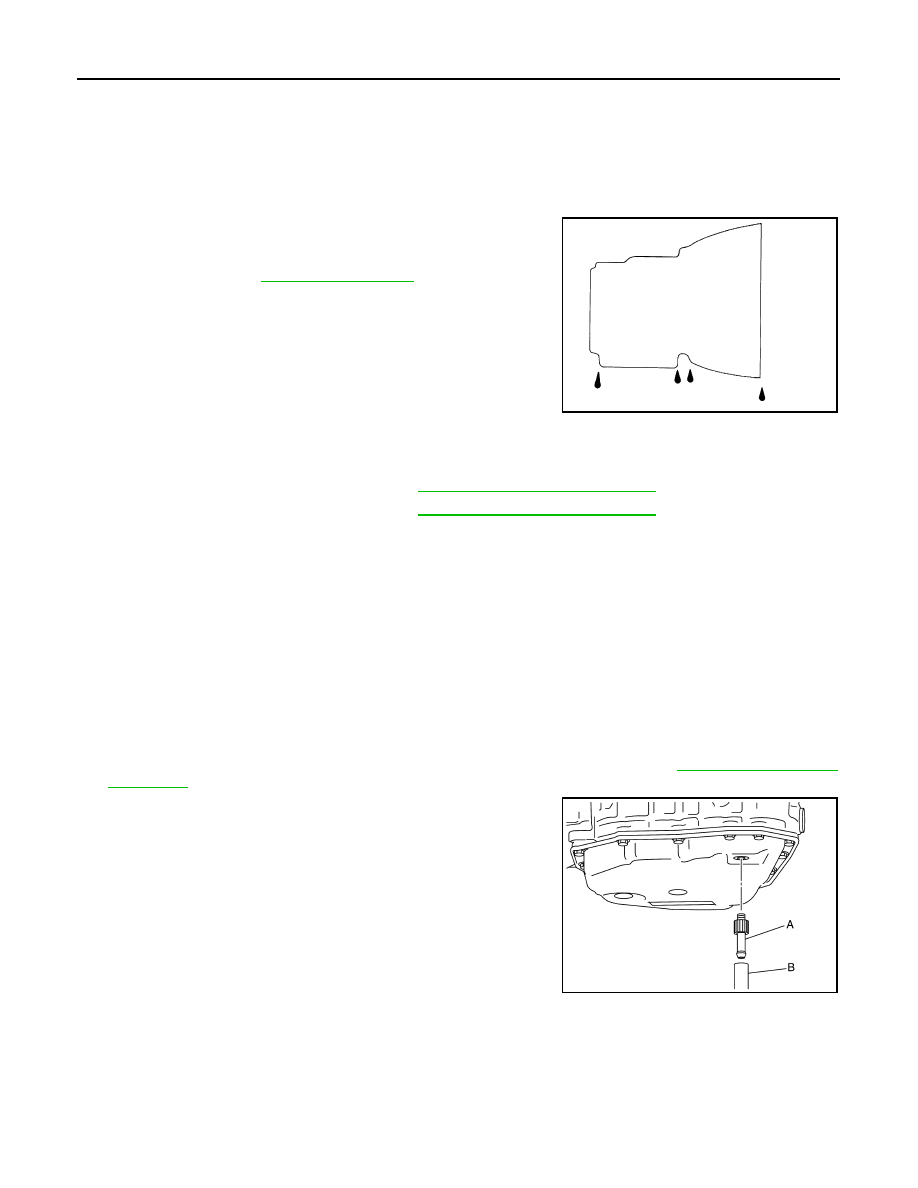

FLUID LEAKAGE

• Check transaxle surrounding area (oil seal and plug etc.)for fluid

leakage.

• If anything is found, repair or replace damaged parts and adjust

CVT fluid level. Refer to

TM-427, "Adjustment"

.

Replacement

INFOID:0000000009268117

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN

CVT Fluid NS-3 will damage the CVT, which is not covered by the (NISSAN new vehicle limited) war-

ranty.

• Always use shop paper. Never use shop cloth.

• Replace a drain plug gasket with new ones at the final stage of the operation when installing.

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.

• After replacement, always perform CVT fluid leakage check.
1. Select “Data Monitor” in “TRANSMISSION” using CONSULT.
2. Select “FLUID TEMP” and confirm that the CVT fluid temperature is 40

°C (104°F) or less.

3. Check that the selector lever is in the “P” position, then completely engage the parking brake.
4. Lift up the vehicle.
5. Remove the drain plug and overflow tube and drain the CVT fluid from the oil pan.

TM-440, "Removal and

Installation"

.

6. Install the charging pipe set (KV311039S0) (A) into the drain

hole.

CAUTION:

Tighten the charging pipe by hand.

7. Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging

pipe until it stops.

8. Fill approximately 3 liter (2-5/8 lmp qt) of the CVT fluid.
9. Remove the ATF changer hose and charging pipe, then install

the drain plug.

NOTE:

Perform this work quickly because CVT fluid leaks.

10. Lift down the vehicle.
11. Start the engine.
12. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it

to the “P” position.

NOTE:

SMA146B

CVT fluid

: Refer to

TM-456, "General Specification"

.

Fluid capacity

: Refer to

TM-456, "General Specification"

.

JSDIA1876ZZ

CVT FLUID

TM-427

< PERIODIC MAINTENANCE >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Hold the lever at each position for 5 seconds.

13. Check that the CONSULT “Data monitor” in “FLUID TEMP” is 35

°C (95°F) to 45°C (113°F).

14. Stop the engine.
15. Lift up the vehicle.
16. Remove the drain plug, and then drain CVT fluid from oil pan.
17. Repeat steps 6 to 16 (one time).
18. Install the overflow tube. Refer to

TM-440, "Removal and Installation"

.

CAUTION:

Be sure to tighten to the specified torque. If it is not tightened to the specified torque, the tube may

be damaged.

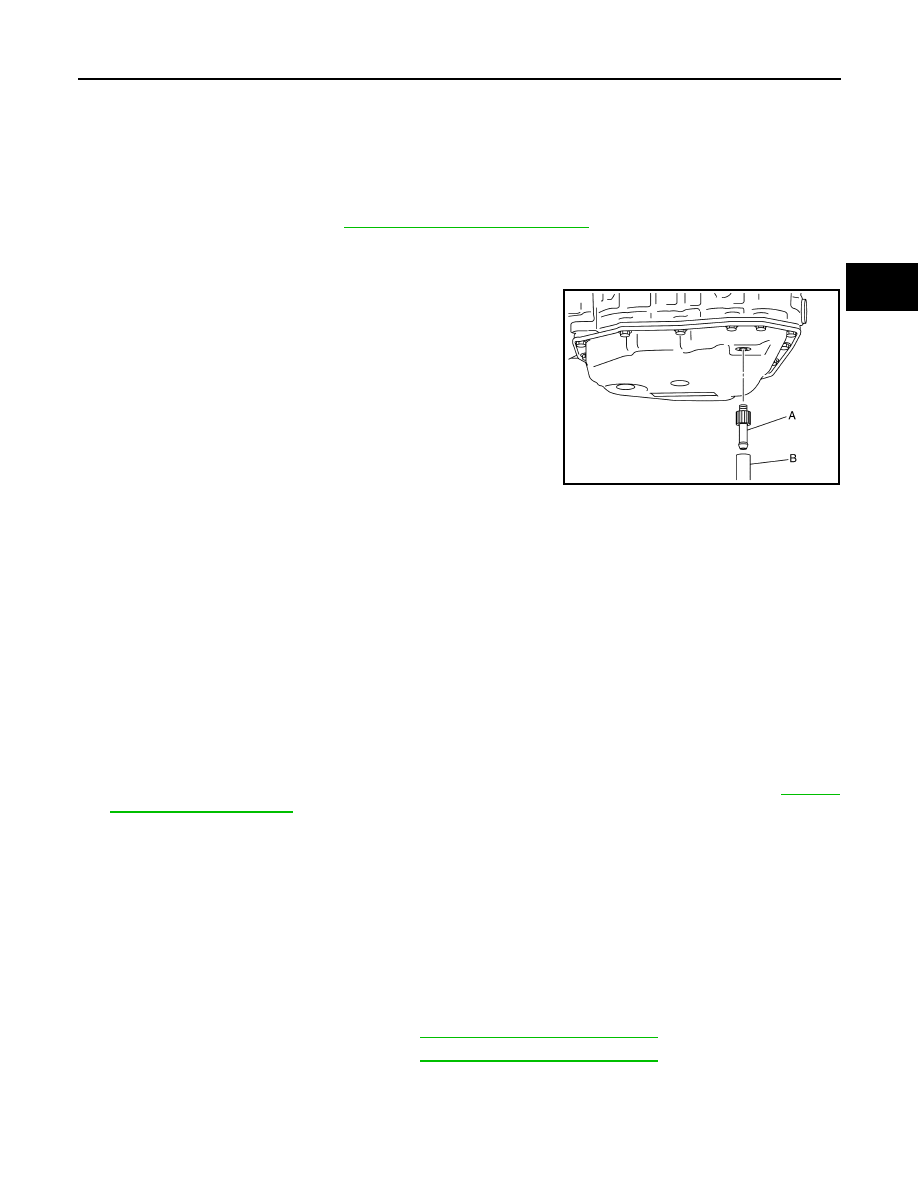

19. Install the charging pipe set (KV311039S0) (A) into the drain

hole.

CAUTION:

Tighten the charging pipe by hand.

20. Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging

pipe until it stops.

21. Fill approximately 3 liter (2-5/8 lmp qt) of the CVT fluid.
22. Remove the ATF changer hose and charging pipe, then install

the drain plug.

NOTE:

Perform this work quickly because CVT fluid leaks.

23. Lift down the vehicle.
24. Start the engine.
25. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it

to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

26. Check that the CONSULT “Data monitor” in “FLUID TEMP” is 35

°C (95°F) to 45°C (113°F).

27. Lift up the vehicle.
28. Remove the drain plug and confirm that the CVT fluid is drained from the overflow tube.

CAUTION:

Perform this work with the vehicle idling.

NOTE:

If the CVT fluid is not drained, refer to “Adjustment” and refill with the CVT fluid.

29. When the flow of CVT fluid slows to a drip, tighten the drain plug to the specified torque.

TM-440,

"Removal and Installation"

.

CAUTION:

Never reuse drain plug gasket.

30. Lift down the vehicle.
31. Select “Work Support” in “TRANSMISSION” using CONSULT.
32. Select “CONFORM CVTF DETERIORTN”.
33. Select “Erase”.
34. Stop the engine.

Adjustment

INFOID:0000000009268118

CAUTION:

• Use only Genuine NISSAN CVT Fluid NS-3. Using transmission fluid other than Genuine NISSAN

CVT Fluid NS-3 will damage the CVT, which is not covered by the (NISSAN new vehicle limited) war-

ranty.

JSDIA1876ZZ

CVT fluid

: Refer to

TM-456, "General Specification"

.

Fluid capacity

: Refer to

TM-456, "General Specification"

.

TM-428

< PERIODIC MAINTENANCE >

[CVT: RE0F11A]

CVT FLUID

• During adjustment of the CVT fluid level, check CONSULT so that the oil temperature may be main-

tained from 35 to 45

°C (95 to 113°F).

• Use caution when looking into the drain hole as there is a risk of dripping fluid entering the eye.
1. Check that the selector lever is in the “P” position, then completely engage the parking brake.
2. Start the engine.
3. Adjust the CVT fluid temperature to be approximately 40

°C (104°F).

NOTE:

The CVT fluid is largely affected by temperature. Therefore be sure to use CONSULT and check the

“FLUID TEMP” under “TRANSMISSION” in “Data Monitor” while adjusting.

4. While depressing the brake pedal, shift the selector lever to the entire position from “P” to “L”, and shift it

to the “P” position.

NOTE:

Hold the lever at each position for 5 seconds.

5. Lift up the vehicle.
6. Check that there is no CVT fluid leakage.
7. Remove the drain plug. Refer to

TM-440, "Removal and Installation"

.

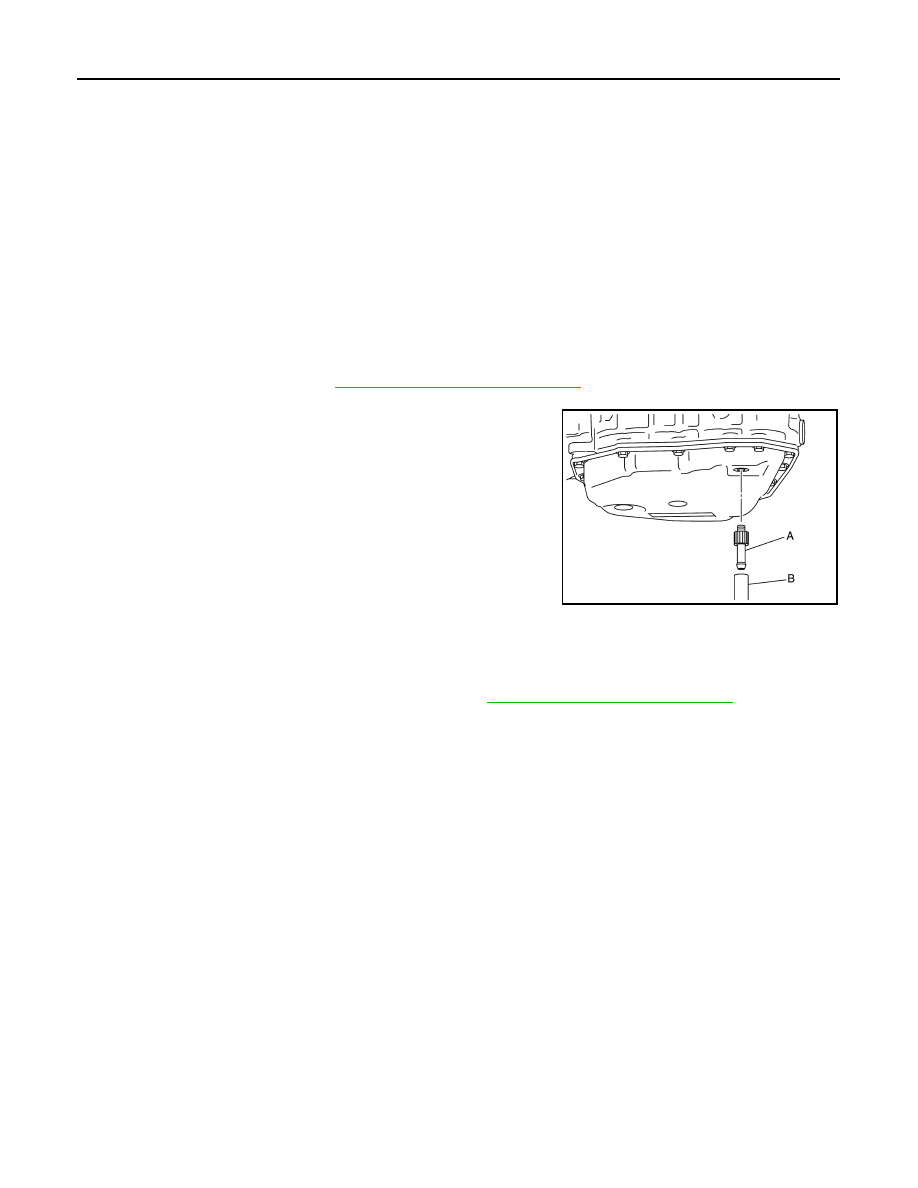

8. Install the charging pipe set (KV311039S0) (A) into the drain

plug hole.

CAUTION:

Tighten the charging pipe by hand.

9. Install the ATF changer hose (B) to the charging pipe.

CAUTION:

Press the ATF changer hose all the way onto the charging

pipe until it stops.

10. Fill approximately 0.5 liter (1/2 lmp qt) of the CVT fluid.
11. Remove the ATF changer hose from the charging pipe, and

check that the CVT fluid drains out from the charging pipe. If it

does not drain out, perform charging again.

CAUTION:

Perform this work with the vehicle idling.

12. When the flow of CVT fluid slows to a drip, remove the charging pipe from the oil pan.
13. Tighten the drain plug to the specified torque. Refer to

TM-440, "Removal and Installation"

.

CAUTION:

Never reuse drain plug gasket.

14. Lift down the vehicle.
15. Stop the engine.

JSDIA1876ZZ

CVT SHIFT SELECTOR

TM-429

< REMOVAL AND INSTALLATION >

[CVT: RE0F11A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL AND INSTALLATION

CVT SHIFT SELECTOR

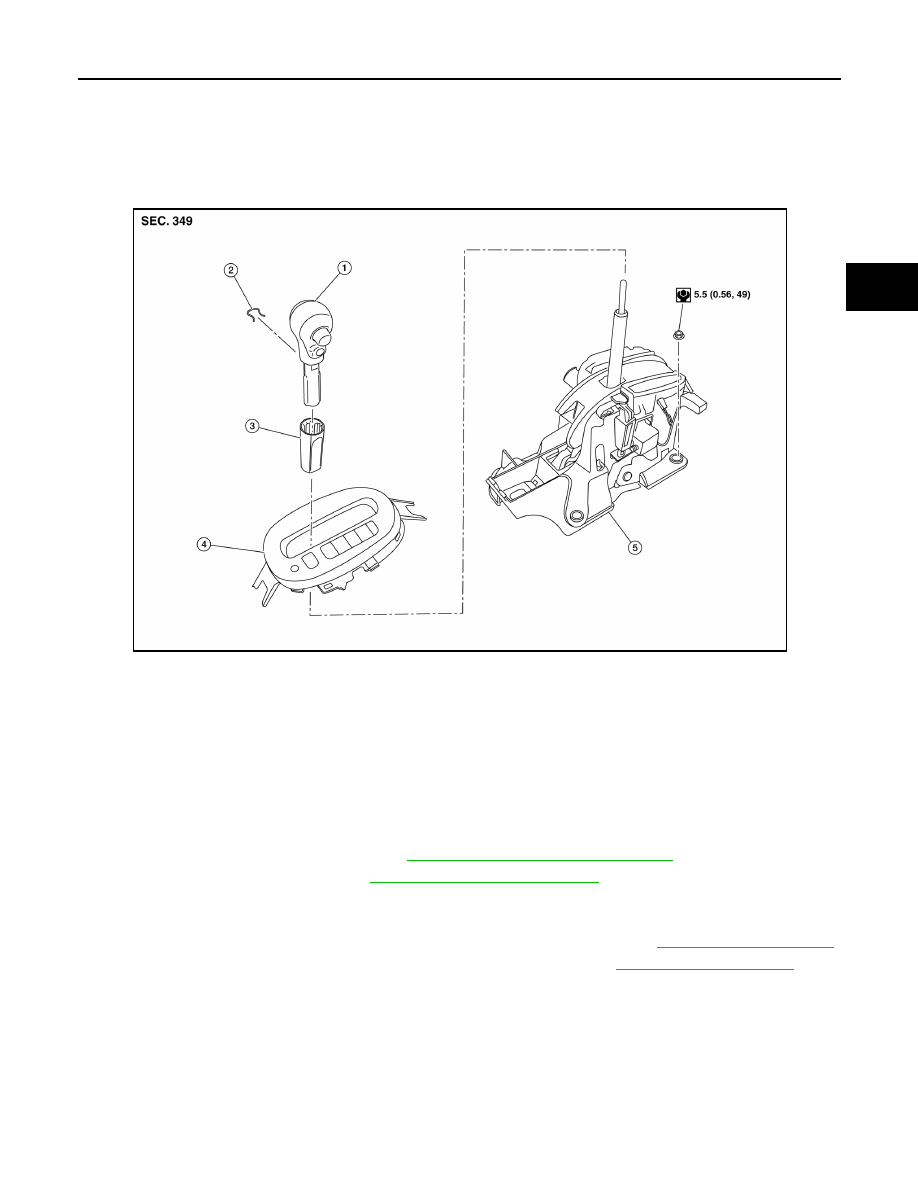

Exploded View

INFOID:0000000009268241

Removal and Installation

INFOID:0000000009268242

CAUTION:

Always apply the parking brake before performing removal and installation.

REMOVAL

1. Move the shift selector to the “N” position.
2. Remove the shift selector handle. Refer to

TM-430, "Disassembly and Assembly"

.

3. Remove the center console. Refer to

IP-23, "Removal and Installation"

.

4. Disconnect the harness connectors from CVT shift selector.
5. Move the shift selector to the “P” position.
6. Remove the key interlock cable from the CVT shift selector assembly. Refer to

TM-435, "Exploded View"

.

7. Remove the control cable from the CVT shift selector assembly. Refer to

TM-432, "Exploded View"

.

8. Remove the CVT shift selector assembly.

INSTALLATION

Installation is in the reverse order of removal.

1.

Shift selector handle

2.

Lock pin

3.

Shift selector handle cover

4.

Position indication panel

5.

CVT shift selector assembly

ALDIA0263GB
