< ECU DIAGNOSIS INFORMATION >
[4AT: RE4F03C]
TCM

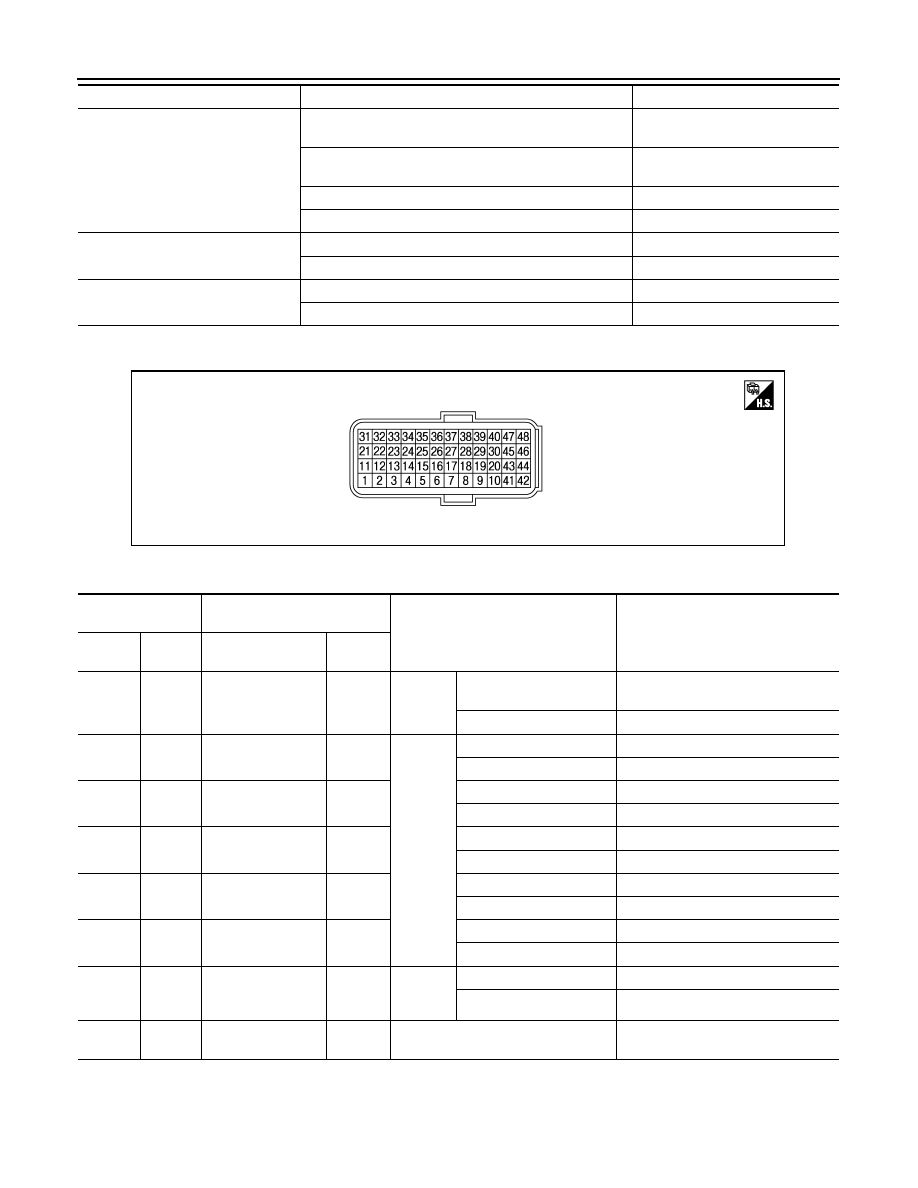

TERMINAL LAYOUT

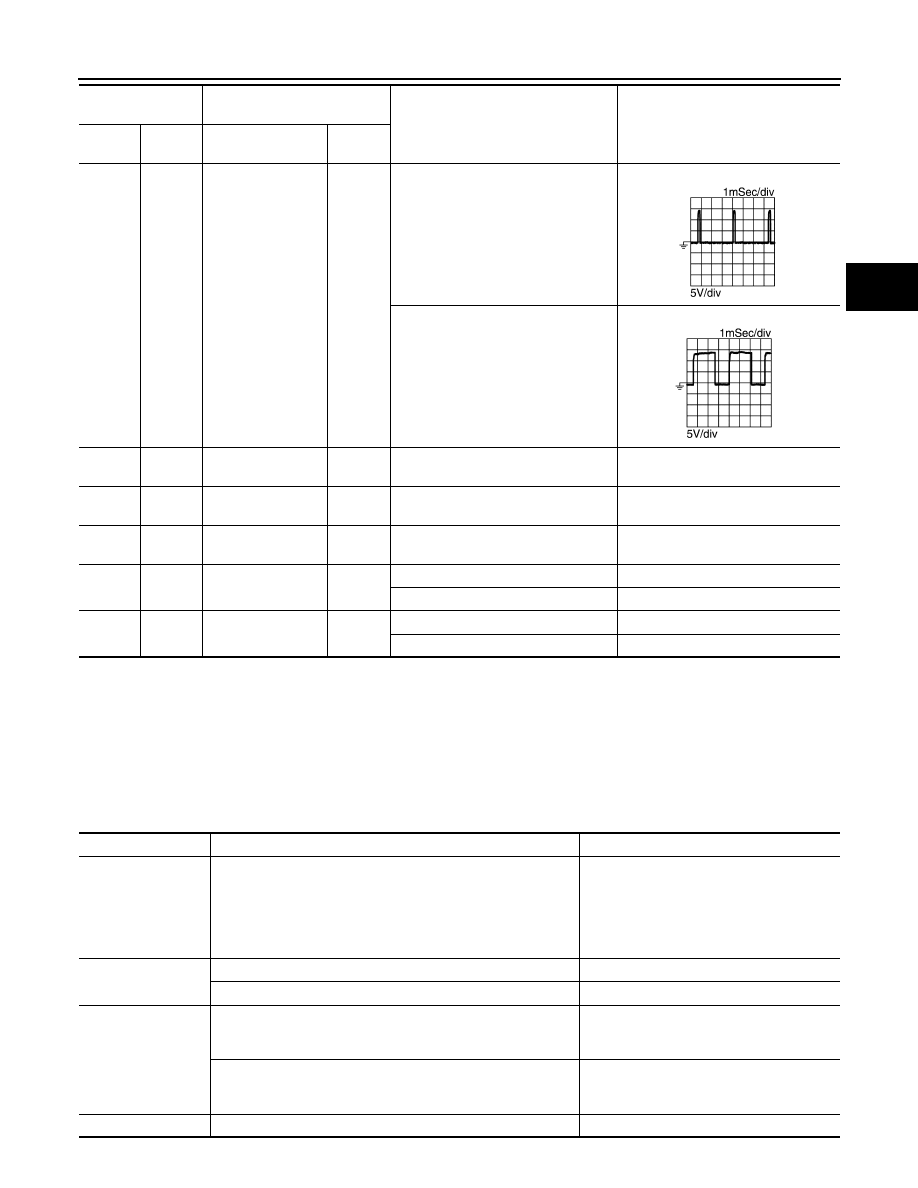

INPUT/OUTPUT SIGNAL STANDARD
SHIFT MODE
• Engine warming up
• TSC, VDC operations
1
• Engine cold
• TSC, VDC operations
2
ATF temperature: approx. 130
°C (266 °F)
3
Other than the above
0
LOCK-UP PATTERN
Lock-up is active
2
Other than the above
0
THROTTLE FAIL
When TCM receives unusual engine torque signal
On
Other than the above
Off
Item name
Condition
Value / Status (Approx.)
JSDIA1968ZZ

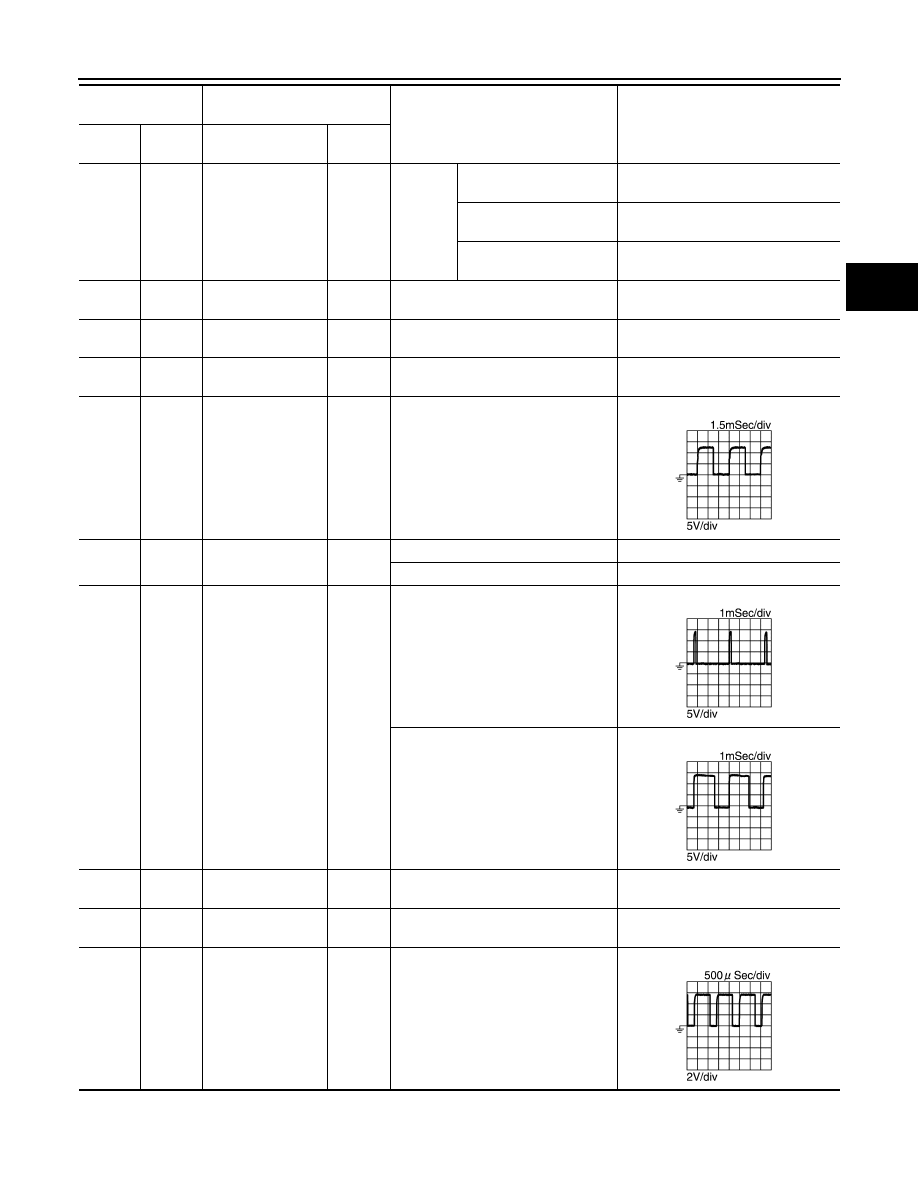

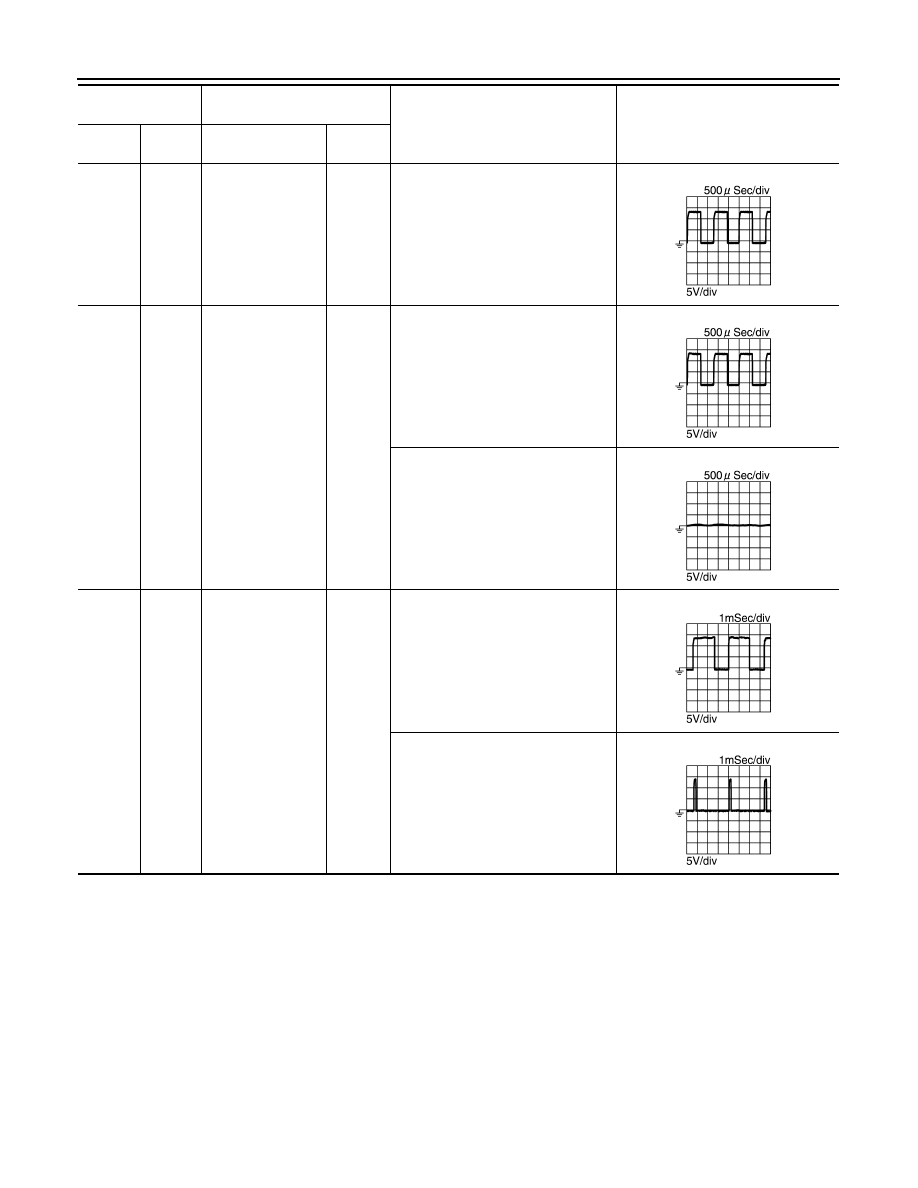

Terminal No.
(Wire color)
Conditions
Operation or operation conditions
Standard
+
−
Signal
Input/
Output
1
(L/R)
Ground
Select switch ON-
OFF solenoid valve
Output
Ignition
switch
ON
Selector lever: “P”, “N”
“D
1”
and “1” positions
10 – 16 V
Other than the above
Approx. 0 V
2
(W)
Ground
1 position switch
Input
Ignition
switch
ON
Selector lever: “1” position
10 – 16 V
Other than the above
Approx. 0 V
3
(R/B)
Ground
2 position switch
Input
Selector lever: “2” position
10 – 16 V
Other than the above
Approx. 0 V
4
(W/B)
Ground
D position switch
Input
Selector lever: “D” position
10 – 16 V
Other than the above
Approx. 0 V
5
(L/B)
Ground
N position switch
Input
Selector lever: “N” position
10 – 16 V
Other than the above
Approx. 0 V
6
(O)
Ground
R position switch
Input
Selector lever: “R” position
10 – 16 V
Other than the above
Approx. 0 V
7
(Y)
Ground
P position switch
Input
Ignition
switch
ON
Selector lever: “P” position
10 – 16 V
Other than the above
Approx. 0 V
11
(B)
Ground
Sensor ground
Input
Always
Approx. 0 V
