5TH MAIN GEAR ASSEMBLY

5TH MAIN GEAR ASSEMBLY

Removal and Installation

INFOID:0000000009267791

REMOVAL

1. Move the shift selector to the 3rd gear position.
2. Disconnect the shifter cable and the selector cable from shifter lever A and selector lever. Refer to

TM-23,

"Removal and Installation"

.

CAUTION:

Do not move shifter lever A and selector lever to disconnect each cable.

3. Drain gear oil. Refer to

TM-20, "Draining"

.

4. Remove fender protector (LH). Refer to

EXT-26, "Removal and Installation"

.

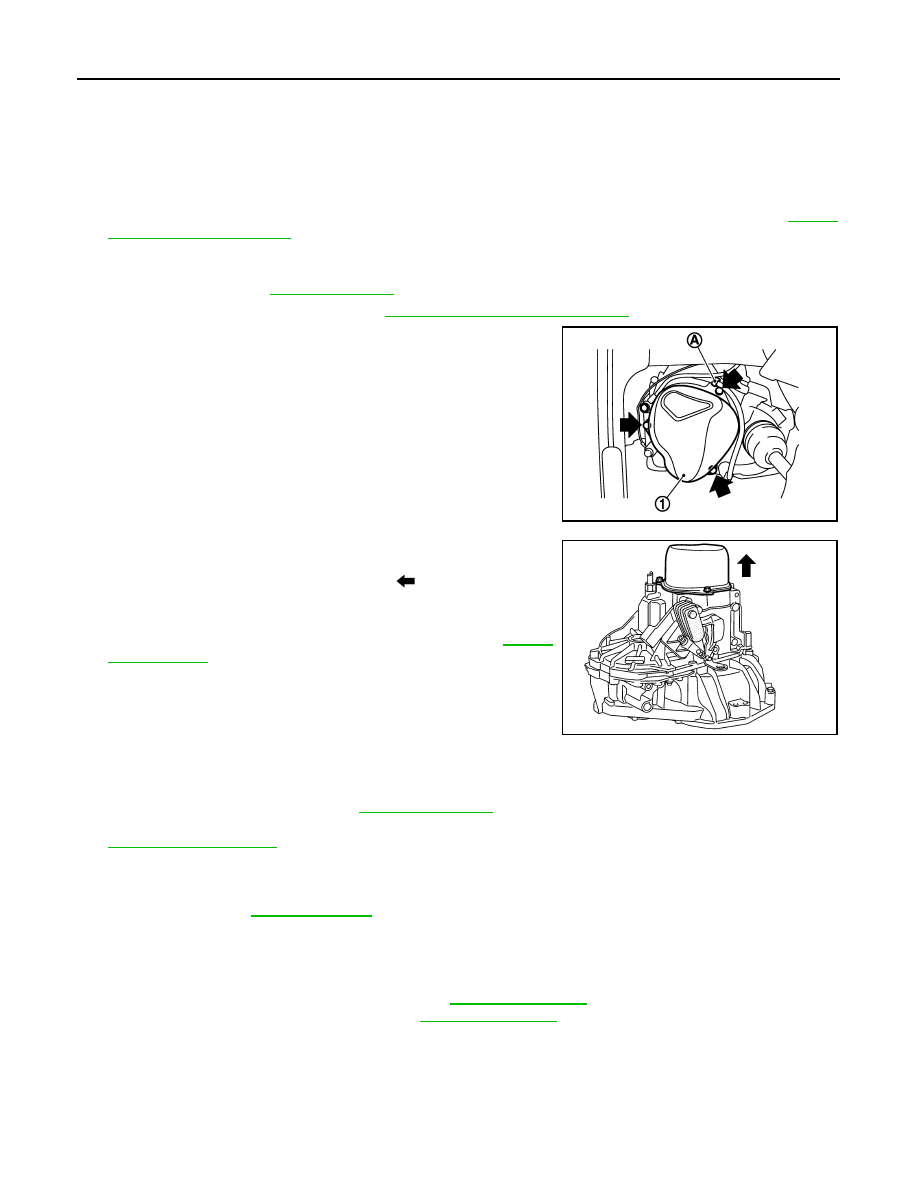

5. Remove the harness clamp (A) from rear housing (1).

6. Remove rear housing and O-ring.

CAUTION:

Remove in direction of input shaft (

) as shown. Rear

housing oil channel is inserted to input shaft center hole.

7. Remove 5th main gear assembly. Refer to step 5 through 8 of

“Disassembly of TRANSAXLE ASSEMBLY”. Refer to

TM-34,

"Disassembly"

.

INSTALLATION

Installation is in the reverse order of removal.

• Shift into 3rd with shifter lever to install the 5th main gear assembly, referring to Step 36 to 39 of “Assembly

of TRANSAXLE ASSEMBLY” Refer to

TM-40, "Assembly"

.

• Install O-ring and the rear housing to the transaxle case and tighten the bolts to the specified torque. Refer

to

TM-30, "Exploded View"

.

CAUTION:

• Do not reuse O-ring.

• Do not pinch O-ring when installing rear housing.

• Refill gear oil. Refer to

TM-20, "Refilling"

.

Inspection

INFOID:0000000009267792

INSPECTION AFTER INSTALLATION

• Check the operation of the control linkage. Refer to

TM-24, "Inspection"

.

• Check the oil level and for oil leakage. Refer to

TM-20, "Inspection"

.

JPDIC0734ZZ

SCIA1709J

TRANSAXLE ASSEMBLY

TM-27

< UNIT REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

UNIT REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

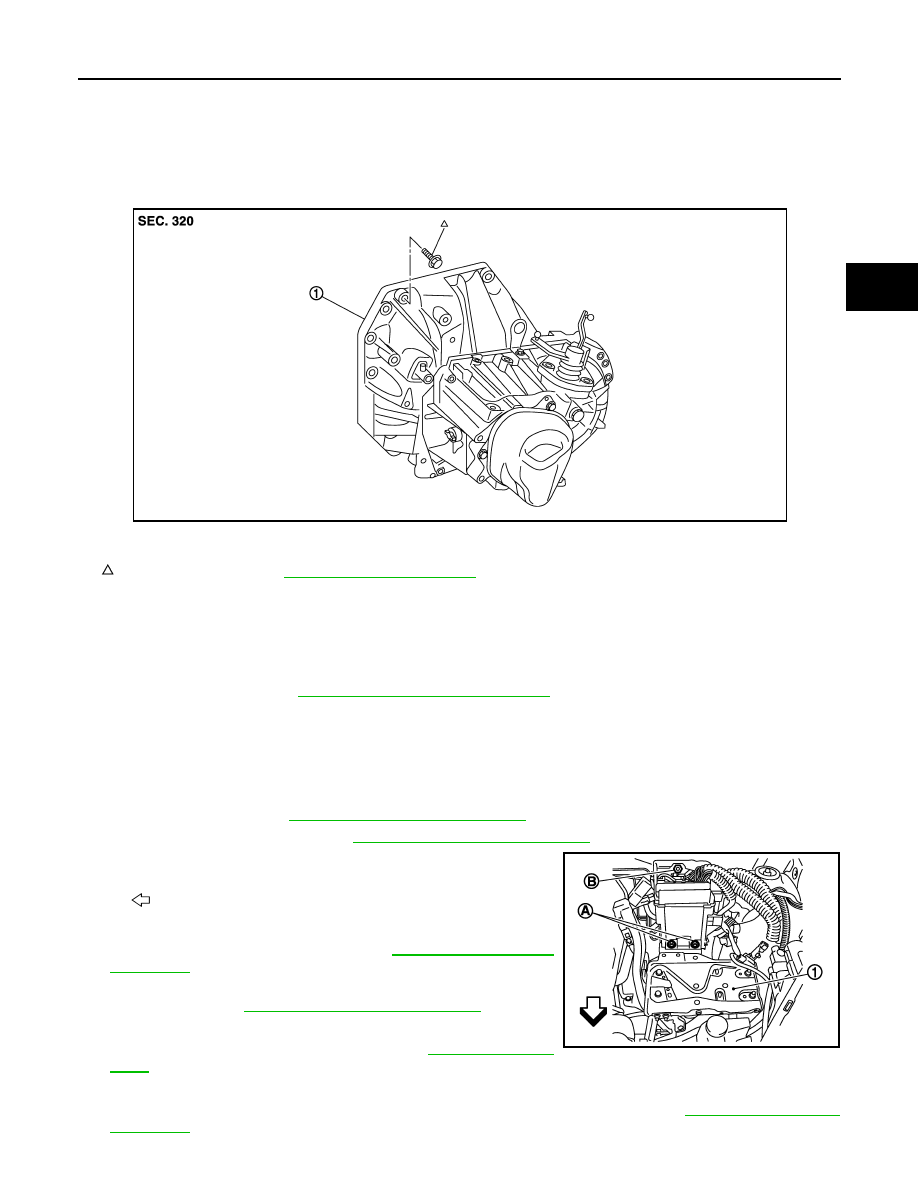

Exploded View

INFOID:0000000009267793

Removal and Installation

INFOID:0000000009267794

CAUTION:

Do not reuse CSC (concentric slave cylinder). CSC slides back to the original position every time tran-

saxle assembly is removed. Dust on the sliding parts may damage the seal of CSC and may cause

clutch fluid leakage. Refer to

CL-16, "Removal and Installation"

.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Move the shift selector to the neutral position.
2. Remove battery. Refer to

PG-63, "Removal and Installation"

.

3. Remove air cleaner case. Refer to

EM-25, "Removal and Installation"

.

4. Remove IPDM E/R bracket bolts (A) and nut (B).

5. Remove IPDM E/R bracket (1).
6. Remove air breather hose. Refer to

TM-25, "Removal and

Installation"

.

7. Disconnect selector cable and shifter cable from transaxle

assembly. Refer to

TM-23, "Removal and Installation"

.

8. Remove drive shaft heat insulator.
9. Remove crankshaft position sensor. Refer to

EM-94, "Exploded

View"

.

10. Remove clutch tube clip from engine mounting bracket (LH).
11. Remove clutch tube from CSC and then temporarily position it aside. Refer to

CL-14, "Removal and

Installation"

.

1.

Transaxle assembly

: Refer to "INSTALLATION" in

TM-27, "Removal and Installation"

 for the locations and tightening torque.

JPDIC0478ZZ

: Front

JPDIC0818ZZ

TM-28

< UNIT REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

TRANSAXLE ASSEMBLY

CAUTION:

• Keep painted surface on the body or other parts free of clutch fluid. If it spills, wipe up immedi-

ately and wash the affected area with water.

• Do not depress clutch pedal during removal procedure.

12. Remove fender protector (LH). Refer to

EXT-26, "Removal and Installation"

.

13. Disconnect ground cable.

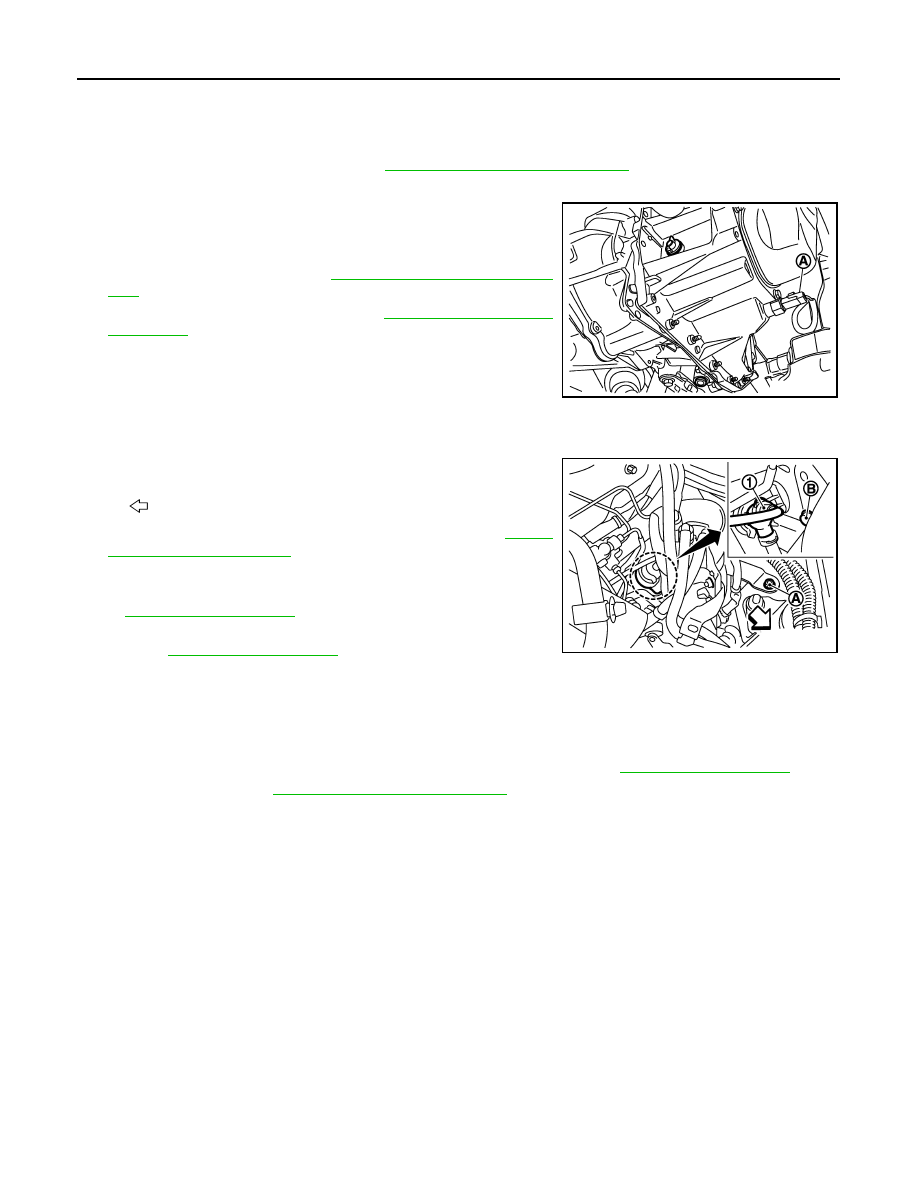

14. Disconnect harness connector (A) from position switch.
15. Remove the harness clamp from rear housing.
16. Remove the engine harness clamp and then position it aside.
17. Remove starter motor. Refer to

STR-31, "Removal and Installa-

tion"

.

18. Remove front drive shafts. Refer to

FAX-15, "Removal and

Installation"

.

19. Set a suitable jack to transaxle assembly and then set a suitable

jack to engine assembly.

CAUTION:

When setting a suitable jack, be careful that it does not con-

tact the position switch.

20. Remove engine mounting frame support (LH) bolts.
a. Remove bolt (A).

b. Release clutch damper (1) from bracket. Refer to

CL-14,

"Removal and Installation"

.

c.

Remove bolt (B).

d. Remove engine mounting bracket (LH) bolts from vehicle. Refer

to

EM-82, "Exploded View"

.

21. Remove rear engine mounting bracket and rear torque rod.

Refer to

EM-82, "Exploded View"

.

22. Remove transaxle assembly bolts and nuts.
23. Remove transaxle assembly from the engine.

CAUTION:

• Secure transaxle assembly to a suitable jack.

• The transaxle assembly must not interfere with the wire harnesses and clutch tube.

24. Remove engine mounting bracket (LH) from transaxle assembly. Refer to

EM-82, "Exploded View"

.

25. Remove CSC. Refer to

CL-16, "Removal and Installation"

.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Secure transaxle assembly to a suitable jack.

• The transaxle assembly must not interfere with the wire harnesses and clutch tube.

• When installing transaxle assembly, do not bring input shaft into contact with clutch cover.

• Bolt hole is not threaded on new clutch housing. Self-tapping bolt is used to attach lock plate to

clutch housing.

• Do not reuse self-tapping bolt.

: Front

JPDIC0733ZZ

JPDIC0819ZZ

TRANSAXLE ASSEMBLY

TM-29

< UNIT REMOVAL AND INSTALLATION >

[5MT: RS5F91R]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

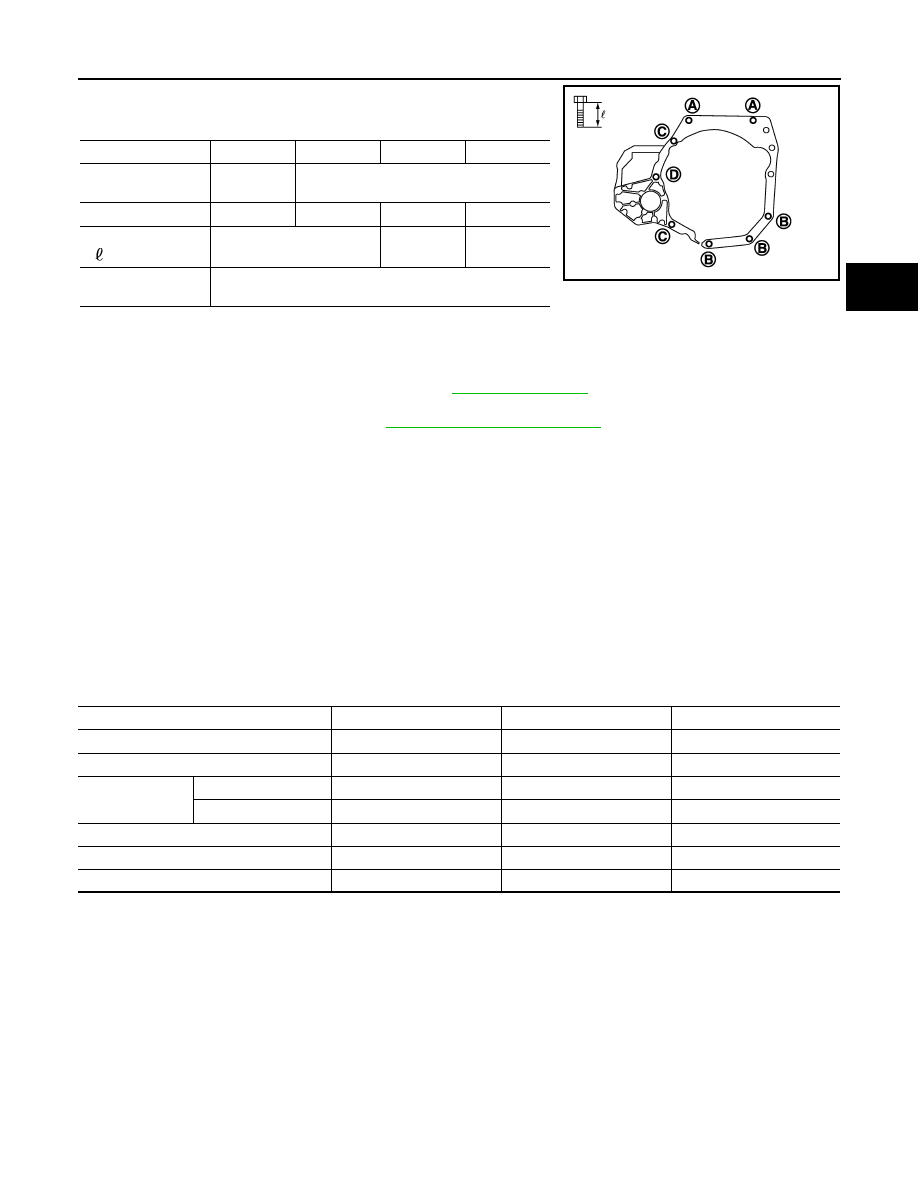

• Tighten transaxle assembly bolts to the specified torque. The illus-

tration is the view from the engine.

Inspection

INFOID:0000000009267795

INSPECTION AFTER INSTALLATION

• Check the operation of the control linkage. Refer to

TM-24, "Inspection"

.

• Before starting engine, check oil/fluid levels including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-12, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

• Start engine. With engine speed increased, check again for fuel leakage at connection points.

• Run engine to check for unusual noise and vibration.

NOTE:

If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide

may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop

after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to spec-

ified level, if necessary.

• Summary of the inspection items:

*Power steering fluid, brake fluid, etc.

Bolt symbol

A

B

C

D

Insertion direction

Transaxle to

engine

Engine to transaxle

Quantity

2

3

2

1

Bolt length
( )  mm  (in)

55 (2.17)

49 (1.93)

69 (2.72)

Tightening torque
 N·m (kg-m, ft-lb)

48.0 (4.9, 35)

JPDIC0813ZZ

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission/
transaxle fluid

A/T and CVT Models

Leakage

Level/Leakage

Leakage

M/T Models

Level/Leakage

Leakage

Level/Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gas

—

Leakage

—
