Nissan Versa Sedan. Manual - part 559

OIL FILTER

LU-11

< PERIODIC MAINTENANCE >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

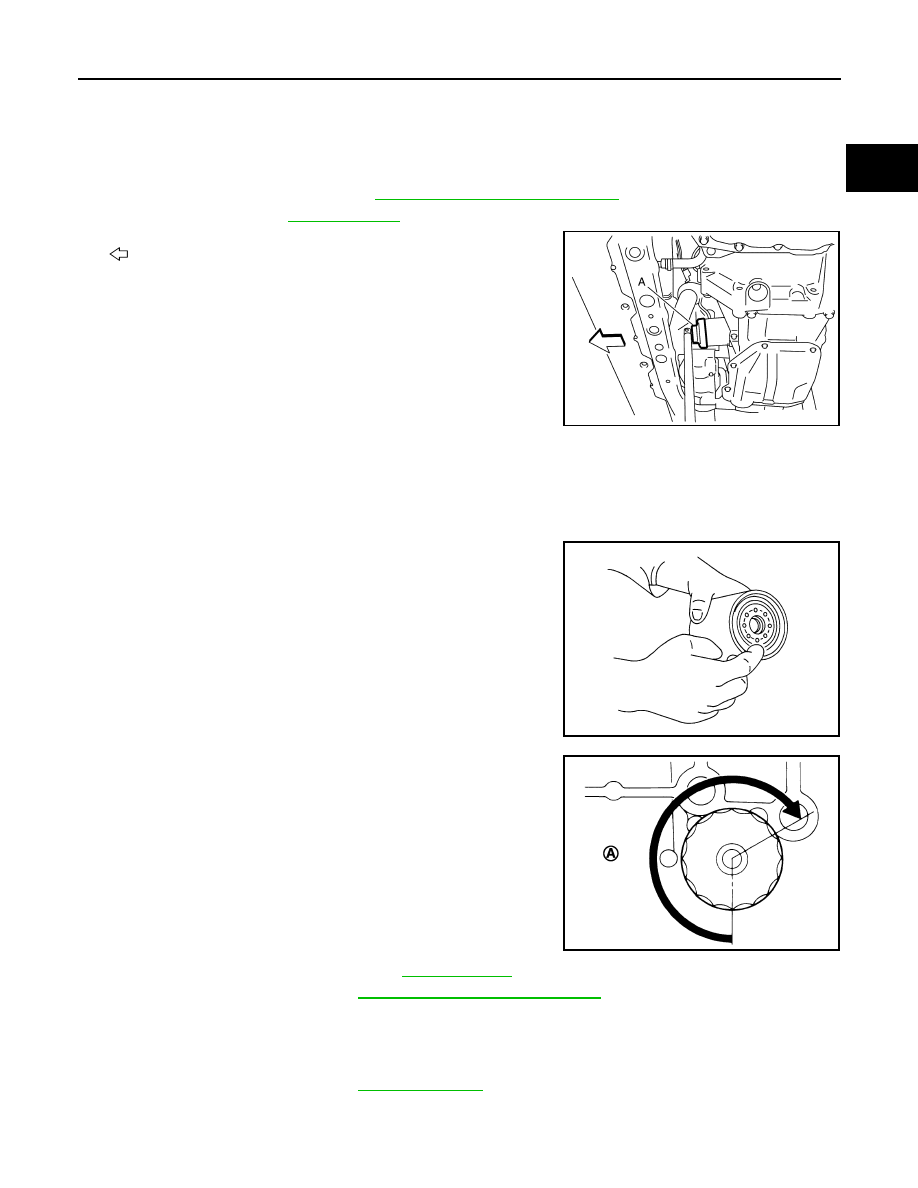

OIL FILTER

Removal and Installation

INFOID:0000000009269700

REMOVAL

1. Remove engine under cover. Refer to

EXT-19, "Removal and Installation"

.

2. Drain engine oil. Refer to

LU-9, "Draining"

.

3. Remove oil filter using Tool (A).

: Front

WARNING:

Be careful not to get burned; engine and engine oil may be

hot.

CAUTION:

• When removing, prepare a shop cloth to absorb engine oil

leaks and spills.

• Do not spill engine oil on drive belt.

• Completely wipe off any engine oil that spills on engine

and vehicle.

• Oil filter is provided with relief valve. Use Genuine NISSAN oil filter or equivalent.

INSTALLATION

1. Remove foreign materials adhering to the oil filter installation surface.
2. Apply new engine oil to the oil seal contact surface of new oil fil-

ter.

3. Screw oil filter manually until it touches the installation surface,

then tighten it by 2/3 turn (A), or tighten to specification.

4. Refill engine with new engine oil. Refer to

LU-9, "Refilling"

.

5. Install engine under cover. Refer to

EXT-19, "Removal and Installation"

.

Inspection

INFOID:0000000009269701

INSPECTION AFTER INSTALLATION

1. Check the engine oil level. Refer to

LU-8, "Inspection"

.

2. Start the engine and ensure there are no engine oil leaks.
3. Stop the engine and wait for 10 minutes.

Tool number

: KV10115801 (J-38956)

JSBIA0620ZZ

SMA010

Oil filter

: 17.7 N·m (1.8 kg-m, 13 ft-lb)

JPBIA0077ZZ

LU-12

< PERIODIC MAINTENANCE >

[HR16DE]

OIL FILTER

4. Check the engine oil level and adjust as necessary. Refer to

LU-8, "Inspection"

.

OIL PUMP

LU-13

< REMOVAL AND INSTALLATION >

[HR16DE]

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

REMOVAL AND INSTALLATION

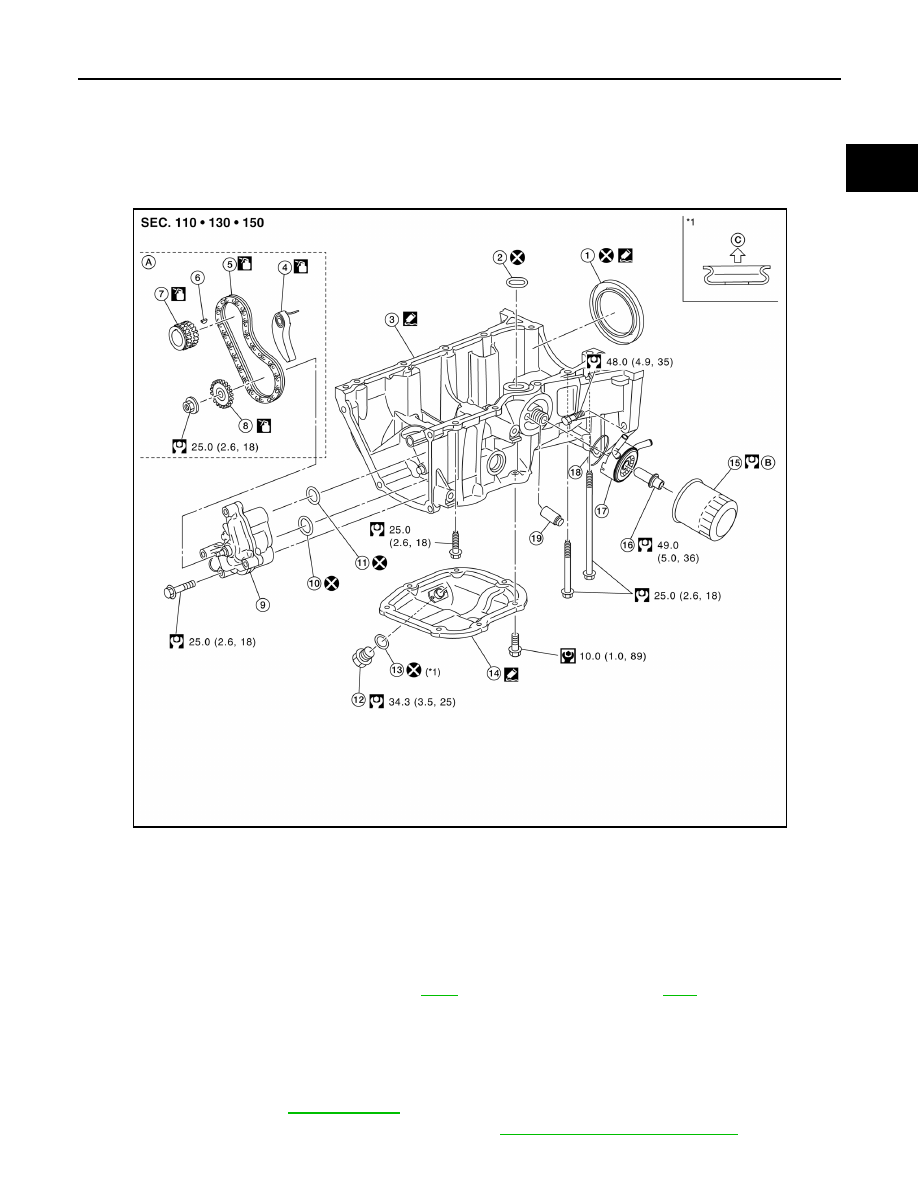

OIL PUMP

Exploded View

INFOID:0000000009269702

Removal and Installation

INFOID:0000000009269703

REMOVAL

1. Drain engine oil. Refer to

LU-9, "Draining"

.

2. Remove timing chain and oil pump drive chain. Refer to

EM-47, "Removal and Installation"

.

1.

Rear oil seal

2.

O-ring

3.

Oil pan (upper)

4.

Oil pump chain tensioner (for oil
pump drive chain)

5.

Oil pump drive chain

6.

Crankshaft key

7.

Crankshaft sprocket

8.

Oil pump sprocket

9.

Oil pump

10. O-ring

11. O-ring

12. Oil pan drain plug

13. Drain plug washer

14. Oil pan (lower)

15. Oil filter

16. Connector bolt

17. Oil cooler

18. O-ring

19. Relief valve

A.

Refer to

EM-47

B.

Refer to

LU-11

C.

Oil pan (lower) side

AWBIA1145GB

LU-14

< REMOVAL AND INSTALLATION >

[HR16DE]

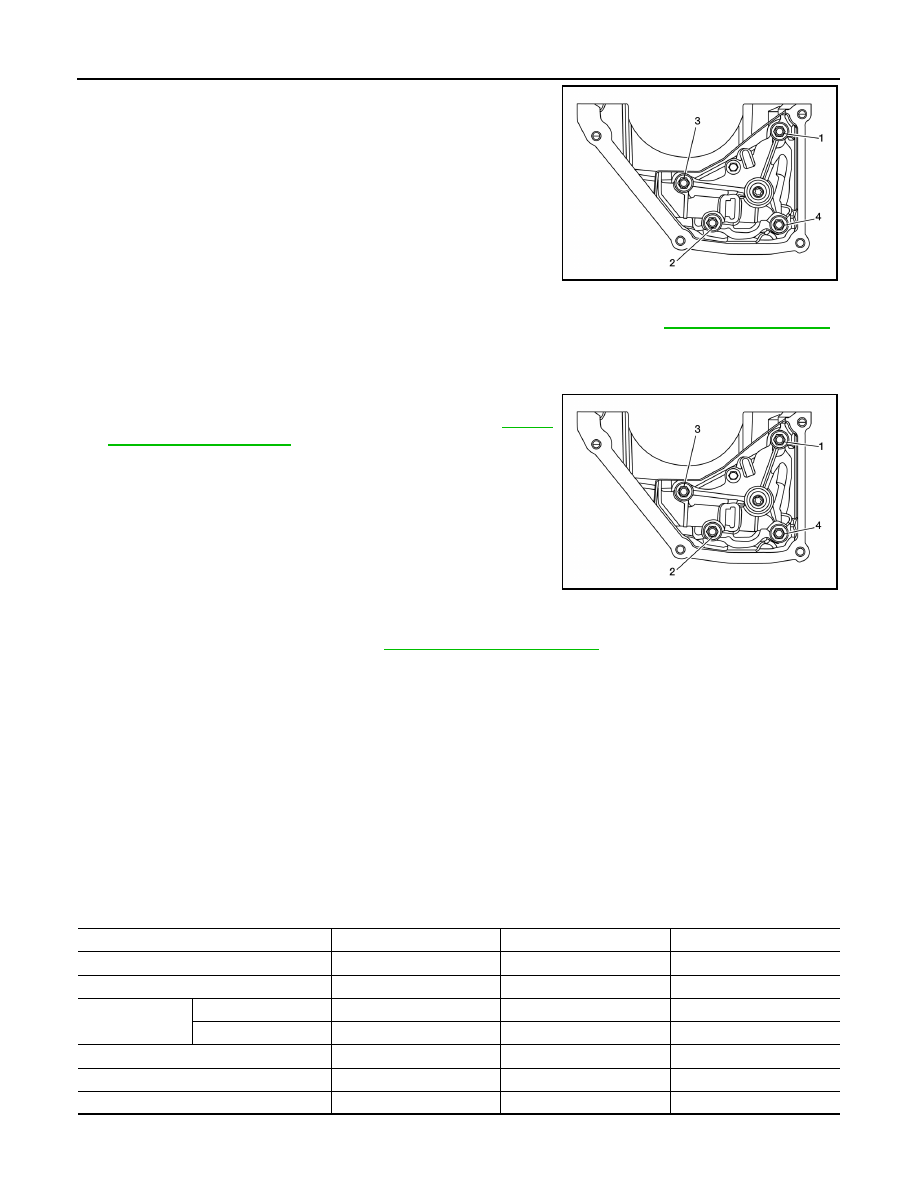

OIL PUMP

3. Loosen the oil pump bolts in the reverse order as shown.
4. Remove oil pump and O-rings.

CAUTION:

• Do not reuse O-rings.

• Do not disassemble oil pump.

INSTALLATION

1. Install new O-rings on the oil pan (upper) before installing the oil pump. Refer to

LU-13, "Exploded View"

.

CAUTION:

Do not reuse O-rings.

2. Install the oil pump.
3. Tighten the oil pump bolts to specification in the order shown.
4. Install timing chain and oil pump drive chain. Refer to

EM-47,

"Removal and Installation"

.

INSPECTION AFTER INSTALLATION

• Before starting engine, check oil/fluid levels, including engine coolant and engine oil. If less than required

quantity, fill to the specified level. Refer to

MA-12, "Fluids and Lubricants"

.

• Use procedure below to check for fuel leakage.

• Turn ignition switch ON (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-

age at connection points.

• Start engine. With engine speed increased, check again for fuel leakage at connection points.

• Run engine to check for unusual noise and vibration.

NOTE:

If hydraulic pressure inside timing chain tensioner drops after removal and installation, slack in the guide

may generate a pounding noise during and just after engine start. However, this is normal. Noise will stop

after hydraulic pressure rises.

• Warm up engine thoroughly to make sure there is no leakage of fuel, exhaust gas, or any oils/fluids including

engine oil and engine coolant.

• Bleed air from passages in lines and hoses, such as in cooling system.

• After cooling down engine, again check oil/fluid levels, including engine oil and engine coolant. Refill to spec-

ified level, if necessary.

• Summary of the inspection items:

*Power steering fluid, brake fluid, etc.

AWBIA1122GB

AWBIA1122GB

Item

Before starting engine

Engine running

After engine stopped

Engine coolant

Level

Leakage

Level

Engine oil

Level

Leakage

Level

Transmission/
transaxle fluid

A/T and CVT Models

Leakage

Level/Leakage

Leakage

M/T Models

Level/Leakage

Leakage

Level/Leakage

Other oils and fluids*

Level

Leakage

Level

Fuel

Leakage

Leakage

Leakage

Exhaust gas

—

Leakage

—
