• Do not bend headlining when installing.

• Be careful that the surface is not wrinkled when installing.

INT-32

< REMOVAL AND INSTALLATION >

TRUNK ROOM TRIM

TRUNK ROOM TRIM

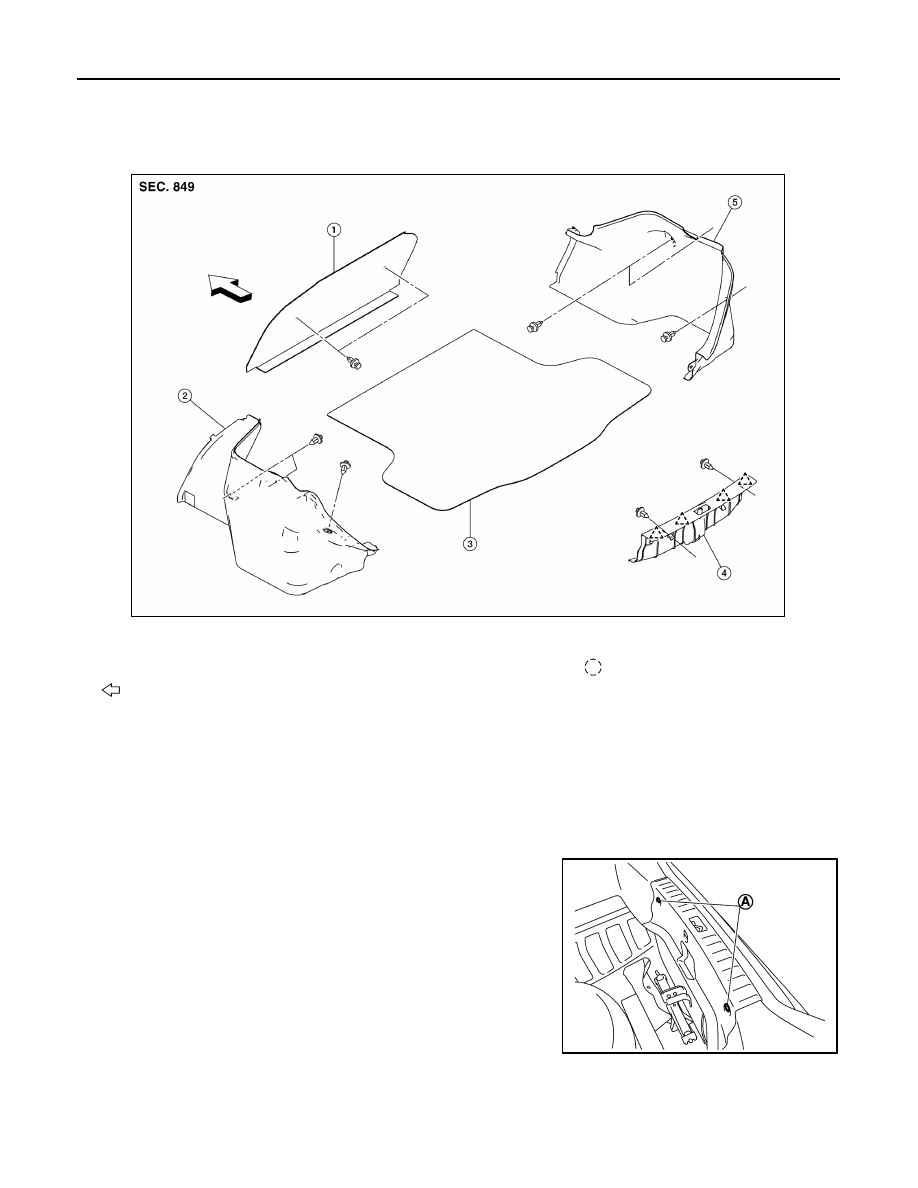

Exploded View

INFOID:0000000009269484

TRUNK REAR PLATE
TRUNK REAR PLATE : Removal and Installation

INFOID:0000000009269485

REMOVAL

1. Fully open trunk lid.
2. Remove trunk floor carpet.
3. Remove trunk rear plate clips (A).

1.

Trunk front finisher (if equipped)

2.

Trunk side finisher (LH)

3.

Trunk floor carpet

4.

Trunk rear plate

5.

Trunk side finisher (RH)

Pawl

Front

AWJIA0719ZZ

JMJIA6085ZZ

TRUNK ROOM TRIM

INT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

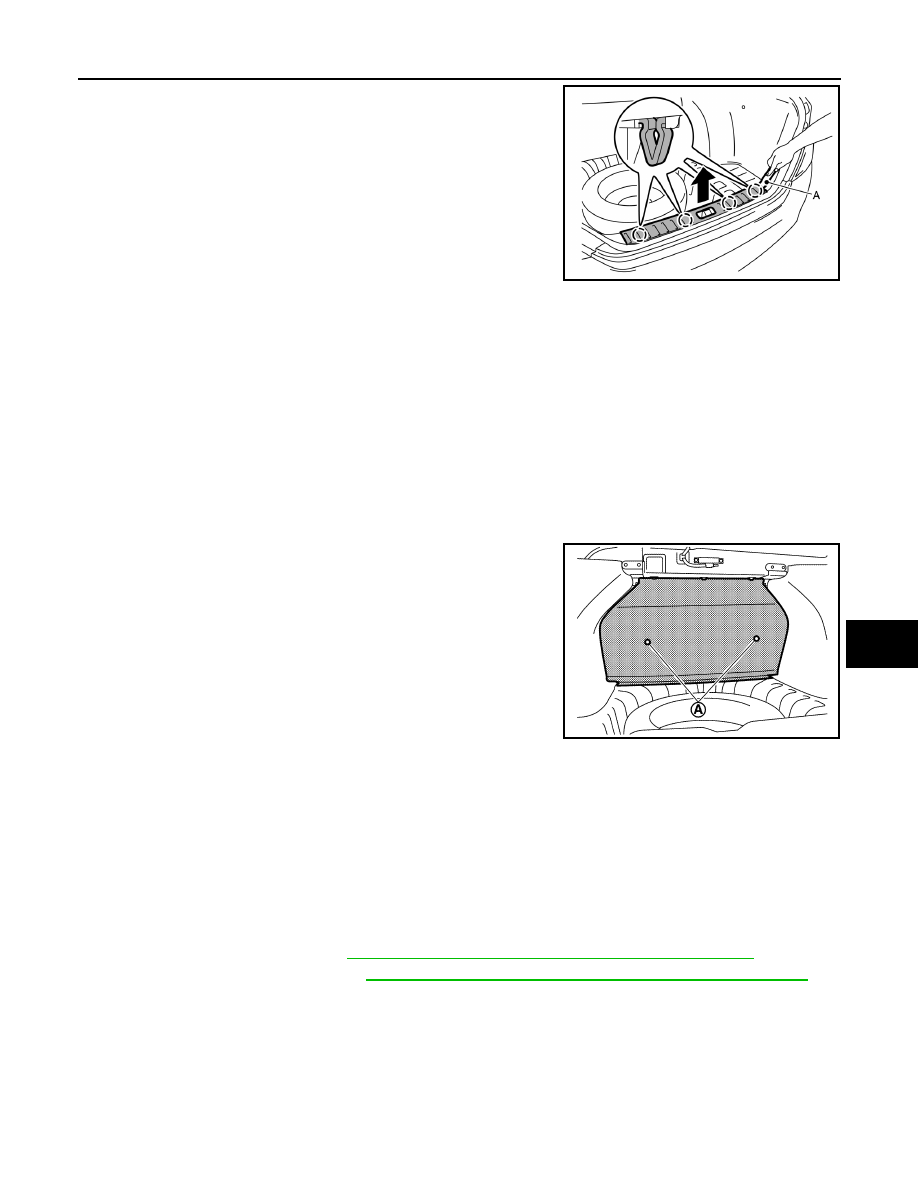

4. Release trunk rear plate pawls using a suitable tool (A) and

remove trunk rear plate as shown.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing trunk rear plate, make sure that clips are securely pressed into body holes.

TRUNK FRONT FINISHER
TRUNK FRONT FINISHER : Removal and Installation

INFOID:0000000009269486

REMOVAL

1. Fully open trunk lid.
2. Remove trunk floor carpet.
3. Remove trunk front finisher clips (A) and trunk front finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing trunk front finisher, make sure that clips are securely pressed into body holes.

TRUNK SIDE FINISHER
TRUNK SIDE FINISHER  : Removal and Installation

INFOID:0000000009269487

REMOVAL

1. Remove trunk rear plate. Refer to

INT-32, "TRUNK REAR PLATE : Removal and Installation"

.

2. Remove trunk front finisher. Refer to

INT-33, "TRUNK FRONT FINISHER : Removal and Installation"

.

AWJIA0720ZZ

JMJIA6087ZZ

INT-34

< REMOVAL AND INSTALLATION >

TRUNK ROOM TRIM

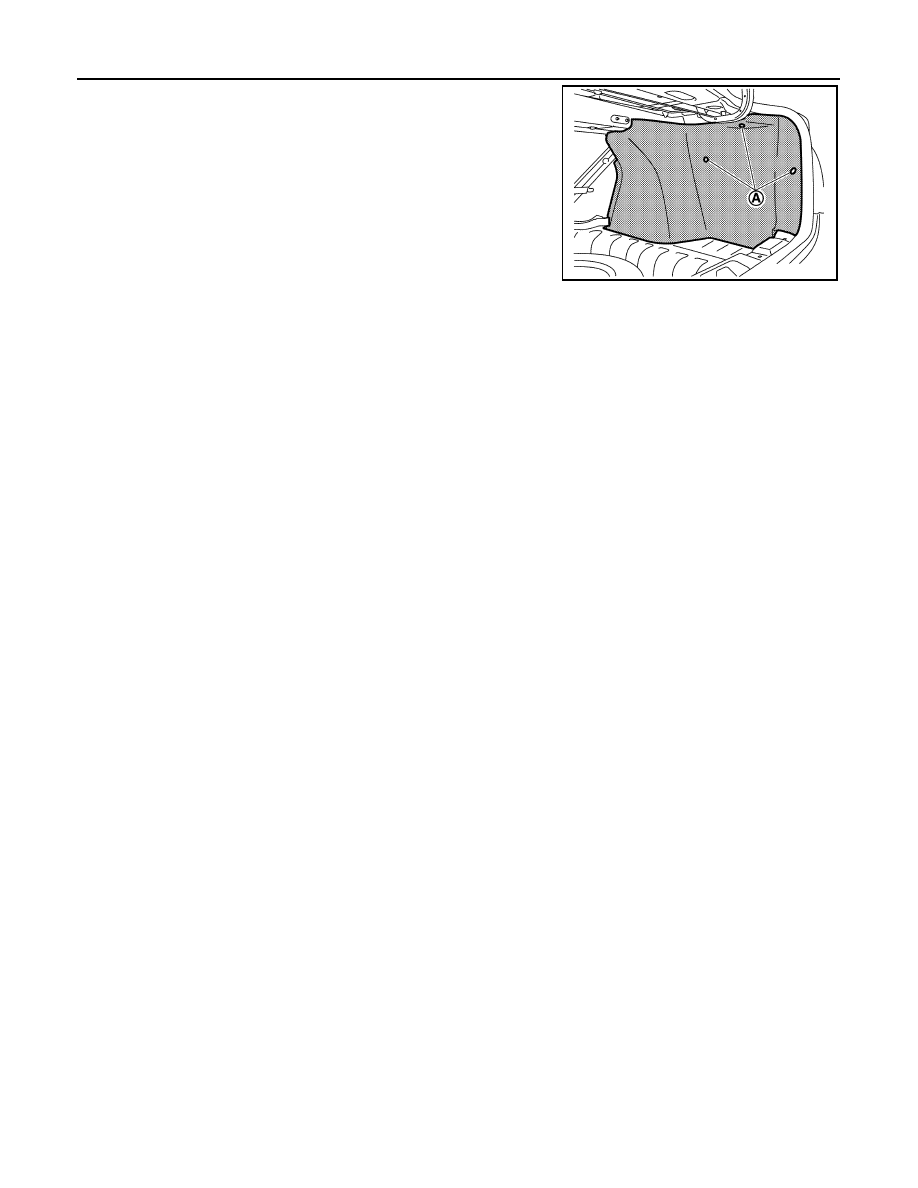

3. Remove trunk side finisher clips (A) and trunk side finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Make sure the rear end of trunk side finisher is positioned behind the trunk weatherstrip.

JMJIA6088ZZ
