Nissan Versa Sedan. Manual - part 522

FLOOR TRIM

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

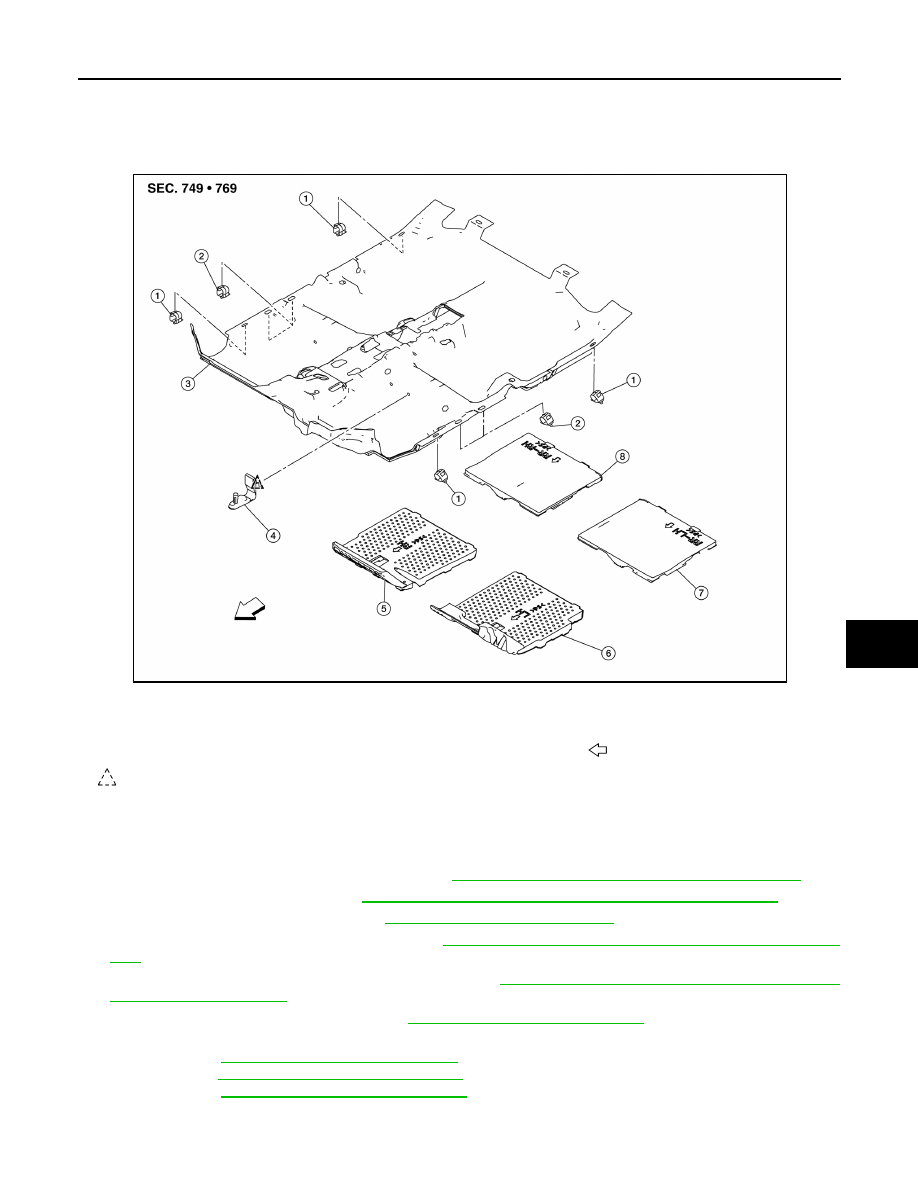

FLOOR TRIM

Exploded View

INFOID:0000000009269480

Removal and Installation

INFOID:0000000009269481

REMOVAL

1. Remove front seat assemblies (LH/RH). Refer to

SE-17, "DRIVER SIDE : Removal and Installation"

.

2. Remove rear seat cushion. Refer to

SE-23, "Removal and Installation - Seat Cushion Assembly"

.

3. Remove center console lower. Refer to

IP-25, "Removal and Installation"

.

4. Remove dash side finishers (LH/RH). Refer to

INT-21, "DASH SIDE FINISHER : Removal and Installa-

tion"

.

5. Remove center pillar lower finishers (LH/RH). Refer to

INT-23, "CENTER PILLAR LOWER FINISHER :

Removal and Installation"

.

6. Disconnect diagnosis sensor unit. Refer to

SR-27, "Removal and Installation"

.

7. Remove shift selector assembly.

• 5MT: Refer to

TM-23, "Removal and Installation"

.

• 4AT: Refer to

TM-233, "Removal and Installation"

• CVT: Refer to

TM-429, "Removal and Installation"

1.

Harness clip A

2.

Harness clip B

3.

Floor carpet

4.

Carpet hook

5.

Front floor spacer (RH)

6.

Front floor spacer (LH)

7.

Rear floor spacer (LH)

8.

Rear floor spacer (RH)

Front

Clip

AWJIA0738ZZ

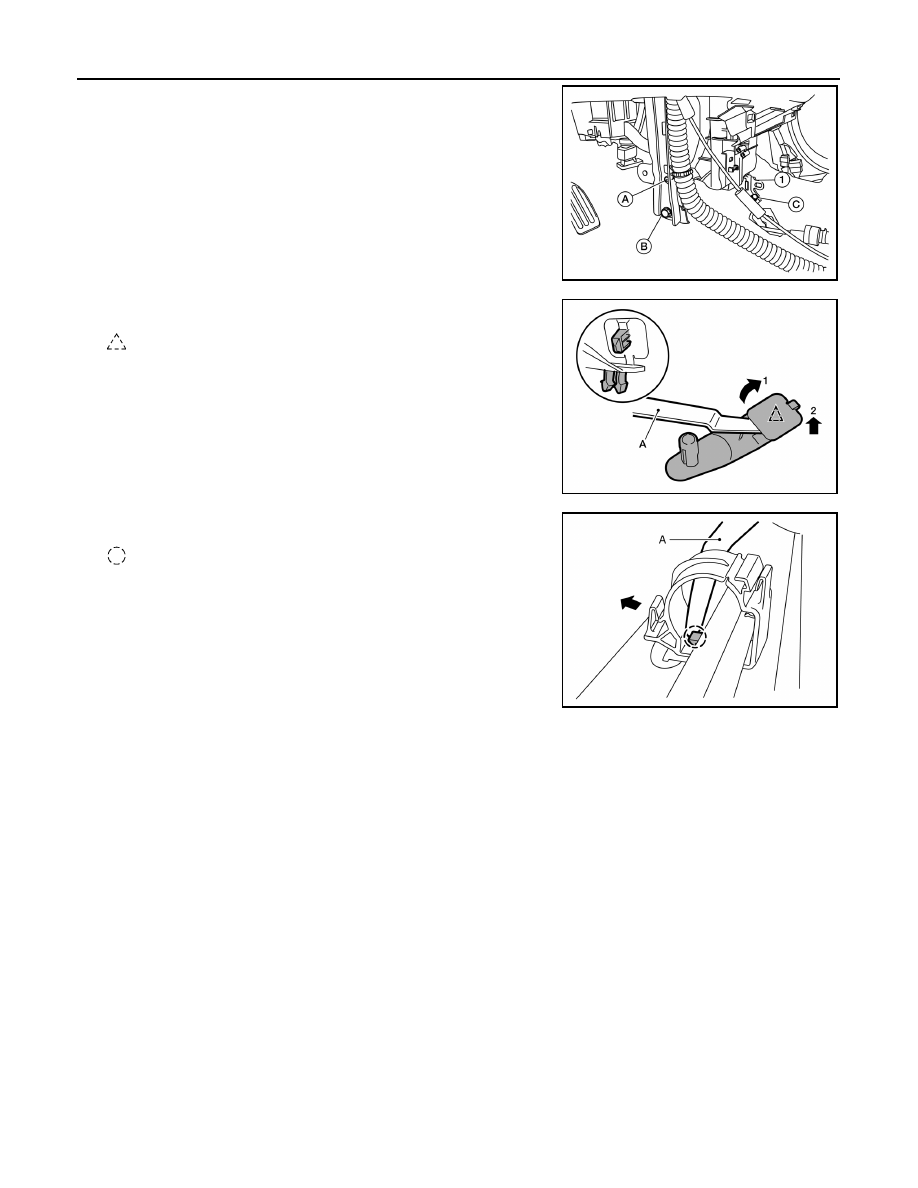

INT-28

< REMOVAL AND INSTALLATION >

FLOOR TRIM

8. Remove A/C unit assembly bolt (C) and bracket (1) from vehicle.
9. Remove instrument panel lower bracket bolt (B) and screw (A)

and reposition bracket as necessary to remove floor carpet.

10. Release carpet hook clip with a suitable tool (A) and remove car-

pet hook.

: Clip

11. Release pawl using a suitable tool (A) and open the harness

clip.

: Pawl

12. Remove floor carpet.

INSTALLATION

Installation is in the reverse order of removal.

ALJIA0712ZZ

AWJIA0736ZZ

AWJIA0737ZZ

HEADLINING

INT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

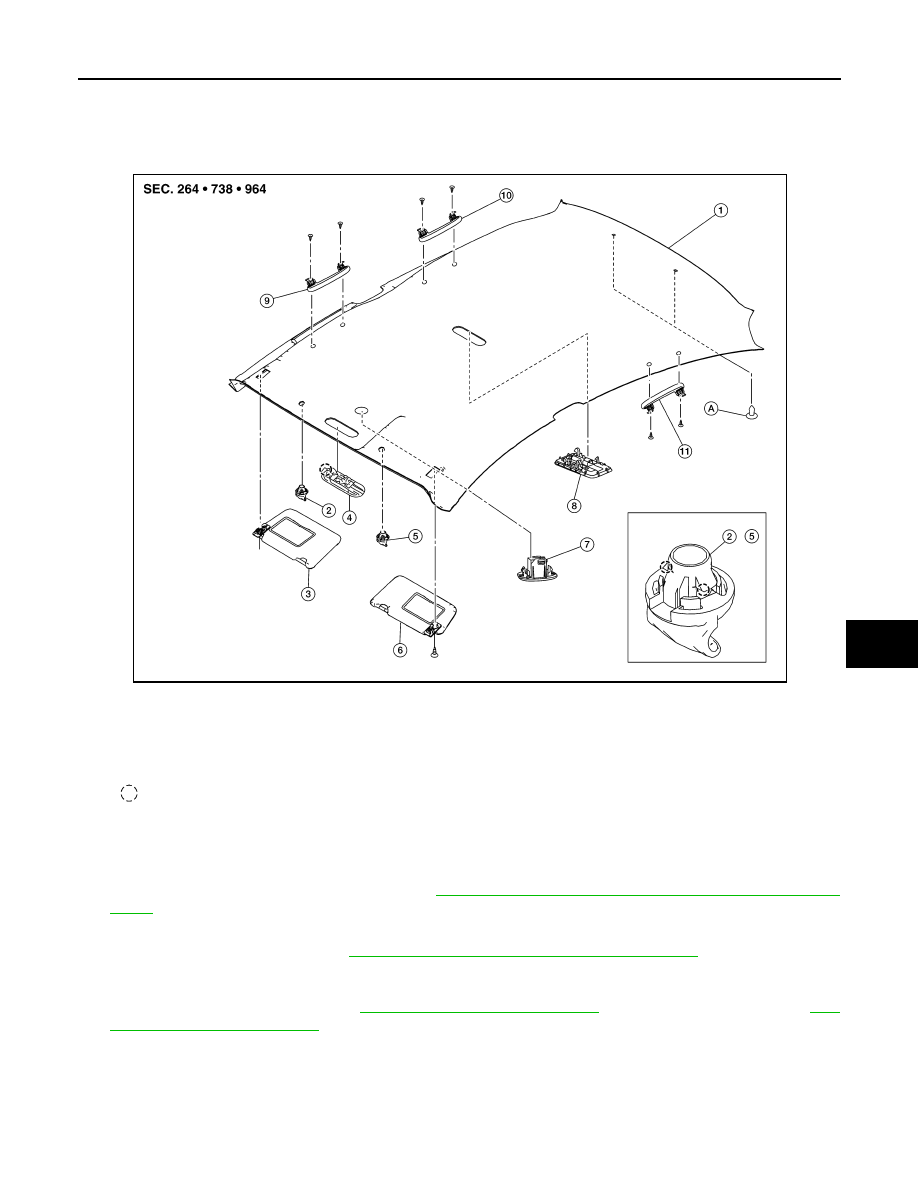

HEADLINING

Exploded View

INFOID:0000000009269482

Removal and Installation

INFOID:0000000009269483

REMOVAL

1. Remove front pillar finishers (LH/RH). Refer to

INT-19, "FRONT PILLAR FINISHER : Removal and Instal-

lation"

.

2. Remove sun visor assembly screws and sun visor assemblies (LH/RH).
3. Remove passenger seat. Refer to

SE-17, "DRIVER SIDE : Removal and Installation"

.

NOTE:

Remove passenger seat to make room for headlining removal out of the LH rear door.

4. Remove lamp assemblies. Refer to

INL-50, "Removal and Installation"

 (Map Lamp, if equipped) and

INL-

52, "Removal and Installation"

 (Interior Room Lamp).

1.

Headlining assembly

2.

Sun visor assembly (RH)

3. Sun visor assembly (RH)

4.

Map lamp (if equipped)

5.

Sun visor holder (LH)

6. Sun visor assembly (LH)

7.

Microphone finisher (if equipped)

8.

Room lamp

9. Front assist grip (RH) (if equipped)

10.  Rear assist grip (RH) (if equipped) 11.  Rear assist grip (LH) (if equipped) A. Headlining clip

 Pawl

AWJIA1112ZZ

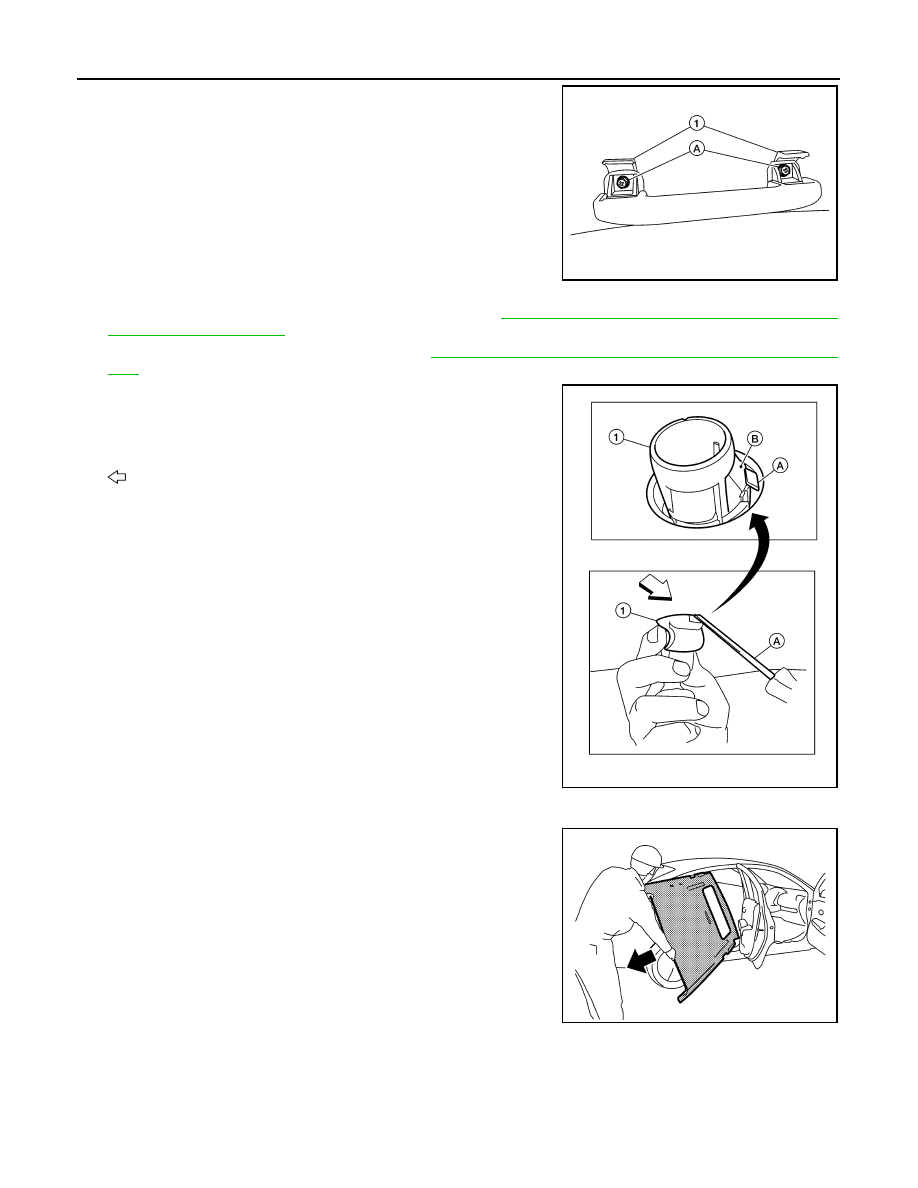

INT-30

< REMOVAL AND INSTALLATION >

HEADLINING

5. Remove all the assist grips.
a. Release assist grip cover (1).
b. Remove assist grip bolts and assist grip.

6. Remove center pillar upper finishers (LH/RH). Refer to

INT-23, "CENTER PILLAR UPPER FINISHER :

Removal and Installation"

.

7. Remove rear pillar finishers (LH/RH). Refer to

INT-24, "REAR PILLAR FINISHER : Removal and Installa-

tion"

.

8. Insert a suitable tool (A) at approximately a 30 degree angle into

the sun visor holder notch on the front of the sun visor holder (1)

and press in the locking tab (B) to release it. While holding in

lock tab (B), rotate the sun visor holder (1) 90 degrees to release

it from the headlining.

: Front

CAUTION:

Do not force the sun visor holder when removing as the

locking tab may be damaged if the suitable tool is not posi-

tioned correctly.

NOTE:

If the sun visor holder (1) does not fully rotate, make sure that

the suitable tool (A) is pressing in on the locking tab (B) and is

not positioned under locking tab (B). Reinsert the suitable tool

(A) as necessary to release the locking tab (B).

9. Remove headlining clips.
10. Remove headlining assembly through the rear door.

CAUTION:

• Two people are required for removal to prevent damage to

headlining.

• Apply protective tape to the portion where contact may

occur during work.

• Do not bend headlining when removing.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• When installing headlining, start by installing both sun visor holders and headlining clips in order to

keep the headlining in position.

ALJIA1241ZZ

ALJIA0537ZZ

JMJIA6084ZZ
