TRUNK LID FINISHER

TRUNK LID FINISHER

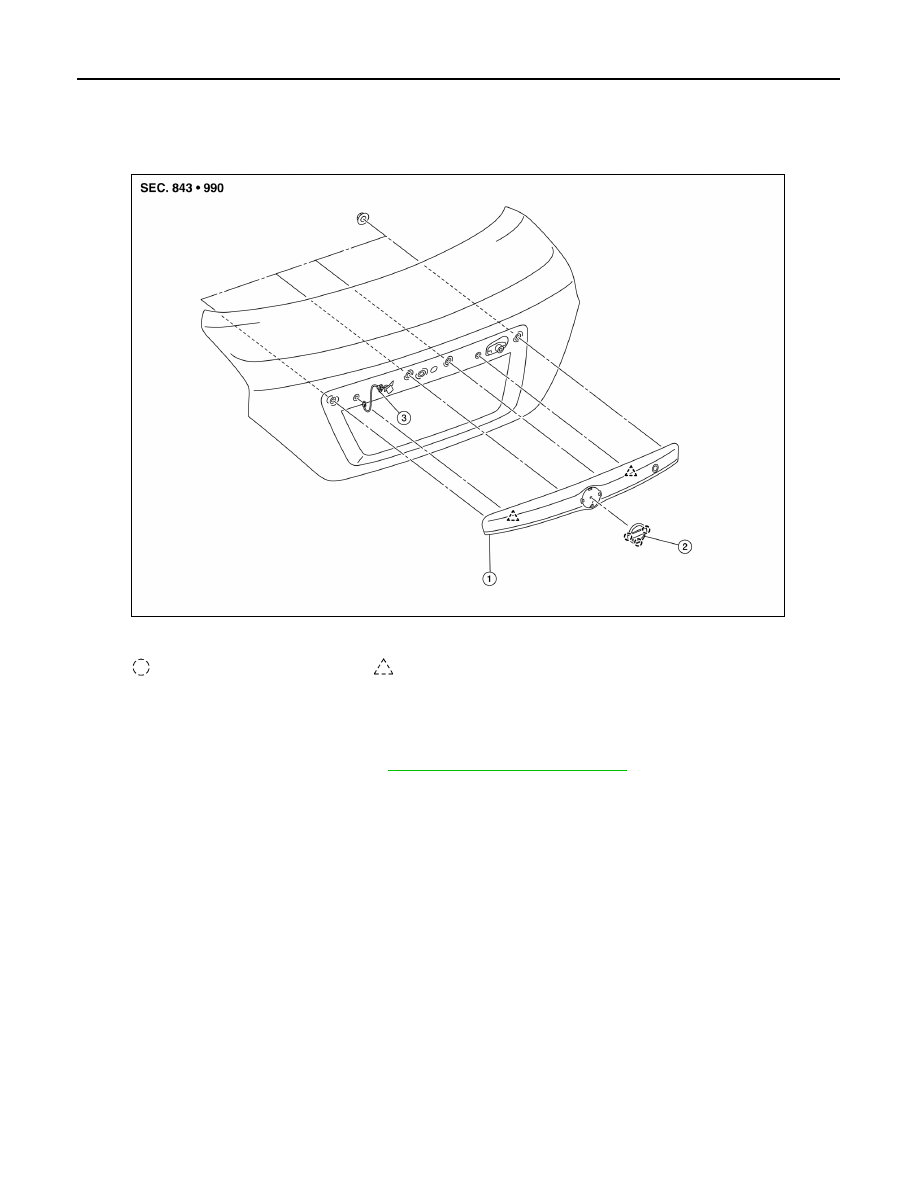

Exploded View

INFOID:0000000009268566

Removal and Installation

INFOID:0000000009268567

REMOVAL

1. Remove trunk lid finisher inner. Refer to

INT-35, "Removal and Installation"

.

2. Remove trunk lid finisher nuts.
3. Disconnect the harness connectors from the license lamp.
4. Remove harness grommet.
5. Release clips and remove trunk lid finisher.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When installing trunk lid finisher, check that clips are securely placed in body panel holes and press

them into position.

1.

Trunk lid finisher

2.

Emblem

3.

Rear view camera (if equipped)

Pawl

Clip

AWKIA2074ZZ

DOOR PARTING SEAL

EXT-31

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

DOOR PARTING SEAL

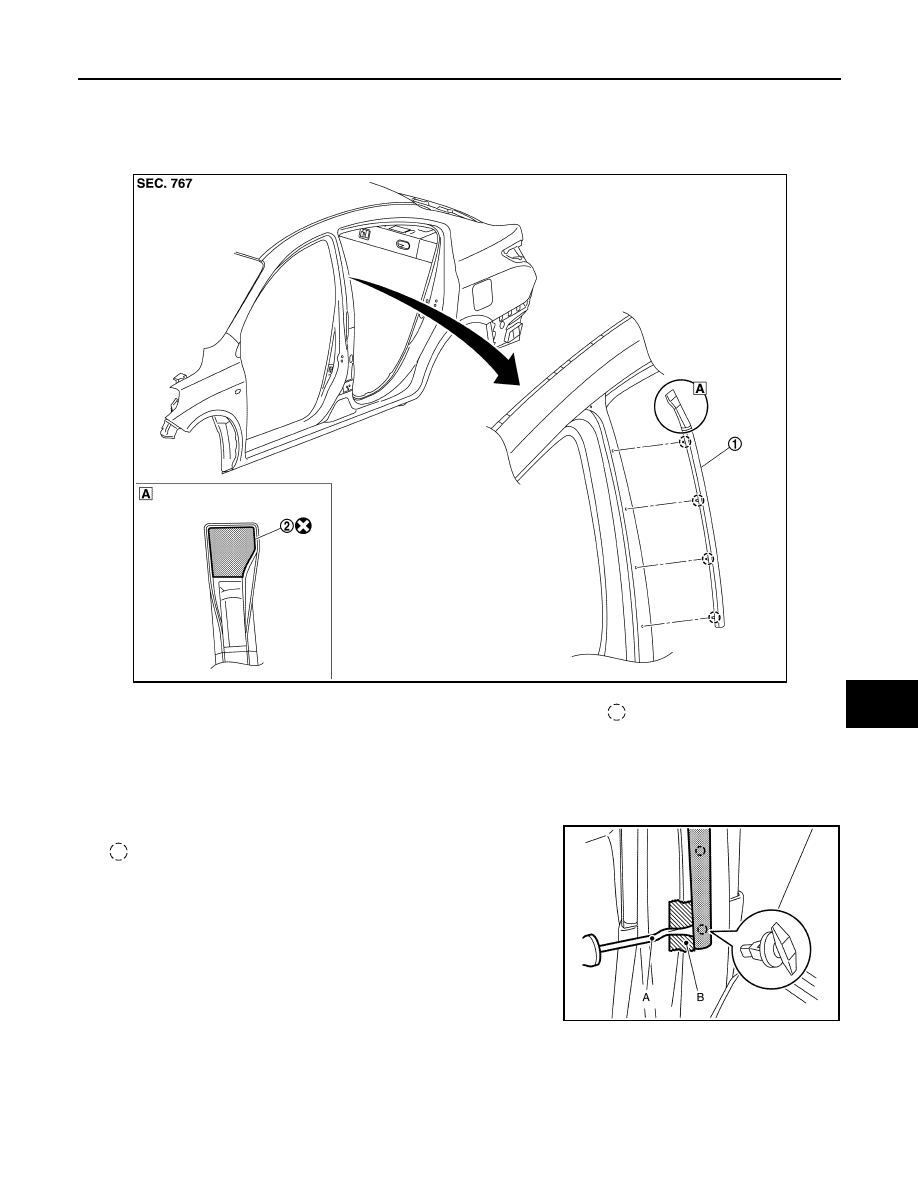

Exploded View

INFOID:0000000009268568

Removal and Installation

INFOID:0000000009268569

REMOVAL

1. Open front door and rear door.
2. Release door parting seal clips using a suitable tool (A).

: Clip

CAUTION:

Apply protective tape (B) on body to protect the painted

surface from damage.

3. Remove door parting seal.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Always replace double-sided tape with a new tape if door parting seal is reused.

1.

Door parting seal

2.

Double-sided tape [t: 1.6 mm (0.065 in)]

Clip

JMKIA8049ZZ

JMKIA8050ZZ

EXT-32

< REMOVAL AND INSTALLATION >

DOOR PARTING SEAL

• Do not wash the vehicle within 24 hours after installing so as to keep adhesive dry.

REAR SPOILER

EXT-33

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

REAR SPOILER

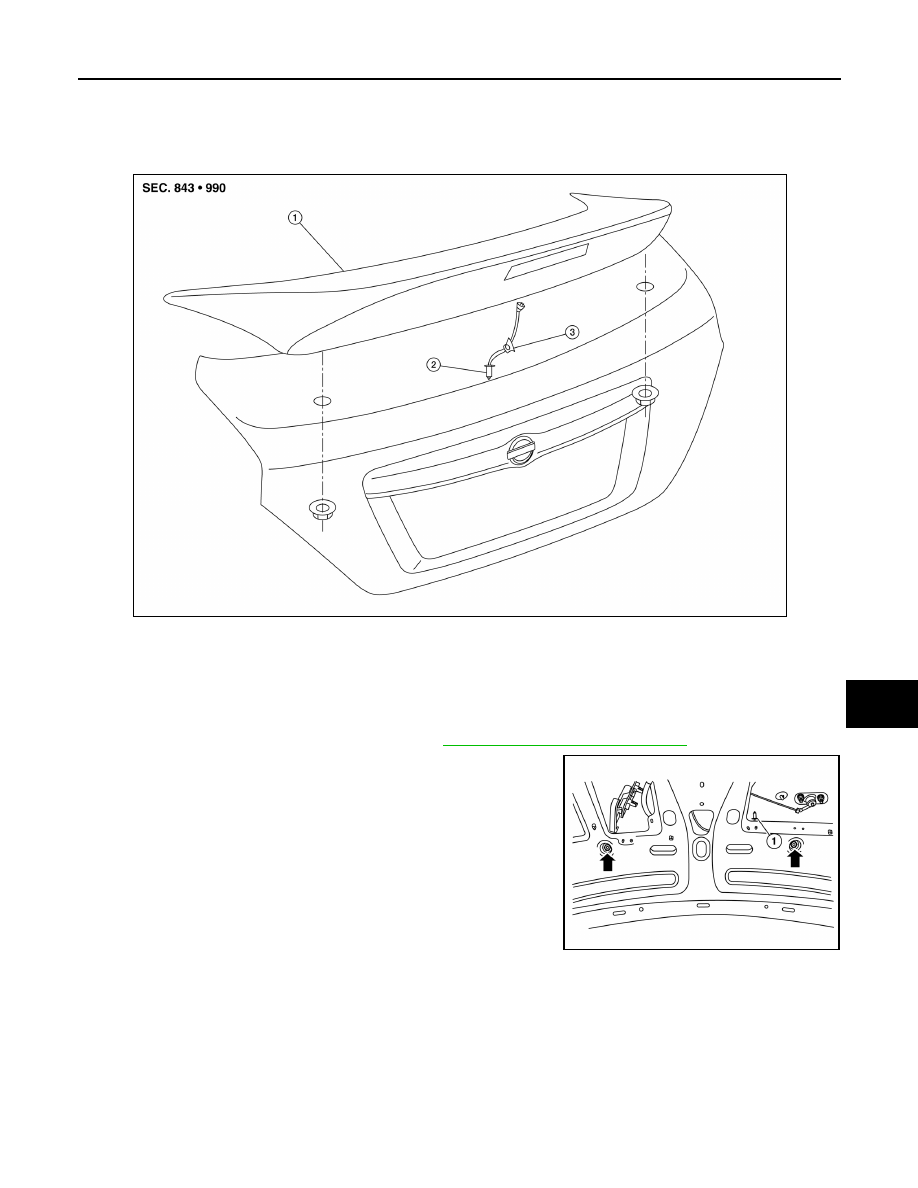

Exploded View

INFOID:0000000009268570

Removal and Installation

INFOID:0000000009268571

Removal

1. Remove trunk lid finisher (if equipped). Refer to

EXT-30, "Removal and Installation"

.

2. Disconnect high-mounted stop lamp harness connector (1).
3. Remove the rear spoiler nuts.

4. Using a suitable heating tool may also be necessary to evenly heat the rear spoiler contact surface while

releasing the tape with a suitable tool.

5. Loosen the harness grommet and gently lift the rear spoiler upward off of trunk lid.

Installation

Installation is in the reverse order of removal.

NOTE:

• Before installing rear spoiler, clean the surface where it will be mounted with isopropyl alcohol or equivalent

to degrease the surface.

1.

Rear spoiler

2.

High-mounted stop lamp harness connector

3.

Harness grommet

ALKIA2845ZZ

ALKIA2846ZZ
