EXT-26

< REMOVAL AND INSTALLATION >

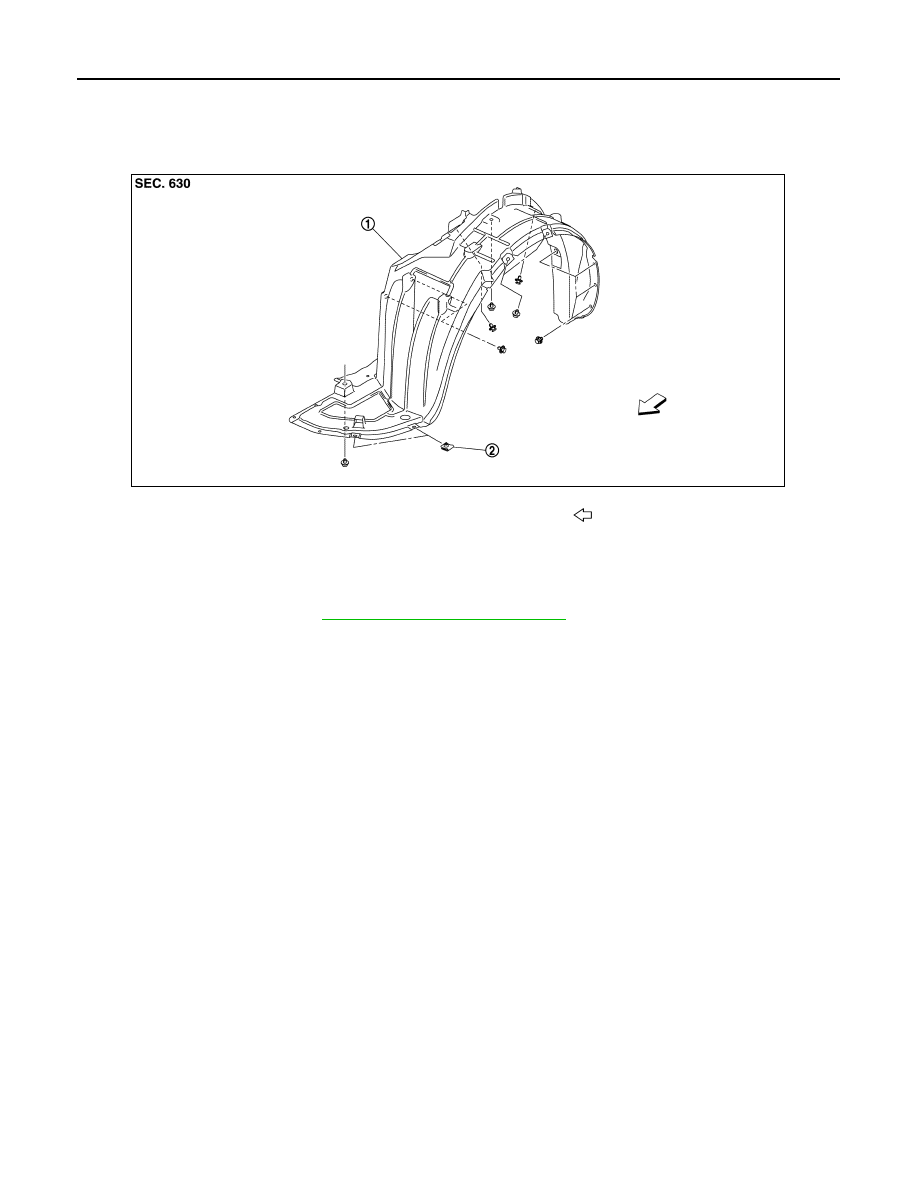

FENDER PROTECTOR

FENDER PROTECTOR

Exploded View

INFOID:0000000009268560

Removal and Installation

INFOID:0000000009268561

REMOVAL

1. Remove under cover. Refer to

EXT-19, "Removal and Installation"

.

2. Remove fender protector screws and clips.
3. Remove fender protector.

INSTALLATION

Installation is in the reverse order of removal.

1.

Fender protector

2.

J-nut

Front

JMKIA8068ZZ

ROOF SIDE MOLDING

EXT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

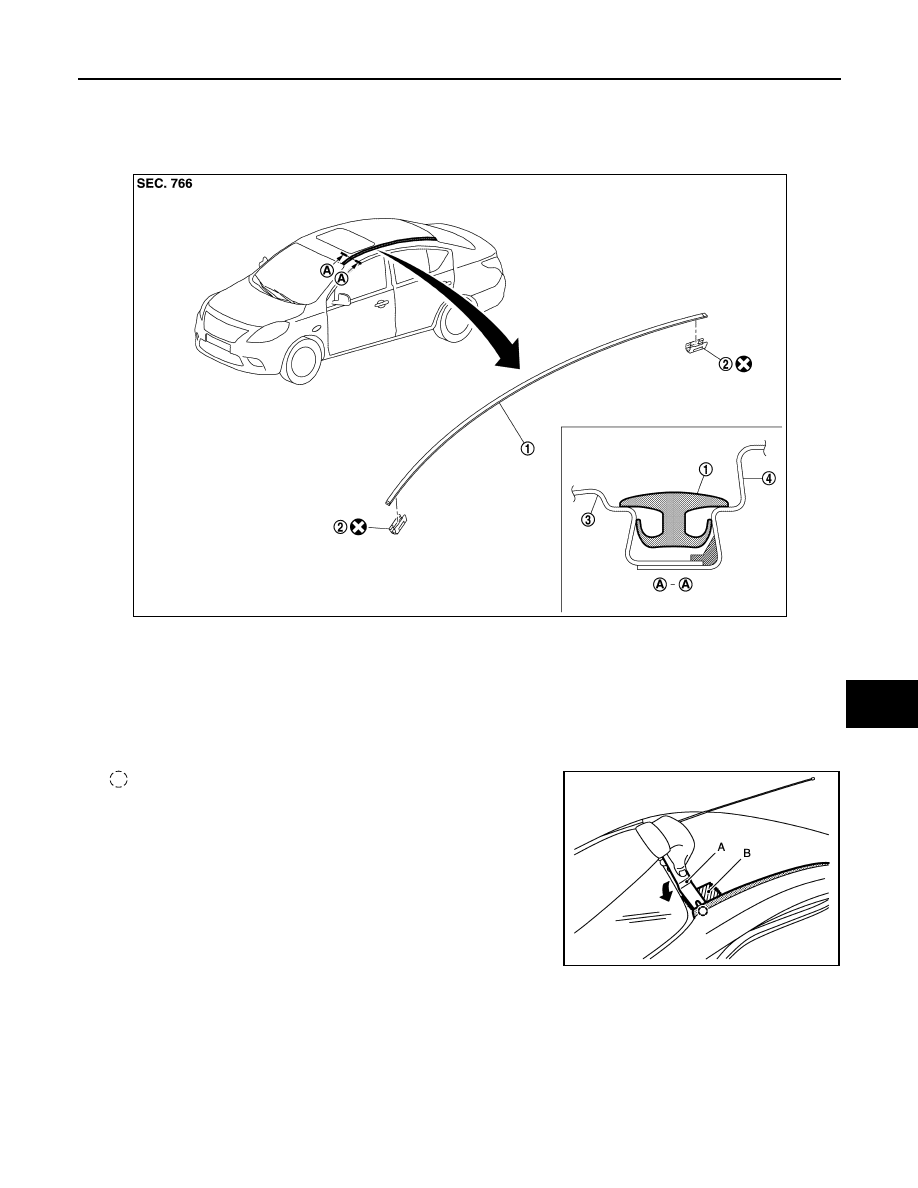

ROOF SIDE MOLDING

Exploded View

INFOID:0000000009268562

Removal and Installation

INFOID:0000000009268563

REMOVAL

1. Release roof side molding clip using a suitable tool (A).

: Clip

CAUTION:

Apply protective tape (B) on body to protect the painted

surface from damage.

2. Remove roof side molding, starting from the front of vehicle and moving toward the rear.

CAUTION:

Do not pull the roof side molding with too much force.

INSTALLATION

Installation is in the reverse order of removal.

REMOVAL AND INSTALLATION OF ROOF SIDE MOLDING CLIP

Removal

1.

Roof side molding

2.

Roof side molding clip

3.

Roof panel

4.

Body side outer panel

JMKIA8048ZZ

JMKIA5401ZZ

EXT-28

< REMOVAL AND INSTALLATION >

ROOF SIDE MOLDING

1. Remove roof side molding.
2. Heat adhesive tape interface using a dryer and then peel roof side molding clips (body side) using a suit-

able tool.

CAUTION:

Be careful not to damage the body.

Installation

1. Clean tape removed surface with a shop cloth soaked in white gasoline or IPA.
2. Use two-part epoxy adhesive.

3. Apply adhesive evenly to clip tape surface.

4. Position applied parts to the proper location, and then sufficiently press-fit until the adhesive protrudes to

tape side.

5. Tape clips after press fit, and temporarily hold it for specified time based on the following.

6. Install roof side molding from rear of vehicle to front, in this order after temporarily holding.

CAUTION:

• Use double-sided tape after hardening for clips.

• Securely insert molding rear end cap onto roof rear end cutout (installation standard).

• When installing roof side molding of windshield portion, check that molding fastener is securely

inserted and then press in.

• Do not wash the vehicle within 24 hours so as to keep adhesive dry.

Adhesive

: 3M-weld DP–100 or equivalent

Thickness

: Approximately 0.5 mm (0.020 in)

Press-fit limit : 19.6 N (2.0 Kg - 4.41 lb)

× 2 seconds

 5 to 10

°C (41 to 50 °F)

: 1 hour or more

11 to 23

°C (52 to 73 °F)

: 30 minutes or more

24

°C or more (75 °F or more) : 15 minutes or more

DOOR OUTSIDE MOLDING

EXT-29

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

EXT

N

O

P

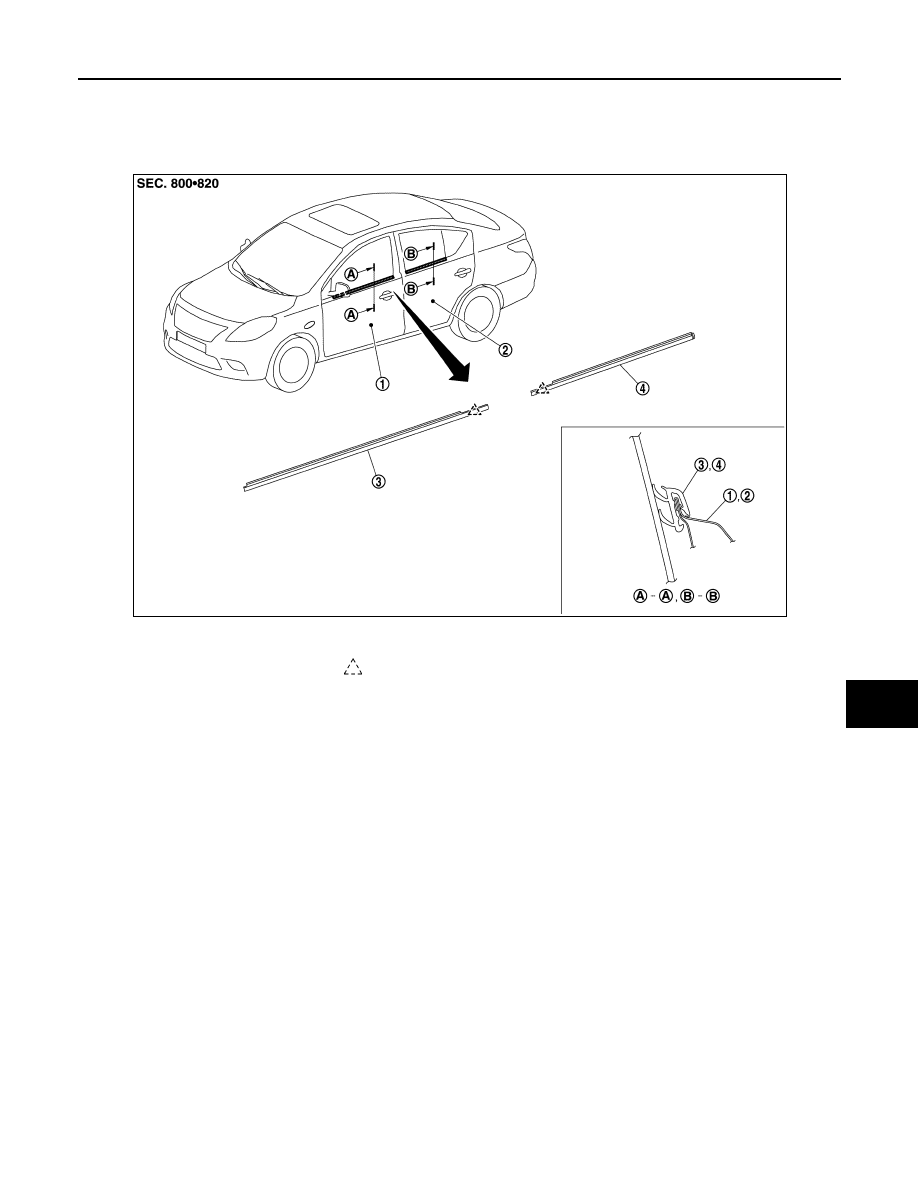

DOOR OUTSIDE MOLDING

Exploded View

INFOID:0000000009268564

Removal and Installation

INFOID:0000000009268565

FRONT DOOR OUTSIDE MOLDING

Removal

1. Open front door glass.
2. Release pawl, twist front door outside molding toward the outside of the vehicle and lift up and remove.

Installation

Installation is in the reverse order of removal.

REAR DOOR OUTSIDE MOLDING

Removal

1. Open door glass.
2. Release pawl, twist door outside molding toward the outside of the vehicle and lift up and remove.

Installation

Installation is in the reverse order of removal.

1.

Front door panel

2.

Rear door panel

3.

Front door outside molding

4.

Rear door outside molding

Pawl

JMKIA8045GB
