Nissan Versa Sedan. Manual - part 246

DLK-302

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

FRONT DOOR LOCK

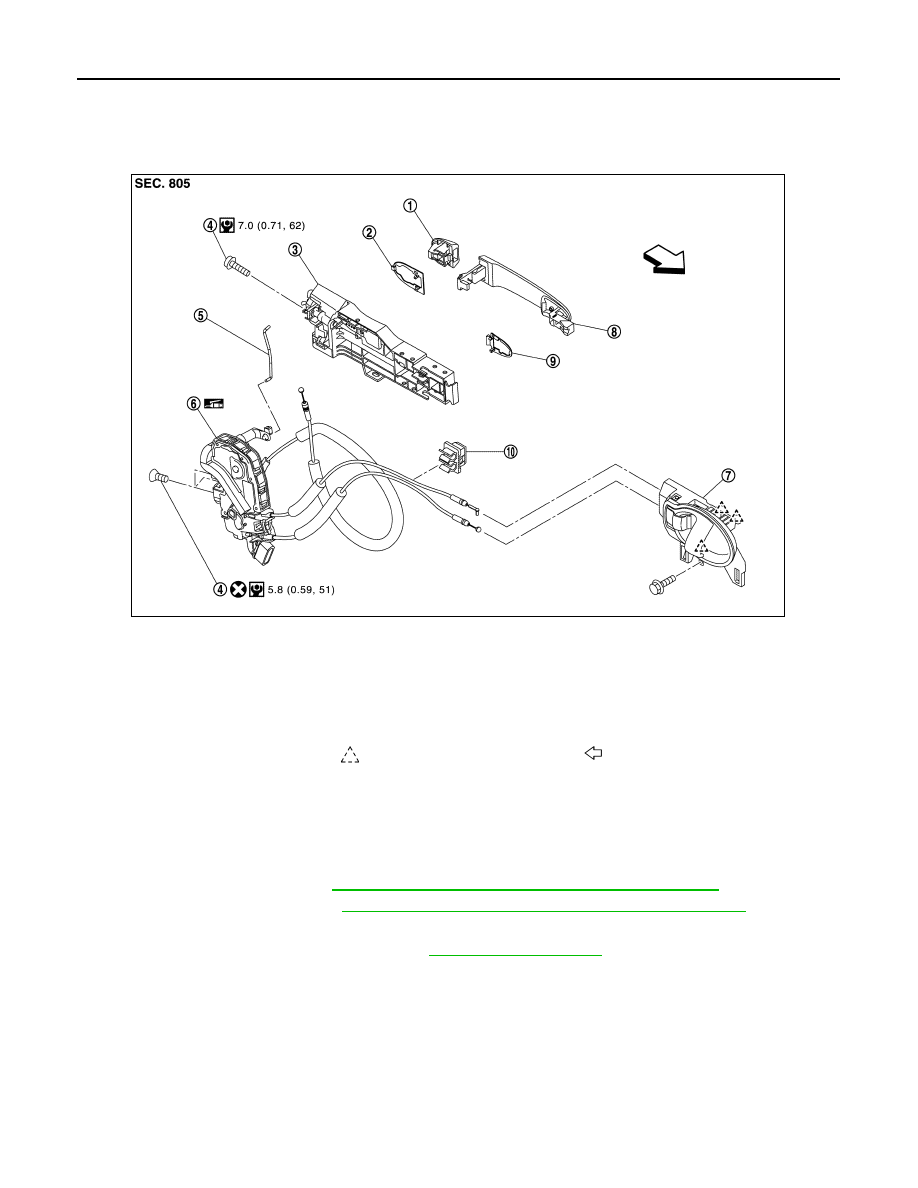

Exploded View

INFOID:0000000009269010

DOOR LOCK
DOOR LOCK : Removal and Installation

INFOID:0000000009269011

REMOVAL

1. Remove inside handle. Refer to

DLK-303, "INSIDE HANDLE : Removal and Installation"

.

2. Remove outside handle. Refer to

DLK-304, "OUTSIDE HANDLE : Removal and Installation"

.

3. Disconnect the harness connector from door lock actuator (if equipped).
4. Remove front door lower sash (rear). Refer to

GW-21, "Exploded View"

.

5. Remove door lock assembly bolts and door lock assembly.

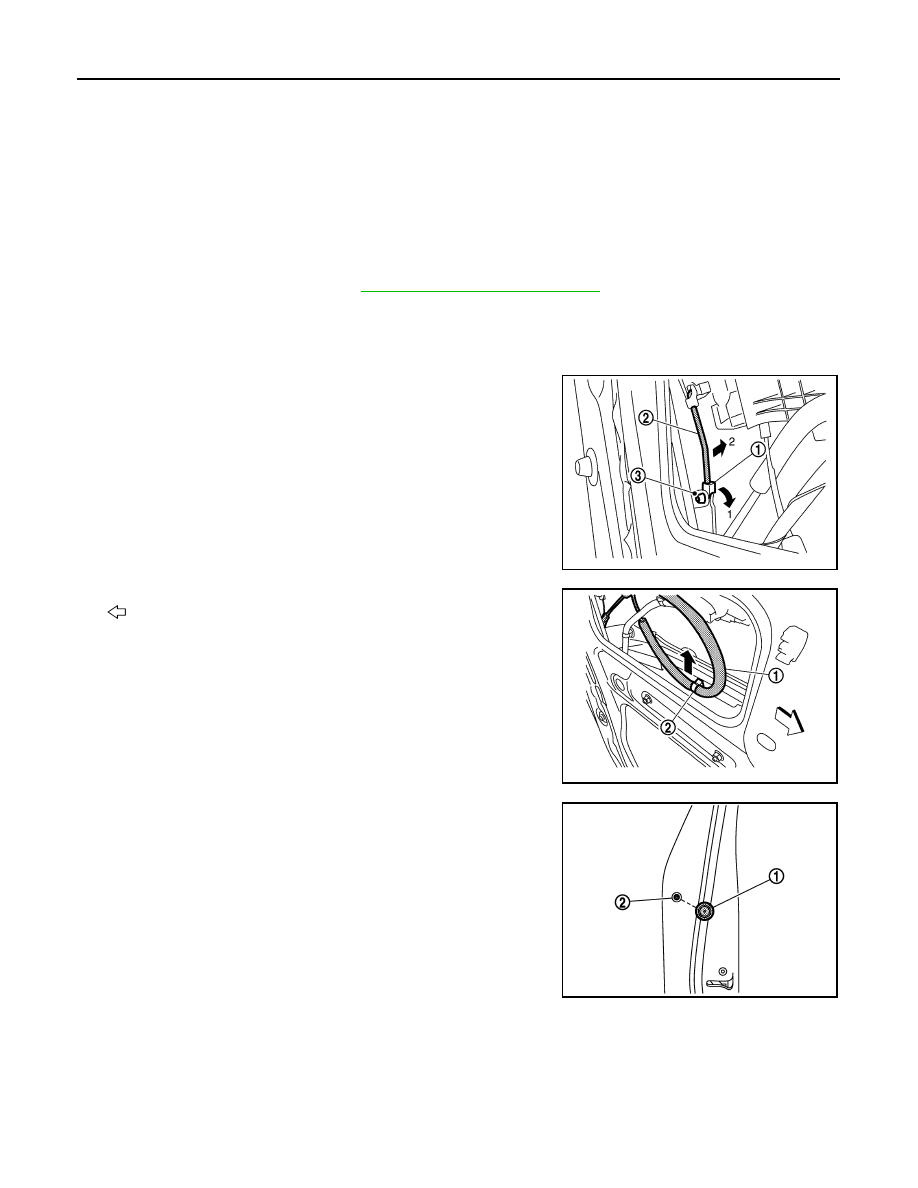

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse door lock assembly bolt. Always replace it with a new one when it is removed.

• After installation, check door open/close, lock/unlock operation.

• Check door lock cable is properly engaged with outside handle bracket.

1.

Door key cylinder assembly (driver
side)
Outside handle escutcheon (passen-
ger side)

2.

Rear gasket

3.

Outside handle bracket

4.

Bolt

5.

Door key cylinder rod (driver side)

6.

Door lock assembly

7.

Inside handle

8.

Outside handle

9.

Front gasket

10. Clip

Pawl Front

JMKIA8160GB

FRONT DOOR LOCK

DLK-303

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

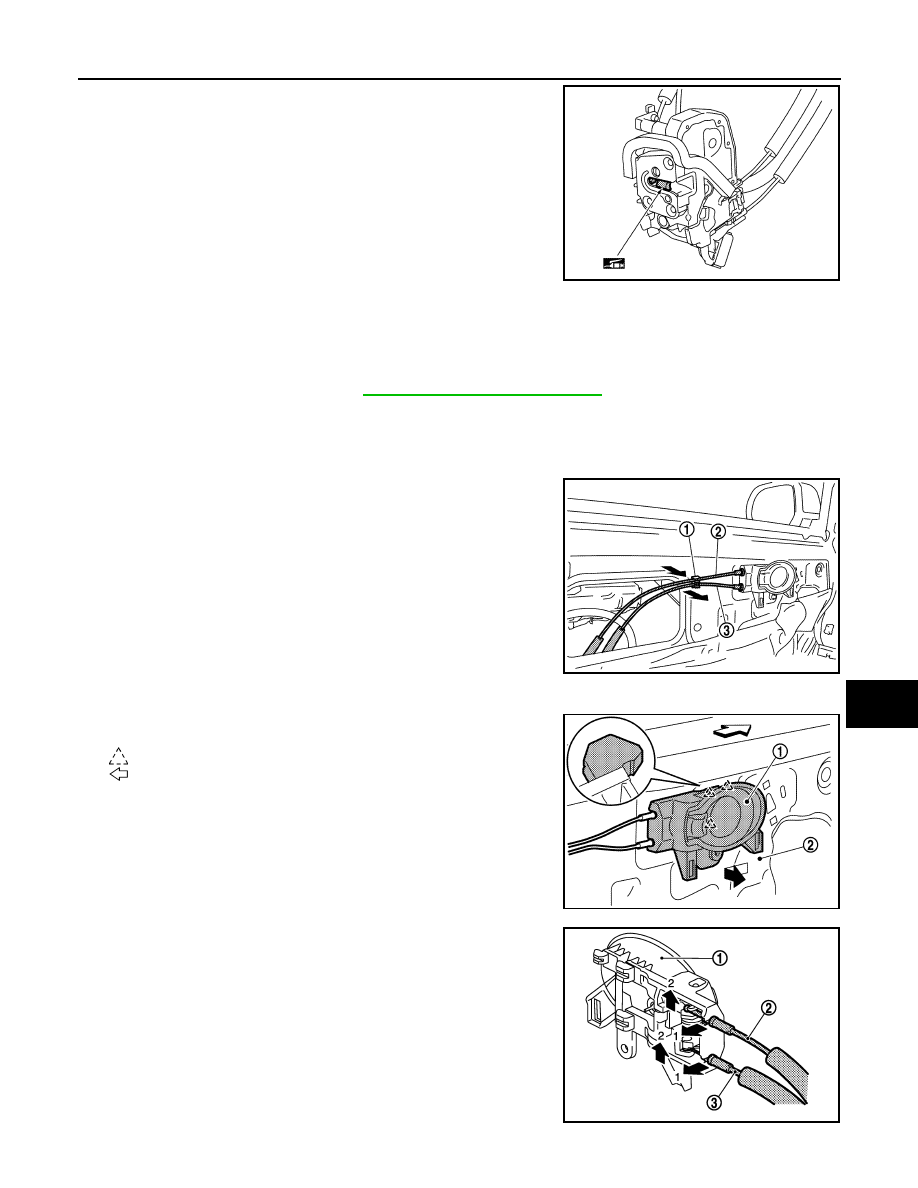

• Check door lock assembly for poor lubrication. Apply a suit-

able multi-purpose grease to door lock if necessary.

INSIDE HANDLE
INSIDE HANDLE : Removal and Installation

INFOID:0000000009269012

REMOVAL

1. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

2. Remove upper side of sealing screen.

NOTE:

Cut the butyl tape so that some parts of the butyl tape remain on the sealing screen, if the sealing screen

is reused.

3. Release lock knob cable (2) and inside handle cable (3) from

clip (1).

4. Remove inside handle bolt.
5. Release inside handle (1) from door panel (2) by sliding   toward

vehicle rear and separating.

: Pawl

: Front

6. Disengage inside handle cable (3) and lock knob cable (2), and

remove inside handle (1).

JMKIA8077ZZ

JMKIA8078ZZ

JMKIA8079ZZ

JMKIA5885ZZ

DLK-304

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR LOCK

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

After installation, check door open/close, lock/unlock operation.

OUTSIDE HANDLE
OUTSIDE HANDLE : Removal and Installation

INFOID:0000000009269013

REMOVAL

1. Fully close the front door glass.
2. Remove front door finisher. Refer to

INT-15, "Removal and Installation"

.

3. Remove sealing screen.

NOTE:

Cut the butyl tape so that some parts of the butyl tape remain on the sealing screen, if the sealing screen

is reused.

4. For drivers side only, open rod holder (1) by pulling downward

and separate key rod (3) from door lock assembly (2).

5. Disengage outside handle cable (1) from cable clip (2).

: Front

6. Remove door side grommet (1), and loosen bolt from grommet

hole (2).

JMKIA8080ZZ

JMKIA8081ZZ

JMKIA5888ZZ

FRONT DOOR LOCK

DLK-305

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

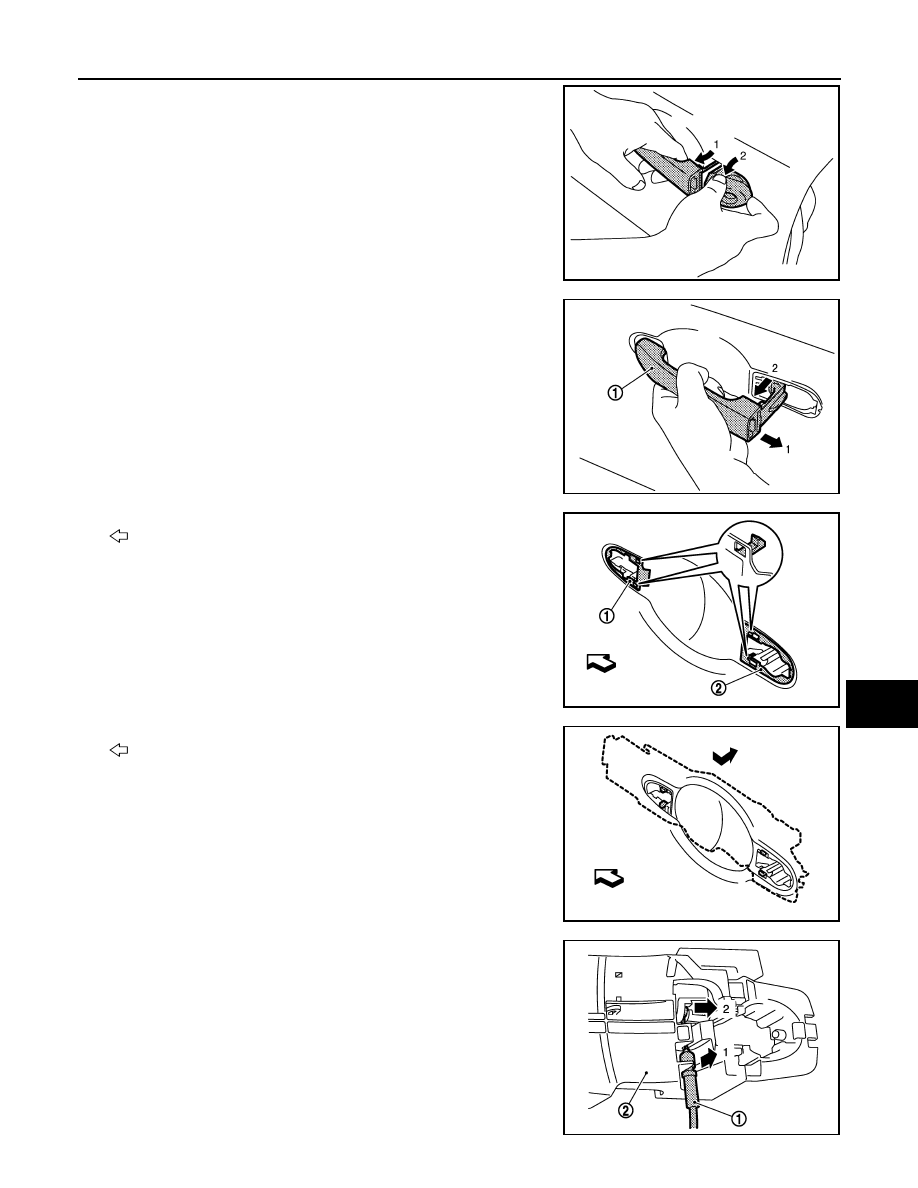

7. While pulling outside handle, remove door key cylinder assem-

bly (LH side) or outside handle escutcheon (RH side).

8. While pulling outside handle (1), slide toward rear of vehicle to

remove outside handle.

9. Remove front gasket (1) and rear gasket (2).

: Front

10. Slide outside handle bracket toward rear of vehicle to remove.

: Front

11. Disconnect outside handle cable (1) from outside handle bracket

(2) as shown.

JMKIA0560ZZ

JMKIA0524ZZ

JMKIA5889ZZ

JMKIA5890ZZ

JMKIA5891ZZ
