DLK-298

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

TRUNK LID

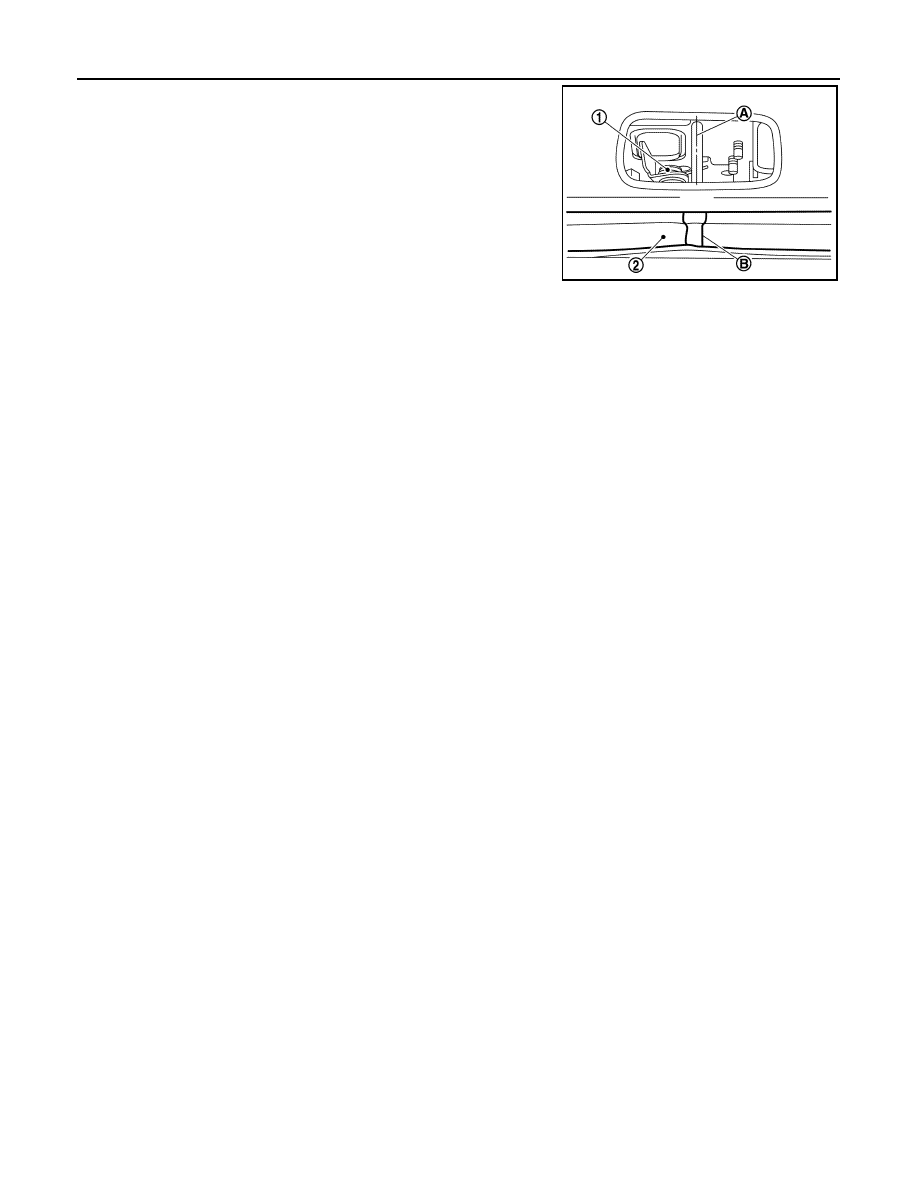

2. Align the connecting point (B) of weatherstrip (2) to the center

(A) of striker (1) and install as shown.

3. Make sure entire weatherstrip is firmly seated.

NOTE:

Check that weatherstrip fits tightly all around the opening, especially in each corner and along the luggage

rear plate.

JMKIA8130ZZ

HOOD LOCK

DLK-299

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

HOOD LOCK

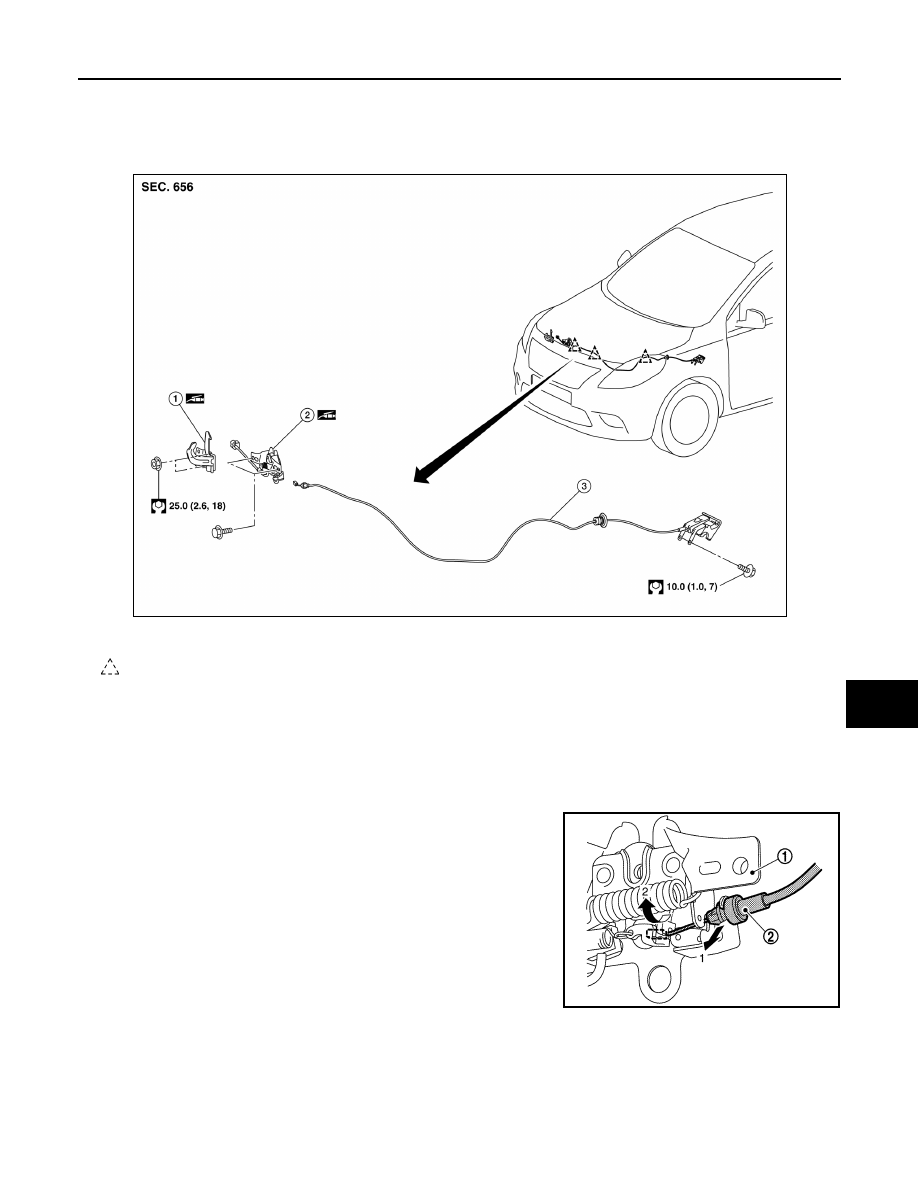

Exploded View

INFOID:0000000009269005

HOOD LOCK
HOOD LOCK : Removal and Installation

INFOID:0000000009269006

REMOVAL

1. Remove hood lock assembly bolts and hood lock assembly.
2. Disconnect hood lock control cable assembly (2) from hood lock

assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to bend the cable too much, keep the radius 100 mm (3.94 in) or more.

• After installation, check that hood lock control cable is properly engaged with hood lock.

1.

Secondary latch

2.

Hood lock assembly

3.

Hood lock control cable assembly

Clip

AWKIA1892GB

JMKIA7997ZZ

DLK-300

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

HOOD LOCK

• After installation, perform hood adjustment procedure. Refer to

DLK-275, "HOOD ASSEMBLY :

Adjustment"

.

• After adjusting, perform hood lock control inspection. Refer to

DLK-301, "Inspection"

.

HOOD LOCK CONTROL CABLE
HOOD LOCK CONTROL CABLE : Removal and Installation

INFOID:0000000009269007

REMOVAL

1. Disconnect hood lock control cable assembly from hood lock assembly. Refer to

DLK-299, "HOOD LOCK

: Removal and Installation"

.

2. Remove fender protector (LH). Refer to

EXT-26, "Removal and Installation"

.

3. Release hood lock control cable clips.

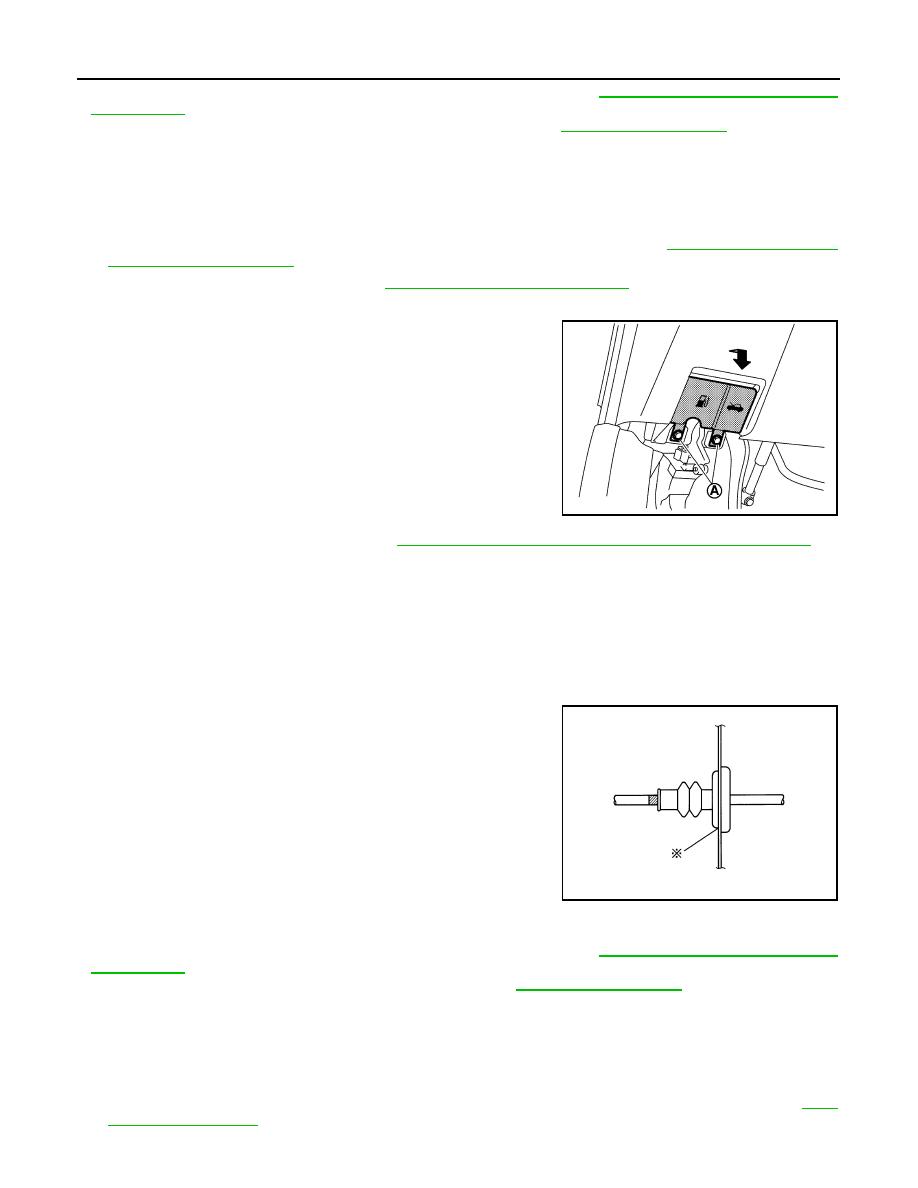

4. Remove hood lock/fuel filler door release handle assembly bolts

(A).

5. Disconnect hood lock control cable assembly from hood lock/

fuel filler door release handle assembly.

6. Remove dash side finisher (LH). Refer to

INT-21, "DASH SIDE FINISHER : Removal and Installation"

7. Remove grommet on the lower dash and pull the hood lock control cable into the passenger compart-

ment.

CAUTION:

While pulling, be careful not to damage (peel) the outside of the hood lock control cable.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Be careful not to bend cable too much, keep the radius 100 mm (3.94 in) or more.

• Check that cable is not offset from the positioning grommet,

and apply the sealant to the grommet (at * mark).

• Check that hood lock control cable is properly engaged with hood lock.

• After installation, perform hood adjustment procedure. Refer to

DLK-275, "HOOD ASSEMBLY :

Adjustment"

.

• After installation, perform hood lock inspection. Refer to

DLK-301, "Inspection"

.

HOOD LOCK BELL CRANK
HOOD LOCK BELL CRANK : Removal and Installation

INFOID:0000000009269008

REMOVAL

1. Remove radiator upper seal clips and then remove upper clip from radiator side seal (RH). Refer to

DLK-

278, "Exploded View"

.

JMKIA7998ZZ

PIIB5801E

HOOD LOCK

DLK-301

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Remove hood lock secondary control nuts and hood lock secondary control.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Perform hood lock control inspection. Refer to

DLK-301, "Inspection"

.

Inspection

INFOID:0000000009269009

NOTE:

If the hood lock cable is bent or deformed, replace it.

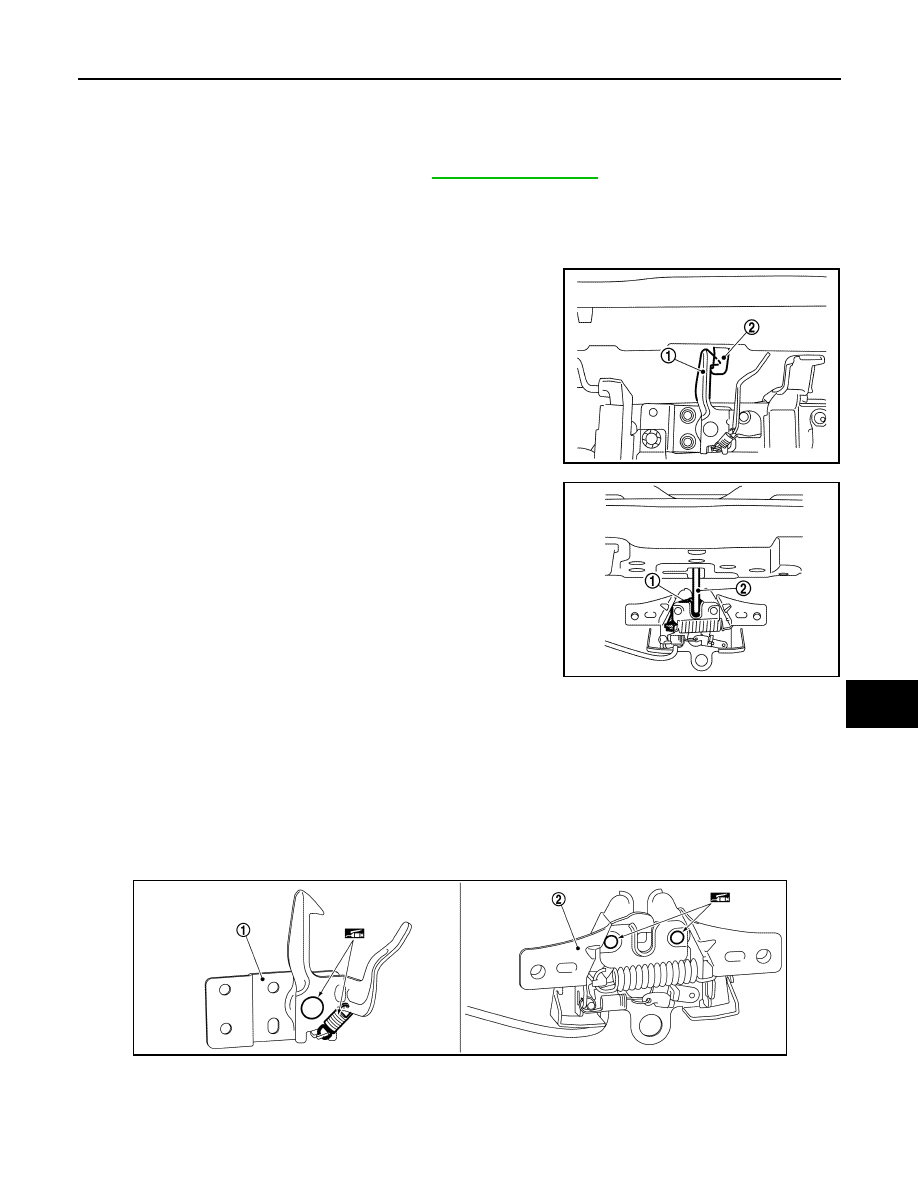

1. Check that secondary latch (1) is properly engaged with second-

ary striker (2) with hood’s own weight.

2. Check that primary latch (1) is securely engaged with primary

striker (2) when hood is dropped with hood’s own weight from

approximately 200 mm (7.9 in) height.

3. While operating the hood lock/fuel filler release handle assembly, carefully check that the front end of

hood is raised by approximately 20.0 mm (0.79 in). Also check that hood lock/fuel filler release handle

assembly returns to the original position.

4. Check that hood lock/fuel filler release handle assembly operates at 49 N (5.0 kg-f, 11.0 lb) or below.
5. Install so that static closing force of the hood is 300 – 490 N (31.0 – 50.0 kg-f, 67.4 – 110.2 lb-f).

NOTE:

• Do not exert vertical force on right side and left side of hood lock.

• Do not press simultaneously both sides.

6. Check the hood lock lubrication condition. If necessary, apply a suitable multi-purpose grease to second-

ary latch (1) and hood lock assembly (2).

JMKIA7993ZZ

JMKIA7994ZZ
