FRONT FENDER

A viscous urethane foam is installed on the back surface of front fender. When removing the front

fender, be careful to not deform the front fender while performing the procedure and removing the

viscous urethane foam a little at a time.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Adjust the following components as necessary.

- Hood assembly: Refer to

DLK-275, "HOOD ASSEMBLY : Adjustment"

.

- Front door assembly: Refer to

DLK-285, "DOOR ASSEMBLY : Adjustment"

.

• After adjusting, apply touch-up paint (body color) onto the head of the front fender bolts.

FENDER COVER
FENDER COVER : Removal and Installation

INFOID:0000000009268985

REMOVAL

1. Fully open hood assembly.

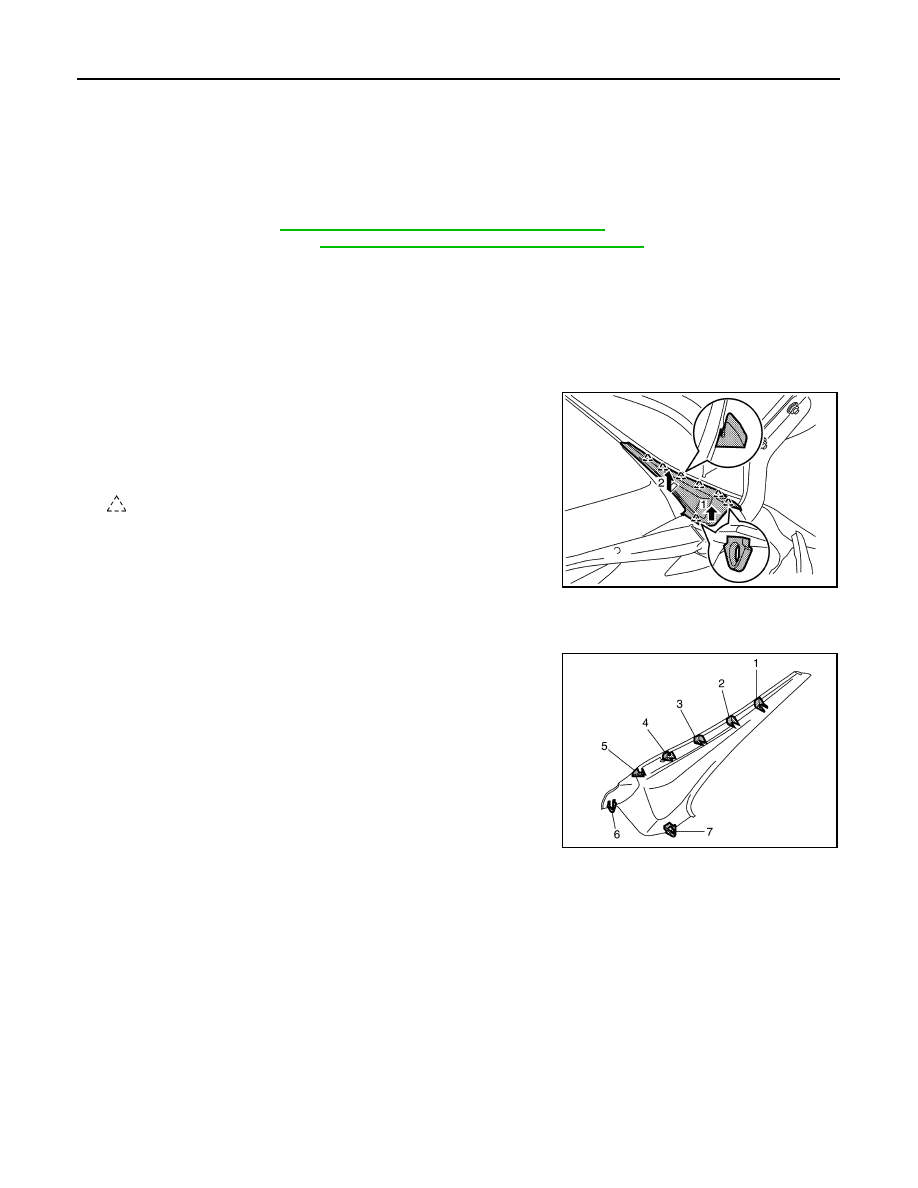

2. Disengage pawls beginning at the front of the fender cover and

working toward the rear of vehicle and then remove front fender

cover.

CAUTION:

When performing the procedure after removing fender

cover, protect the lower windshield glass with urethane etc.

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• For installation, engage pawls to front fender and cowl top

cover in numerical order shown.

• Install so that there is no clearance between windshield and

cowl top cover.

JMKIA8031ZZ

JMKIA8032ZZ

FRONT DOOR

DLK-283

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

FRONT DOOR

Exploded View

INFOID:0000000009268986

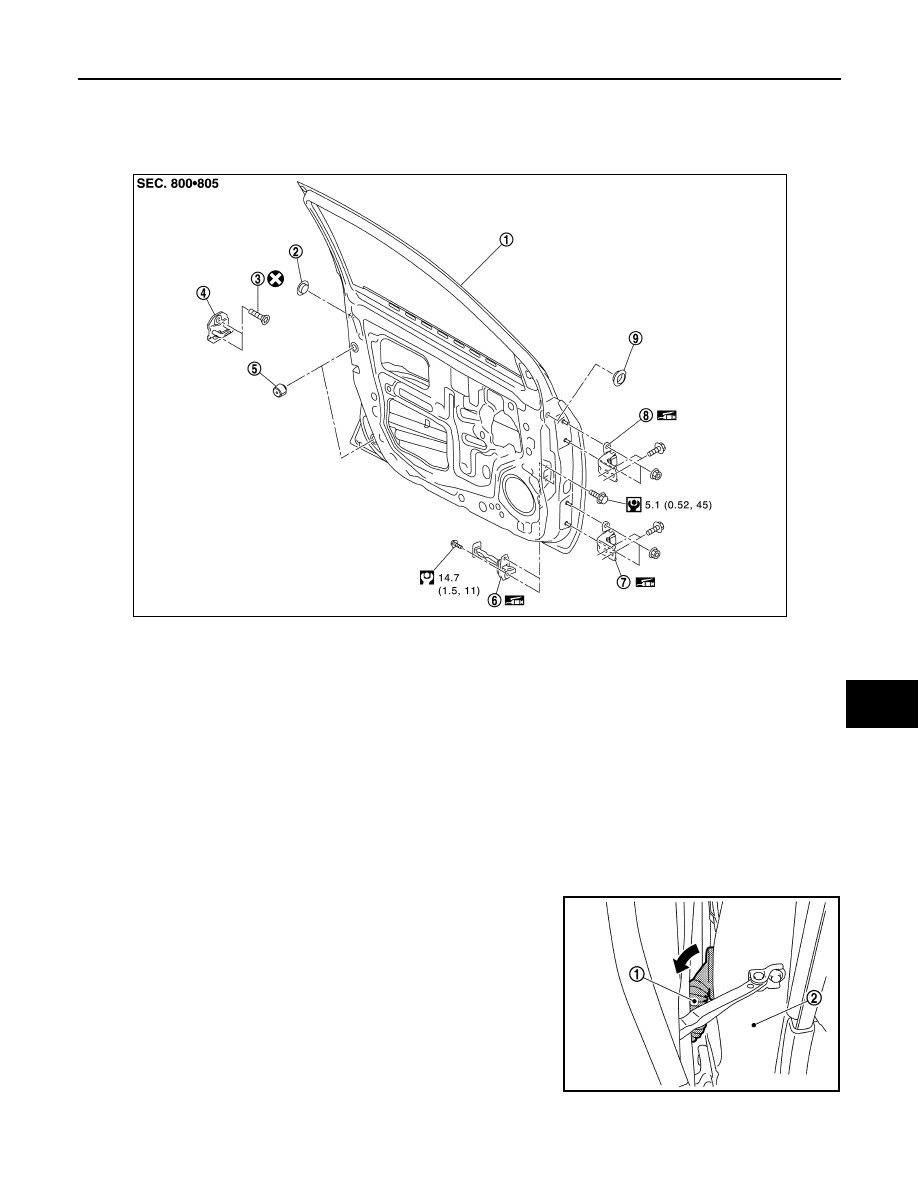

DOOR ASSEMBLY
DOOR ASSEMBLY : Removal and Installation

INFOID:0000000009268987

CAUTION:

• Use two people when removing or installing front door due to its heavy weight

• When removing and installing front door assembly, support the door using a suitable tool.

• Use shops cloths to protect surrounding components from damage during removal and installation

of front door assembly.

REMOVAL

1. Remove front door harness grommet (1) and then pull out the

harness from the vehicle (2).

1.

Front door assembly

2.

Grommet

3.

Striker bolt

4.

Door striker

5.

Bumper rubber

6.

Door check link

7.

Door hinge (lower)

8.

Door hinge (upper)

9.

Grommet (Drive side only)

JMKIA8152GB

JMKIA8070ZZ

DLK-284

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

FRONT DOOR

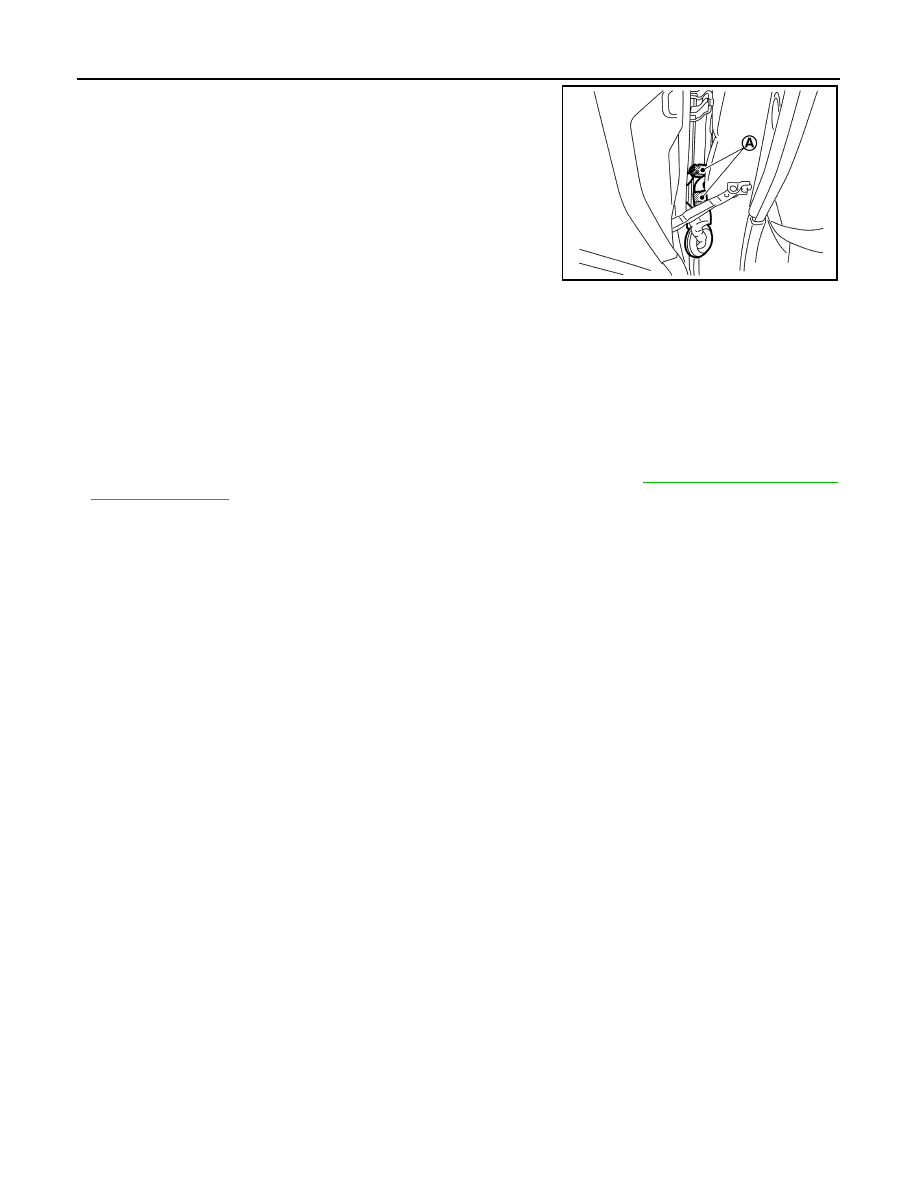

2. Disconnect the harness connectors (A) from front door assem-

bly.

3. Remove door check link bolt (body side).
4. Remove door hinge nuts (door side) and front door assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Apply anticorrosive agent onto the hinge mating surface.

• After installation, check front door open/close, lock/unlock operation.

• Check door hinge rotating point for poor lubrication. If necessary, apply a suitable multi-purpose

grease.

• After installation, perform the front door adjustment procedure. Refer to

DLK-285, "DOOR ASSEM-

BLY : Adjustment"

.

• After adjusting, apply touch-up paint (body color) onto the head of door hinge nuts.

JMKIA8071ZZ

FRONT DOOR

DLK-285

< REMOVAL AND INSTALLATION >

[WITHOUT INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

DOOR ASSEMBLY : Adjustment

INFOID:0000000009268988

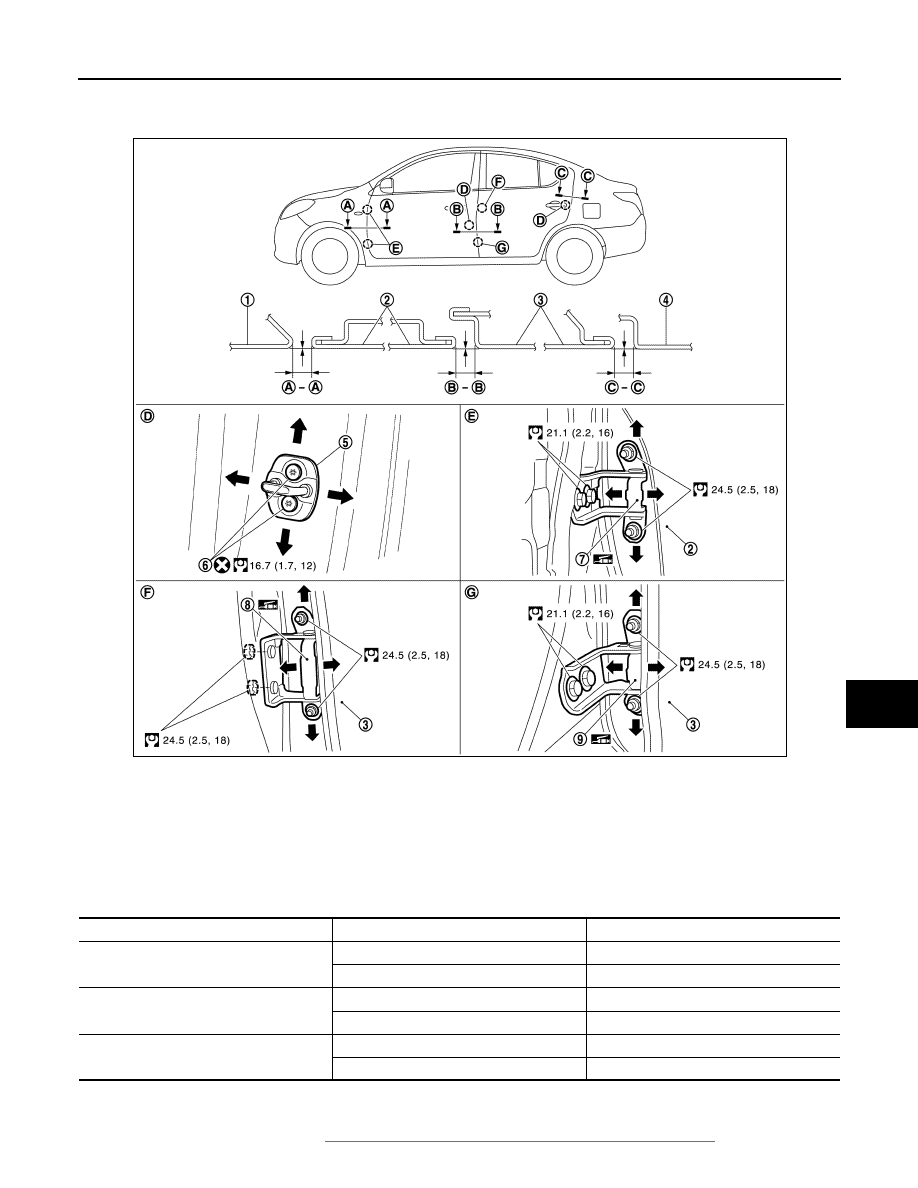

Check the clearance and surface height between front door and each part by visual inspection and tactile feel.

If the clearance and the surface height are out of specification, adjust them according to the adjustment proce-

dure.

Unit: mm (in)

ADJUSTMENT PROCEDURE

1. Remove front fender. Refer to

DLK-281, "FRONT FENDER : Removal and Installation"

.

1.

Front fender

2.

Front door

3.

Rear door

4.

Body side outer

5.

Door striker

6.

Striker bolt

7.

Front door hinge

8.

Rear door hinge (upper)

9.

Rear door hinge (lower)

JMKIA8146GB

Section

Measurement

Standard

A – A

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)

B – B

Clearance

4.6

± 2.0 (0.18 ± 0.08)

Surface height

0.0

± 1.5 (0.0 ± 0.06)

C – C

Clearance

4.6

± 1.0 (0.18 ± 0.04)

Surface height

0.0

± 1.0 (0.0 ± 0.04)
