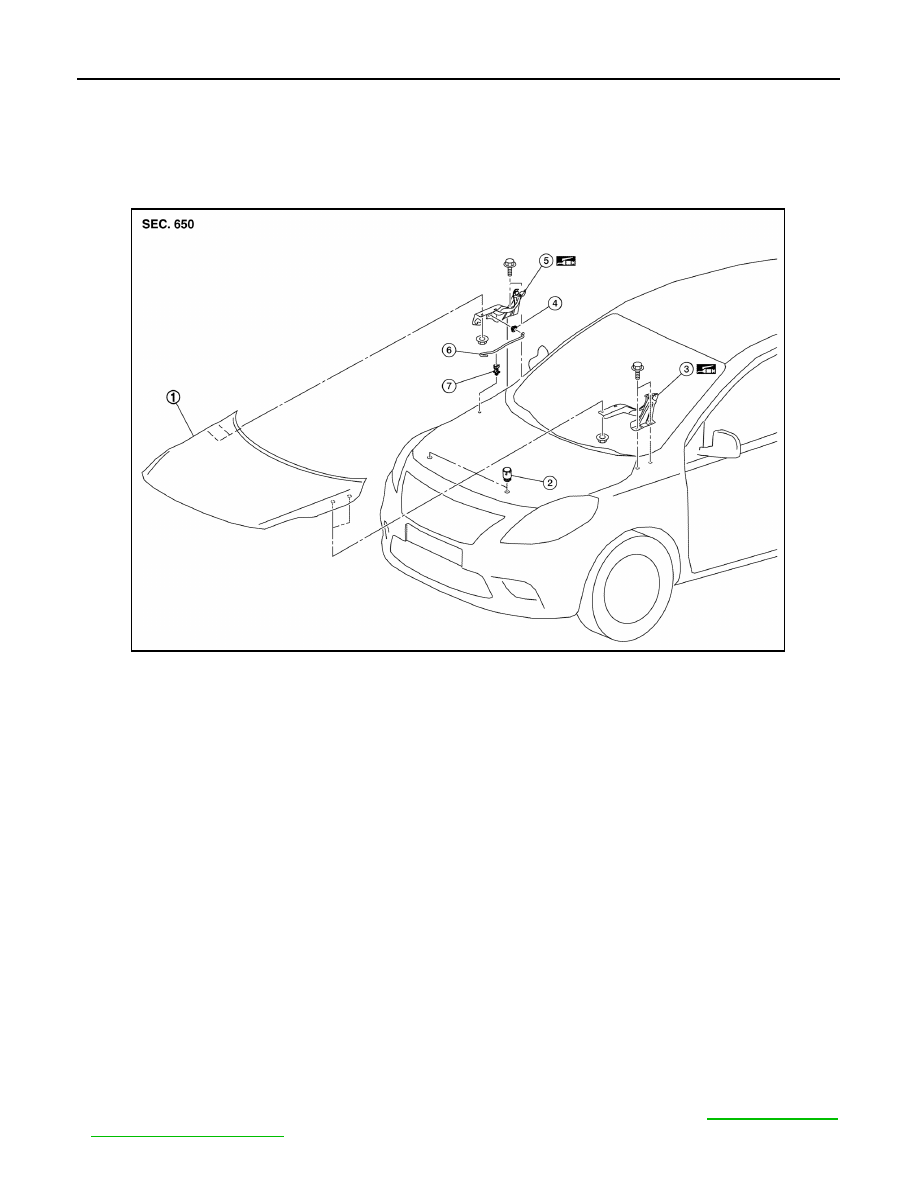

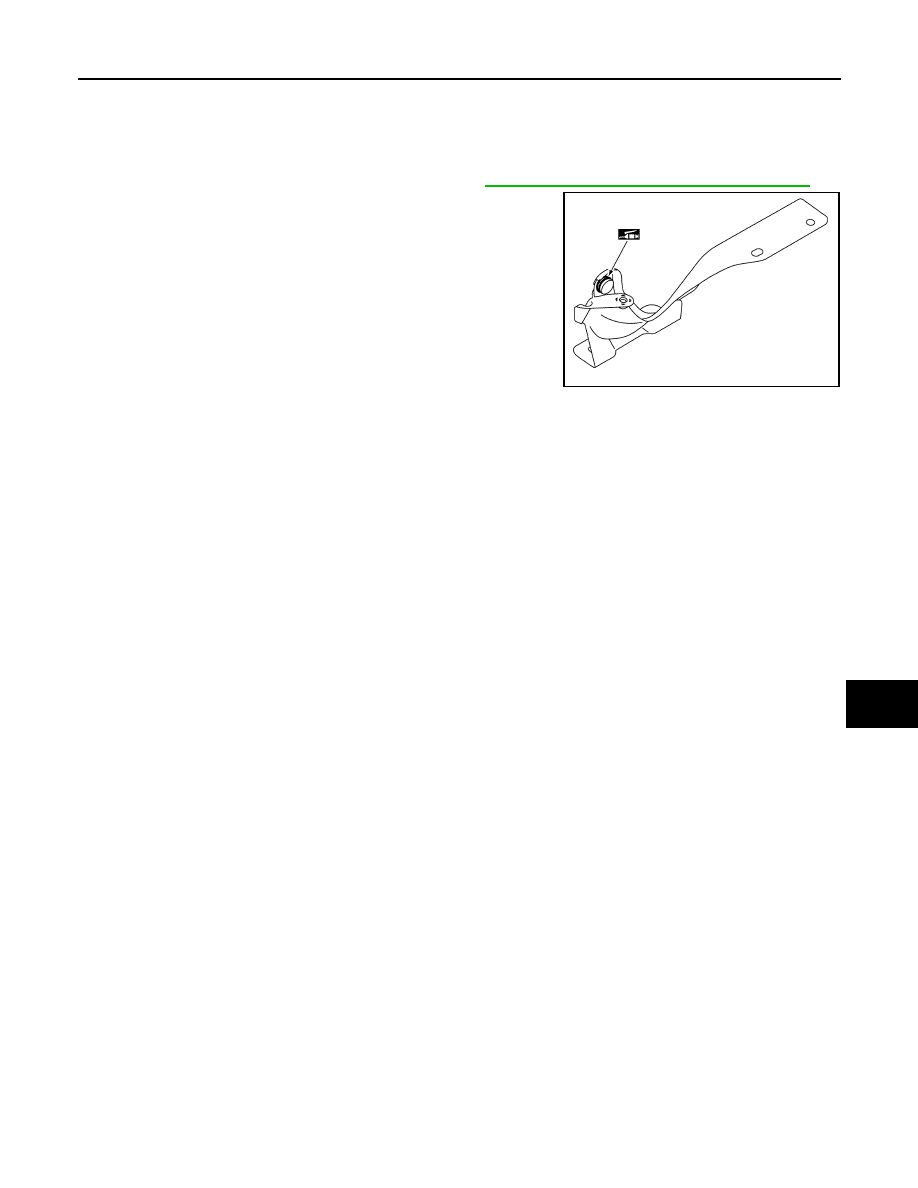

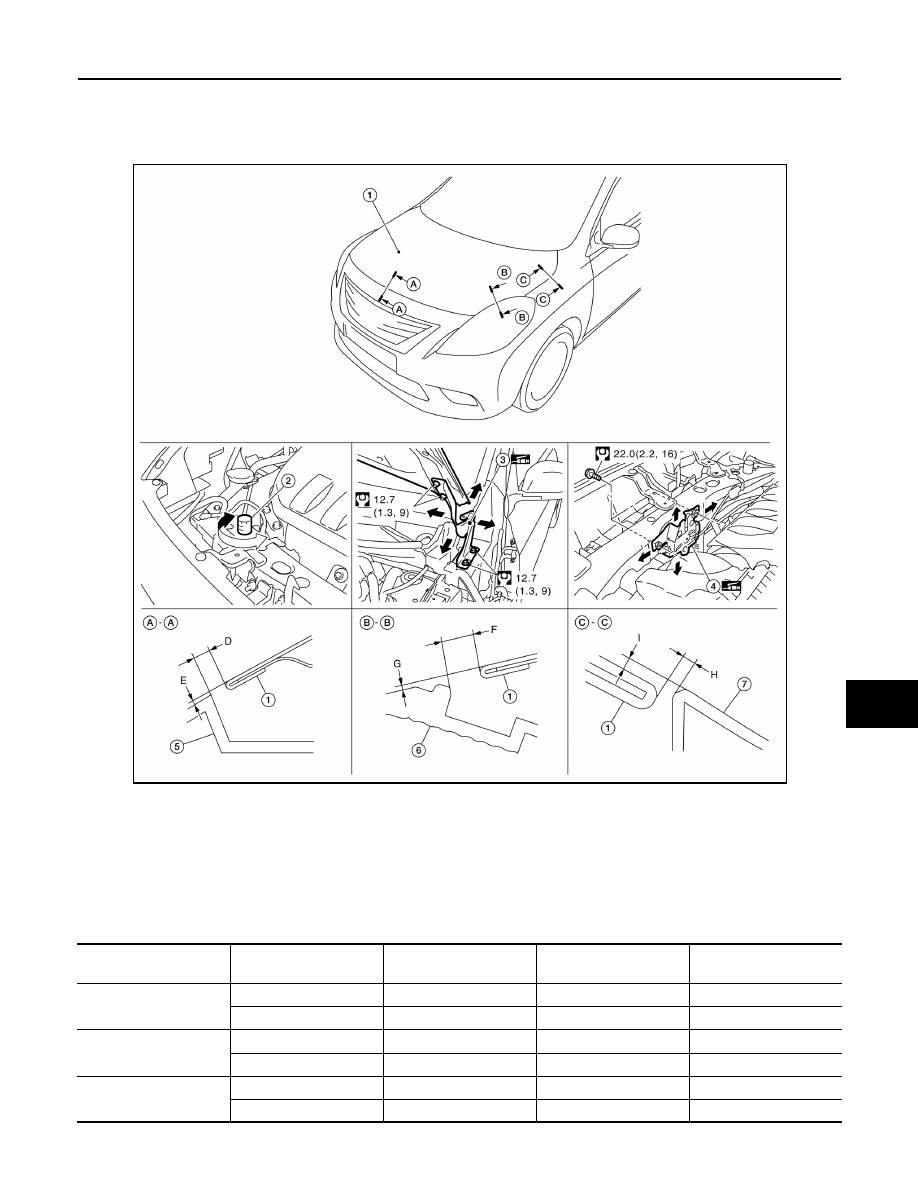

DLK-274 < REMOVAL AND INSTALLATION > [WITHOUT INTELLIGENT KEY SYSTEM] HOOD REMOVAL AND INSTALLATION HOOD Exploded View INFOID:0000000009268975 HOOD ASSEMBLY INFOID:0000000009268976 CAUTION: • Use two people when removing or installing hood assembly due to its heavy weight. • Use protective tape or shop cloths to protect surrounding components from damage during removal and installation of hood assembly. REMOVAL 1. Support hood assembly using a suitable tool. WARNING: Bodily injury may occur if hood assembly is not supported properly when removing hood assem- bly. 2. Remove hood hinge to hood nuts and then remove the hood assembly. CAUTION: Use two people when removing or installing hood assembly due to its heavy weight. INSTALLATION Installation is in the reverse order of removal. CAUTION: • After installation, perform the hood assembly adjustment procedure. Refer to . 1. Hood assembly 2. Hood bumper rubber 3. Hood hinge (LH) 4. Grommet 5. Hood hinge (RH) 6. Hood support rod 7. Clamp AWKIA1877ZZ |
