BODY COMPONENT PARTS

10. Closing plate inner assembly (LH/

RH)

11. Radiator core inner side support

(LH/RH)

12. Member assembly front side front

(LH/RH)

13. Closing plate front outer assem-

bly (LH/RH)

14. Radiator core outer side support 15. Front suspension mounting

bracket (LH/RH)

16. Rear center crossmember as-

sembly

17. Hood ledge reinforcement as-

sembly (LH/RH)

18. Rear seat crossmember assem-

bly

19. Outer sill support bracket (LH/

RH)

20. Towing hook bracket

21. Extension rear wheel house outer

(LH/RH)

22. Rear wheel housing outer (LH/

RH)

23. Rear pillar inner reinforcement

(LH/RH)

24. Rear inner pillar (LH/RH)

25. Rear seatback support brace (LH/

RH)

26. Rear wheel housing inner (LH/

RH)

27. Parcel shelf side (LH/RH)

28. Rear floor rear side (LH/RH)

29. Rear floor rear

30. Rear floor front

31. Rear seat upper crossmember

32. Rear floor front extension

Front

BODY COMPONENT PARTS

BRM-15

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

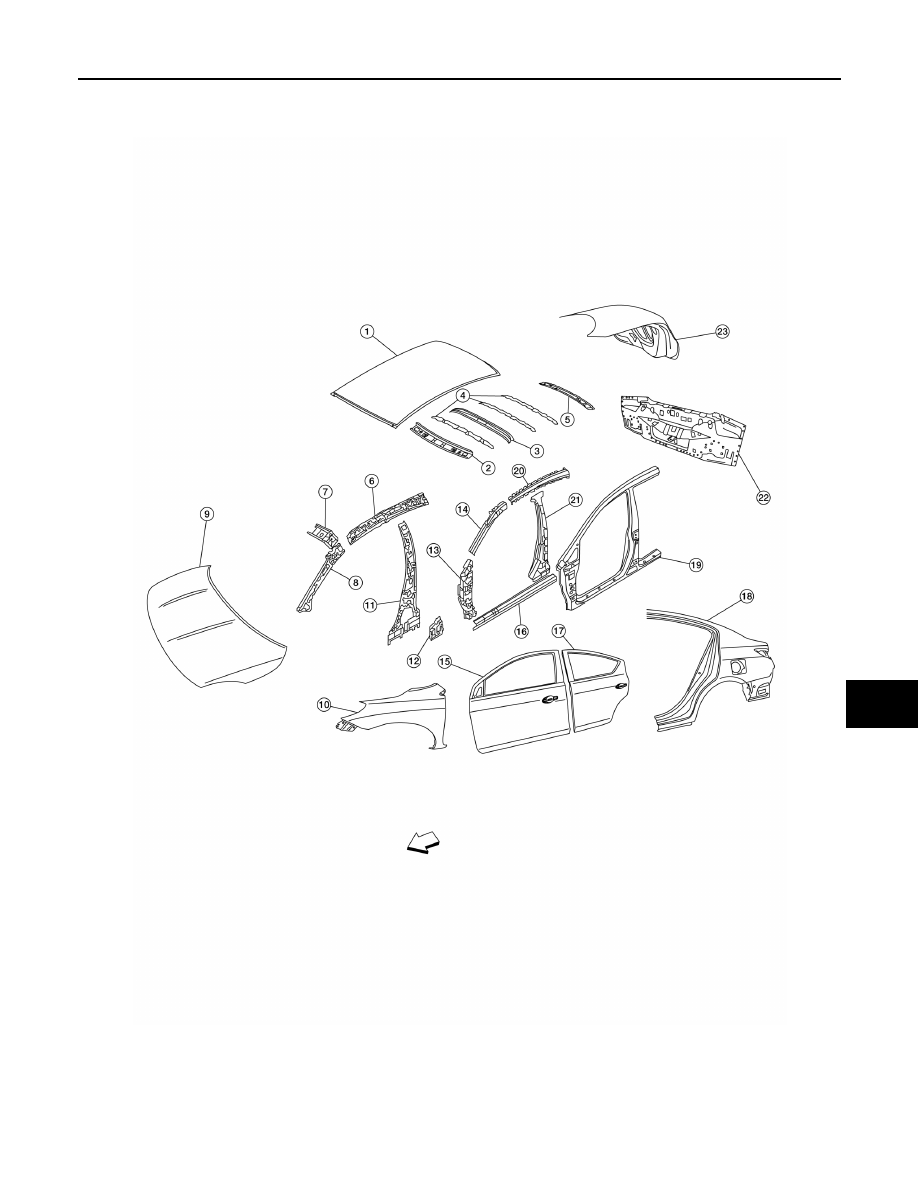

Body Component Parts

INFOID:0000000009268578

1.

Roof panel assembly

2.

Front roof rail

3.

Roof reinforcement

4.

Roof rail

5.

Rear roof rail

6.

Roof inner side rail (LH/RH)

7.

Front roof rail brace (LH/RH)

8.

Front pillar inner (LH/RH)

9.

Hood assembly

10. Front fender (LH/RH)

11. Center pillar inner (LH/RH)

12. Rear fender corner (LH/RH)

ALKIA2668ZZ

BRM-16

< PREPARATION >

BODY COMPONENT PARTS

13. Front pillar lower hinge brace

(LH/RH)

14. Front pillar reinforcement (LH/RH)

15. Front door assembly (LH/RH)

16. Inner sill reinforcement (LH/RH)  17. Rear door assembly (LH/RH)

18. Rear body side outer (LH/RH)

19. Front body side outer (LH/RH)

20. Roof side rail reinforcement (LH/RH) 21. Center pillar reinforcement

22. Rear panel assembly

23. Trunk lid assembly

Front

CORROSION PROTECTION

BRM-17

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

REMOVAL AND INSTALLATION

CORROSION PROTECTION

Description

INFOID:0000000009268579

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in

NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-

rosive measures.

Anti-Corrosive Precoated Steel (Galvannealed Steel)

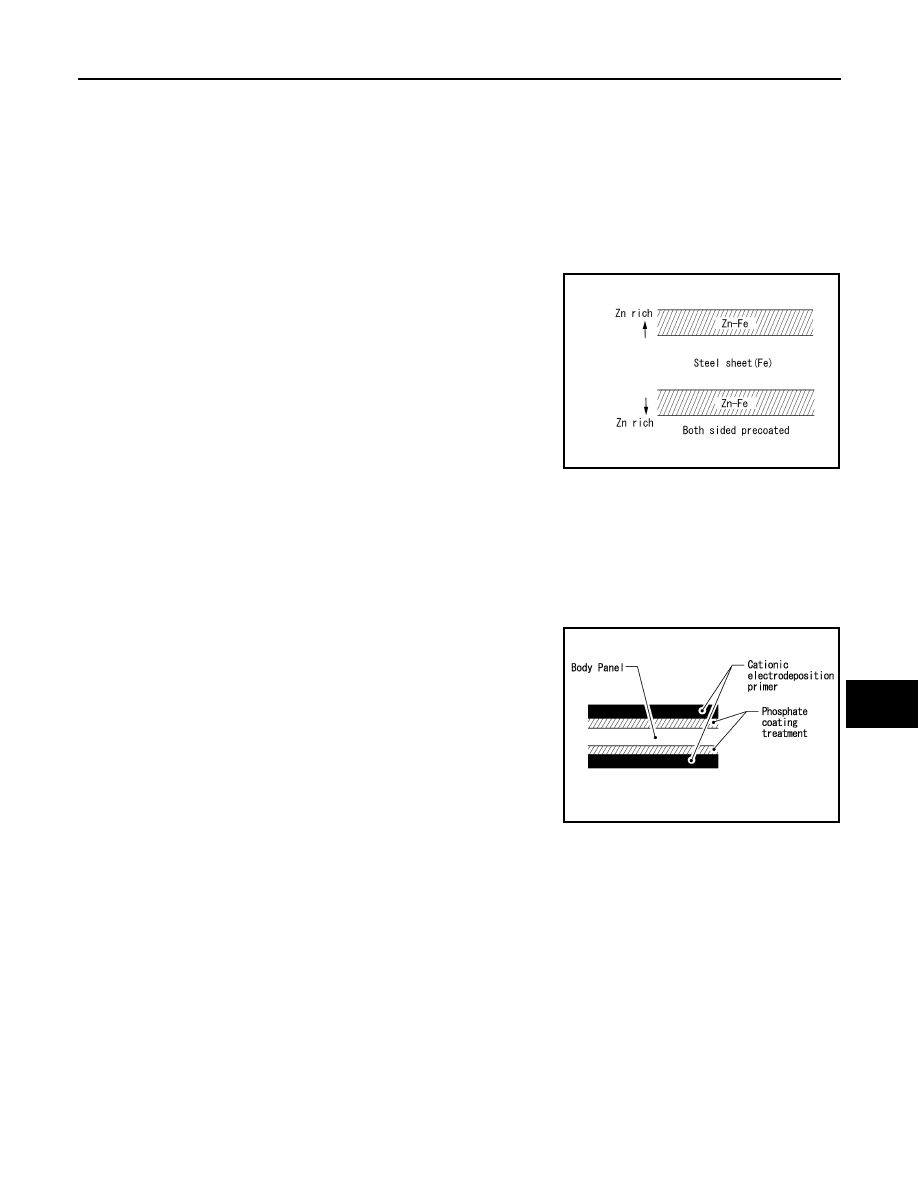

To improve repairability and corrosion resistance, a new type of anti-

corrosive precoated steel sheet has been adopted replacing conven-

tional zinc-coated steel sheet.

Galvannealed steel is electroplated and heated to form Zinc-iron

alloy, which provides excellent and long term corrosion resistance

with cationic electrodeposition primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that

GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-

mance built into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

A phosphate coating treatment and a cationic electrodeposition primer, which provide excellent corrosion pro-

tection, are employed on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute

minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-

INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built

into the vehicle at the factory.

Anti-Corrosive Wax

INFOID:0000000009268580

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-

tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of

SIIA2294E
