WHEEL SENSOR

BRC-105

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Do not twist front wheel sensor harness when installing front

wheel sensor. Check that grommet (2) is fully inserted to

bracket (1). Check that front wheel sensor harness is not

twisted after installation.

REAR WHEEL SENSOR

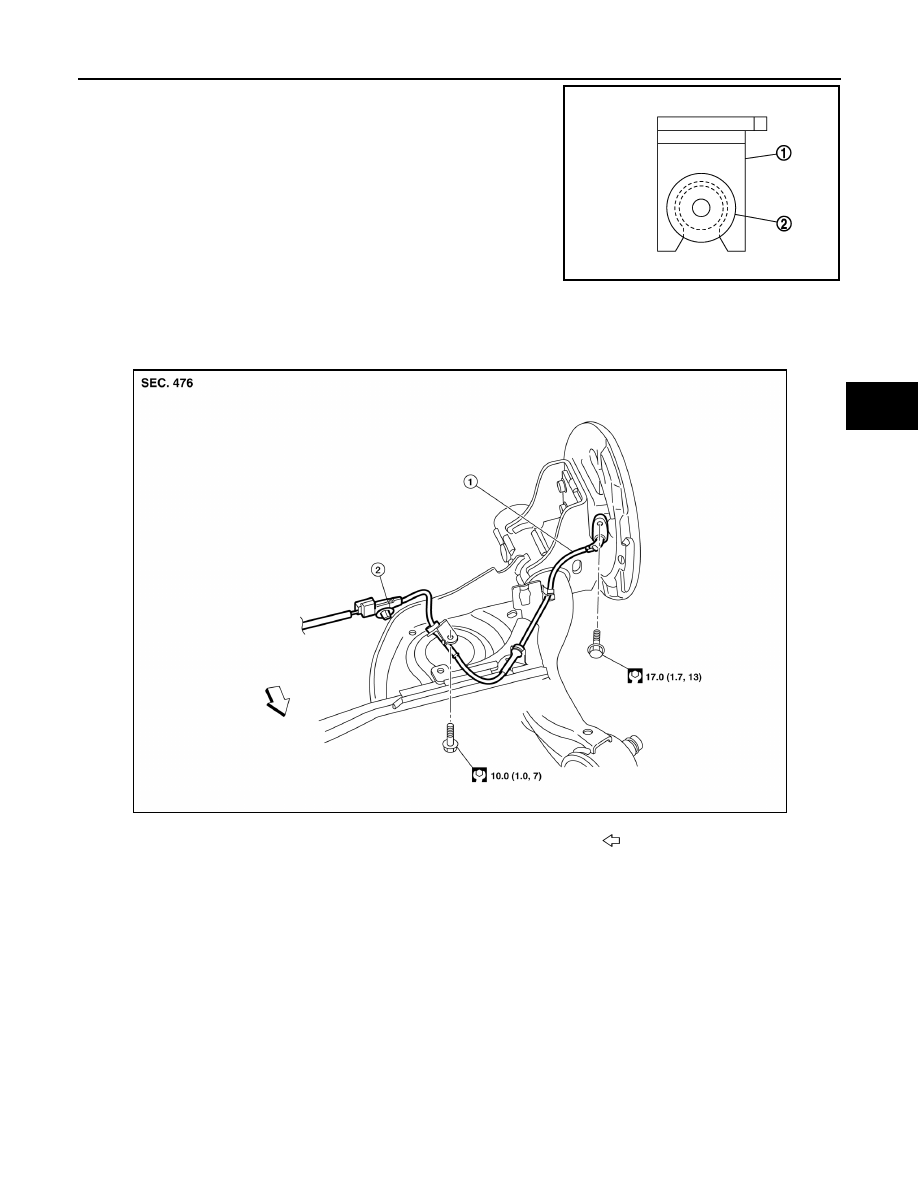

REAR WHEEL SENSOR : Exploded View

INFOID:0000000009267675

REAR WHEEL SENSOR : Removal and Installation

INFOID:0000000009267676

CAUTION:

• Be careful not to damage wheel sensor edge and sensor rotor teeth.

• When removing the front or rear wheel hub, first remove the wheel sensor from the wheel hub. Fail-

ure to do so may result in damage to the wheel sensor wires, making the sensor inoperative.

• Pull out the wheel sensor, being careful to turn it as little as possible. Do not pull on the wheel sen-

sor harness.

• Before installation, check if foreign objects, such as iron fragments, are adhered to the pick-up part

of the sensor or to the inside of the hole in the wheel hub for the wheel sensor, or if a foreign object

is caught in the surface of the mating surface for the sensor rotor. Fix as necessary and then install

the wheel sensor.

REMOVAL

1. Remove rear wheel sensor from back plate.
2. Remove rear wheel sensor harness from the vehicle.

JPFIC0209ZZ

1.

Rear wheel sensor (LH)

2.

Rear wheel sensor harness connector (LH)

Front

AWFIA0866GB

BRC-106

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

WHEEL SENSOR

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

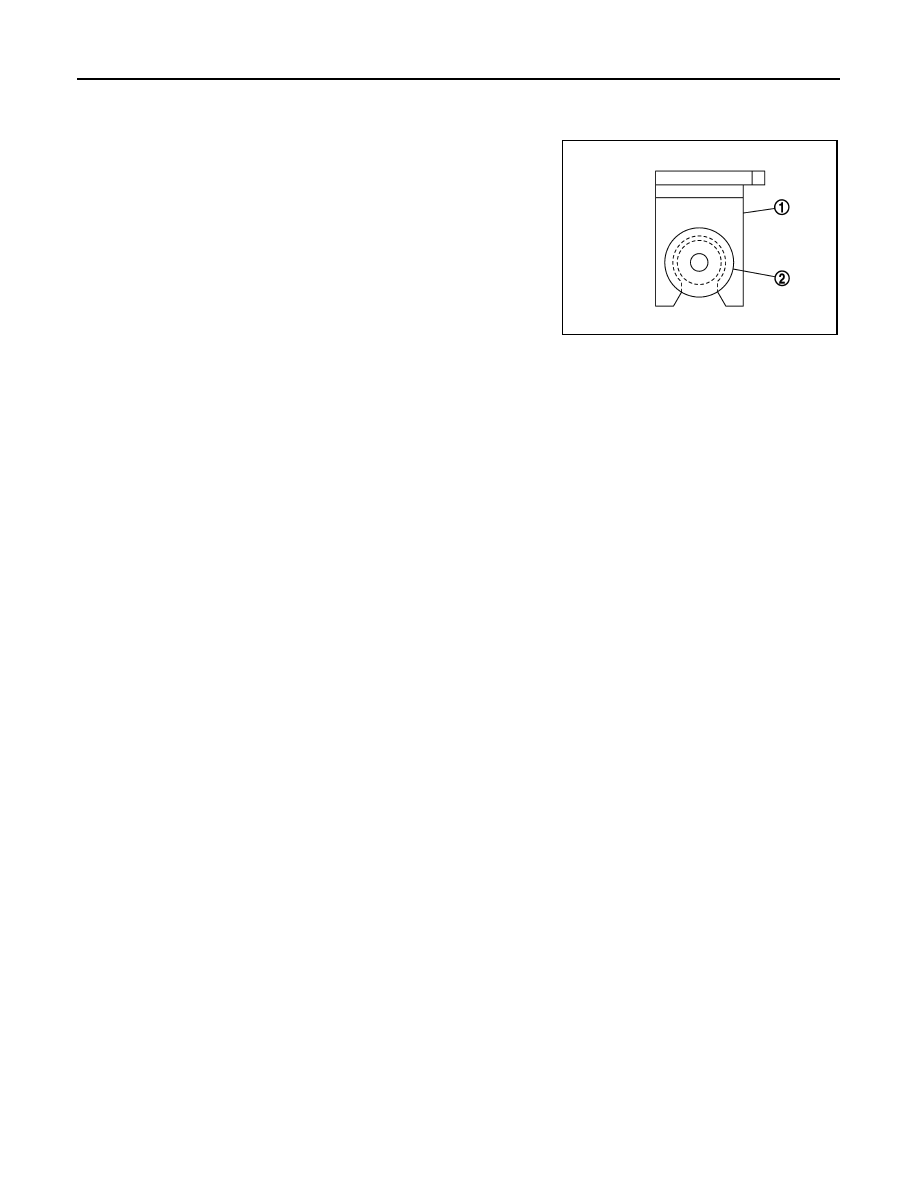

Do not twist rear wheel sensor harness when installing rear

wheel sensor. Check that grommet (2) is fully inserted to

bracket (1). Check that rear wheel sensor harness is not twisted

after installation.

JPFIC0209ZZ

SENSOR ROTOR

BRC-107

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

SENSOR ROTOR

FRONT SENSOR ROTOR
FRONT SENSOR ROTOR : Removal and Installation

INFOID:0000000009267677

REMOVAL

The front wheel sensor rotor is an integral part of the wheel hub and bearing assembly and can not be

replaced individually. When replacing the front wheel sensor rotor replace the hub and bearing assembly.

Refer to

FAX-9, "Removal and Installation"

.

INSTALLATION

Refer to

FAX-9, "Removal and Installation"

.

REAR SENSOR ROTOR
REAR SENSOR ROTOR : Removal and Installation

INFOID:0000000009267678

REMOVAL

1. Remove the brake drum. Refer to

BR-41, "Exploded View"

.

2. Remove the sensor rotor from brake drum. Refer to

BR-43, "Disassembly and Assembly"

.

CAUTION:

Do not reuse rear sensor rotor.

INSTALLATION

Installation is in the reverse order of removal.

BRC-108

< REMOVAL AND INSTALLATION >

[VDC/TCS/ABS]

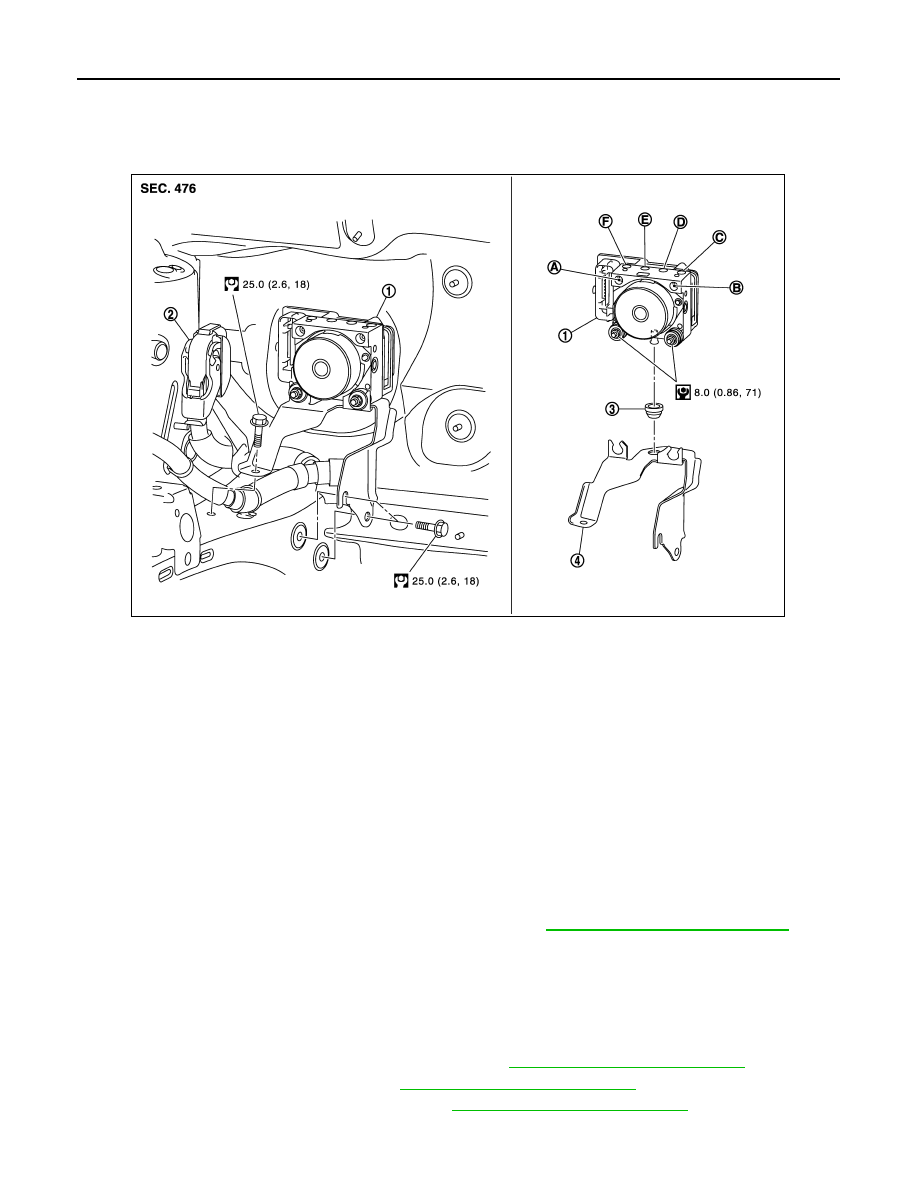

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)

Exploded View

INFOID:0000000009267679

Removal and Installation

INFOID:0000000009267680

CAUTION:

Be careful of the following:

• Before servicing, disconnect the battery cable from negative terminal.

• To remove brake tubes, use a suitable tool (flare nut wrench) to prevent flare nuts and brake tubes

from being damaged. To install, use suitable tool (flare nut torque wrench).

• Do not apply excessive impact to ABS actuator and electric unit (control unit), such as by dropping

it.

• Do not remove and install ABS actuator and electric unit (control unit) by holding harness.

• After work is completed, bleed air from brake tubes. Refer to

BR-12, "Bleeding Brake System"

.

• After installing harness connector on the ABS actuator and electric unit (control unit), make sure

connector is securely locked.

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Disconnect battery cable from negative terminal. Refer to

PG-63, "Removal and Installation"

.

2. Remove A/C high-pressure pipe. Refer to

HA-35, "Removal and Installation"

.

3. Remove A/C low-pressure flexible hose. Refer to

HA-33, "Removal and Installation"

.

4. Disconnect the harness connector from the ABS actuator and electric unit (control unit).

1.

ABS actuator and electric unit (con-
trol unit)

2.

ABS actuator and electric unit (con-
trol unit) harness connector

3.

Bushing

4.

Bracket

A.

To master cylinder secondary side

B.

To master cylinder primary side

C.

To front wheel cylinder (LH)

D.

To rear wheel cylinder (RH)

E.

To rear wheel cylinder (LH)

F.

To front wheel cylinder (RH)

JPFIC0214GB
