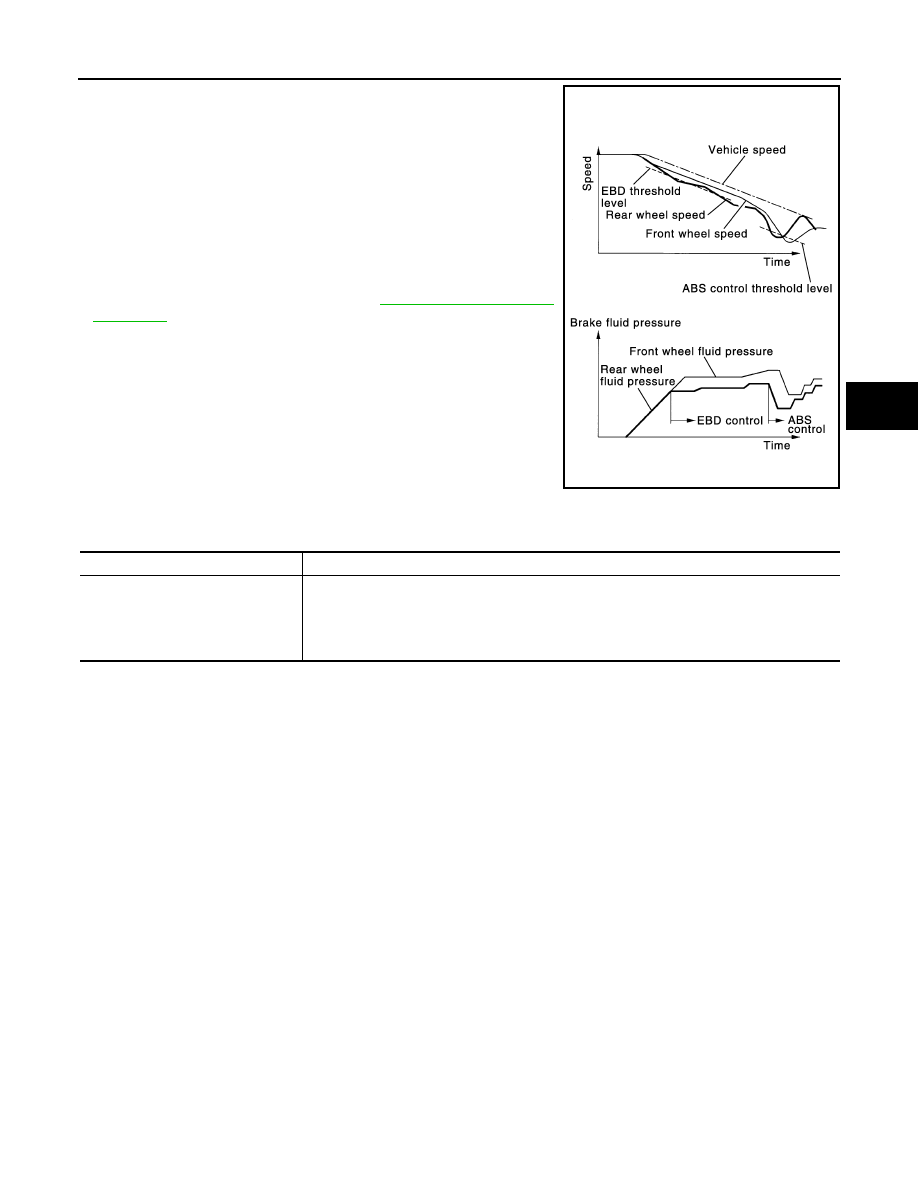

• During braking, control unit portion compares slight slip on front

and rear wheels by wheel speed sensor signal, transmits drive sig-

nal to actuator portion when rear wheel slip exceeds front wheel

slip for the specified value or more, and controls rear wheel brake

force (brake fluid pressure) so that increase of rear wheel slip is

prevented and slips on front wheel and rear wheel are nearly

equalized. ABS control is applied when slip on each wheel

increases and wheel speed is the threshold value of ABS control or

less.

• CONSULT can be used to diagnose the system.

• Fail-safe function is adopted. When a malfunction occurs in EBD

function, the control is suspended for VDC function, TCS function,

ABS function and EBD function. Refer to

BRC-29, "VDC/TCS/ABS

: Fail-safe"

.

INPUT SIGNAL AND OUTPUT SIGNAL

Major signal transmission between each unit via communication lines is shown in the following table.

VDC/TCS/ABS : Fail-safe

INFOID:0000000009267599

VDC AND TCS FUNCTIONS

VDC warning lamp in combination meter turns ON when a malfunction occurs in system [ABS actuator and

electric unit (control unit)]. The control is suspended for VDC and TCS functions. However, ABS and EBD

functions operate normally.

ABS FUNCTION

ABS warning lamp and SLIP indicator lamp in combination meter turn ON when a malfunction occurs in sys-

tem [ABS actuator and electric unit (control unit)]. The control is suspended for VDC, TCS and ABS functions.

However, EBD functions operate normally.

EBD FUNCTION

ABS warning lamp, brake warning lamp and SLIP indicator lamp in combination meter turn ON when a mal-

function occurs in system [ABS actuator and electric unit (control unit)]. The control is suspended for VDC,

TCS, ABS and EBD functions.

JPFIC0143GB

Component

Signal description

Combination meter

Receives the following signals from ABS actuator and electric unit (control unit) via CAN com-
munication.
• ABS warning lamp signal
• Brake warning lamp signal
• SLIP indicator lamp signal

BRC-30

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

SYSTEM

DTC

Malfunction detected condition

Fail-safe condition

C1101

When an open circuit is detected in rear RH wheel sensor circuit.

The following functions are sus-
pended:
• VDC
• ABS
• EBD (only when both rear wheels

are malfunctioning)

C1102

When an open circuit is detected in rear LH wheel sensor circuit.

C1103

When an open circuit is detected in front RH wheel sensor circuit.

C1104

When an open circuit is detected in front LH wheel sensor circuit.

C1105

• When a short circuit is detected in rear RH wheel sensor circuit.
• When power supply voltage of rear RH wheel sensor is in following state.
- Rear RH wheel sensor power supply voltage: 7.2 V

≥ Rear RH wheel sensor pow-

er supply voltage

• When distance between rear RH wheel sensor and rear RH wheel sensor rotor is

large.

• When installation of rear RH wheel sensor or rear RH wheel sensor rotor is not

normal.

C1106

• When a short circuit is detected in rear LH wheel sensor circuit.
• When power supply voltage of rear LH wheel sensor is in following state.
- Rear LH wheel sensor power supply voltage: 7.2 V

≥ Rear LH wheel sensor power

supply voltage

• When distance between rear LH wheel sensor and rear LH wheel sensor rotor is

large.

• When installation of rear LH wheel sensor or rear LH wheel sensor rotor is not nor-

mal.

C1107

• When a short circuit is detected in front RH wheel sensor circuit.
• When power supply voltage of front RH wheel sensor is in following state.
- Front RH wheel sensor power supply voltage: 7.2 V

≥ Front RH wheel sensor

power supply voltage

• When distance between front RH wheel sensor and front RH wheel sensor rotor

is large.

• When installation of front RH wheel sensor or front RH wheel sensor rotor is not

normal.

C1108

• When a short circuit is detected in front LH wheel sensor circuit.
• When power supply voltage of front LH wheel sensor is in following state.
- Front LH wheel sensor power supply voltage: 7.2 V

≥ Front LH wheel sensor pow-

er supply voltage

• When distance between front LH wheel sensor and front LH wheel sensor rotor is

large.

• When installation of front LH wheel sensor or front LH wheel sensor rotor is not

normal.

C1109

• When ignition power supply voltage is in following state.
- Ignition power supply voltage: 10 V

≥ Ignition power supply voltage.

- Ignition power supply voltage: 16 V

≤ Ignition power supply voltage.

The following functions are sus-
pended:
• VDC
• TCS
• ABS
• EBD

C1110

When there is an internal malfunction in the ABS actuator and electric unit (control
unit).

C1111

When a malfunction is detected in motor or motor relay.

The following functions are sus-
pended:
• VDC
• TCS
• ABS

C1115

When difference in wheel speed between any wheel and others is detected when
the vehicle is driven, because of installation of tires other than specified.

The following functions are sus-
pended:
• VDC
• TCS
• ABS
• EBD

C1116

When stop lamp switch signal is not input when brake pedal operates.

The following functions are sus-
pended:
• VDC
• TCS

SYSTEM

BRC-31

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1120

When a malfunction is detected in front LH ABS IN valve.

The following functions are sus-
pended:
• VDC
• TCS
• ABS
• EBD

C1121

When a malfunction is detected in front LH ABS OUT valve.

C1122

When a malfunction is detected in front RH ABS IN valve.

C1123

When a malfunction is detected in front RH ABS OUT valve.

C1124

When a malfunction is detected in rear LH ABS IN valve.

C1125

When a malfunction is detected in rear LH ABS OUT valve.

C1126

When a malfunction is detected in rear RH ABS IN valve.

C1127

When a malfunction is detected in rear RH ABS OUT valve.

C1130

When a malfunction is detected in ECM system.

The following functions are sus-
pended:
• VDC
• TCS

C1140

When a malfunction is detected in actuator relay.

The following functions are sus-
pended:
• VDC
• TCS
• ABS
• EBD

C1142

When a malfunction is detected in VDC pressure sensor.

The following functions are sus-
pended:
• VDC
• TCS

C1143

When a malfunction is detected in steering angle sensor.

C1144

When neutral position adjustment of steering angle sensor is not complete.

C1145

When a malfunction is detected in yaw rate signal, or signal line of yaw rate/side/
decel G sensor is open or shorted.

C1146

When a malfunction is detected in side G signal, or signal line of yaw rate/side/decel
G sensor is open or shorted.

C1153

When ABS actuator and electric unit (control unit) is malfunctioning. (Pressure in-
crease is too much or too little.)

The following functions are sus-
pended:
• VDC
• TCS
• ABS

C1155

When brake fluid level low signal is detected.

The following functions are sus-
pended:
• VDC
• TCS

C1164

When a malfunction is detected in cut valve 1.

The following functions are sus-
pended:
• VDC
• TCS
• ABS
• EBD

C1165

When a malfunction is detected in cut valve 2.

C1166

When a malfunction is detected in suction valve 1.

C1167

When a malfunction is detected in suction valve 2.

C1170

When the information in ABS actuator and electric unit (control unit) is not the same.

The following functions are sus-
pended:
• VDC
• TCS
• ABS

U1000

When CAN communication signal is not continuously transmitted or received for 2
seconds or more.

The following functions are sus-
pended:
• VDC
• TCS

U1002

When ABS actuator and electric unit (control unit) is not transmitting or receiving
CAN communication signal for 2 seconds or less.

DTC

Malfunction detected condition

Fail-safe condition

BRC-32

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL

UNIT)]

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]

CONSULT Function (ABS)

INFOID:0000000009267600

APPLICATION ITEMS

CONSULT can display each diagnostic item using the following direct diagnostic modes.

ECU IDENTIFICATION

ABS actuator and electric unit (control unit) part number is displayed.

SELF DIAGNOSTIC RESULT

Operation Procedure

1. Before performing the self-diagnosis, start engine and drive vehicle at 30 km/h (19 MPH) or more for

approximately 1 minute.

How To Erase Self Diagnostic Result

1. After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately

1 minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp,

SLIP indicator lamp and brake warning lamp turn OFF.

CAUTION:

If memory cannot be erased, perform applicable diagnosis.

NOTE:

• When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp,

SLIP indicator lamp and brake warning lamp will not turn OFF even when the system is normal, unless

the vehicle is driven at approximately 30 km/h (19 MPH) or more for approximately 1 minute.

• Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or of brake fluid

level switch operation (when brake fluid is insufficient).

• VDC OFF switch should not stay in ON position.

Display Item List

Refer to

BRC-43, "DTC Index"

.

DATA MONITOR

Direct Diagnostic Mode

Description

ECU identification

The ABS actuator and electric unit (control unit) part number is displayed.

Self Diagnostic Result

The ABS actuator and electric unit (control unit) self diagnostic results are displayed.

Data Monitor

The ABS actuator and electric unit (control unit) input/output data is displayed in real time.

Active Test

The ABS actuator and electric unit (control unit) activates outputs to test components.

Work support

The settings for ABS actuator and electric unit (control unit) functions can be changed.

CAN DIAG SUPPORT MNTR

The result of transmit/receive diagnosis of CAN communication is displayed.

Item

(Unit)

Data monitor item selection

Remarks

ECU INPUT

SIGNALS

MAIN

SIGNALS

SELECTION

FROM MENU

FR LH SENSOR
 (km/h, mph)

×

×

×

Wheel speed (km/h, mph) calculated by front wheel
sensor LH signal is displayed.

FR RH SENSOR
 (km/h, mph)

×

×

×

Wheel speed (km/h, mph) calculated by front wheel
sensor RH signal is displayed.

RR LH SENSOR
 (km/h, mph)

×

×

×

Wheel speed (km/h, mph) calculated by rear wheel
sensor LH signal is displayed.

RR RH SENSOR
 (km/h, mph)

×

×

×

Wheel speed (km/h, mph) calculated by rear wheel
sensor RH signal is displayed.
