AV-140

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

USB CONNECTOR

USB CONNECTOR

Removal and Installation

INFOID:0000000009375255

REMOVAL

1. Remove the center console assembly. Refer to

IP-23, "Removal and Installation"

.

2. Release the pawl from the back of the center console to remove

the USB harness connector (1) using a suitable tool.

3. Disconnect the harness connector from the USB connector and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1307ZZ

AV

BLUETOOTH CONTROL UNIT

AV-141

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BLUETOOTH CONTROL UNIT

Removal and Installation

INFOID:0000000009375254

REMOVAL

1. Remove the trunk floor finisher.
2. Remove the trunk rear finisher.
3. Remove the trunk side finisher (RH)
4. Disconnect the harness connector (A) from Bluetooth antenna.
5. Disconnect the harness connector (B) from Bluetooth control

unit.

6. Remove the Bluetooth control unit screws (C) and the Bluetooth

control unit (1).

7. Remove the Bluetooth control unit (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1304ZZ

ALNIA1305ZZ

AV-142

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

STEERING AUDIO CONTROL SWITCH

STEERING AUDIO CONTROL SWITCH

Removal and Installation

INFOID:0000000009601584

REMOVAL

1. Remove the steering wheel. Refer to

ST-8, "Removal and Installation"

.

2. Remove the steering wheel rear finisher.
3. Remove the steering wheel audio control switches screws.
4. Remove the steering wheel audio control switches from the steering wheel.

INSTALLATION

Installation is in the reverse order of removal.

1.

Steering wheel

2.

Steering wheel audio control switches

3.

Driver air bag module

4.

Steering wheel rear finisher

ALNIA1300ZZ

AV

BLUETOOTH® ANTENNA

AV-143

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

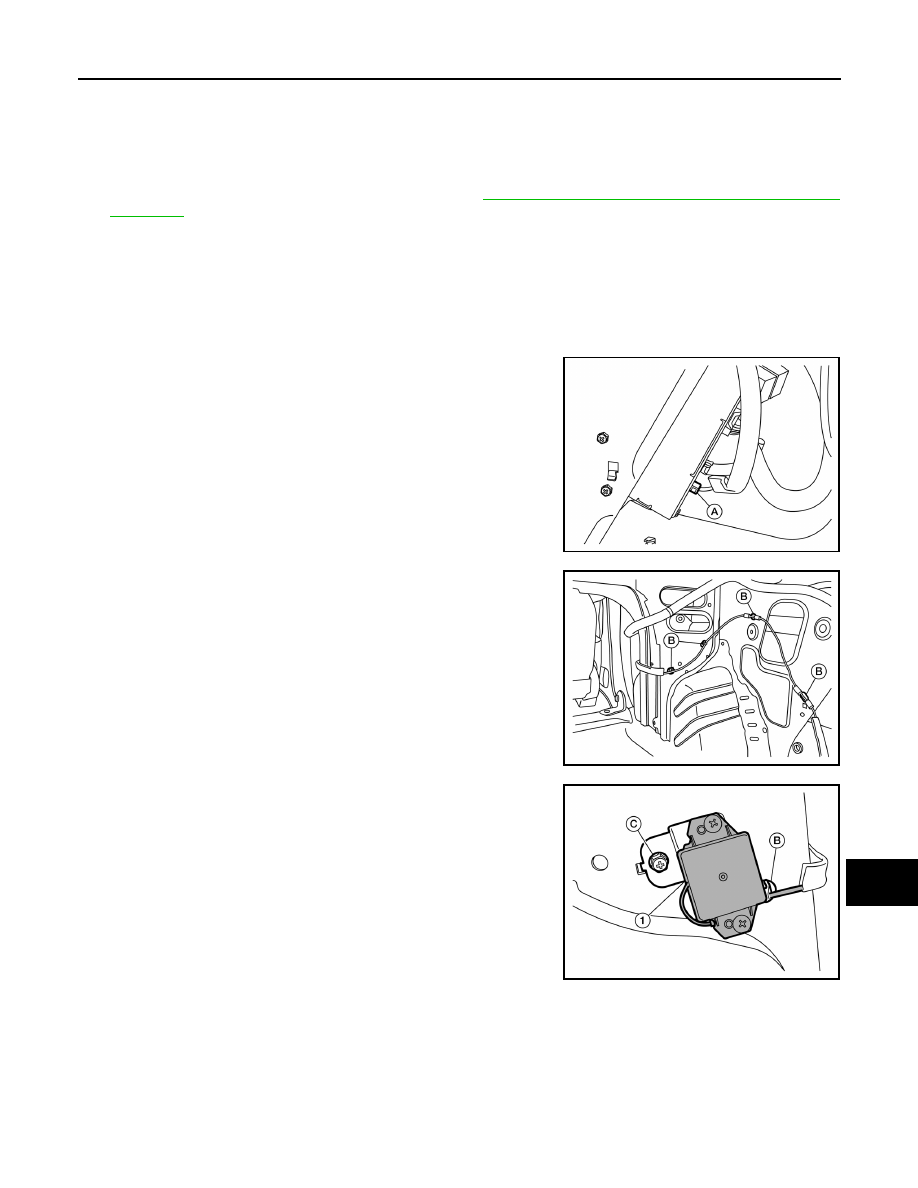

BLUETOOTH® ANTENNA

Removal and Installation

INFOID:0000000009375256

REMOVAL

1. Remove the rear seat cushion assembly. Refer to

SE-23, "Removal and Installation - Seat Cushion

Assembly"

.

2. Remove the rear step plate (RH).
3. Remove the rear seatback side assembly (RH).
4. Remove the rear seatback assembly (RH).
5. Remove the trunk floor finisher.
6. Remove the trunk rear finisher.
7. Remove the trunk side finisher (RH).
8. Disconnect the Bluetooth antenna from the bluetooth control unit

(A).

9. Release the four Bluetooth antenna harness clips (B).

10. Release the remaining Bluetooth antenna harness clip (B) and

remove the Bluetooth antenna screw (C).

11. Remove the Bluetooth antenna assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1301ZZ

ALNIA1302ZZ

ALNIA1303ZZ
