Nissan Versa Sedan. Manual - part 36





AV-136

< SYMPTOM DIAGNOSIS >

[DISPLAY AUDIO]

NORMAL OPERATING CONDITION

The other party’s voice cannot be heard by hands-free phone.

When the radio wave condition is not ideal or ambient sound is too
loud, it may be difficult to hear the other person’s voice during a
call.

Poor sound quality.

Do not place the cellular phone in an area surrounded by metal or
far away from the in-vehicle phone module to prevent tone quality
degradation and wireless connection disruption.

Symptom

Cause and Counter measure

AV

AUDIO UNIT

AV-137

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REMOVAL AND INSTALLATION

AUDIO UNIT

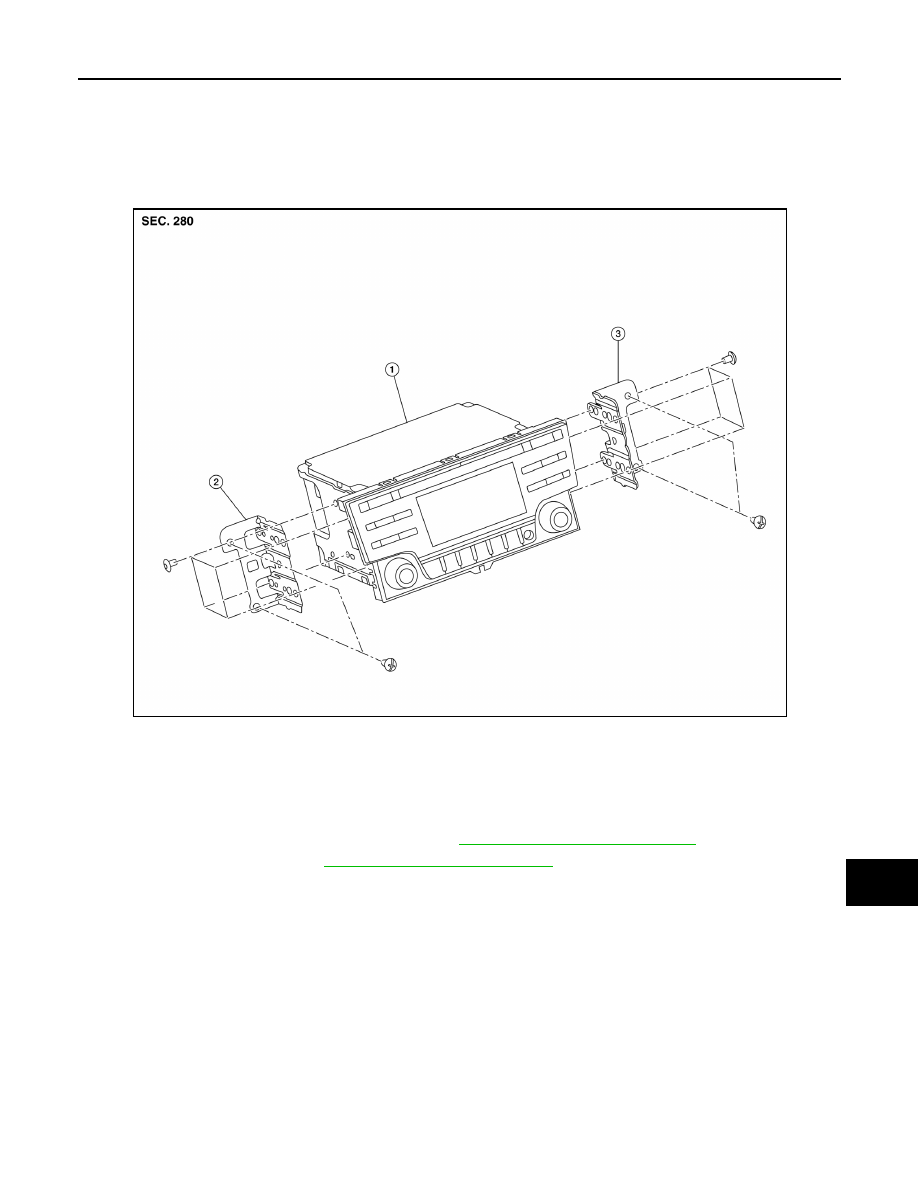

Exploded View

INFOID:0000000009375238

Removal and Installation

INFOID:0000000009375239

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-63, "Removal and Installation"

.

2. Remove cluster lid C. Refer to

IP-21, "Removal and Installation"

.

3. Remove the audio unit screws, then pull out the audio unit.
4. Disconnect the harness connectors from the audio unit and remove.

INSTALLATION

Installation is in the reverse order of removal.

1. Audio unit

2.

Audio unit bracket (LH)

3.

Audio unit bracket (RH)

ALNIA1403ZZ

AV-138

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

FRONT DOOR SPEAKER

FRONT DOOR SPEAKER

Removal and Installation

INFOID:0000000009375252

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

.

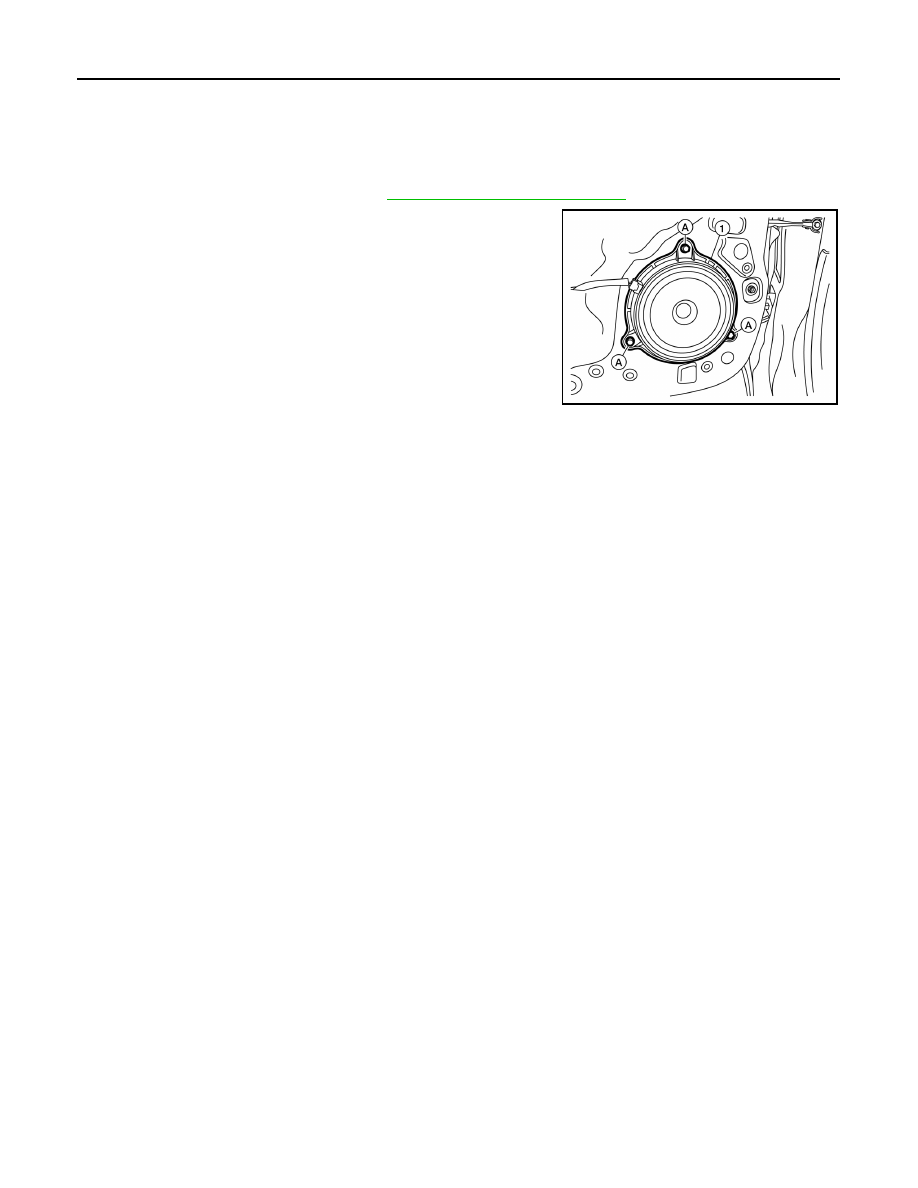

2. Remove the front door speaker screws (A).
3. Disconnect the harness connector from front door speaker (1)

and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1298ZZ

AV

REAR DOOR SPEAKER

AV-139

< REMOVAL AND INSTALLATION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

Removal and Installation

INFOID:0000000009375253

REMOVAL

1. Remove the rear door finisher. Refer to

INT-17, "Removal and Installation"

.

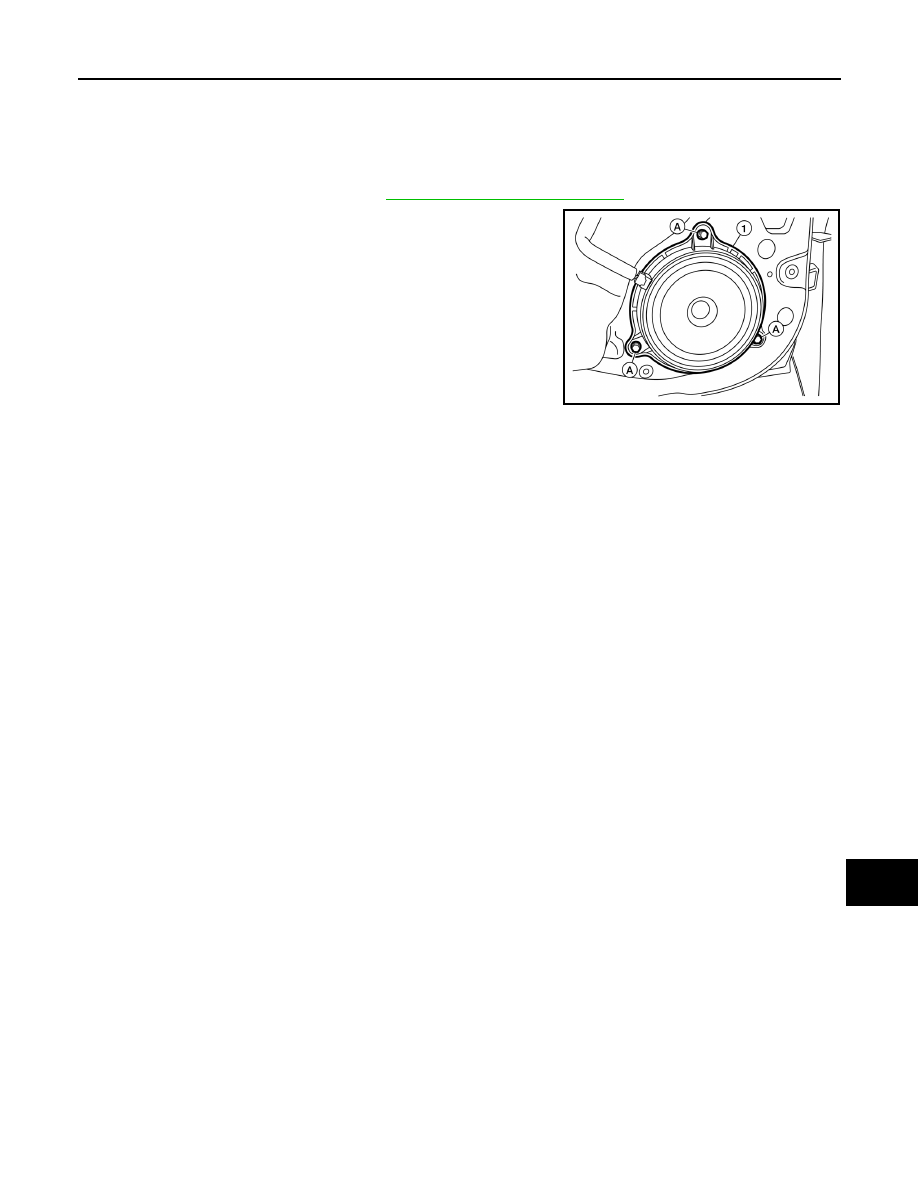

2. Remove the rear door speaker screws (A).
3. Disconnect the harness connector from rear door speaker (1)

and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1299ZZ
