Nissan Versa Sedan. Manual - part 24





AV-88

< PREPARATION >

[DISPLAY AUDIO]

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000009375212

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

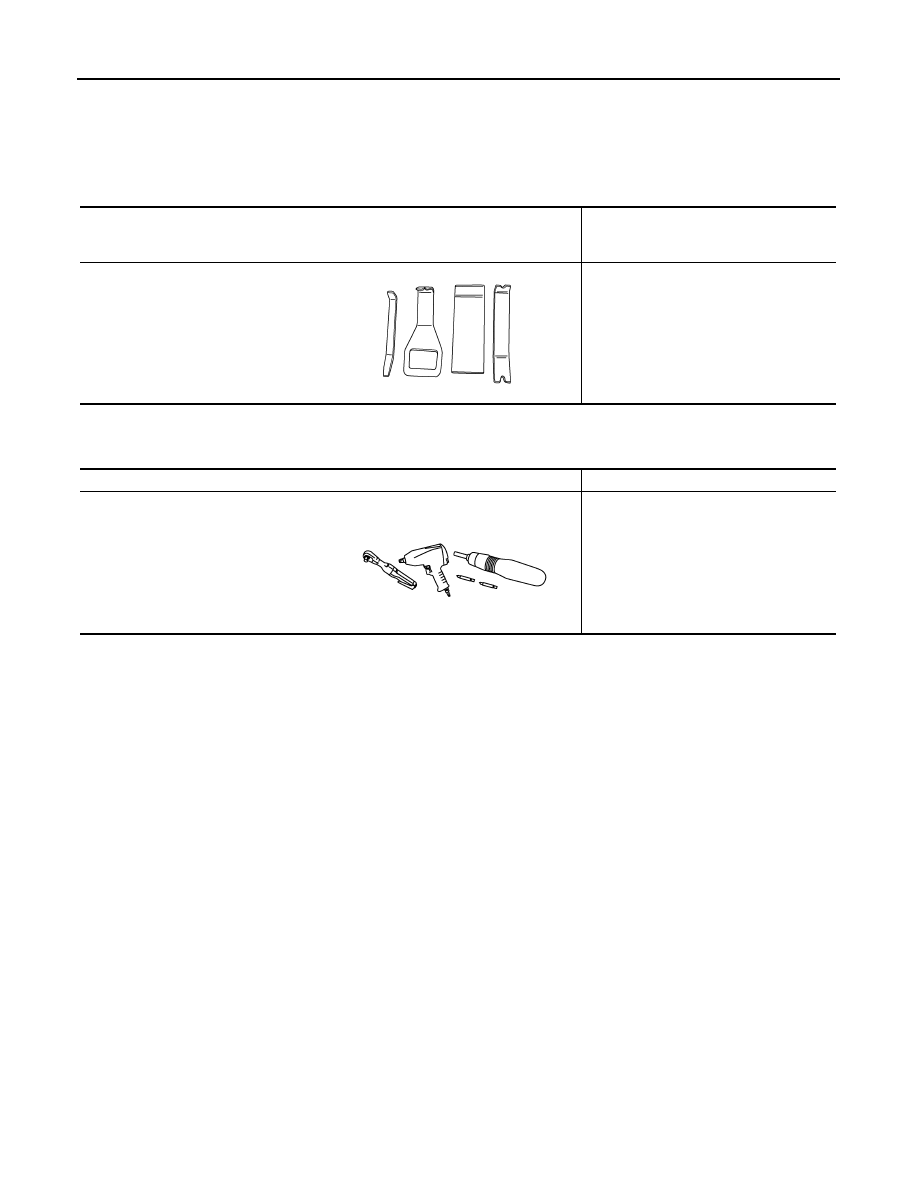

Commercial Service Tools

INFOID:0000000009375213

Tool number
(Kent-Moore No.)
Tool name

Description

(J-46534)
Trim Tool Set

Removing trim components

AWJIA0483ZZ

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E

AV

COMPONENT PARTS

AV-89

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM DESCRIPTION

COMPONENT PARTS

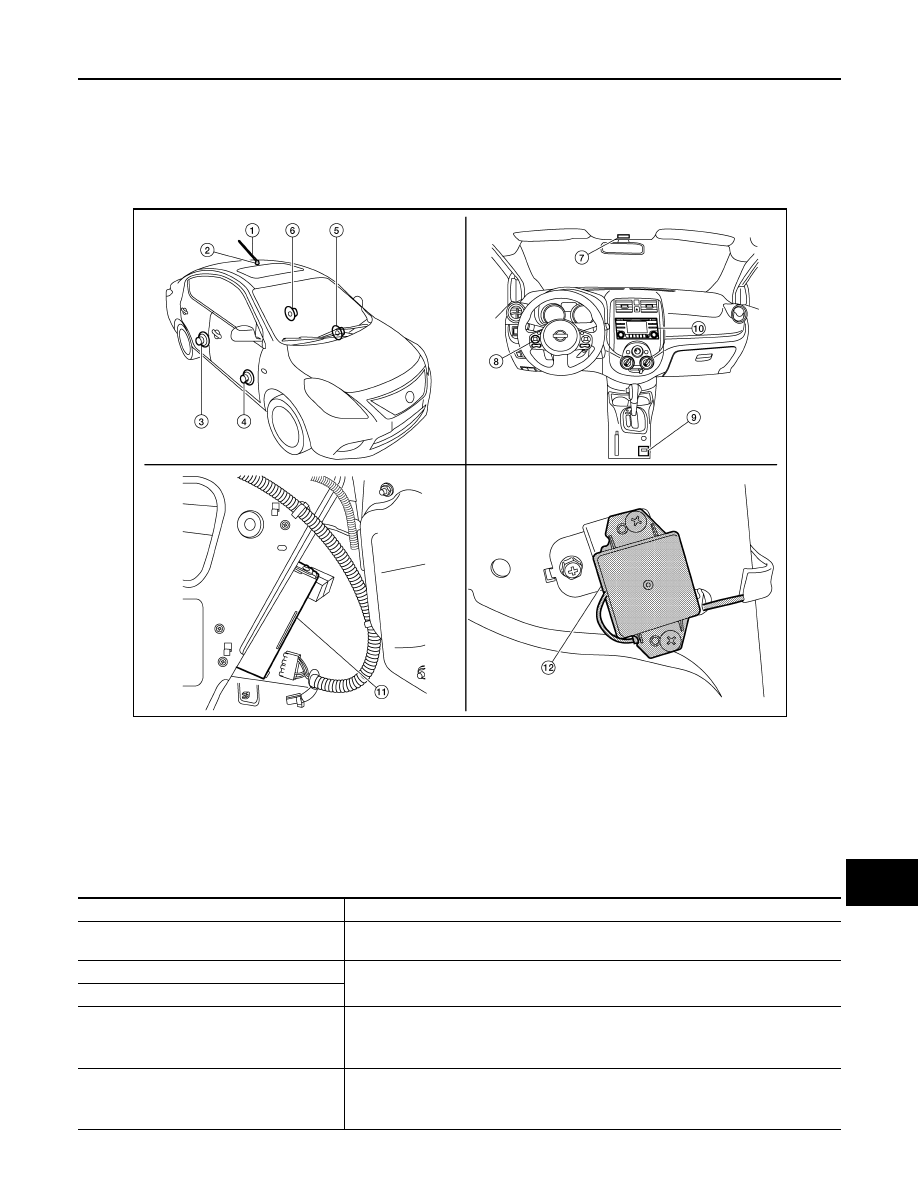

Component Parts Location

INFOID:0000000009375214

Component Description

INFOID:0000000009375215

1.

Rod antenna

2.

Antenna base (antenna amp.)

3.

Rear door speaker RH

4.

Front door speaker RH

5.

Front door speaker LH

6.

Rear door speaker LH

7.

Microphone

8.

Steering wheel audio control switches 9.

USB interface

10. Audio unit

11. Bluetooth

®

 control unit (view with lug-

gage side lower finisher LH removed)

12. Bluetooth

®

 antenna (view with lug-

gage side lower finisher LH removed)

AWNIA3043ZZ

Part name

Description

Audio unit

• Controls audio, USB connection, AUX IN connection and satellite radio functions.
• Display unit is built in to audio unit.

Front door speakers

Outputs high, mid and low range audio signals from audio unit.

Rear door speakers

Steering wheel audio control switches

• Operations for audio, hands-free phone and voice recognition are possible.
• Steering switch signal is output to Bluetooth

®

 control unit.

•  Bluetooth

®

 control unit outputs steering switch signal to audio unit.

Microphone

• Used for hands-free phone operations.
• Microphone signal is transmitted to Bluetooth

®

 control unit.

• Power is supplied from Bluetooth

®

 control unit.

AV-90

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

COMPONENT PARTS

USB interface

USB sound and data input signals are transmitted to audio unit.

Bluetooth

®

 control unit

• Inputs TEL voice signal from Bluetooth

®

 antenna and outputs it to audio unit.

• Controlled via AV communication by audio unit.

Bluetooth

®

 antenna

Receives TEL voice signal and outputs it to Bluetooth

®

 control unit.

Satellite antenna

Satellite radio signal is received and transmitted to audio unit.

Antenna amp.

• AM/FM signal received by rod antenna is amplified and transmitted to audio unit.
• Power is supplied from audio unit.

Rod antenna

AM/FM signal is received and transmitted to antenna amp.

Part name

Description

AV

SYSTEM

AV-91

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SYSTEM

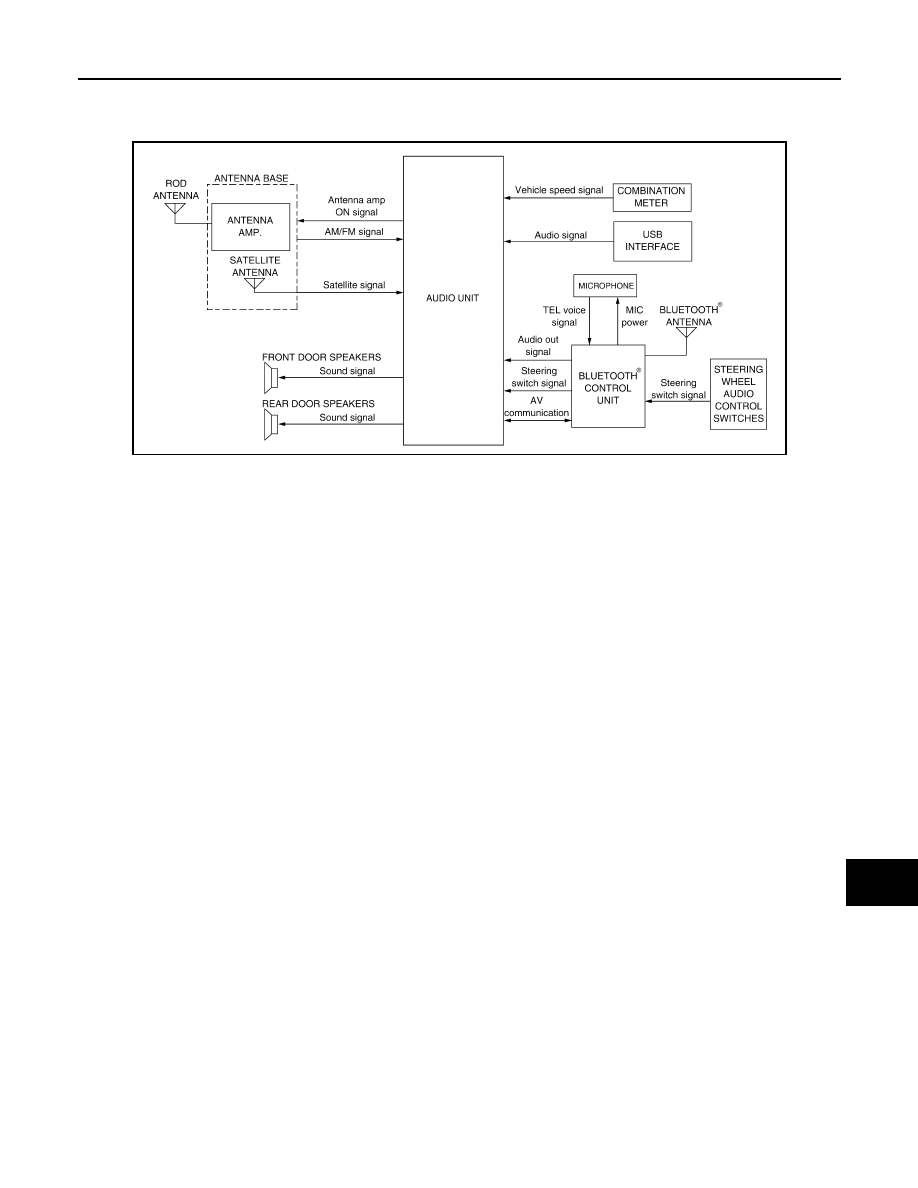

System Diagram

INFOID:0000000009375216

System Description

INFOID:0000000009375217

AUDIO SYSTEM

The audio system consists of the following components

• Audio unit

• Front door speakers

• Rear door speakers

• Steering wheel audio control switches

• USB  interface

• Satellite antenna

• Antenna amp.

• Rod antenna

When the audio system is on, AM/FM signals received by the rod antenna are amplified by the antenna amp.

and sent to the audio unit. The audio unit then sends audio signals to the front door speakers and rear door

speakers.

Refer to Owner's Manual for audio system operating instructions.

SATELLITE RADIO FUNCTION

• Satellite radio function is built into audio unit.

• Sound signal (satellite radio) is received by satellite antenna and transmitted to audio unit. Audio unit outputs

sound signal to each speaker.

USB INTERFACE FUNCTION

• iPod

®

 or music files in USB memory can be played.

• Sound signals are transmitted from USB interface to the audio unit and output to each speaker.
• iPod

®

 is recharged when connected to USB interface.

iPod

®

 is a trademark of Apple inc., registered in the U.S. and other countries.

REAR VIEW MONITOR FUNCTION

Camera Image Operation Principle

• The audio unit supplies power to the rear view camera when receiving a reverse signal.

• The rear view camera transmits camera images to the audio unit when power is supplied from the audio unit.

• The audio unit combines a warning message and fixed guide lines with an image received from the rear view

camera to display a rear view camera image on the screen.

HANDS-FREE PHONE SYSTEM

System Operation

AWNIA3118GB
