WIRING DIAGRAM

HORN

Wiring Diagram

INFOID:0000000009015868

AALWA0621GB

HRN-4

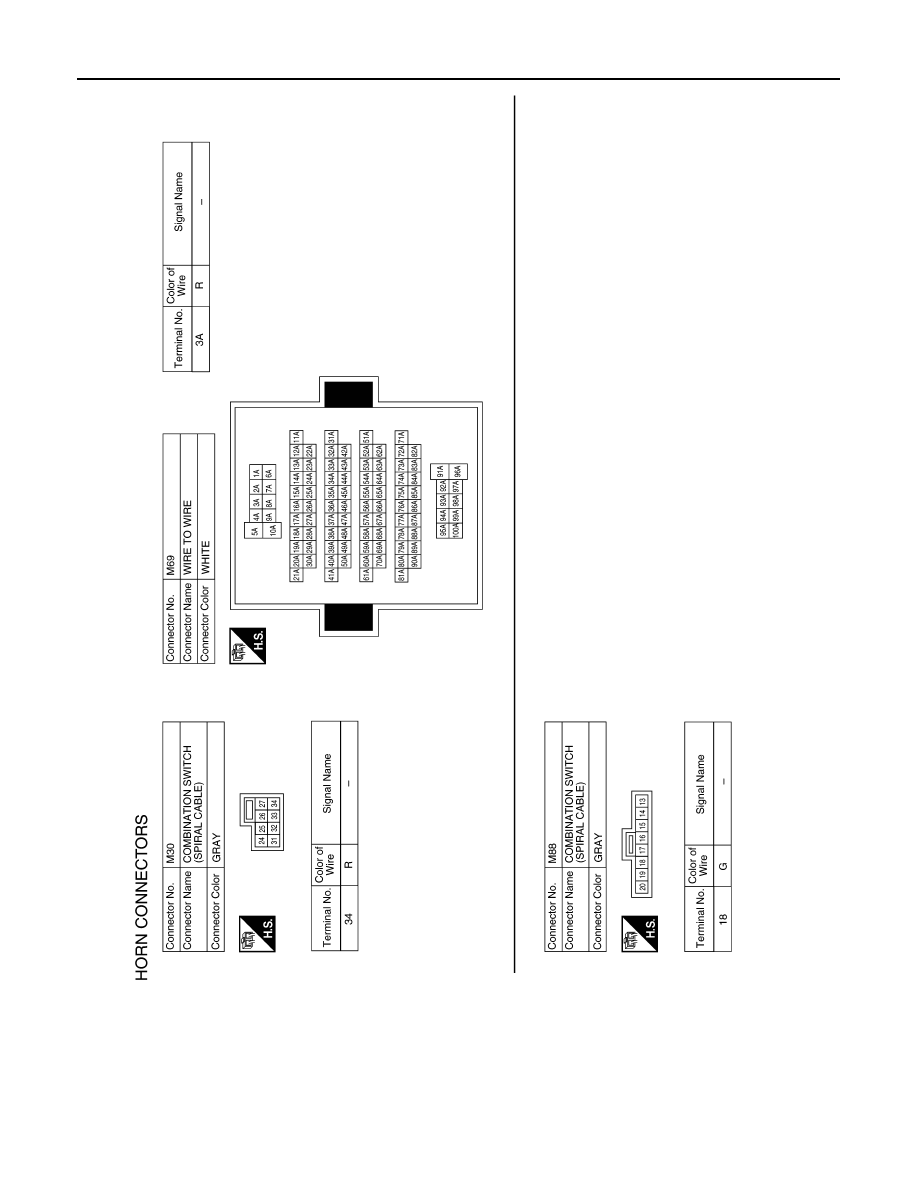

< WIRING DIAGRAM >

HORN

AALIA1362GB

HORN

HRN-5

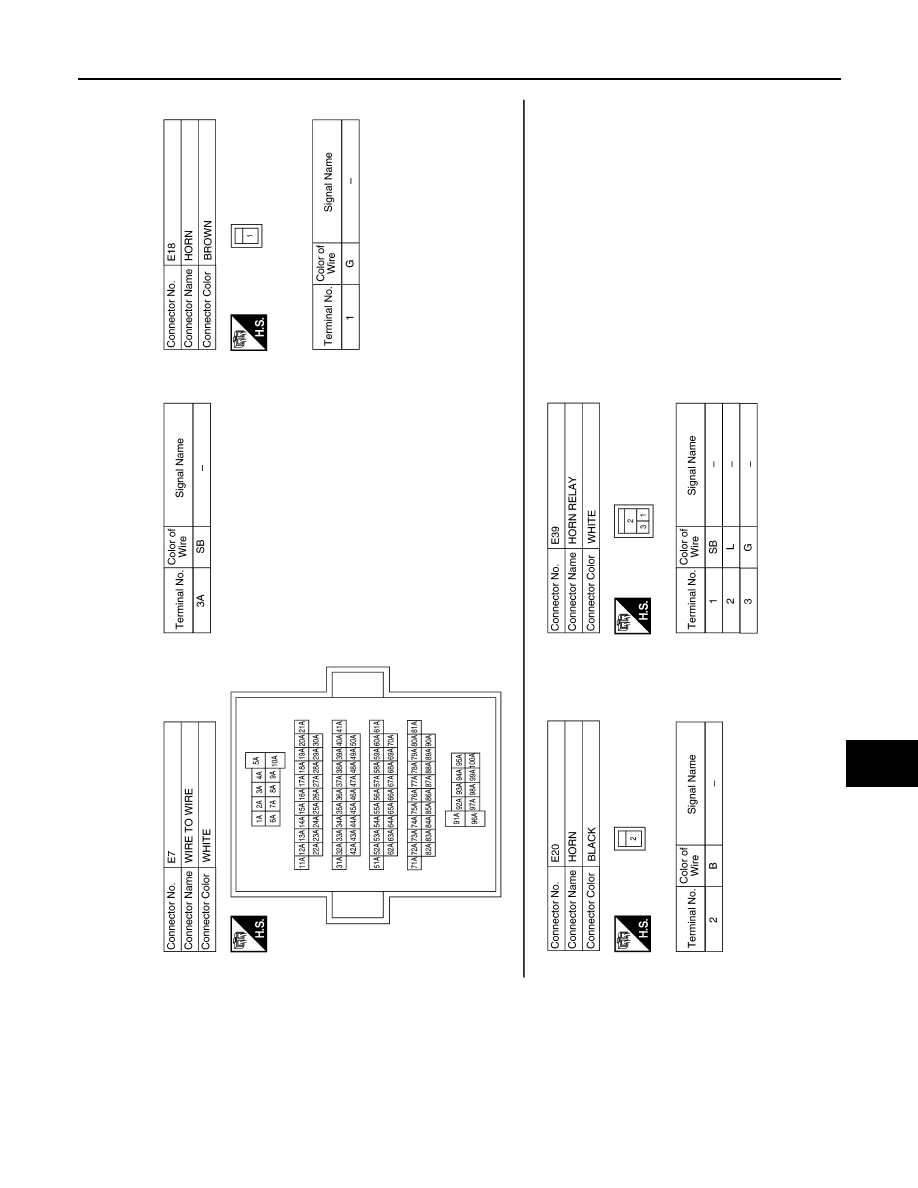

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

M

A

B

HRN

N

O

P

AALIA1363GB

HRN-6

< REMOVAL AND INSTALLATION >

HORN

REMOVAL AND INSTALLATION

HORN

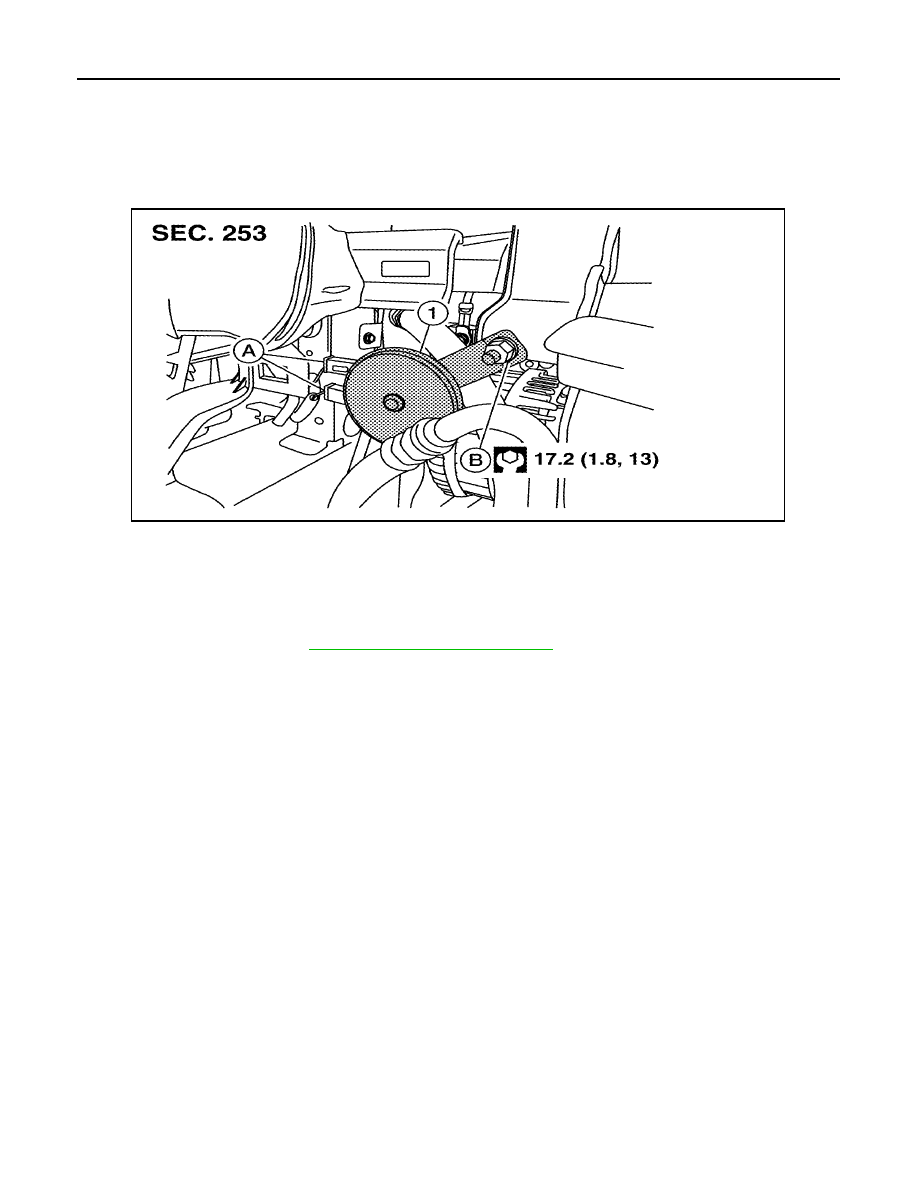

Exploded View

INFOID:0000000009499766

Removal and Installation

INFOID:0000000009499767

REMOVAL

1. Remove front grille. Refer to

EXT-21, "Removal and Installation"

.

2. Disconnect the harness connectors from the horn.
3. Remove horn nut and the horn.

INSTALLATION

Installation is in the reverse order of removal.

1. Horn

A. Connector

B. Nut

AWLIA2176ZZ
