DOOR CABLE

HAC-51

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

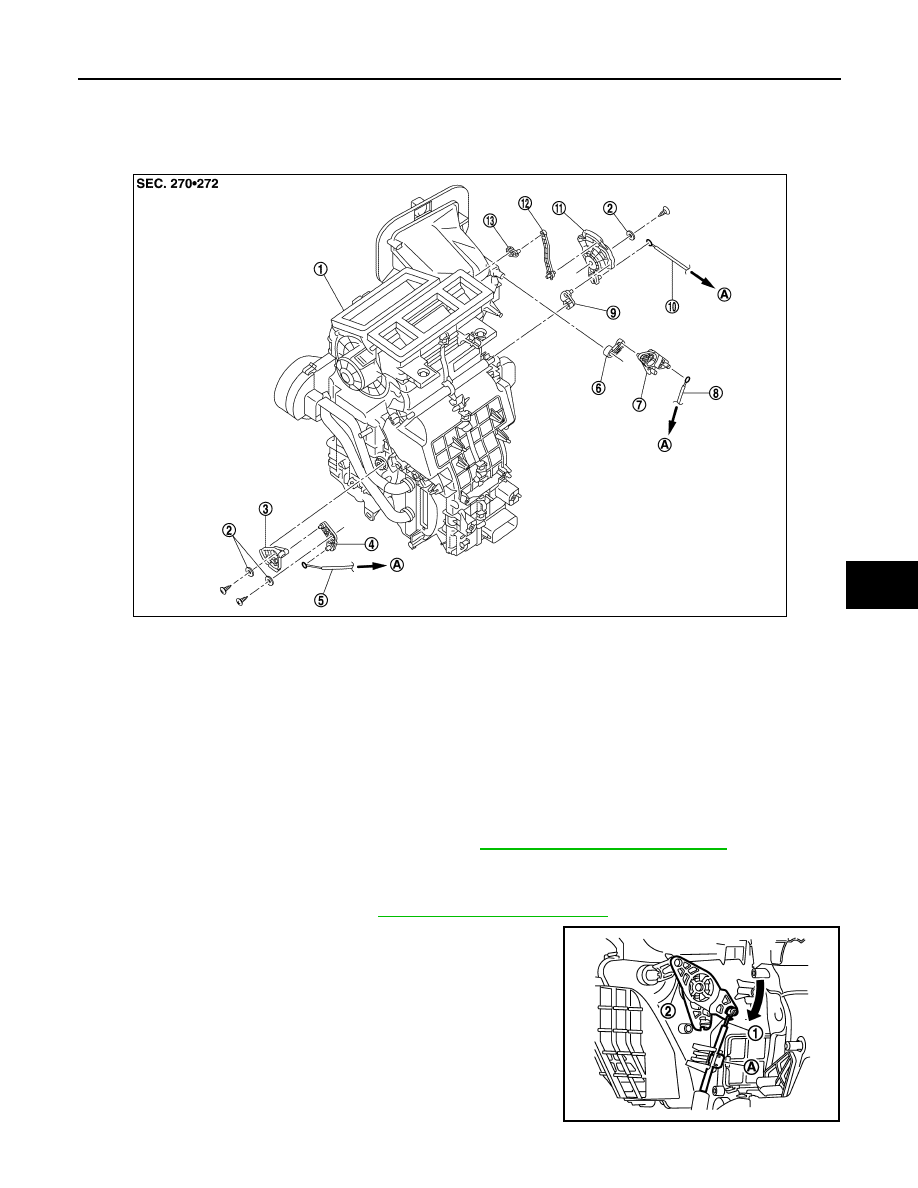

DOOR CABLE

Exploded View

INFOID:0000000009405618

INTAKE DOOR CABLE
INTAKE DOOR CABLE : Removal and Installation

INFOID:0000000009405619

The intake door cable is not serviced separately. Refer to

HAC-47, "Removal and Installation"

.

INTAKE DOOR CABLE : Adjustment

INFOID:0000000009405620

1. Remove glove box assembly. Refer to

IP-25, "Removal and Installation"

.

2. Disconnect intake door cable (1) from clip (A).
3. Set intake door lever to REC position.
4. Push intake door link (2) in the direction shown, then carefully

pull outer cable to front air control side and connect clip.

1.

Heating and cooling unit assembly

2.

Plate

3.

Air mix door linkage 2

4.

Air mix door linkage 1

5.

Air mix door cable

6.

Intake door lever

7.

Intake door linkage

8.

Intake door cable

9.

Foot door lever

10. Mode door cable

11. Main linkage

12. Ventilator door rod

13. Ventilator door lever
A.

To front air control

JMIIA1742ZZ

JMIIA0617ZZ

HAC-52

< REMOVAL AND INSTALLATION >

[MANUAL AIR CONDITIONING]

DOOR CABLE

5. Operate intake door lever to make sure that inner cable moves smoothly.

CAUTION:

When clipping outer cable, do not move inner cable.

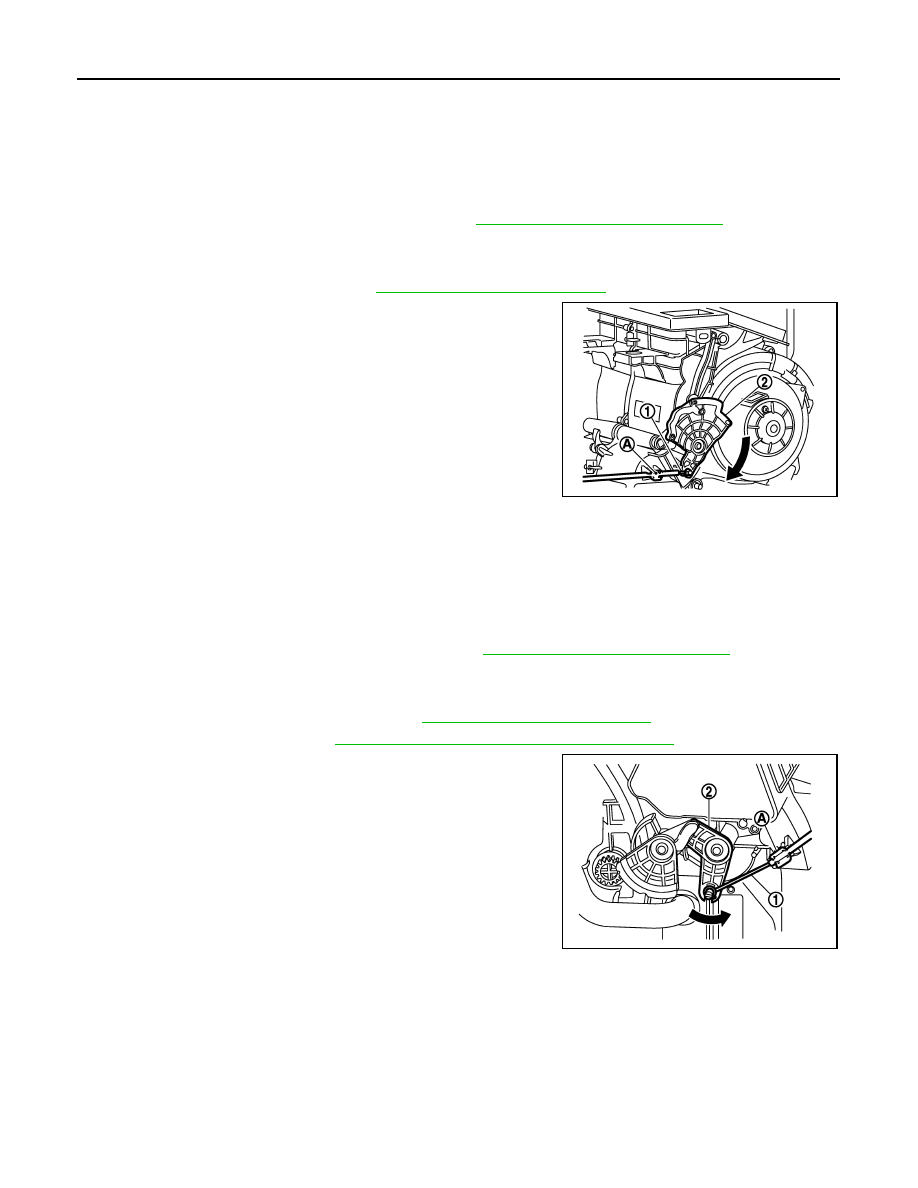

MODE DOOR CABLE
MODE DOOR CABLE : Removal and Installation

INFOID:0000000009405621

The mode door cable is not serviced separately. Refer to

HAC-47, "Removal and Installation"

.

MODE DOOR CABLE : Adjustment

INFOID:0000000009405622

1. Remove glove box assembly. Refer to

IP-25, "Removal and Installation"

.

2. Disconnect mode door cable (1) from clip (A).
3. Set mode dial to VENT position.
4. Push main link (2) in the direction shown, then carefully pull

outer cable to front air control side and connect clip.

5. Operate mode dial to make sure that inner cable moves smoothly.

CAUTION:

When clipping outer cable, do not move inner cable.

AIR MIX DOOR CABLE
AIR MIX DOOR CABLE : Removal and Installation

INFOID:0000000009405623

The air mix door cable is not serviced separately. Refer to

HAC-47, "Removal and Installation"

.

AIR MIX DOOR CABLE : Adjustment

INFOID:0000000009405624

1. Remove instrument lower panel LH. Refer to

IP-24, "Removal and Installation"

.

2. Remove foot duct (LH). Refer to

VTL-7, "FOOT DUCT : Removal and Installation"

.

3. Disconnect air mix door cable (1) from clip (A).
4. Set temperature dial to full cold position.
5. Push air mix door link (2) in the direction shown, then carefully

pull outer cable to front air control side and connect clip.

6. Operate temperature dial to make sure that inner cable moves smoothly.

CAUTION:

When clipping outer cable, do not move inner cable.

JMIIA0618ZZ

JMIIA0619ZZ

HRN-2

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009486656

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.
