DMS-10

< WIRING DIAGRAM >

[SPORT MODE]

SPORT MODE SYSTEM

WIRING DIAGRAM

SPORT MODE SYSTEM

Wiring Diagram

INFOID:0000000011279916

AAOWA0050GB

DMS

SPORT MODE SYSTEM

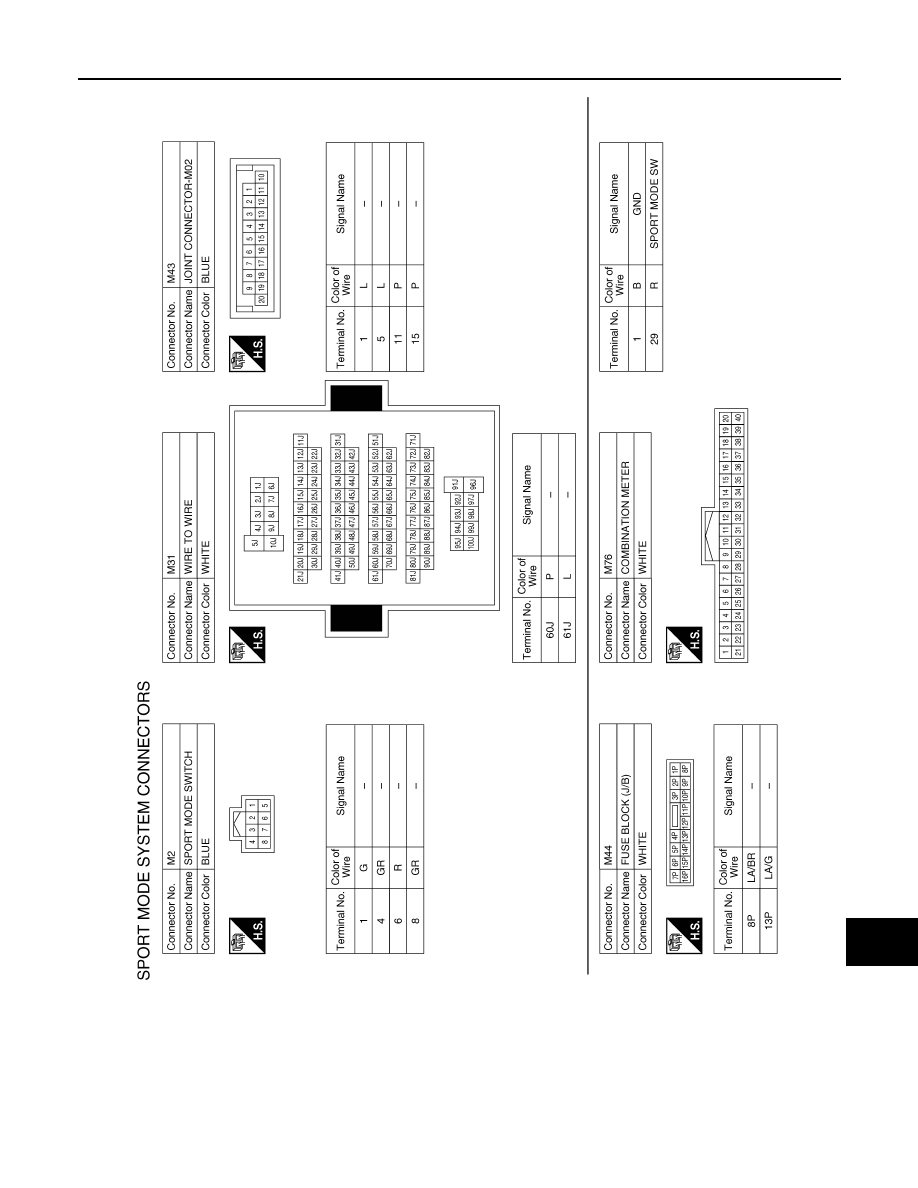

DMS-11

< WIRING DIAGRAM >

[SPORT MODE]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

AAOIA0189GB

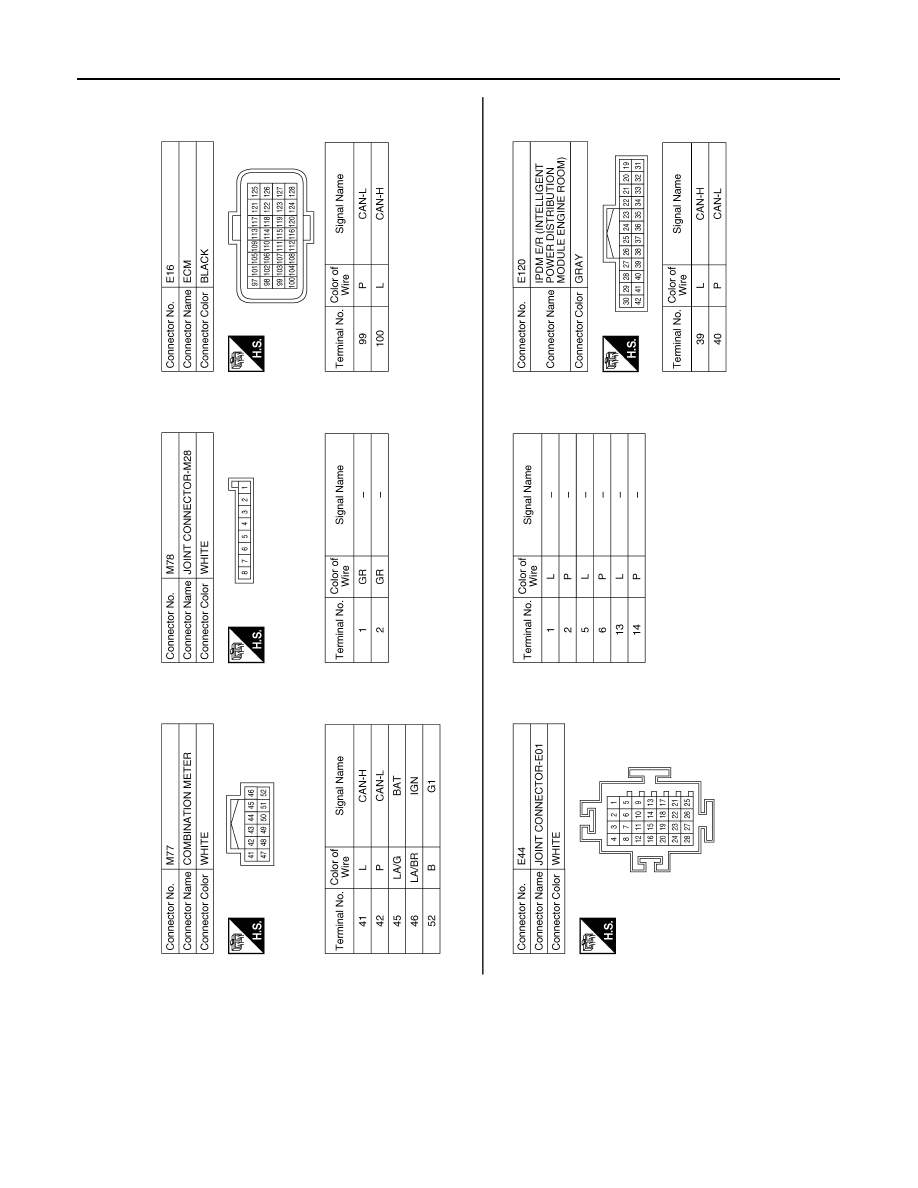

DMS-12

< WIRING DIAGRAM >

[SPORT MODE]

SPORT MODE SYSTEM

AAOIA0190GB

DMS

SPORT MODE SYSTEM

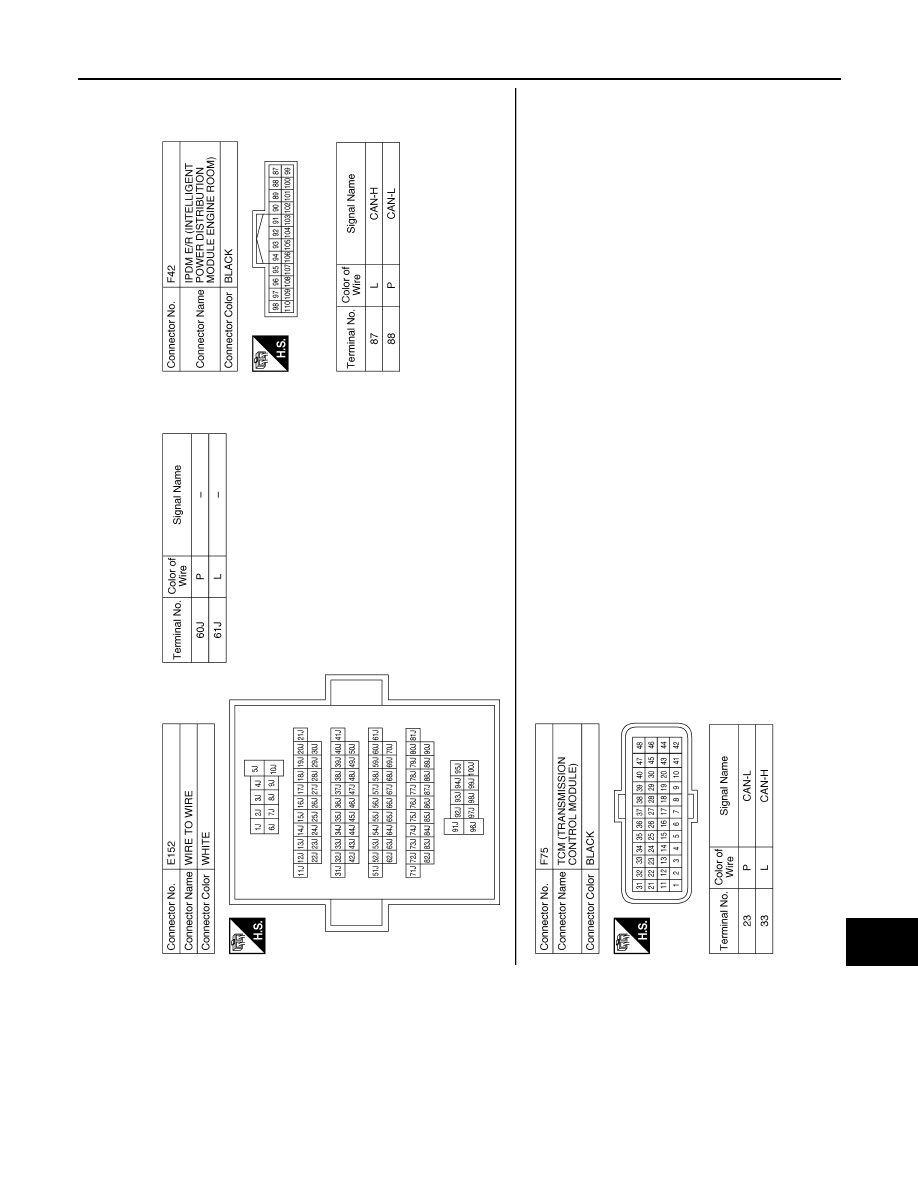

DMS-13

< WIRING DIAGRAM >

[SPORT MODE]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

AAOIA0197GB
