DMS-6
< SYSTEM DESCRIPTION >
[SPORT MODE]
COMPONENT PARTS

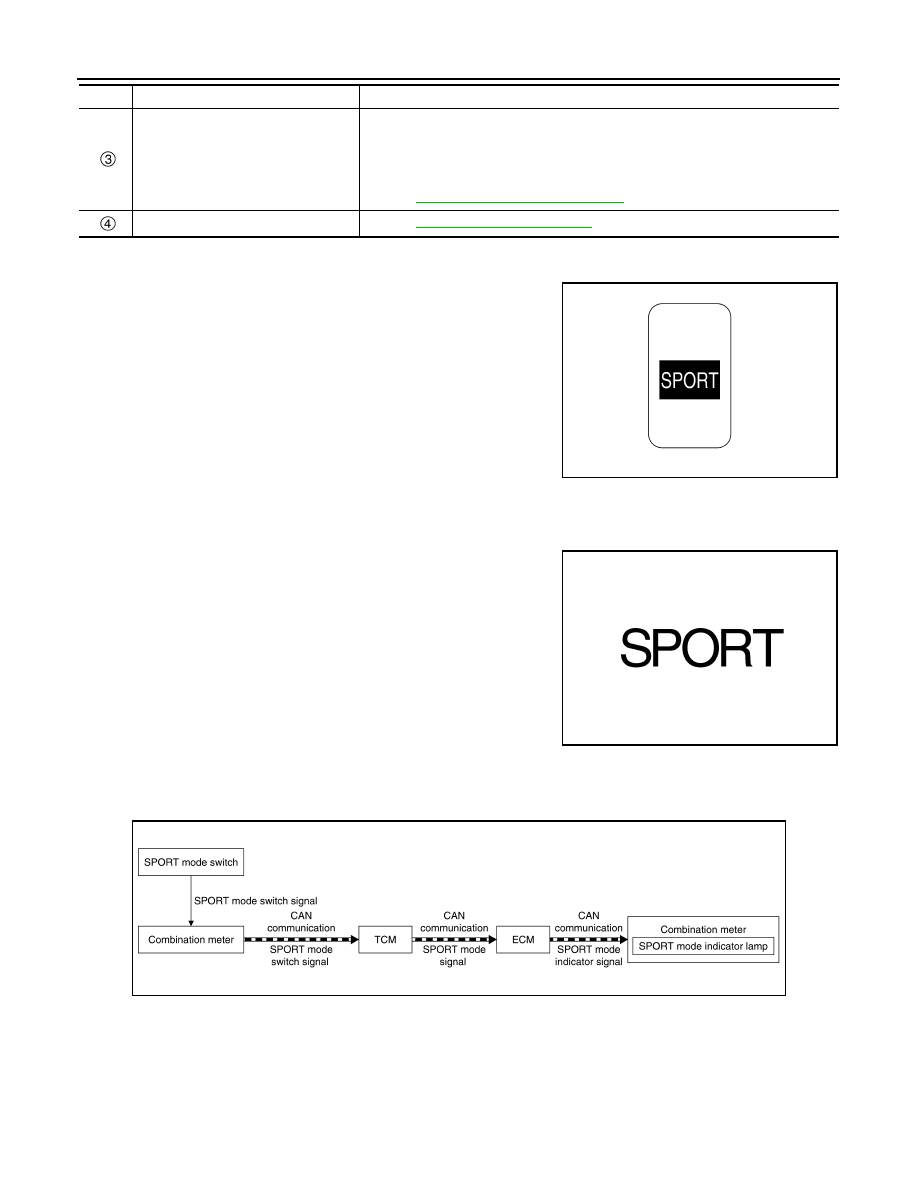

SPORT Mode Switch
INFOID:0000000011279912
• The SPORT mode switch is installed to the instrument lower fin-
isher.
• When the SPORT mode indicator lamp on the combination meter
is OFF and the SPORT mode switch is pressed, the SPORT mode
is active and the SPORT mode indicator lamp is ON.
• When the SPORT mode indicator lamp on the combination meter
is ON and the SPORT mode switch is pressed, the SPORT mode
is cancelled and the SPORT mode indicator lamp is OFF.
SPORT Mode Indicator Lamp
INFOID:0000000011279913
DESIGN/PURPOSE
The SPORT mode indicator lamp inform the driver that the vehicle is
in SPORT mode.
BULB CHECK
Not applicable

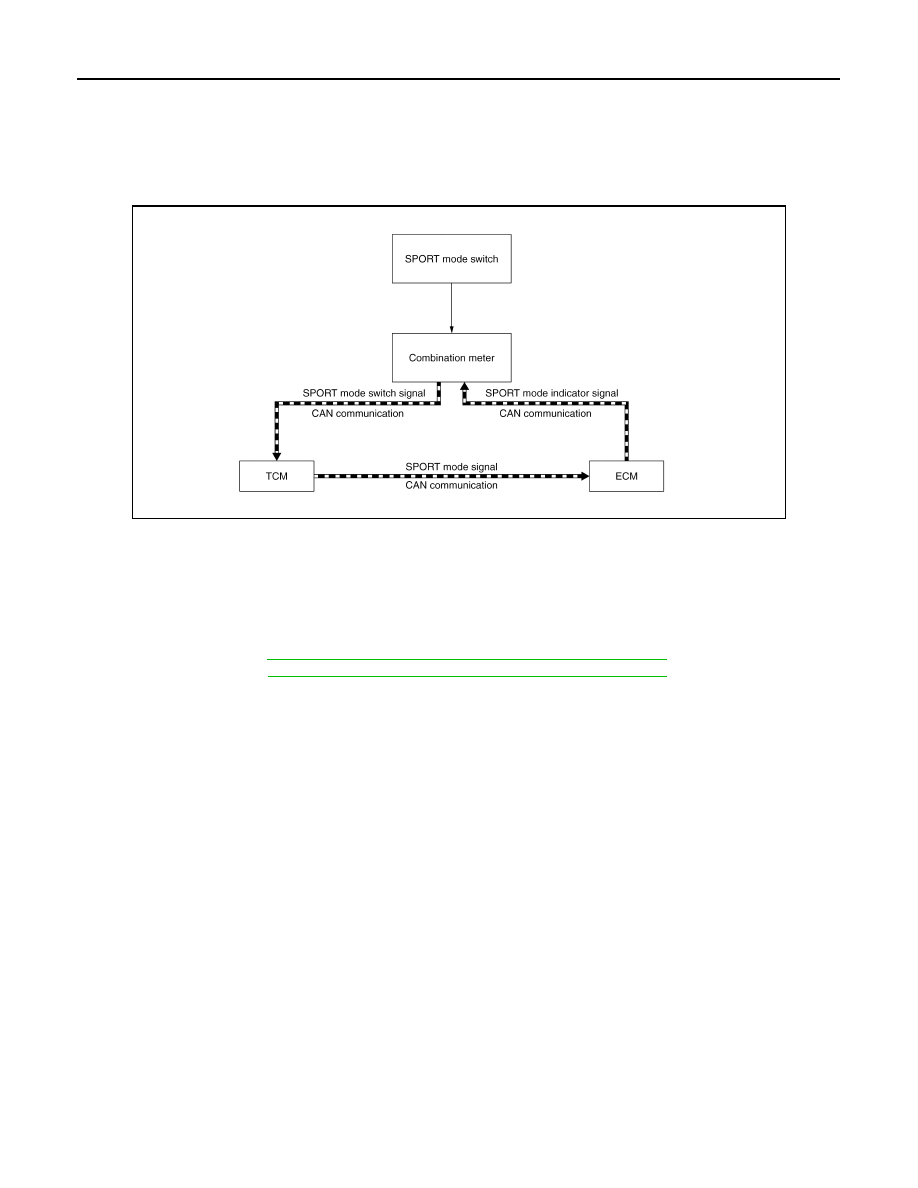

SYSTEM DIAGRAM
SIGNAL PATH
• TCM receives SPORT mode switch signal (ON/OFF) from combination meter via CAN communication.
Based on the signal, TCM transmits SPORT mode signal to ECM via CAN communication.
• ECM transmits SPORT mode indicator signal to combination meter via CAN communication. Based on the
signal, combination meter illuminates SPORT mode indicator lamp.
LIGHTING CONDITION
When all of the following conditions are satisfied.
ECM
• The ECM receives the following signal via CAN communications from the TCM.
- SPORT mode signal
• The ECM transmits the following signal via CAN communications to the combina-
tion meter.
- SPORT mode indicator signal
Refer to
EC-14, "Component Parts Location"
for detailed installation location.
SPORT mode switch
No.
Component
Function
JSOIA0686ZZ
JPNIA1895ZZ
JSOIA1400GB
