BODY CONSTRUCTION

BRM-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

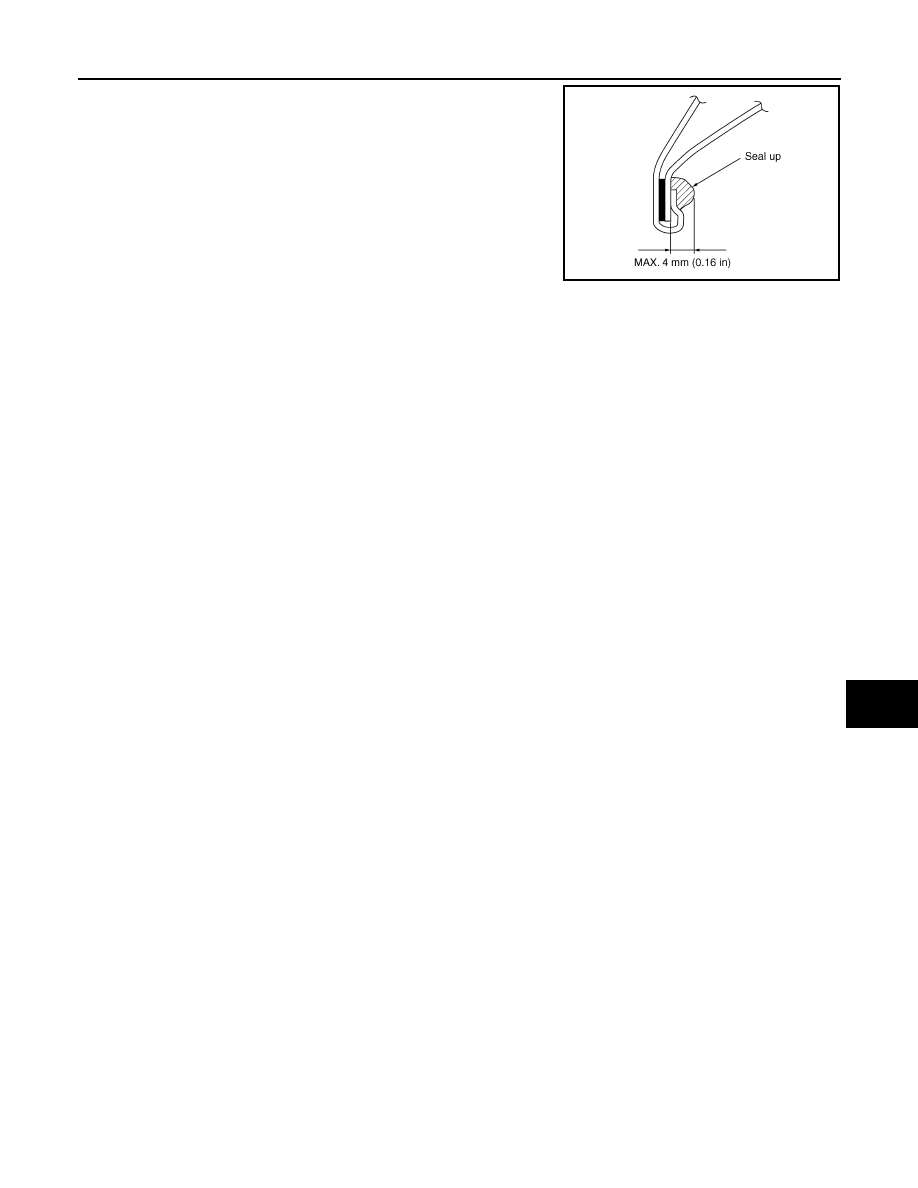

• Seal up the area around the hemmed end of the flange.

JSKIA0137GB

BRM-26

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

REPLACEMENT OPERATIONS

Description

INFOID:0000000011280081

• This section is prepared for technicians who have attained a high level of skill and experience in repairing

collision-damaged vehicles and also use modern service tools and equipment. Persons unfamiliar with body

repair techniques should not attempt to repair collision-damaged vehicles by using this section.

• Technicians are also encouraged to read Body Repair Manual (Fundamentals) in order to ensure that the

original functions and quality of the vehicle can be maintained. The Body Repair Manual (Fundamentals)

contains additional information, including cautions and warning, that are not including in this manual. Techni-

cians should refer to both manuals to ensure proper repairs.

• Please note that these information are prepared for worldwide usage, and as such, certain procedures might

not apply in some regions or countries.

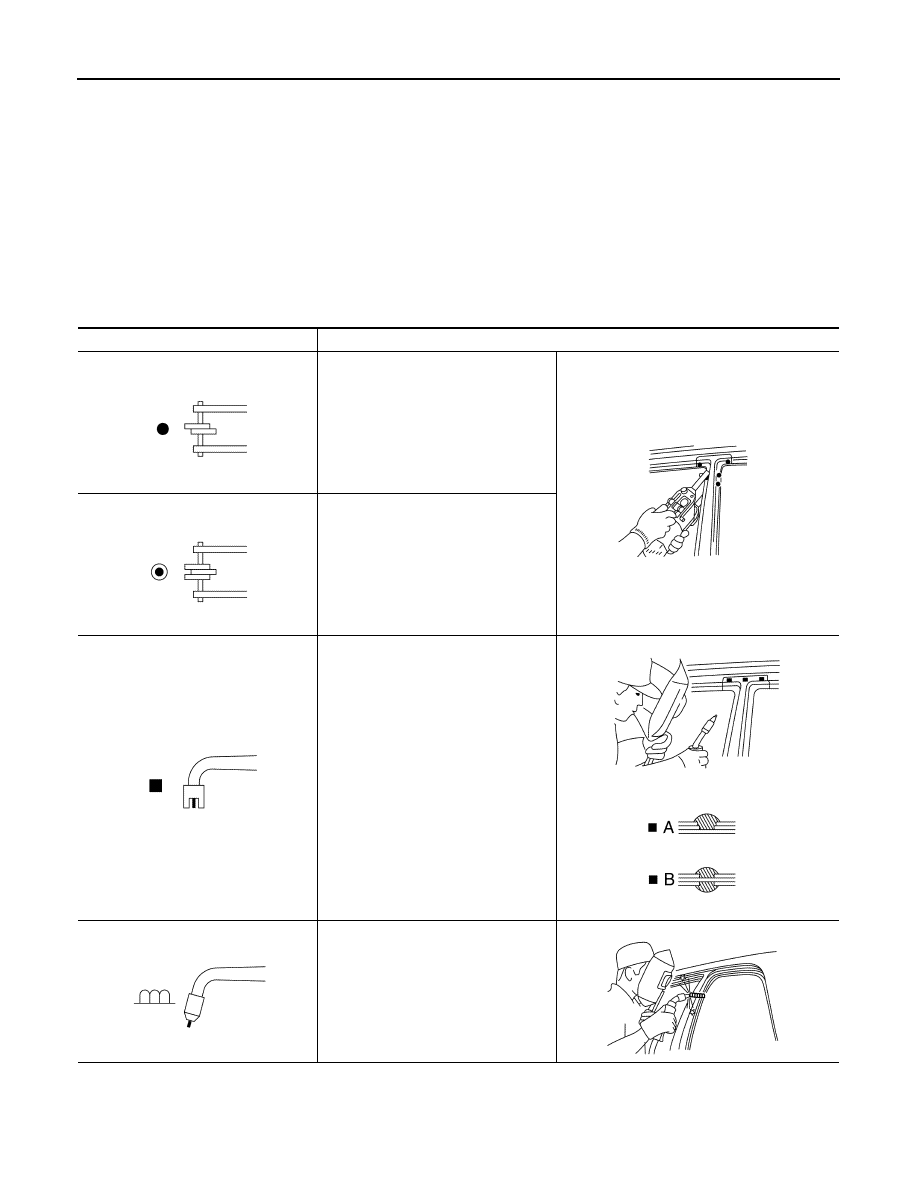

The symbols used in this section for welding operations are shown below.

Symbol marks

Description

2-spot welds

3-spot welds

MIG plug weld

For 3 panels plug weld method

MIG seam weld / Point weld

JSKIA0049ZZ

JSKIA0053ZZ

JSKIA0050ZZ

JSKIA0051ZZ

JSKIA0054ZZ

JSKIA0055ZZ

JSKIA0052ZZ

JSKIA0056ZZ

REPLACEMENT OPERATIONS

BRM-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

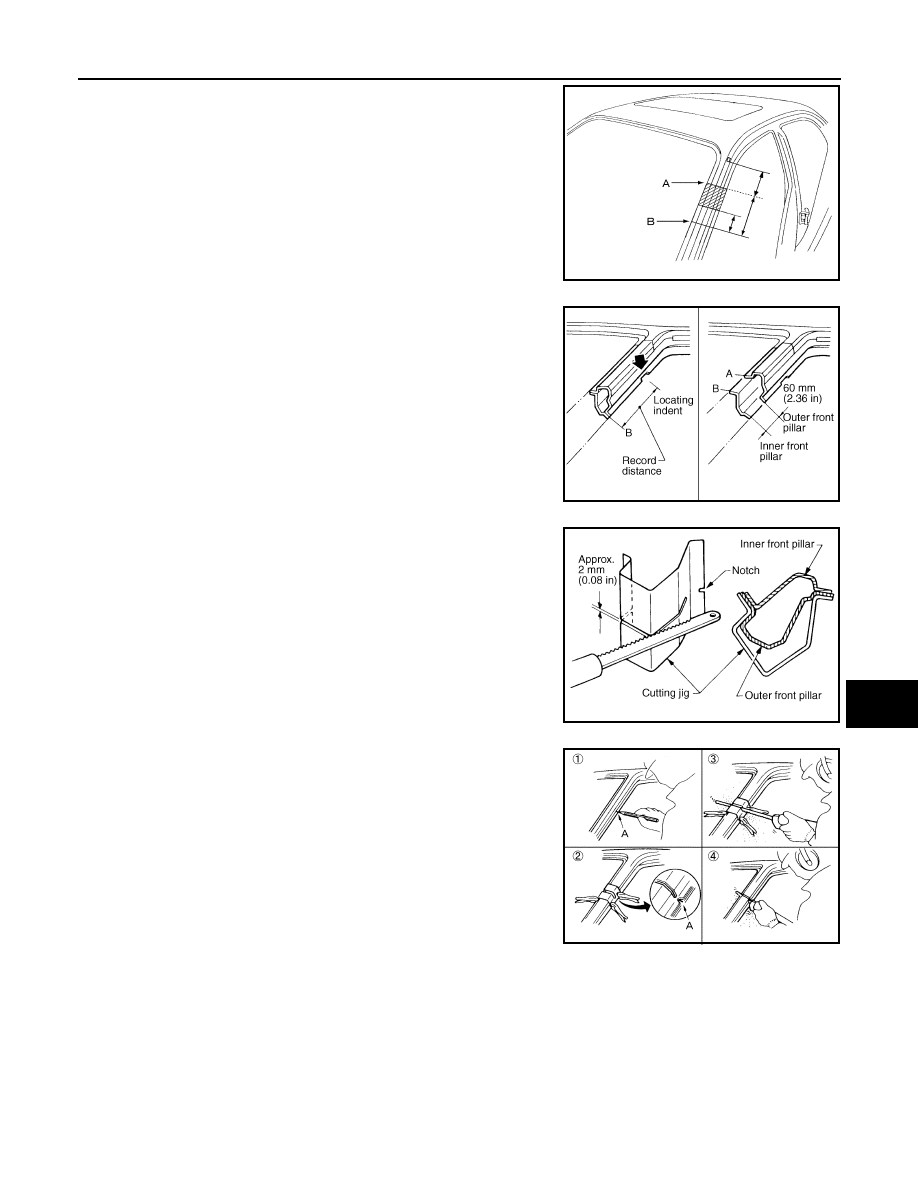

• Front pillar butt joint can be determined anywhere within shaded

area as shown in the figure. The best location for the butt joint is at

position A due to the construction of the vehicle. Refer to the front

pillar section.

• Determine cutting position and record distance from the locating

indent. Use this distance when cutting the service part. Cut outer

front pillar over 60 mm (2.36 in) above inner front pillar cut position.

• Prepare a cutting jig to make outer pillar easier to cut. Also, this will

permit service part to be accurately cut at joint position.

• An example of cutting operation using a cutting jig is as follows.

1. Mark cutting lines.

A: Cut position of outer pillar

B: Cut position of inner pillar

2. Align cutting line with notch on jig. Clamp jig to pillar.

3. Cut outer pillar along groove of jig (at position A).

4. Remove jig and cut remaining portions.

5. Cut inner pillar at position B in same manner.

Hoodledge

INFOID:0000000011280082

PIIA0150E

JSKIA0104GB

JSKIA0105GB

PIIA0153E

BRM-28

< REMOVAL AND INSTALLATION >

REPLACEMENT OPERATIONS

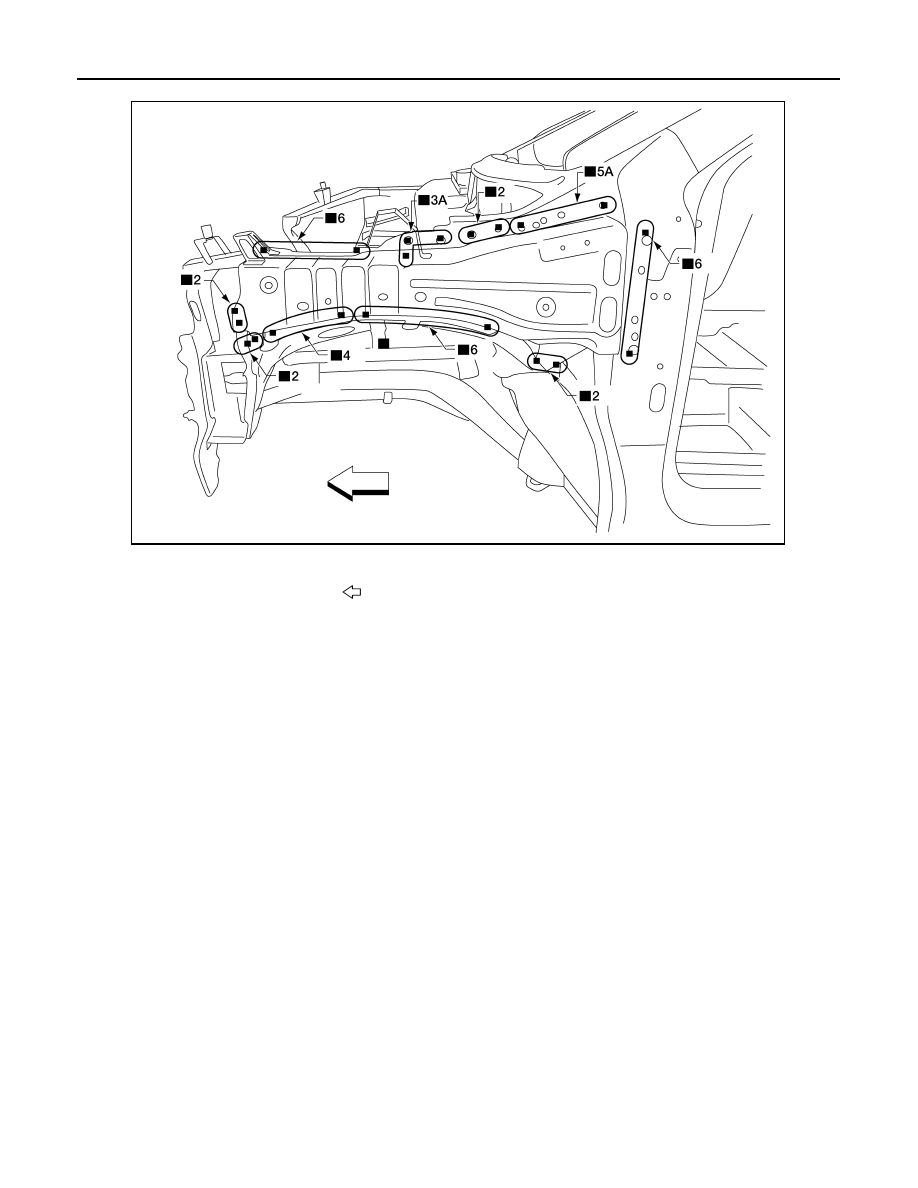

Hoodledge Reinforcement

INFOID:0000000011280083

.

Replacement parts

z

Upper hoodledge (LH)

Front

ALKIA3272ZZ
