CORROSION PROTECTION

BRM-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

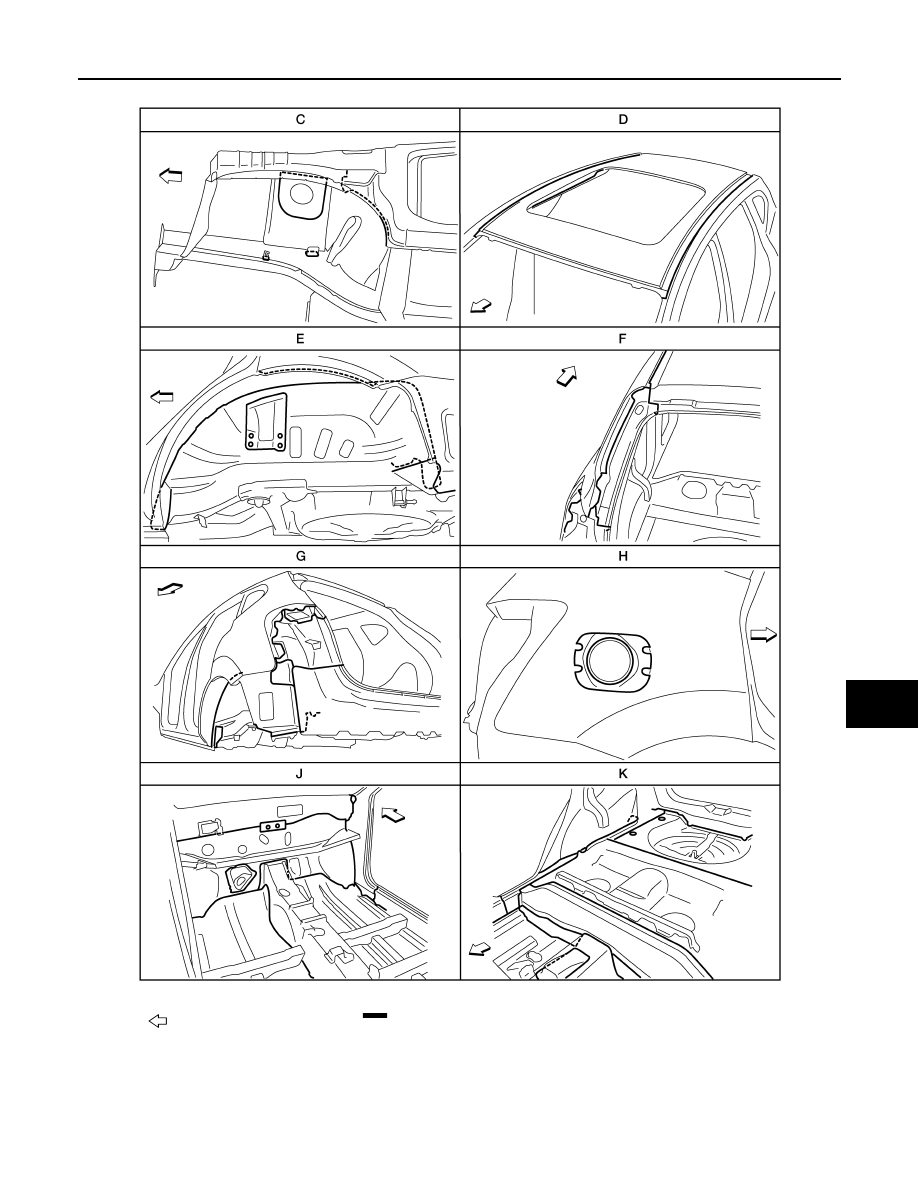

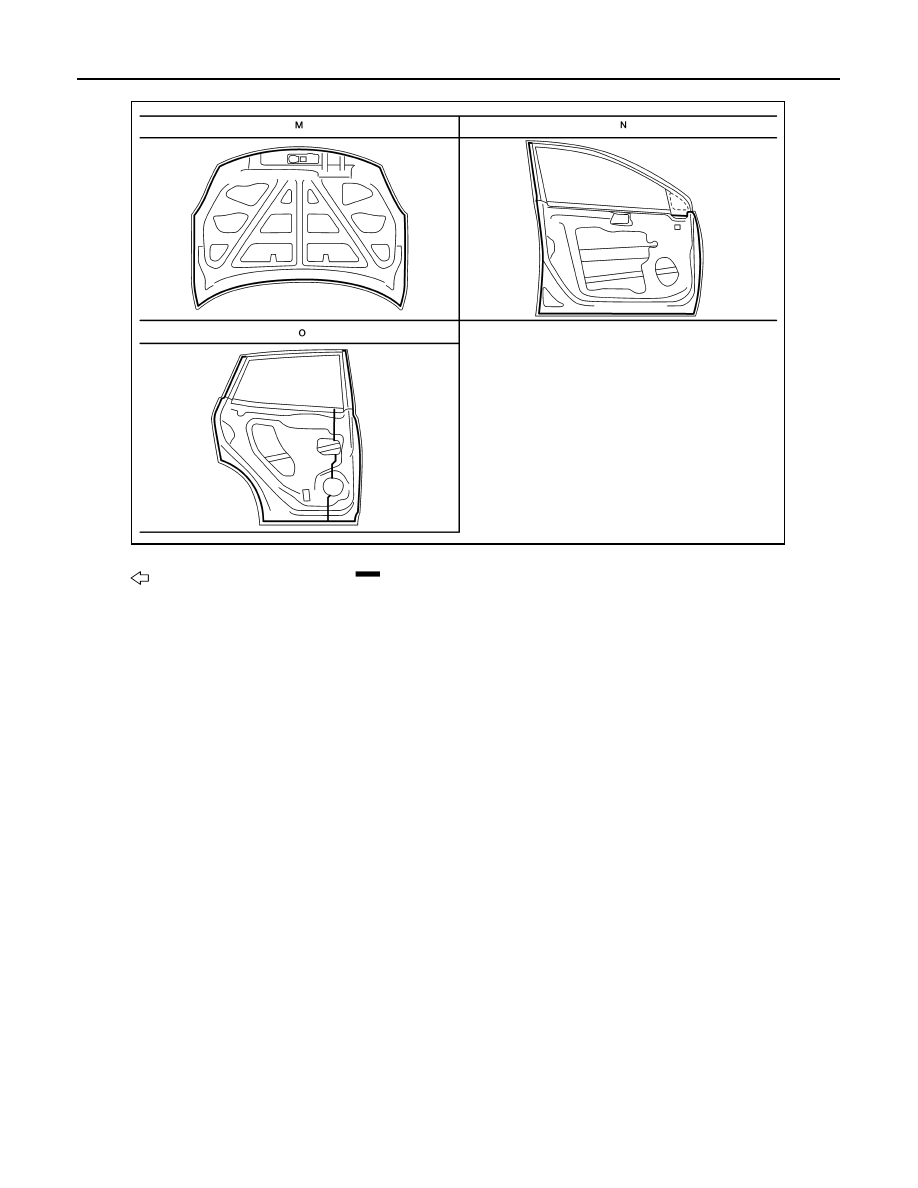

Front

 Sealed portions

AWKIA2852ZZ

BRM-22

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

 Front

 Sealed portions

AWKIA2899ZZ

BODY CONSTRUCTION

BRM-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY CONSTRUCTION

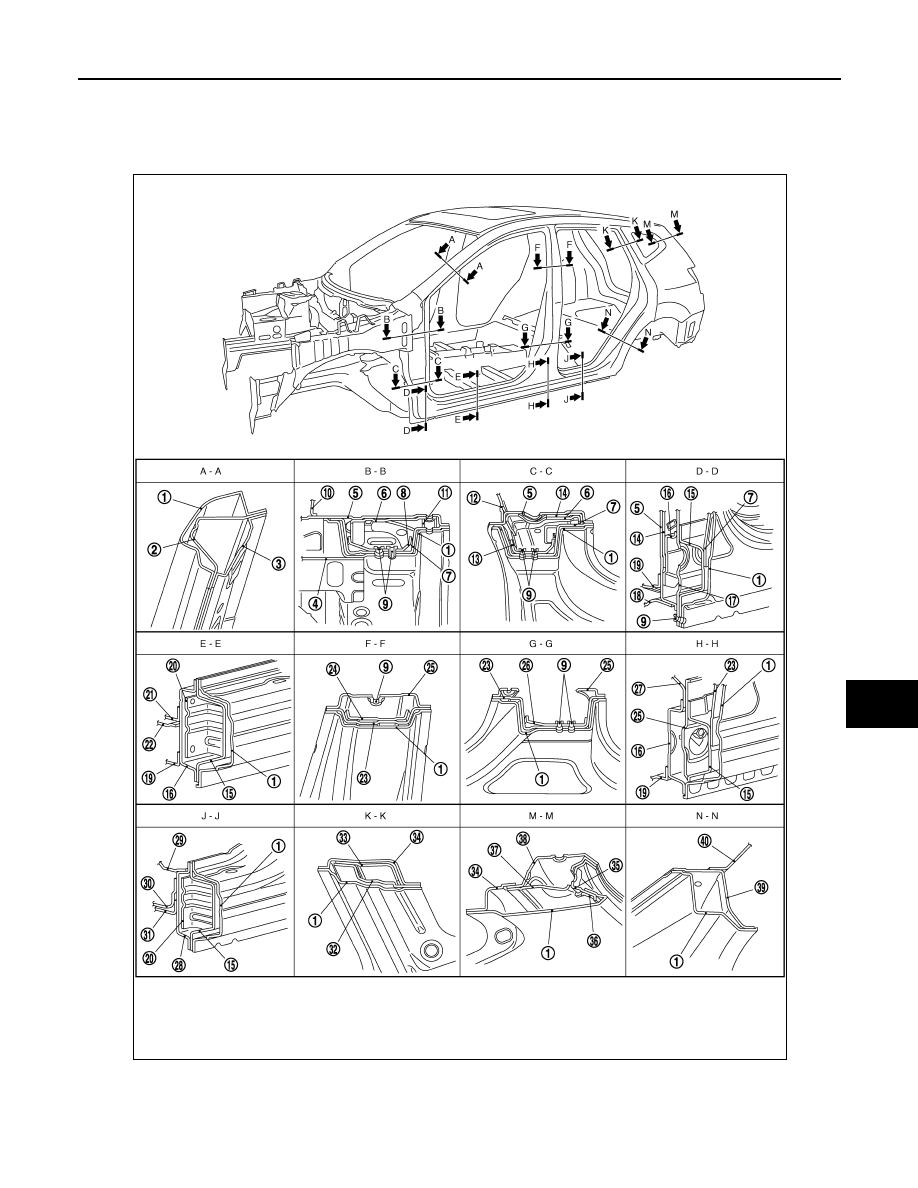

Body Construction

INFOID:0000000011280079

1.

Outer body side

2.

Outer front pillar reinforcement

3.

Upper inner front pillar

4.

Rear hoodledge reinforcement

5.

Side dash

6.

Inner front pillar reinforcement

7.

Lower front pillar hinge brace

8.

Upper hinge plate

9.

Weld nut

JSKIA0446GB

BRM-24

< REMOVAL AND INSTALLATION >

BODY CONSTRUCTION

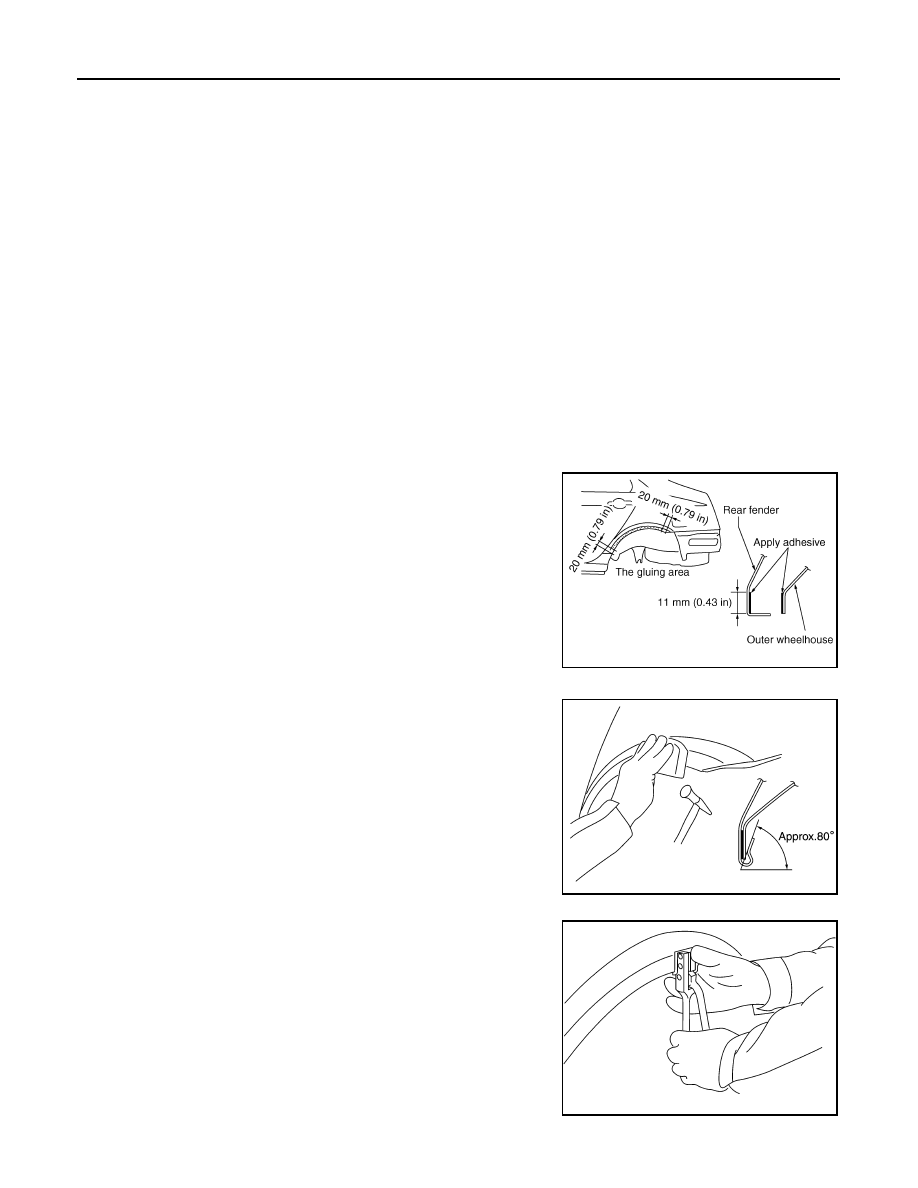

Rear Fender Hemming Process

INFOID:0000000011280080

1. A wheel arch is to be installed and hemmed over the left and right outer wheel houses.

2. In order to hem the wheel arch, it is necessary to repair any damaged or defaced parts around outer

wheel house.

CAUTION:

Ensure that the area that is to be glued around the outer wheelhouse is undamaged or defaced.

PROCEDURE OF THE HEMMING PROCESS

• Peel off old bonding material on the surface of the outer wheel-

house and clean thoroughly.

• Peel off a primer coat in the specified area where new adhesive is

to be applied on rear fender (the replacing part).

• Apply new adhesive to both specified areas of the outer wheel-

house and rear fender.

• Attach rear fender to the body of the car, and weld the required

part except the hemming part.

• Bend the welded part starting from the center of the wheel arch

gradually with a hammer and a dolly. (Also hem the end of the

flange.)

• Hemming with a hammer is conducted to an approximate angle of

80 degrees.

• Starting from the center, hem the wheel arch gradually, using slight

back and forth motion with a hemming tool.

10. Upper dash

11. Upper steering member bracket

12. Lower dash

13. Lower hinge plate

14. Side dash reinforcement

15. Outer sill reinforcement

16. Inner sill

17. Lower front pillar reinforcement

18. Front outrigger

19. Front floor

20. Outer sill brace

21. 2nd crossmember

22. 2nd crossmember reinforcement

23. Center pillar hinge brace

24. Center pillar reinforcement

25. Inner center pillar

26. Lower center pillar hinge brace

27. Seat belt anchor

28. Inner sill extension

29. Rear seat crossmember

30. Rear floor front extension

31. Rear side member

32. Inner rear pillar reinforcement

33. Rear pillar seat belt anchor

34. Inner rear pillar

35. Back pillar main

36. Back door stay reinforcement

37. Upper back pillar reinforcement

38. Rear roof rail brace

39. Outer rear wheelhouse

40. Inner rear wheelhouse

<Adhesive> 3M™ Automix™ Panel Bonding Adhe-

sive 08115 or equivalent

JSKIA0136GB
