BODY SIDE TRIM

INT-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

BODY SIDE TRIM

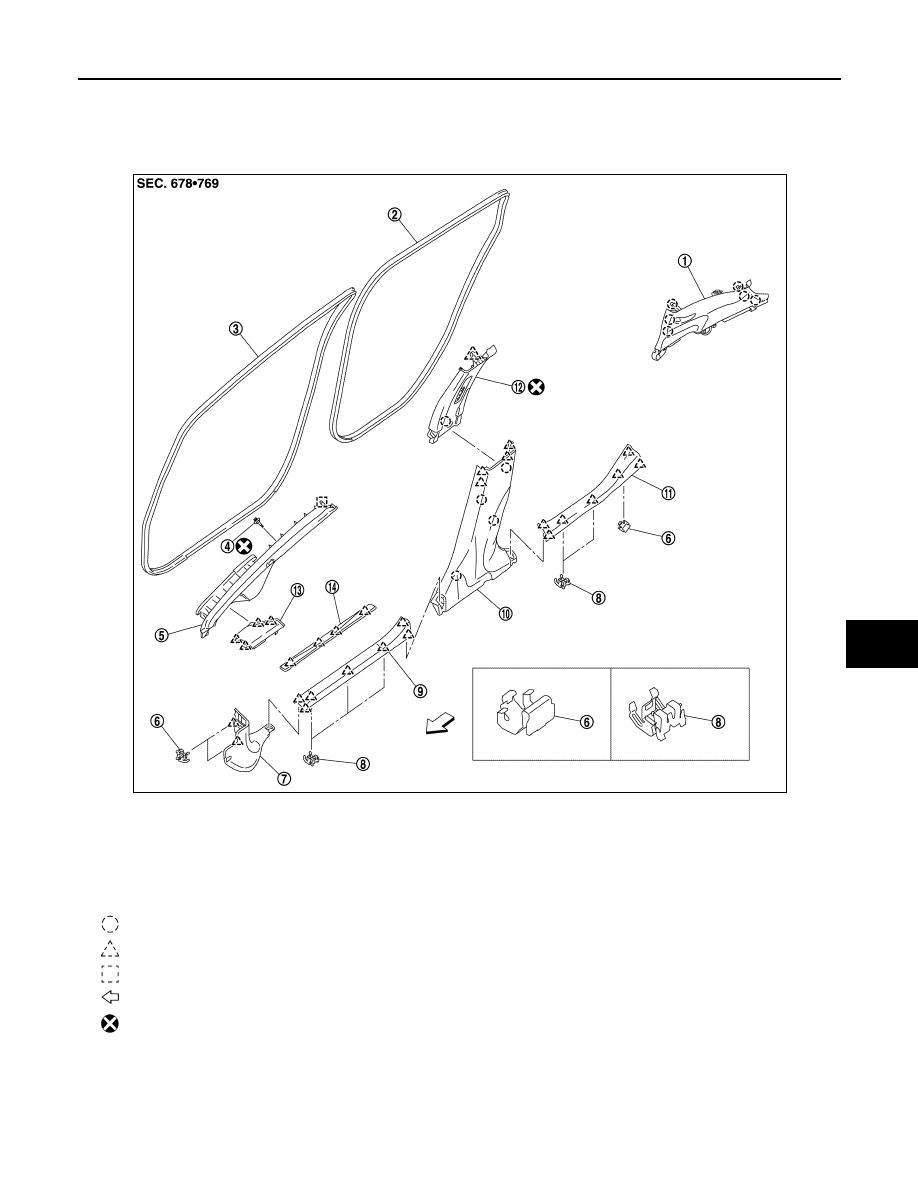

Exploded View

INFOID:0000000010119667

INSTRUMENT SIDE PANEL
INSTRUMENT SIDE PANEL : Removal and Installation

INFOID:0000000010119668

CAUTION:

1.

Rear pillar finisher

2.

Rear body side welt

3.

Front body side welt

4.

Clip

5.

Front pillar garnish

6.

Metal clip A

7.

Dash side finisher

8.

Metal clip B

9.

Front kicking plate inner

10. Center pillar lower garnish

11. Rear kicking plate inner

12. Center pillar upper garnish

13. Instrument side panel

14. Front kicking plate outer

: Clip

: Pawl

: Metal clip

: Vehicle front

: Always replace after every disassembly.

JMJIA6619ZZ

INT-26

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

• When removing, always use a suitable tool that is made of plastic to prevent damage to the parts.

• Never damage the body.

REMOVAL

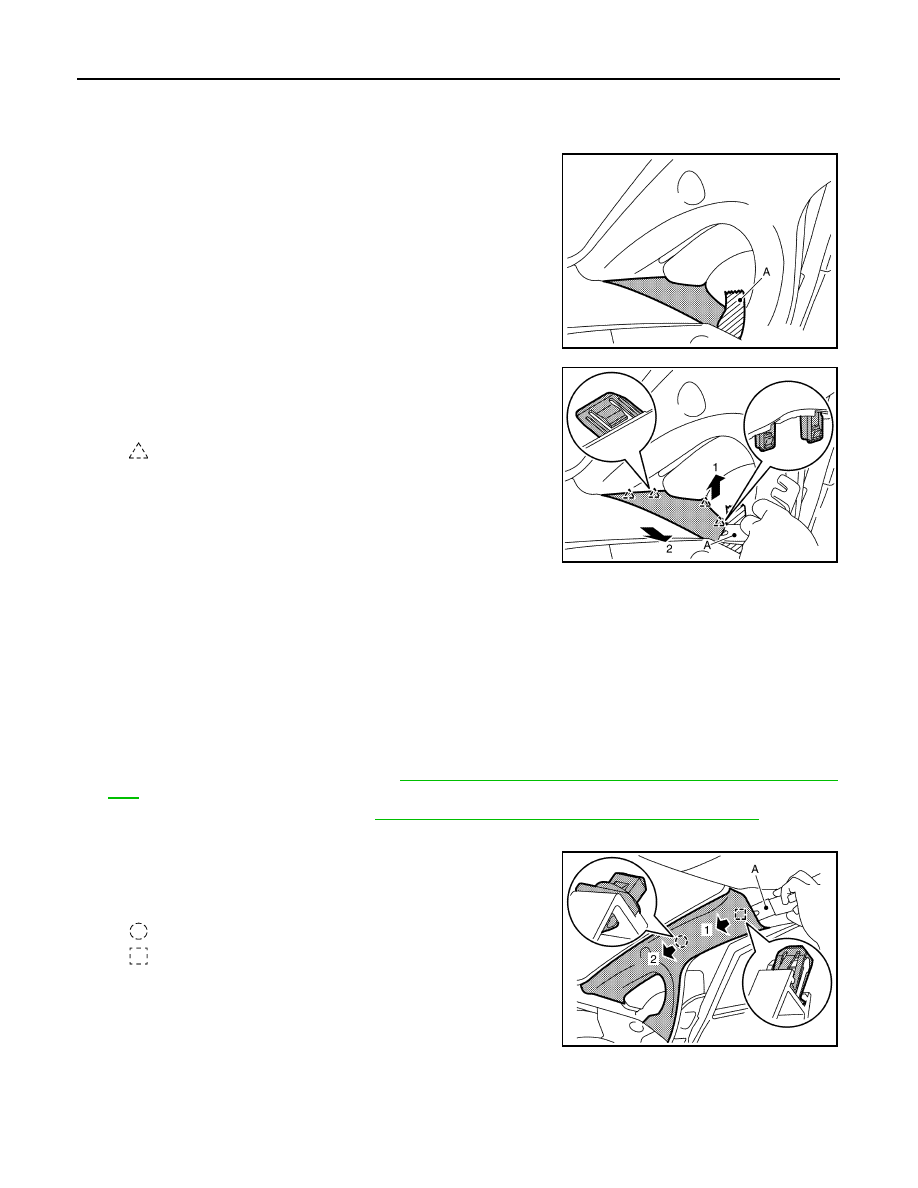

1. Apply protective tape (A) on the parts to protect it from damage.

2. Disengage instrument side panel fixing pawls with a suitable tool

(A) according to the numerical order 1

→ 2 as shown in the fig-

ure, and then remove instrument side panel.

INSTALLATION

Install in the reverse order of removal.

FRONT PILLAR GARNISH
FRONT PILLAR GARNISH : Removal and Installation

INFOID:0000000010119669

CAUTION:

• When removing, always use a suitable tool that is made of plastic to prevent damage to the parts.

• Never damage the body.

REMOVAL

1. Remove instrument side panel. Refer to

INT-25, "INSTRUMENT SIDE PANEL : Removal and Installa-

tion"

.

2. Remove front body side welt. Refer to

INT-29, "BODY SIDE WELT : Removal and Installation"

.

3. Remove front pillar garnish.
a. Disengage front pillar garnish fixing metal clip and clip with a

suitable tool (A) according to the numerical order 1

→ 2 as

shown in the figure.

JMJIA6954ZZ

: Pawl

JMJIA6977ZZ

: Clip

: Metal clip

JMJIA5129ZZ

BODY SIDE TRIM

INT-27

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

INT

N

O

P

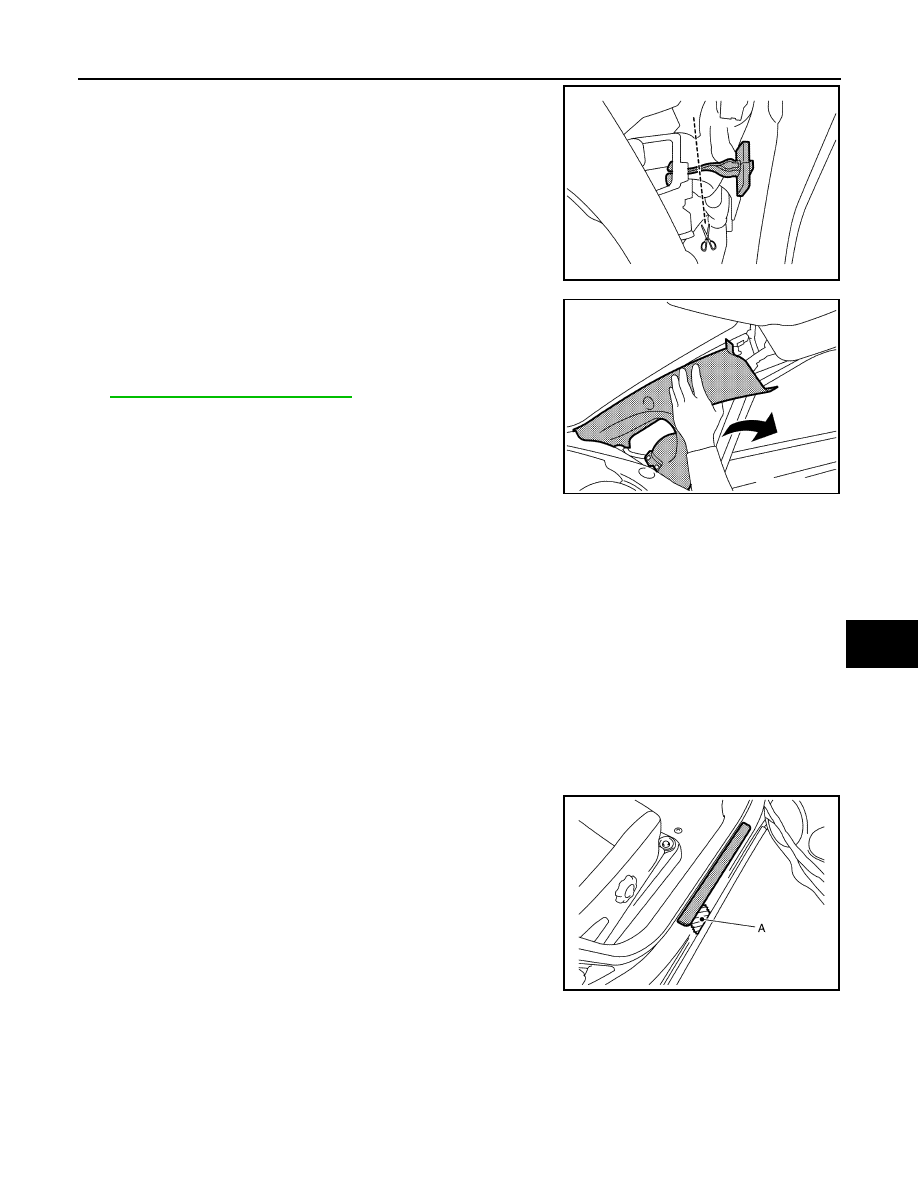

b. Cut clip anchor portion.

c. Pull front pillar garnish forward the direction of the arrow, discon-

nect tweeter harness connector and then remove front pillar gar-

nish.

NOTE:

Remove tweeter (if equipped) from front pillar garnish. Refer to

AV-321, "Removal and Installation"

.

INSTALLATION

Note the following items, and install in the reverse order of removal.

CAUTION:

• Replace clip anchor with a new part after removal. Never reuse clip anchor.

• When installing, check in advance that clip and metal clip are accurately aligned with the holes on

body side, and then install by pressing in.

KICKING PLATE OUTER
KICKING PLATE OUTER : Removal and Installation

INFOID:0000000010119670

CAUTION:

• When removing, always use a suitable tool that is made of plastic to prevent damage to the parts.

• Never damage the body.

REMOVAL

FRONT KICKING PLATE OUTER

1. Apply protective tape (A) on the parts to protect it from damage.

JMJIA5130ZZ

JMJIA5131ZZ

JMJIA6955ZZ

INT-28

< REMOVAL AND INSTALLATION >

BODY SIDE TRIM

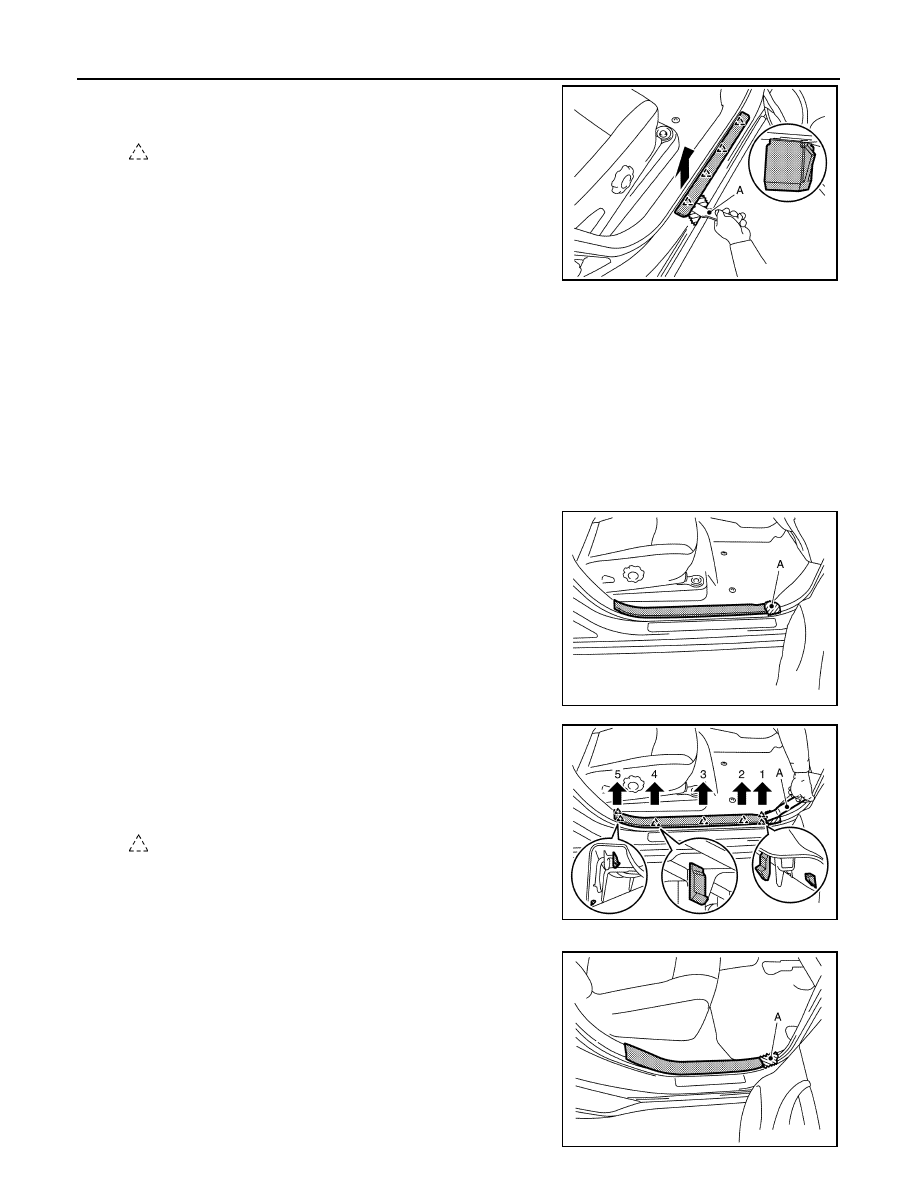

2. Disengage front kicking plate outer fixing pawls with a suitable

tool (A), and then remove front kicking plate outer.

INSATALLATION

Install in the reverse order of removal.

KICKING PLATE INNER
KICKING PLATE INNER : Removal and Installation

INFOID:0000000010119671

CAUTION:

• When removing, always use a suitable tool that is made of plastic to prevent damage to the parts.

• Never damage the body.

REMOVAL

FRONT KICKING PLATE INNER

1. Apply protective tape (A) on the parts to protect it from damage.

2. Disengage front kicking plate inner fixing pawls with a suitable

tool (A) according to the numerical order 1

→ 5 as shown in the

figure, and then remove front kicking plate inner.

CAUTION:

Pawls may be damaged. Always remove from vehicle front.

REAR KICKING PLATE INNER

1. Apply protective tape (A) on the parts to protect it from damage.

: Pawl

JMJIA6978ZZ

JMJIA6956ZZ

: Pawl

JMJIA6979ZZ

JMJIA6957ZZ
