Nissan Leaf. Manual - part 1289

TPMS

WT-35

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

NOTE:

If tire pressure sensor wake-up operation is not completed for two or more tire pressure sensors, the applica-

ble low tire pressure warning lamp blinking patterns are displayed continuously.

(Example: Blinks once/OFF/blinks 3 times = Wake-up operation is not completed at the front left wheel and

rear right wheel tire pressure sensors.)

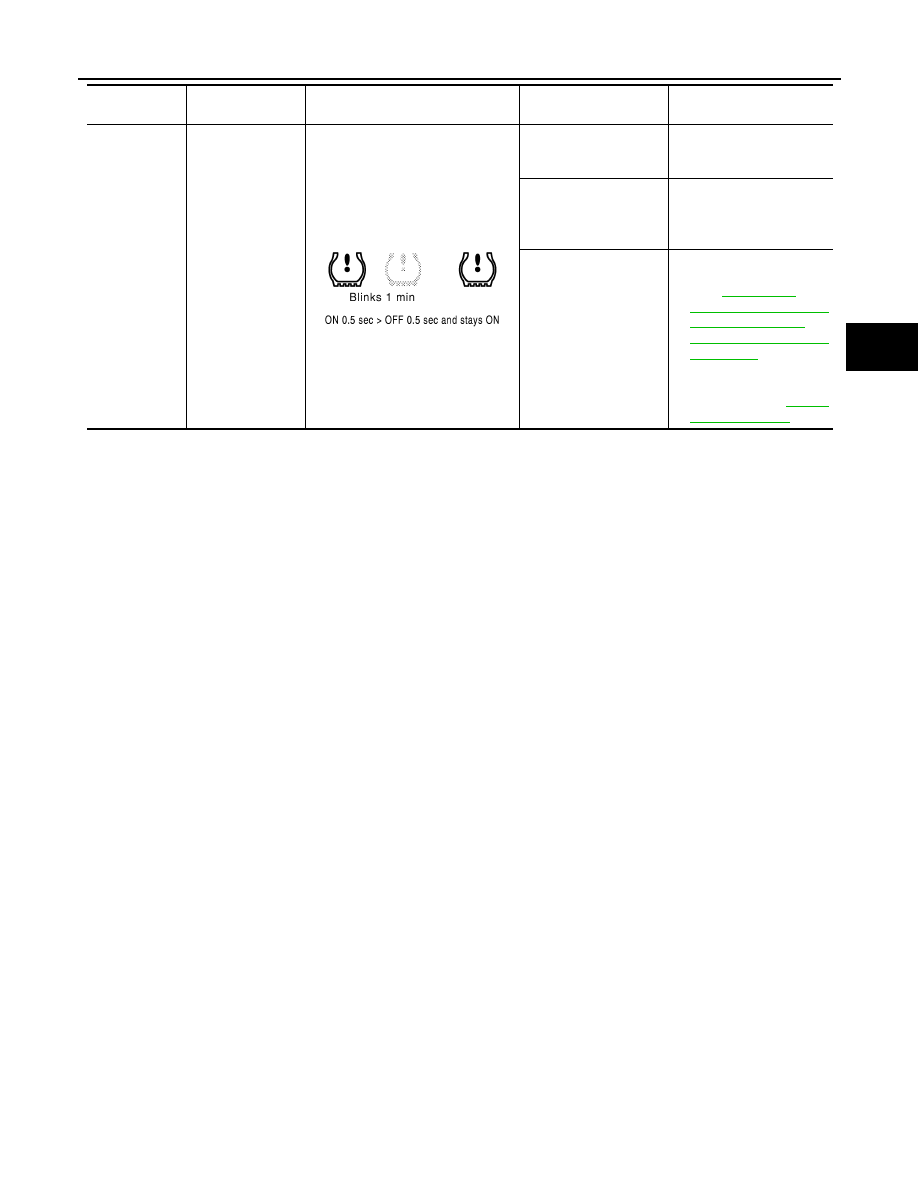

Low tire pres-
sure warning
lamp

The low tire pres-
sure warning lamp
repeats blinking at
0.5-second inter-
vals for 1 minute,
and then stays illu-
minated.

The combination meter
fuse is open or removed
(or pulled out).

Check and install the com-
bination meter fuse. If nec-
essary, replace the fuse.

The BCM harness con-
nector is removed.

Check the connection con-
ditions of the BCM harness
connector, and repair if
necessary.

Tire Pressure Monitor-
ing System (TPMS) mal-
function.

• Perform CONSULT “Self

Diagnostic Result”“. Re-
fer to

WT-13, "AIR

PRESSURE MONITOR :
CONSULT Function
(BCM - AIR PRESSURE
MONITOR)"

.

• If necessary, perform tire

pressure sensor ID reg-
istration. Refer to

WT-21,

"Work Procedure"

.

Diagnosis

items

Symptom

(Power switch ON)

Low tire pressure warning lamp

Cause

Action

SEIA0788E

WT-36

< SYMPTOM DIAGNOSIS >

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN ON

Description

INFOID:0000000010120199

The low tire pressure warning lamp does not illuminate when the power switch is turned ON.

NOTE:

The low tire pressure warning lamp illuminates for approximately 1 second and then turns OFF when the

power switch is turned ON. This is to check that no abnormal condition is present in the tire pressure monitor-

ing system.

The lamp bulb may be burnt out or the tire pressure monitoring system may be malfunctioning if the low tire

pressure warning lamp does not illuminate when the power switch is turned ON.

Diagnosis Procedure

INFOID:0000000010120200

1.

CHECK LOW TIRE PRESSURE WARNING LAMP SIGNAL

 With CONSULT

1. Turn the power switch ON.

CAUTION:

Never set the vehicle to READY.

2. Select “Active Test” in “AIR PRESSURE MONITOR” of “BCM”.

3. Touch “WARNING LAMP” to turn ON the low tire pressure warning lamp.
When “Active Test” is performed, does the low tire pressure warning lamp in the combination meter turn ON?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

CHECK LOW TIRE PRESSURE WARNING LAMP OPERATION

Check that when the power switch is turned ON, the low tire pressure warning lamp illuminates for approxi-

mately 1 second then turns OFF.
Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-53, "Intermittent Incident"

.

NO

>> Replace the BCM. Refer to

BCS-72, "Removal and Installation"

.

3.

CHECK COMBINATION METER POWER SUPPLY CIRCUIT

Perform the diagnosis for combination meter power supply circuit. Refer to

MWI-85, "COMBINATION METER

: Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace malfunctioning components.

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN OFF

WT-37

< SYMPTOM DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

LOW TIRE PRESSURE WARNING LAMP DOES NOT TURN OFF

Description

INFOID:0000000010120201

The low tire pressure warning lamp does not turn OFF after several seconds have passed after the vehicle is

set to READY.

Diagnosis Procedure

INFOID:0000000010120202

1.

CHECK TIRE PRESSURE

1. Turn the power switch ON.

CAUTION:

Never set the vehicle to READY.

2. Check the tire pressure for all wheels.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Adjust tire pressure to the specified value. Refer to

WT-51, "Tire Air Pressure"

2.

CHECK LOW TIRE PRESSURE WARNING LAMP

Check low tire pressure warning lamp. Refer to

WT-10, "System Description"

Does low tire pressure warning lamp turn OFF?

YES

>> Inspection End.

NO

>> GO TO 3.

3.

CHECK BCM

With CONSULT

Perform “Self Diagnostic Result” in “AIR PRESSURE MONITOR” of “BCM”.
Is any DTC detected?

YES

>> Check the DTC. Refer to

BCS-48, "DTC Index"

.

NO

>> GO TO 4.

4.

CHECK BCM POWER SUPPLY AND GROUND CIRCUIT

Perform the diagnosis for BCM power supply and ground circuit. Refer to

WT-32, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> Replace the BCM. Refer to

BCS-72, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning components.

WT-38

< SYMPTOM DIAGNOSIS >

LOW TIRE PRESSURE WARNING LAMP BLINKS

LOW TIRE PRESSURE WARNING LAMP BLINKS

Description

INFOID:0000000010120203

The low tire pressure warning lamp blinks when the power switch is turned ON.

NOTE:

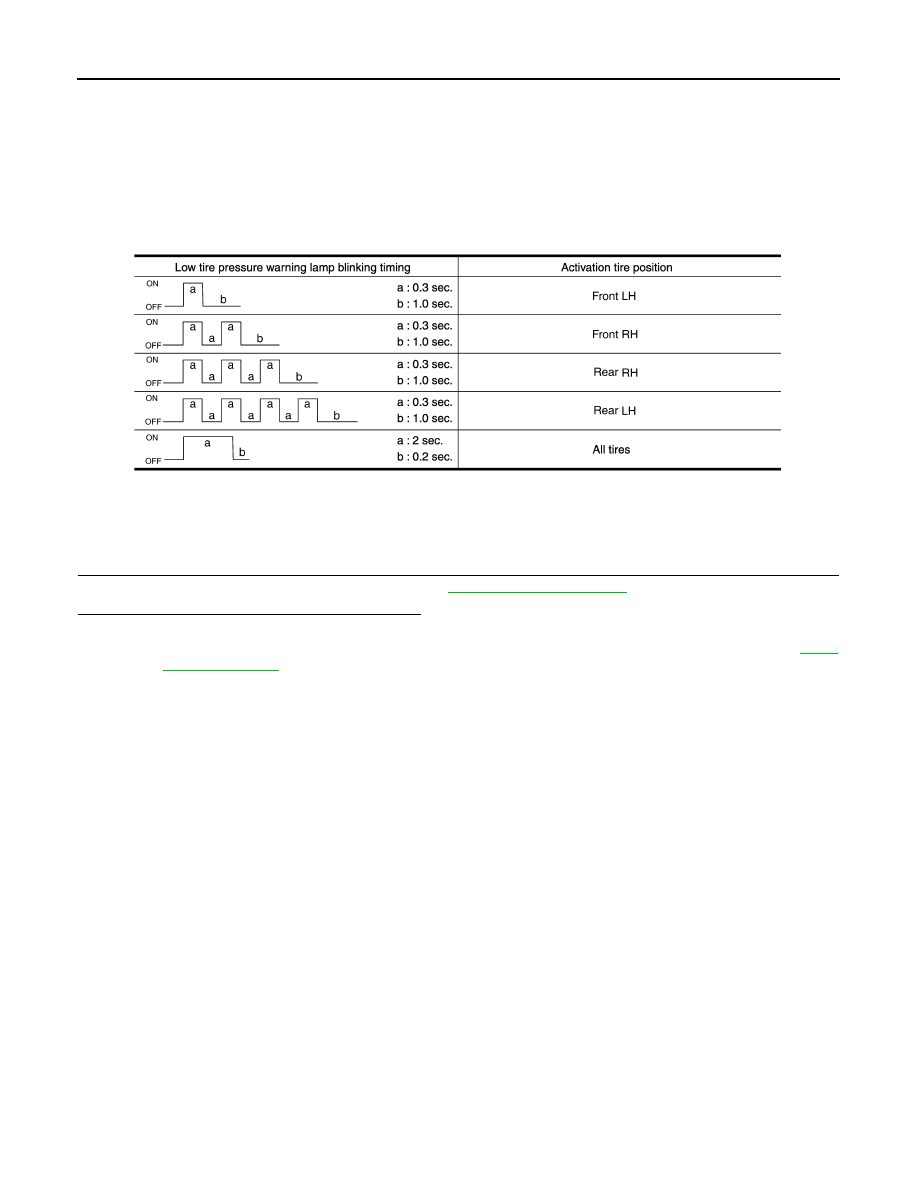

The position of an inactive tire pressure sensor can be identified by checking the blinking timing of the low tire

pressure warning lamp.

Diagnosis Procedure

INFOID:0000000010120204

1.

TIRE PRESSURE SENSOR ID REGISTRATION

Perform tire pressure sensor ID registration. Refer to

WT-21, "Work Procedure"

.

Is tire pressure sensor ID registration completed?

YES

>> Inspection End.

NO

>> Perform the “Self Diagnostic Result”“ for “AIR PRESSURE MONITOR” of “BCM”. Refer to

BCS-

48, "DTC Index"

.

JPEIC0089GB
