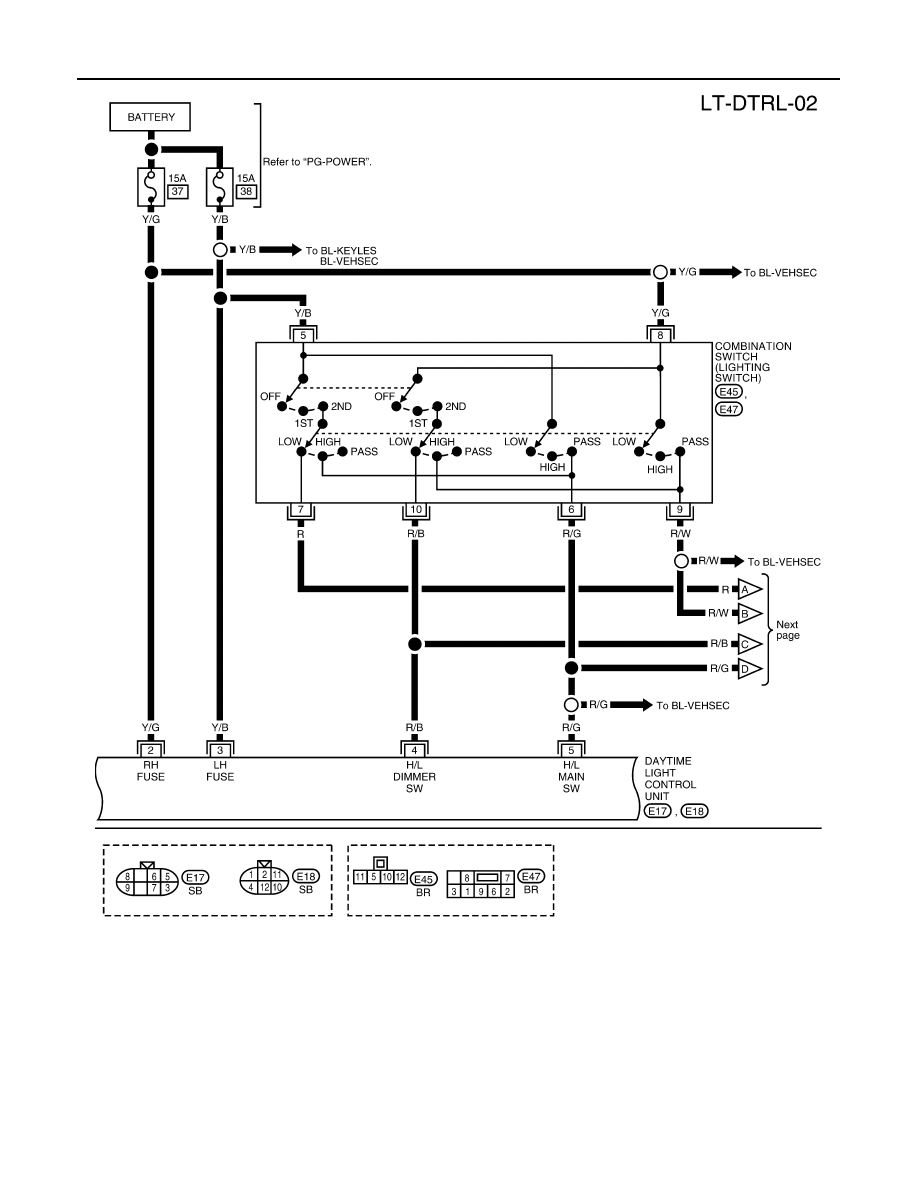

HEADLAMP (FOR CANADA) — DAYTIME LIGHT SYSTEM —

WKWA1099E

HEADLAMP (FOR CANADA) — DAYTIME LIGHT SYSTEM —

LT-15

C

D

E

F

G

H

I

J

L

M

A

B

LT

WKWA0358E

LT-16

HEADLAMP (FOR CANADA) — DAYTIME LIGHT SYSTEM —

Trouble Diagnoses

EKS006VG

DAYTIME LIGHT CONTROL UNIT INSPECTION TABLE

Bulb Replacement

EKS006VH

Refer to

LT-8, "Bulb Replacement"

 .

Aiming Adjustment

EKS006VI

Refer to

LT-8, "Aiming Adjustment"

 .

Terminal

No.

Wire

color

Item

Condition

Voltage (Approx.)

1

L/OR

Ignition switch start signal

Ignition switch in START position

12

All other conditions

0

2

Y/G

Power source for head-
lamp RH

—

12

3

Y/B

Power source for head-
lamp LH

—

12

4

R/B

Lighting switch headlamp
RH low beam output

Lighting switch in the headlamp ON (2ND) position and
low beam (B) position

12

All other conditions

0

5

R/G

Lighting switch headlamp
LH high beam output

Lighting switch in the flash-to-pass (C) position or
headlamp ON (2ND) position and high beam (A) posi-
tion

12

All other conditions

0

6

R/Y

Headlamp LH high beam

Lighting switch in the flash-to-pass (C) position or
headlamp ON (2ND) position and high beam (A) posi-
tion

12

With parking brake released, engine running and light-
ing switch in OFF or parking and tail lamp ON (1ST)
positions

CAUTION:

Block wheels and ensure selector lever is in P or N
position.

12

All other conditions

0

7

B/W

Headlamp LH control
(ground)

Lighting switch in the flash-to-pass (C) position or
headlamp ON (2ND) position

0

All other conditions

6

8

R/W

Lighting switch headlamp
RH high beam output

Lighting switch in the flash-to-pass (C) position or
headlamp ON (2ND) position and high beam (A) posi-
tion

12

With parking brake released, engine running and light-
ing switch in OFF or parking and tail lamp ON (1ST)
positions

CAUTION:

Block wheels and ensure selector lever is in P or N
position.

6

All other conditions

0

9

B

Ground

—

—

10

Y

Parking brake switch

Parking brake released

12

Parking brake applied

0

11

Y/B

Generator
(L terminal)

When engine is running

12

All other conditions

0

12

G/W

Ignition switch ON signal

Ignition switch OFF, ACC positions

0

Ignition switch ON, START positions

12

PARKING, LICENSE AND TAIL LAMPS

LT-17

C

D

E

F

G

H

I

J

L

M

A

B

LT

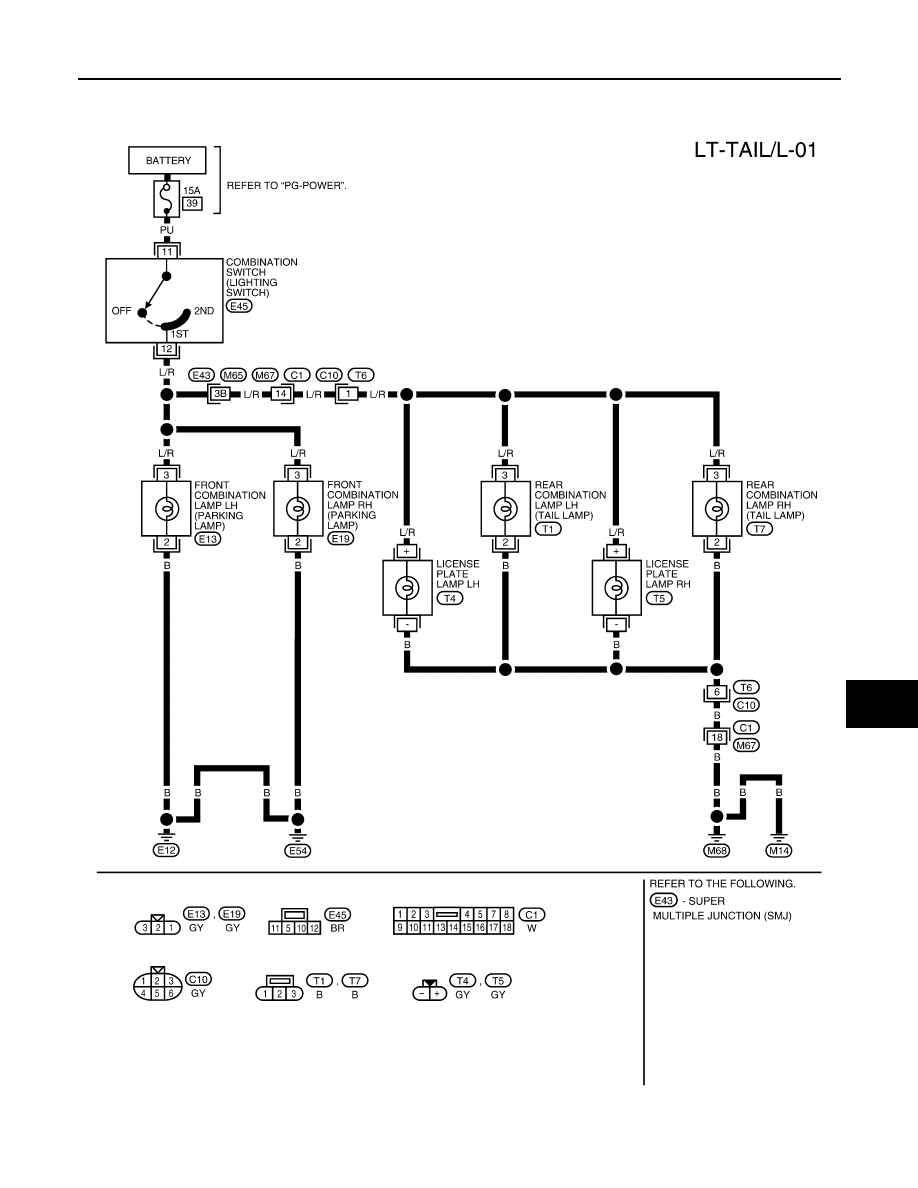

PARKING, LICENSE AND TAIL LAMPS
