Nissan Frontier D22. Manual - part 125





REAR INTERNAL GEAR AND FORWARD CLUTCH HUB

AT-469

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

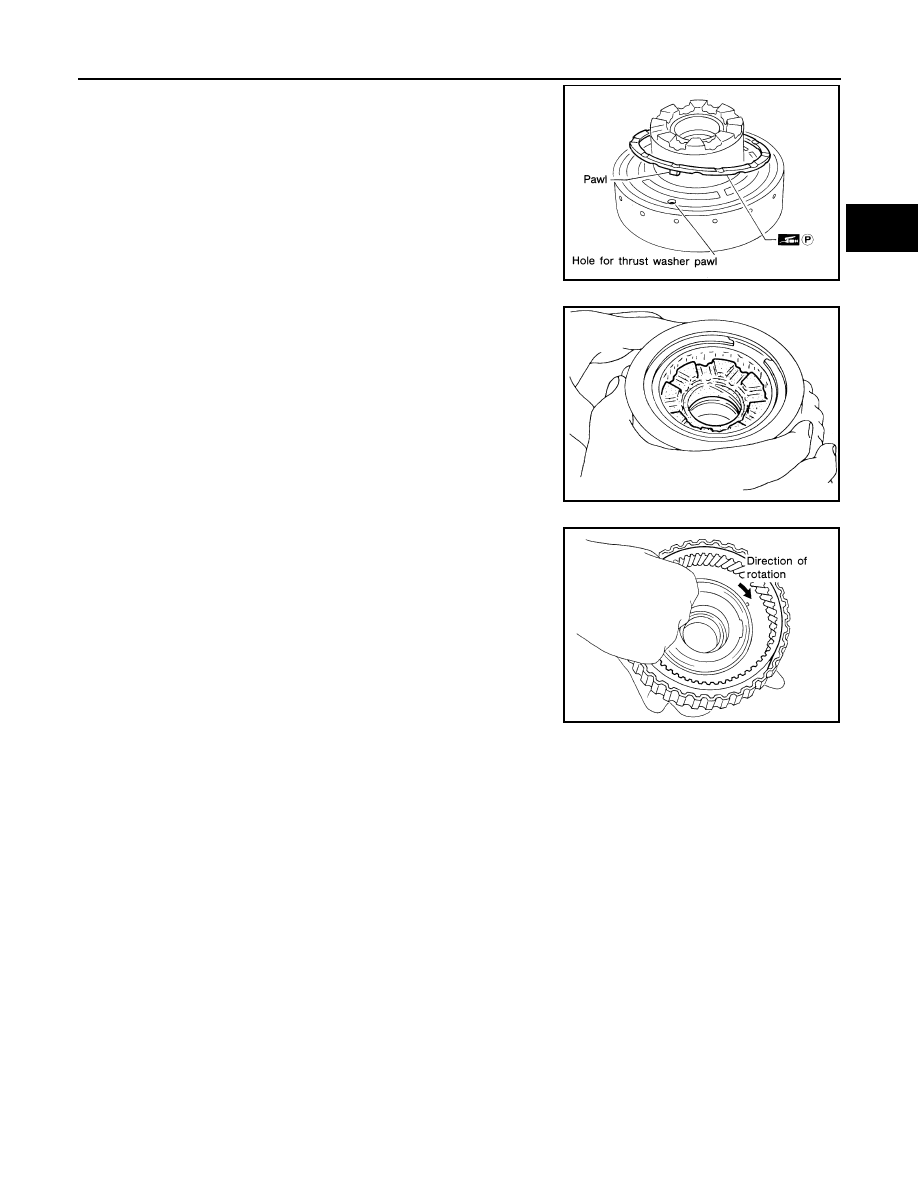

6.

Install thrust washer onto rear internal gear.

●

Apply petroleum jelly to thrust washer.

●

Securely insert pawls of thrust washer into holes in rear
internal gear.

7.

Position forward clutch hub in rear internal gear.

8.

After installing, check to assure that forward clutch hub rotates
clockwise.

SAT906A

SAT907A

SAT905A

AT-470

[RE4R01A]

BAND SERVO PISTON ASSEMBLY

BAND SERVO PISTON ASSEMBLY

PFP:31615

Components

ECS007QC

Disassembly

ECS007QD

1.

Block one oil hole in O/D servo piston retainer and the center
hole in O/D band servo piston.

2.

Apply compressed air to the other oil hole in piston retainer to
remove O/D band servo piston from retainer.

3.

Remove D-ring from O/D band servo piston.

4.

Remove band servo piston assembly from servo piston retainer
by pushing it forward.

LCIA0277E

SAT909A

SAT910A

BAND SERVO PISTON ASSEMBLY

AT-471

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

5.

Place piston stem end on a wooden block. While pushing servo
piston spring retainer down, remove E-ring.

6.

Remove servo piston spring retainer, return spring C and piston
stem from band servo piston.

7.

Remove E-ring from band servo piston.

8.

Remove servo cushion spring retainer from band servo piston.

9.

Remove D-rings from band servo piston.

10. Remove O-rings from servo piston retainer.

SAT911A

SAT912A

SAT913A

SAT914A

AT-472

[RE4R01A]

BAND SERVO PISTON ASSEMBLY

Inspection

ECS007QE

PISTONS, RETAINERS AND PISTON STEM

●

Check frictional surfaces for abnormal wear or damage.

RETURN SPRINGS

●

Check for deformation or damage. Measure free length and
outer diameter.

Assembly

ECS007QF

1.

Install O-rings onto servo piston retainer.

●

Apply ATF to O-rings.

●

Pay attention to position of each O-ring.

2.

Install servo cushion spring retainer onto band servo piston.

SAT915A

Inspection standard

: Refer to

AT-497, "Return

Springs"

 .

SAT916AA

SAT917A

SAT918A
