LOW & REVERSE BRAKE

AT-461

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

3.

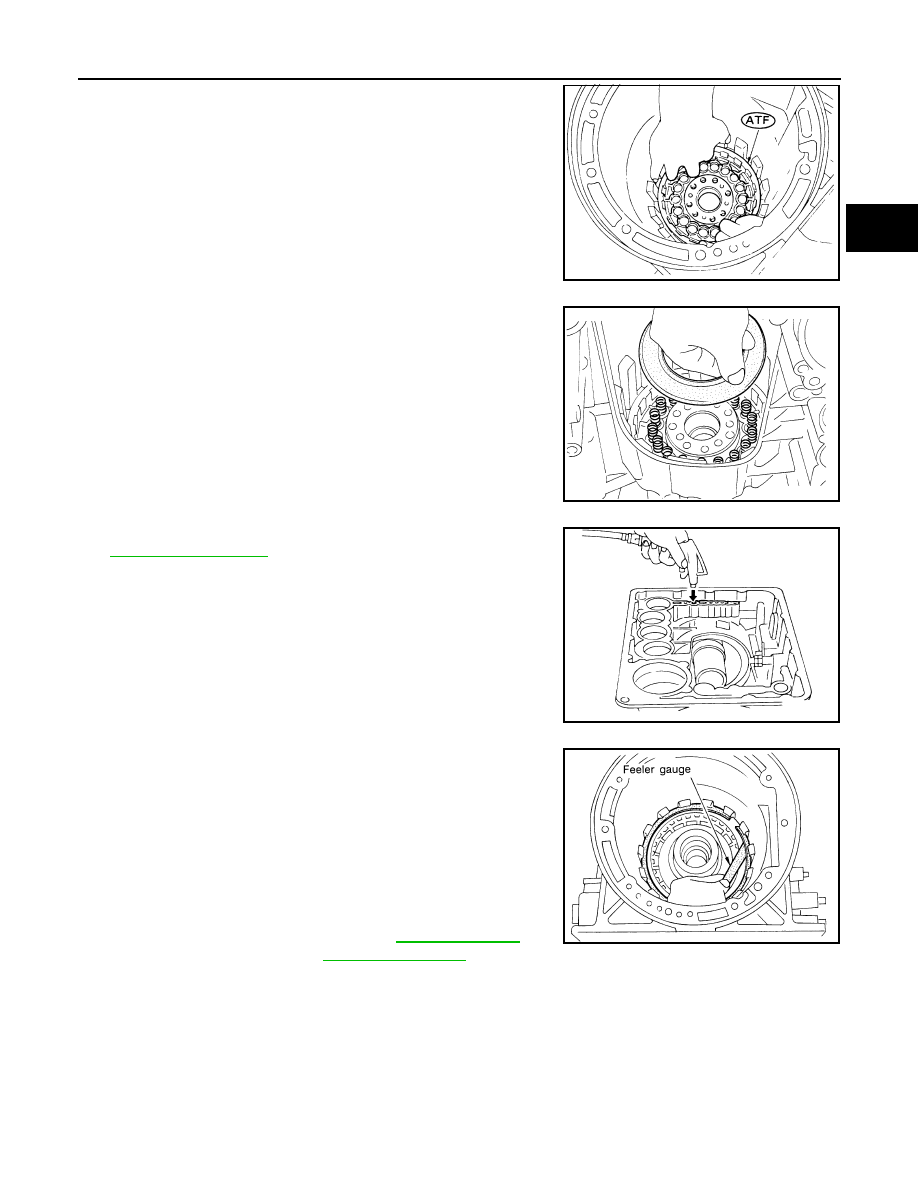

Install piston by rotating it slowly and evenly.

●

Apply ATF to inner surface of transmission case.

4.

Install return springs, spring retainer and low one-way clutch
inner race onto transmission case.

5.

Install dish plate, low and reverse brake drive plates, driven
plates and retaining plate.

6.

Install snap ring on transmission case.

7.

Check operation of low and reverse brake clutch piston. Refer to

AT-414, "Disassembly"

 .

8.

Measure clearance between retaining plate and snap ring.
If not within allowable limit, select proper retaining plate.

SAT880A

SAT881A

SAT872A

Specified clearance

Standard

: 0.8 - 1.1 mm (0.031 -
0.043 in)

Allowable limit

VG33E only

: 2.5 mm (0.098 in)

VG33ER only

: 2.7 mm (0.106 in)

Retaining plate

: Refer to

AT-500, "LOW &

REVERSE BRAKE"

 .

SAT885A

AT-462

[RE4R01A]

LOW & REVERSE BRAKE

9.

Install low one-way clutch inner race seal ring.

●

Apply petroleum jelly to seal ring.

●

Make sure seal rings are pressed firmly into place and held
by petroleum jelly.

SAT884A

FORWARD CLUTCH DRUM ASSEMBLY

AT-463

[RE4R01A]

D

E

F

G

H

I

J

K

L

M

A

B

AT

FORWARD CLUTCH DRUM ASSEMBLY

PFP:31571

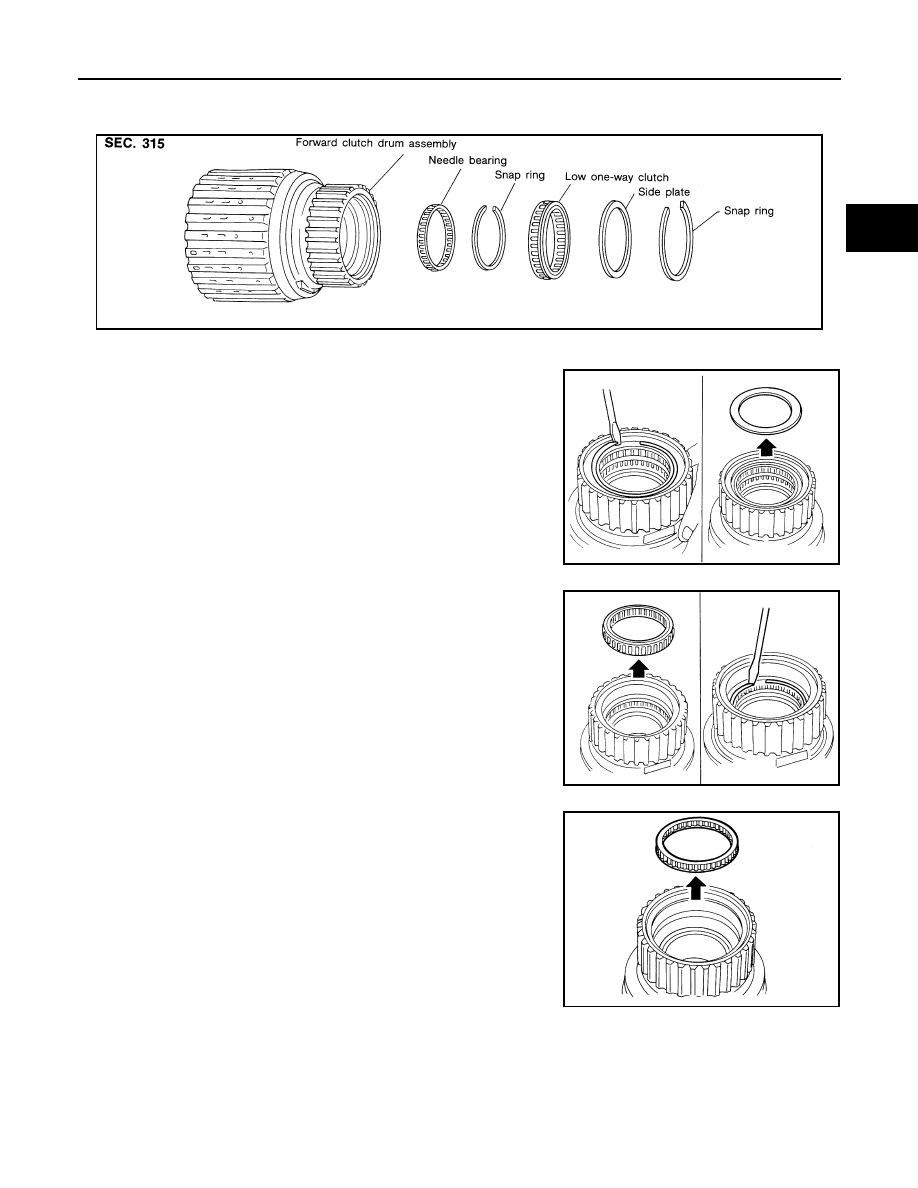

Components

ECS007Q4

Disassembly

ECS007Q5

1.

Remove snap ring from forward clutch drum.

2.

Remove side plate from forward clutch drum.

3.

Remove low one-way clutch from forward clutch drum.

4.

Remove snap ring from forward clutch drum.

5.

Remove needle bearing from forward clutch drum.

SAT211GA

SAT212G

SAT213G

SAT891A

AT-464

[RE4R01A]

FORWARD CLUTCH DRUM ASSEMBLY

Inspection

ECS007Q6

FORWARD CLUTCH DRUM

●

Check spline portion for wear or damage.

●

Check frictional surfaces of low one-way clutch and needle
bearing for wear or damage.

NEEDLE BEARING AND LOW ONE-WAY CLUTCH

●

Check frictional surface for wear or damage.

Assembly

ECS007Q7

1.

Install needle bearing in forward clutch drum.

2.

Install snap ring onto forward clutch drum.

3.

Install low one-way clutch onto forward clutch drum by pushing
the roller in evenly.

SAT892A

SAT893A

SAT214G

SAT894A
