HEATED SEAT SWITCH

SE-105

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

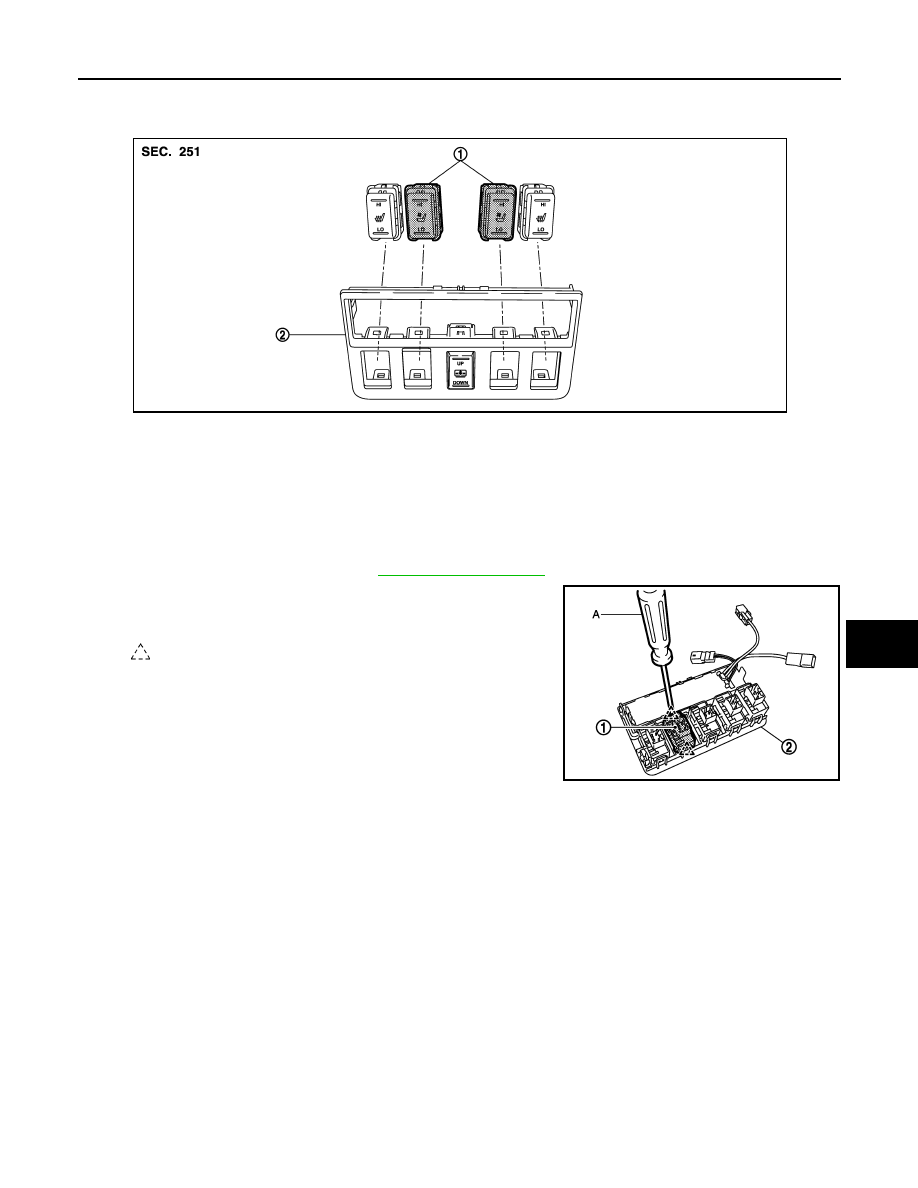

REAR SEAT : Exploded View

INFOID:0000000003849130

REAR SEAT : Removal and Installation

INFOID:0000000003849131

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect from damage.
1.

Remove the switch panel (2). Refer to

SE-98, "Exploded View"

2.

Remove heated seat switch (rear LH side) (1) from switch panel,
with flat- bladed screw driver (A).

NOTE:
The same procedure is also performed for rear RH side.

INSTALLATION

Install in the reverse order of removal.

1.

Heated seat switch (rear seat)

2.

Switch panel

JMJIA1843ZZ

: Pawl

JMJIA1845ZZ

SE-106

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

VENTILATION SEAT SWITCH

VENTILATION SEAT SWITCH

FRONT SEAT

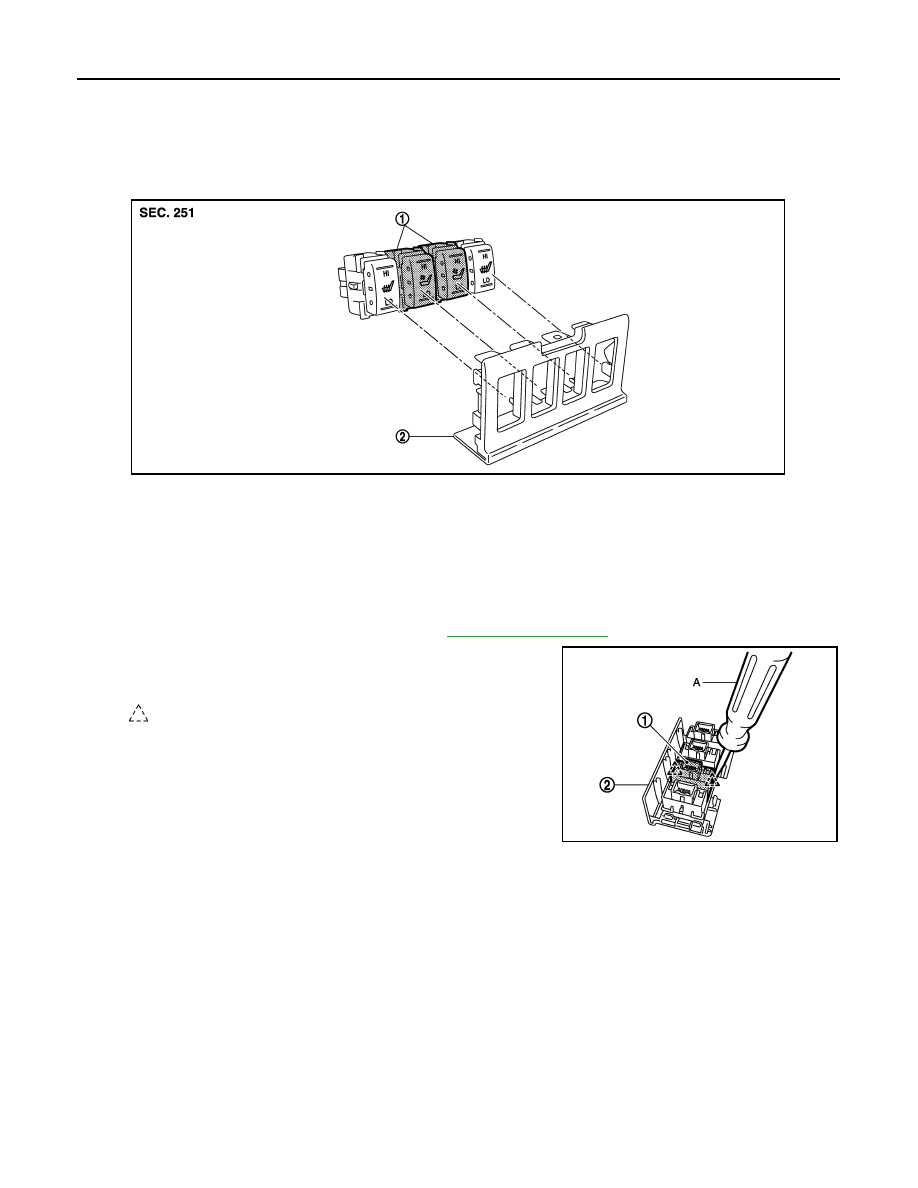

FRONT SEAT : Exploded View

INFOID:0000000003849132

FRONT SEAT : Removal and Installation

INFOID:0000000003849133

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect from damage.

1.

Remove the console switch finisher (2). Refer to

IP-22, "Exploded View"

2.

Remove ventilation seat switch (driver side) (1) from console
switch finisher. With flat bladed screw driver (A).

NOTE:
The same procedure is also performed for passenger side.

INSTALLATION

Install in the reverse order of removal.

REAR SEAT

1.

Ventilation seat switch (driver seat)

2.

Console switch finisher

JMJIA1841ZZ

: Pawl

JMJIA1847ZZ

VENTILATION SEAT SWITCH

SE-107

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

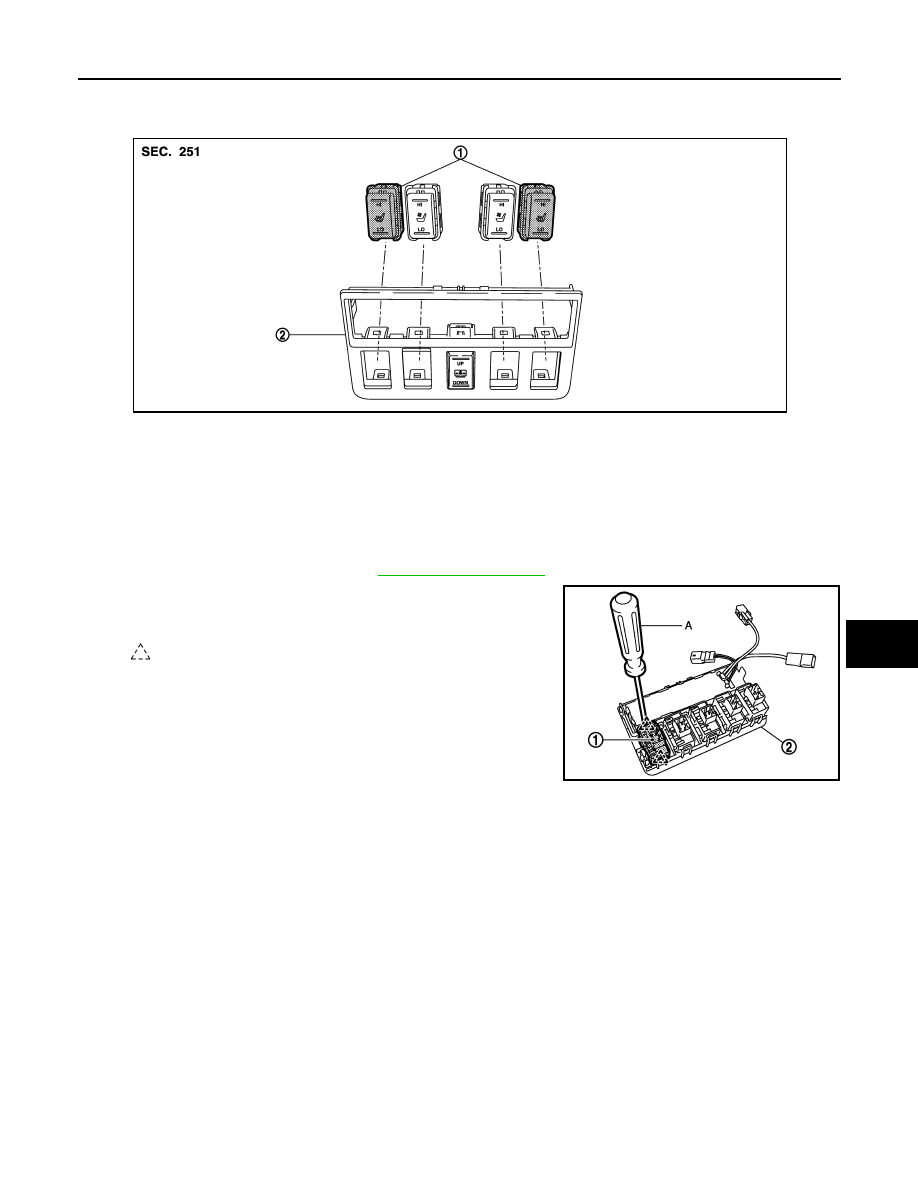

REAR SEAT : Exploded View

INFOID:0000000003849134

REAR SEAT : Removal and Installation

INFOID:0000000003849135

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect from damage.
1.

Remove the switch panel (2). Refer to

SE-98, "Exploded View"

2.

Remove heated seat switch (rear LH side) (1) from switch panel.
With flat bladed screw driver (A).

NOTE:
The same procedure is also performed for rear RH side.

INSTALLATION

Install in the reverse order of removal.

1.

Ventilation seat switch (rear seat)

2.

Switch panel

JMJIA1844ZZ

: Pawl

JMJIA1848ZZ

SE-108

< FUNCTION DIAGNOSIS >

[WITHOUT VENTILATION SEAT]

POWER SEAT

FUNCTION DIAGNOSIS

POWER SEAT

System Description

INFOID:0000000003839942

BCM can operate regardless of the ignition switch position, because battery power is supplied at all times to
power seat switch.

SLIDING OPERATION

While operating the sliding switch located in power seat switch, sliding motor operates and adjusts the front
and back position of the seat.

RECLINING OPERATION

While operating the reclining switch located in power seat switch, reclining motor operates and adjusts the for-
ward and backward position of the seatback.

LIFTING OPERATION

While operating the lifting switch located in power seat switch (driver side), lifting motor operates and adjusts
the up and down position of the seat cushion.

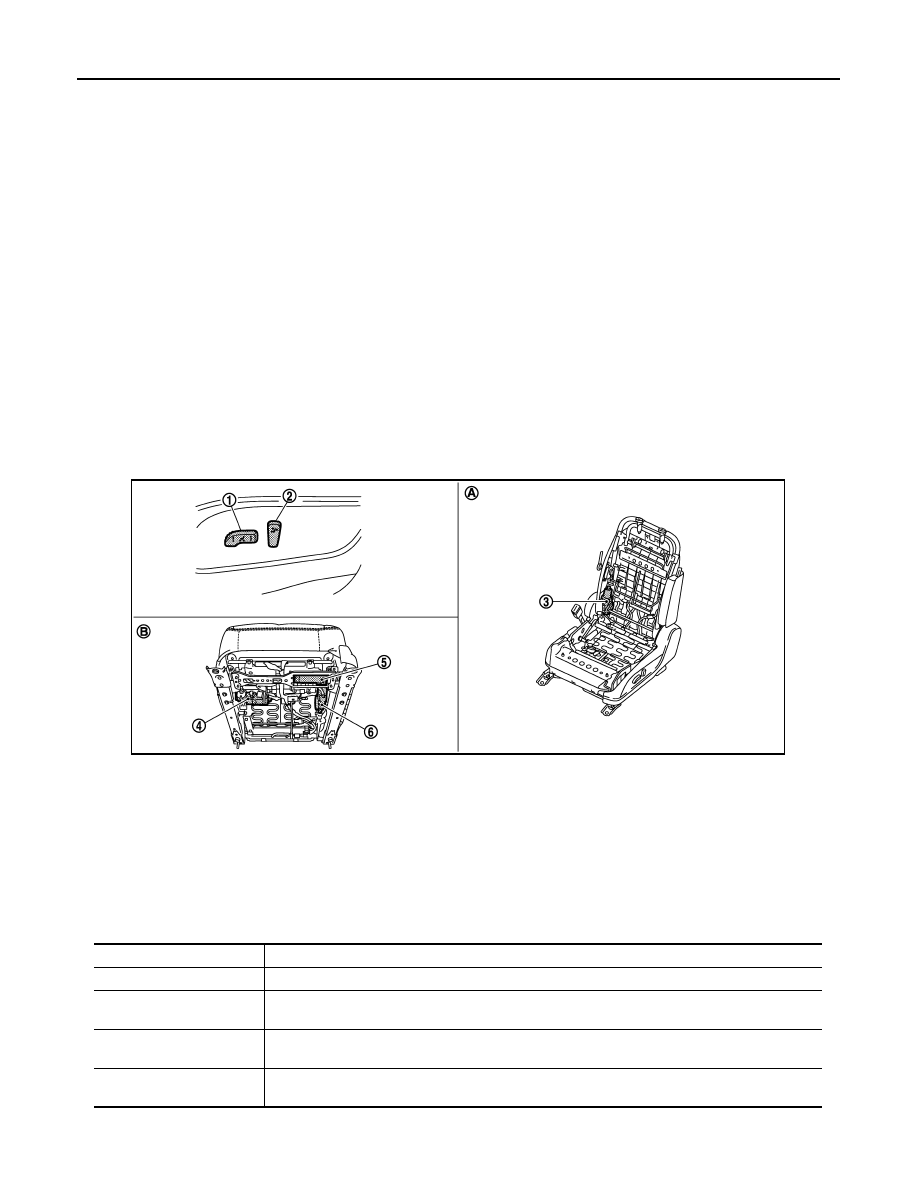

Component Parts Location

INFOID:0000000003839943

Component Description

INFOID:0000000003839944

1.

Sliding switch and lifting switch (driv-
er side) B414

2.

Reclining switch (driver side) B414

3.

Reclining motor (driver side) B415

4.

Lifting motor (front) (driver side)
B417

5.

Sliding motor (driver side) B416

6.

Lifting motor (rear) (driver side) B418

A.

View with seat cushion pad and seat-
back pad are removed.

B.

Backside of seat cushion
(driver side)

JMJIA1948ZZ

Item

Function

BCM

Supplies at all times the power received from battery to power seat switch

Power seat switch
(driver side)

Built-in reclining switch, sliding switch and lifting switch, controls the power supplied to each motor

Power seat switch
(passenger side)

Built-in reclining switch, sliding switch, controls the power supplied to each motor

Reclining motor

With the power supplied from power seat switch, operates forward and backward movement of
seatback
