FRONT SEAT

SE-97

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

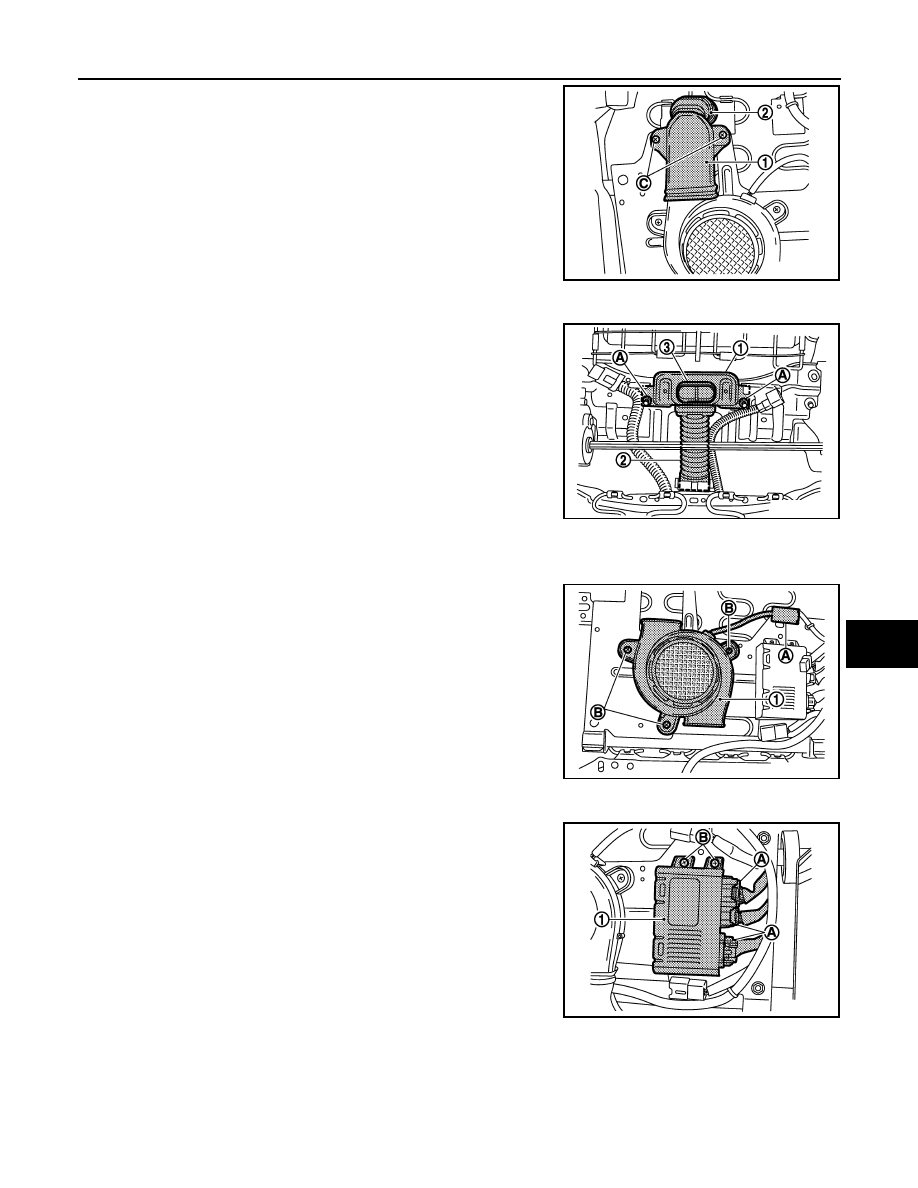

Remove the screws (C), and then remove seat cushion duct A
(1) and B (2).

2.

Remove the clip, seatback duct B and C.
Remove the nuts (A), and then remove clip (1), seatback duct B
(2) and C (3).

3.

Remove the seatback duct A.

4.

Remove the ventilation motor.
• Disconnect the harness connector (A).
• Remove the screws (B), and then remove ventilation motor

(1).

5.

Remove the ventilation seat control unit.
• Disconnect the harness connectors (A).
• Remove the screws (B), and then remove ventilation seat con-

trol unit (1).

Assembly

Assemble in the reverse order of disassembly.

JMJIA1875ZZ

JMJIA1876ZZ

JMJIA1877ZZ

JMJIA1878ZZ

SE-98

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

REAR SEAT

REAR SEAT

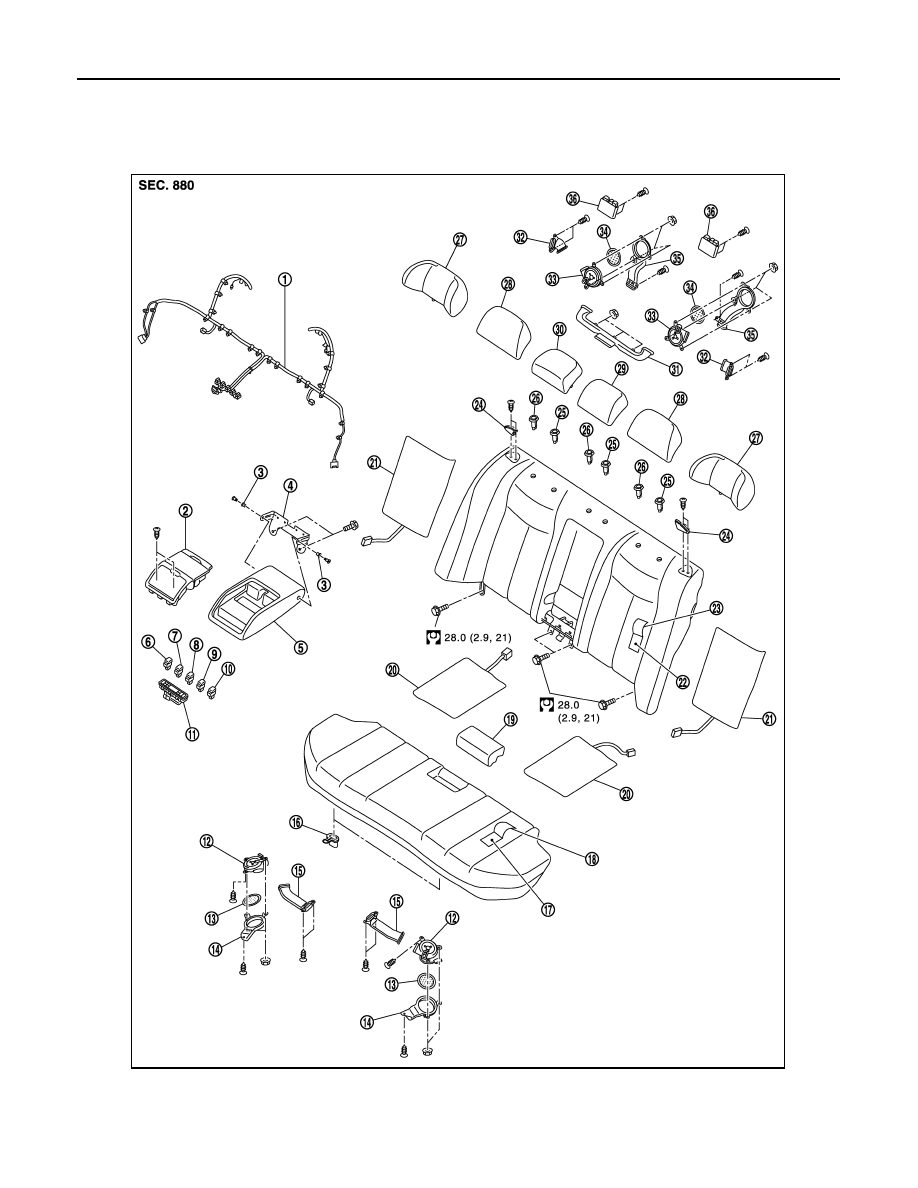

Exploded View

INFOID:0000000003809278

1.

Seat harness

2.

Cup holder

3.

Bushing

4.

Armrest bracket

5.

Armrest assembly

6.

Seat heater switch RH

7.

Air conditioning switch RH

8.

Rear sunshade switch

9.

Air conditioning switch LH

JMJIA1883GB

REAR SEAT

SE-99

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Removal and Installation

INFOID:0000000003809279

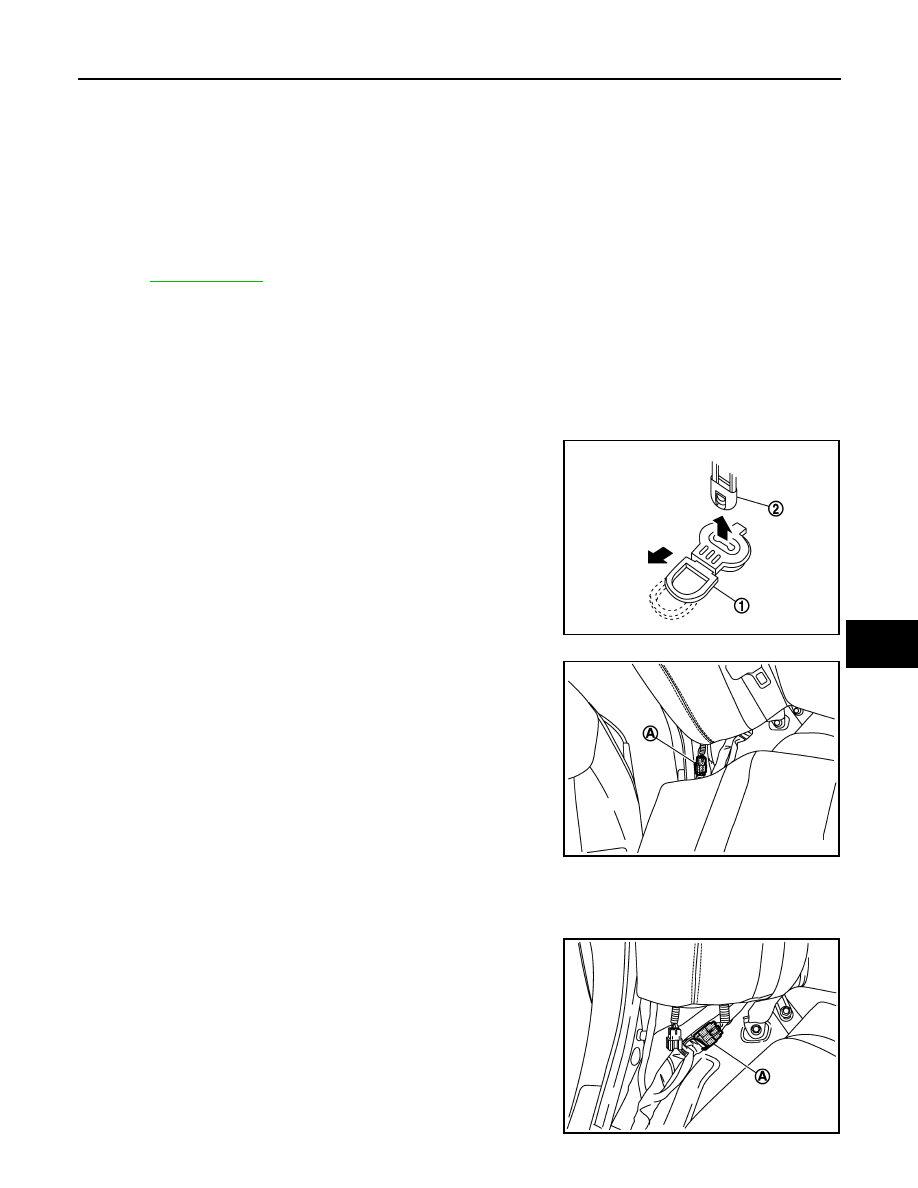

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the headrest.

2.

Remove the seat cushion.
• Pull the lock lever (1) at the front bottom of the seat cushion

forward (1 for each side), and pull the seat cushion upward to
release the wire (2) from the seat cushion hook. Then pull the
seat cushion forward to remove.

• Disconnect the harness connectors (A).

• Remove the seat cushion from the vehicle.

3.

Remove the seatback.
• Remove the bolts under seatback.
• Disconnect the harness connectors (A).

10. Seat heater switch LH

11.

Rear audio switch

12. Ventilation motor (seat cushion)

13. Blower filter

14. Seat cushion duct A

15. Seat cushion duct B

16. Seat cushion hook

17. Seat cushion pad

18. Seat cushion trim

19. Seatback center pad

20. Seat cushion heater unit

21. Seatback heater unit

22. Seatback pad

23. Seatback trim

24. Seat belt hook

25. Headrest holder (locked)

26. Headrest holder (free)

27. Headrest side (long type)

28. Headrest side (normal type)

29. Headrest center (normal type)

30. Headrest center (long type)

31

Seatback duct C

32. Seatback duct B

33. Ventilation motor (seatback)

34. Blower filter

35. Seatback duct A

36. Ventilation seat control unit

Refer to

GI-4, "Components"

 for symbols in the figure.

JMJIA0251ZZ

JMJIA1934ZZ

JMJIA1935ZZ

SE-100

< ON-VEHICLE REPAIR >

[WITH VENTILATION SEAT]

REAR SEAT

• Lift up seatback from underneath, and then remove seatback from seatback hook that is fixed to the

vehicle.

• Remove the seatback from the vehicle.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

Disassembly and Assembly

INFOID:0000000003809280

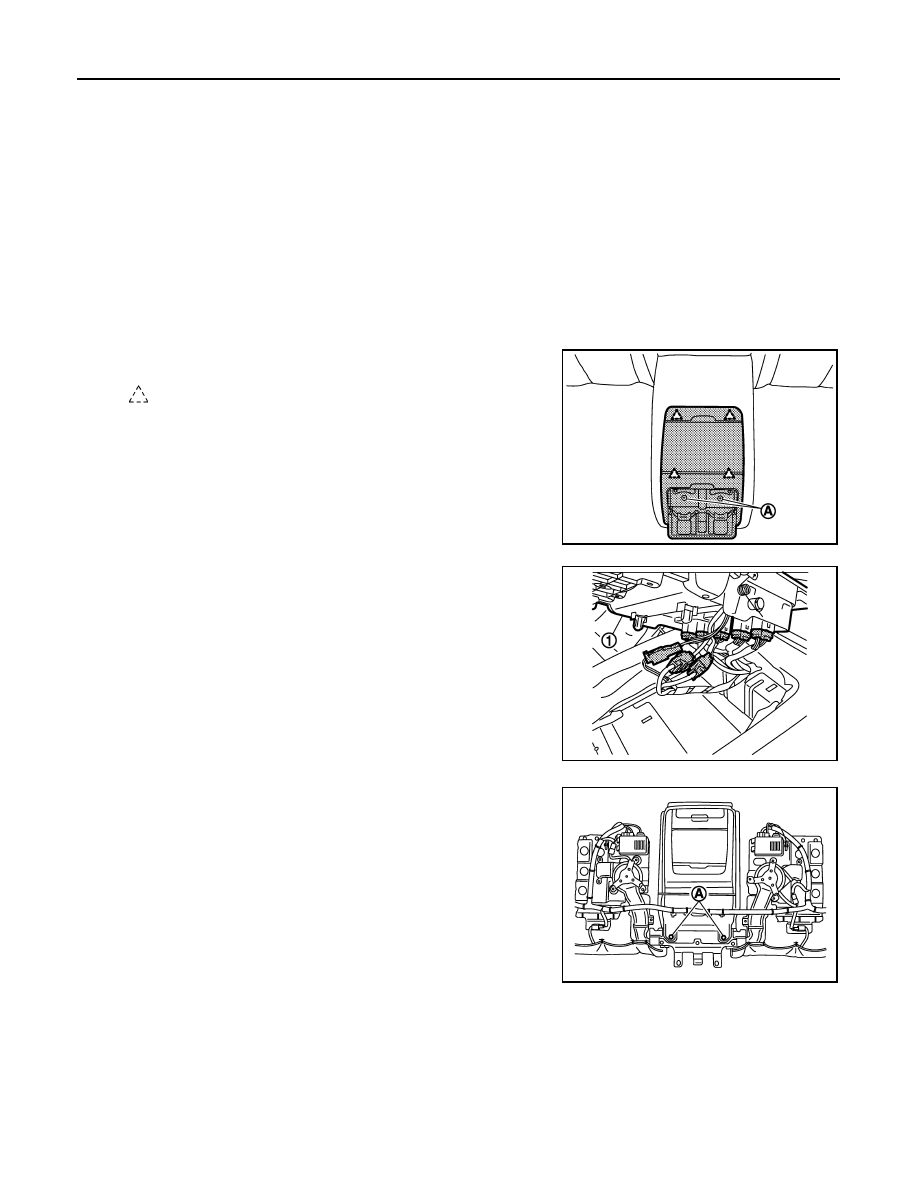

SEATBACK

Disassembly

1.

Remove armrest assembly.
• Remove the screws (A) and pawls.

• Disconnect the connectors, and then remove cup holder (1).

• Remove the bolts (A), and then remove armrest retainer.

• Remove the harness clamp in the armrest and pull out seat harness.
• Remove the armrest assembly.

2.

Remove the seatback trim.
• Remove the screws, and then seat belt hook.

: Pawl
