3.

Adjust neutral position of steering angle sensor. Refer to

BRC-66, "ADJUSTMENT OF STEERING

ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

RSU-14

< ON-VEHICLE REPAIR >

FRONT LOWER LINK

FRONT LOWER LINK

Exploded View

INFOID:0000000003811151

Removal and Installation

INFOID:0000000003811152

REMOVAL

1.

Remove tire.

2.

Remove wheel sensor and sensor harness. Refer to

BRC-58, "REAR WHEEL SENSOR : Exploded View"

(without VDC),

BRC-58, "REAR WHEEL SENSOR : Exploded View"

 (with VDC).

3.

Remove rear lower link and coil spring. Refer to

RSU-8, "Exploded View"

.

4.

Remove shock absorber mounting bolt (lower side). Refer to

RSU-10, "Exploded View"

.

5.

Remove front lower link mounting bolts and nuts (axle housing side).

6.

Remove front lower link mounting bolts and nuts (rear suspension member side), and then remove front
lower link.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member and axle installation position (rubber bushing), under

unladen conditions with tires on level ground.

Inspection

INFOID:0000000003811153

INSPECTION AFTER REMOVAL

Check front lower link and bushing for any deformation, cracks, or damage. Replace if necessary.

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-58, "REAR WHEEL SENSOR :

Exploded View"

 (without VDC),

BRC-152, "REAR WHEEL SENSOR : Exploded View"

 (with VDC).

2.

Check wheel alignment. Refer to

RSU-6, "Inspection"

.

3.

Adjust neutral position of steering angle sensor (with VDC). Refer to

BRC-66, "ADJUSTMENT OF

STEERING ANGLE SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

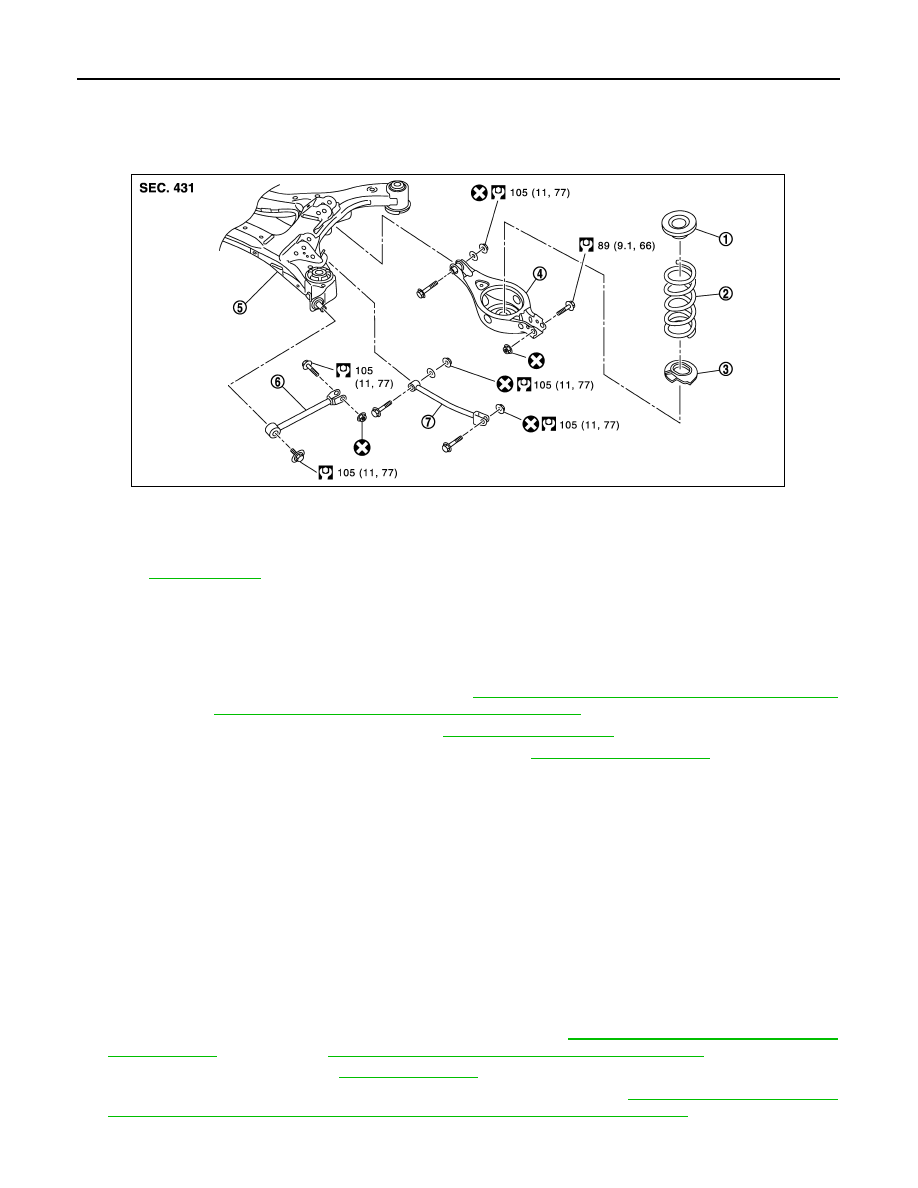

1.

Upper seat

2.

Coil spring

3.

Rubber seat

4.

Rear lower link

5.

Rear suspension member

6.

Radius rod

7.

Front lower link

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0108GB

REAR STABILIZER

RSU-15

< ON-VEHICLE REPAIR >

C

D

F

G

H

I

J

K

L

M

A

B

RSU

N

O

P

REAR STABILIZER

Exploded View

INFOID:0000000003811154

Removal and Installation

INFOID:0000000003811155

REMOVAL

1.

Remove stabilizer connecting rod mount bracket.

2.

Remove stabilizer connecting rod.

CAUTION:

Apply a matching mark to identify the installation position.

3.

Remove mounting bolts on stabilizer clamp and remove stabilizer bar.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Check the matching mark when installing.

Inspection

INFOID:0000000003811156

INSPECTION AFTER REMOVAL

Check stabilizer bar, stabilizer bushing, stabilizer clamp, stabilizer connecting rod, stabilizer connecting rod
mounting bracket for any deformation, crack or damage. Replace if necessary.

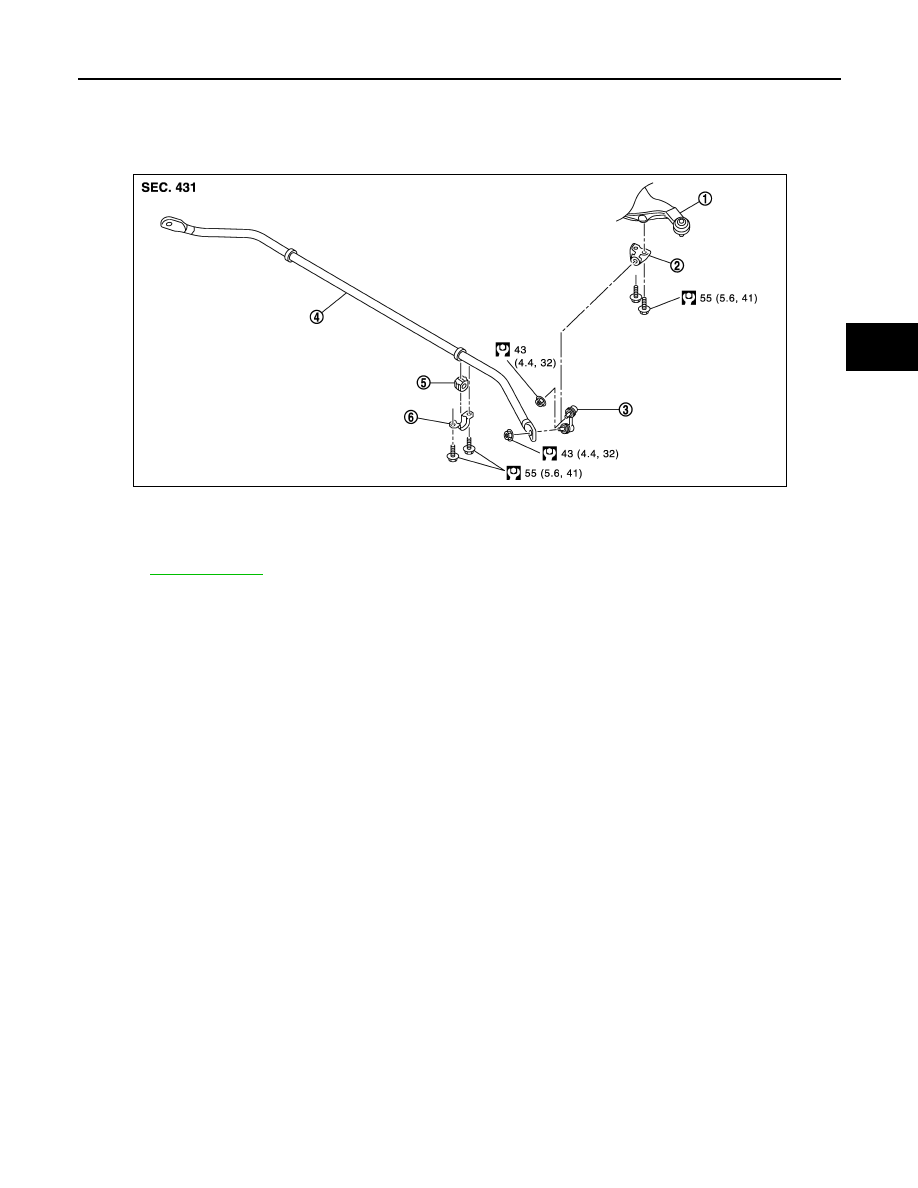

1.

Suspension arm

2.

Stabilizer connecting rod mount
bracket

3.

Stabilizer connecting rod

4.

Stabilizer bar

5.

Stabilizer bushing

6.

Stabilizer clamp

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0105GB

RSU-16

< REMOVAL AND INSTALLATION >

REAR SUSPENSION ARM

REMOVAL AND INSTALLATION

REAR SUSPENSION ARM

Exploded View

INFOID:0000000003811157

Removal and Installation

INFOID:0000000003811158

REMOVAL

1.

Remove suspension arm with rear suspension member. Refer to

RSU-18, "Exploded View"

.

2.

Remove auto levelizer control unit (with xenon combination lamp type). Refer to

EXL-190, "Exploded

View"

.

3.

Remove suspension arm.

INSTALLATION

Note the following, and install in the reverse order of removal.
• Perform final tightening of rear suspension member installation position (rubber bussing), under unladen

conditions with tires on level ground.

• Install stopper rubber (suspension arm rear side) and suspension arm as a set to rear suspension member.
• After final tightening, and install auto levelizer control unit (with xenon combination lamp type). Refer to

EXL-

190, "Exploded View"

.

Inspection

INFOID:0000000003811159

INSPECTION AFTER REMOVAL

Appearance

Check the following items, and replace if necessary.
• Suspension arm and bushing for deformation, cracks or damage.
• Boot of ball joint for cracks or damage, and also for grease leakage.

Ball Joint Inspection

Manually move ball stud at least ten times by hand to check for smooth movement.

Swing Torque Inspection

NOTE:
Before measurement, move ball stud at least ten times by hand to check for smooth movement.

1.

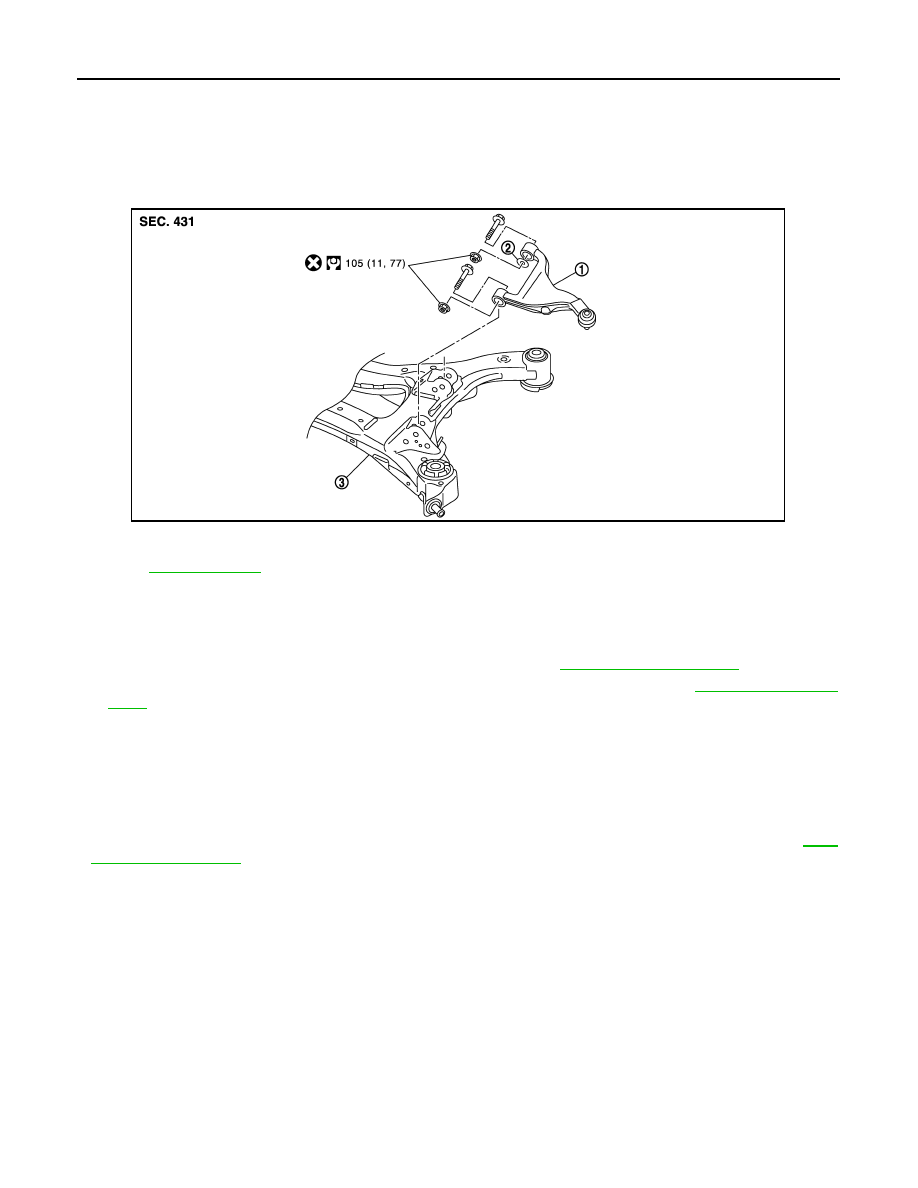

Suspension arm

2.

Stopper rubber

3.

Rear suspension member

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIB0106GB
