CHASSIS MAINTENANCE

MA-29

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

HEADLAMP AIMING ADJUSTMENT (HALOGEN TYPE) : Aiming Adjustment Proce-
dure (Low Beam)

INFOID:0000000003862424

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.
• Set the screen so that it is perpendicular to a level load surface.

2.

Face the vehicle squarely toward the screen and make the distance between the headlamp center and
the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the headlamp (LO).
NOTE:
Block light from the headlamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Do not cover lens surface with tape, etc. because it is made from plastic.

4.

Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so
that it is within the aiming adjustment area.

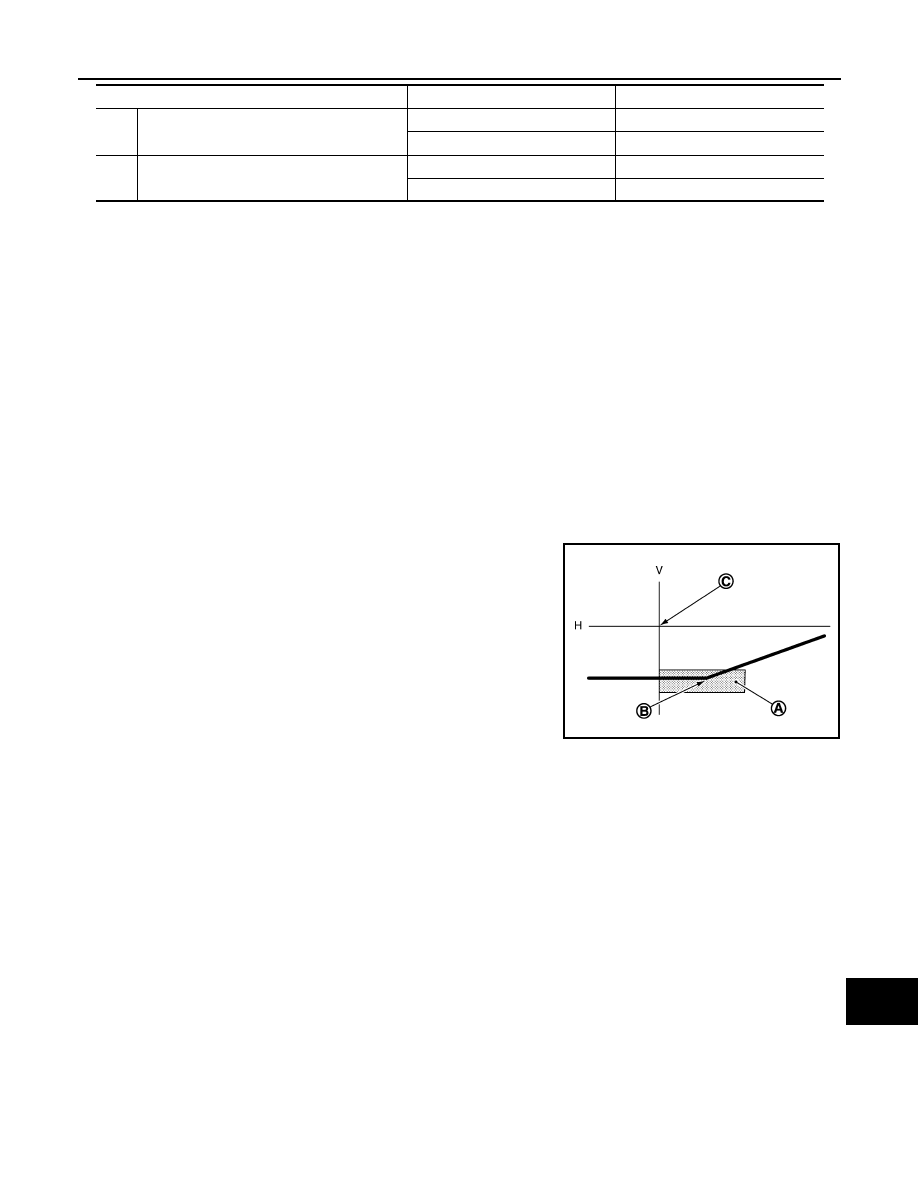

Low beam distribution on the screen

G

Headlamp (LO) LH
(UP-OUTSIDE/DOWN-INSIDE)

Clockwise

DOWN-INSIDE

Counterclockwise

UP-OUTSIDE

H

Headlamp (HI) LH
(UP-INSIDE/DOWN-OUTSIDE)

Clockwise

DOWN-OUTSIDE

Counterclockwise

UP-INSIDE

Adjustment screw

Screw driver rotation

Facing direction

JSLIA0030ZZ

A.

Aiming adjustment area

B.

Elbow point

C.

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

MA-30

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

Unit: mm (in)

HEADLAMP AIMING ADJUSTMENT (HALOGEN TYPE) : Aiming Adjustment Proce-
dure (High Beam)

INFOID:0000000003862425

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.
• Set the screen so that it is perpendicular to a level load surface.

2.

Face the vehicle squarely toward the screen and make the distance between the headlamp center and
the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the headlamp (HI).
NOTE:
Block light from the headlamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Do not cover lens surface with tape, etc. because it is made from plastic.

4.

Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so
that it is within the aiming adjustment area.

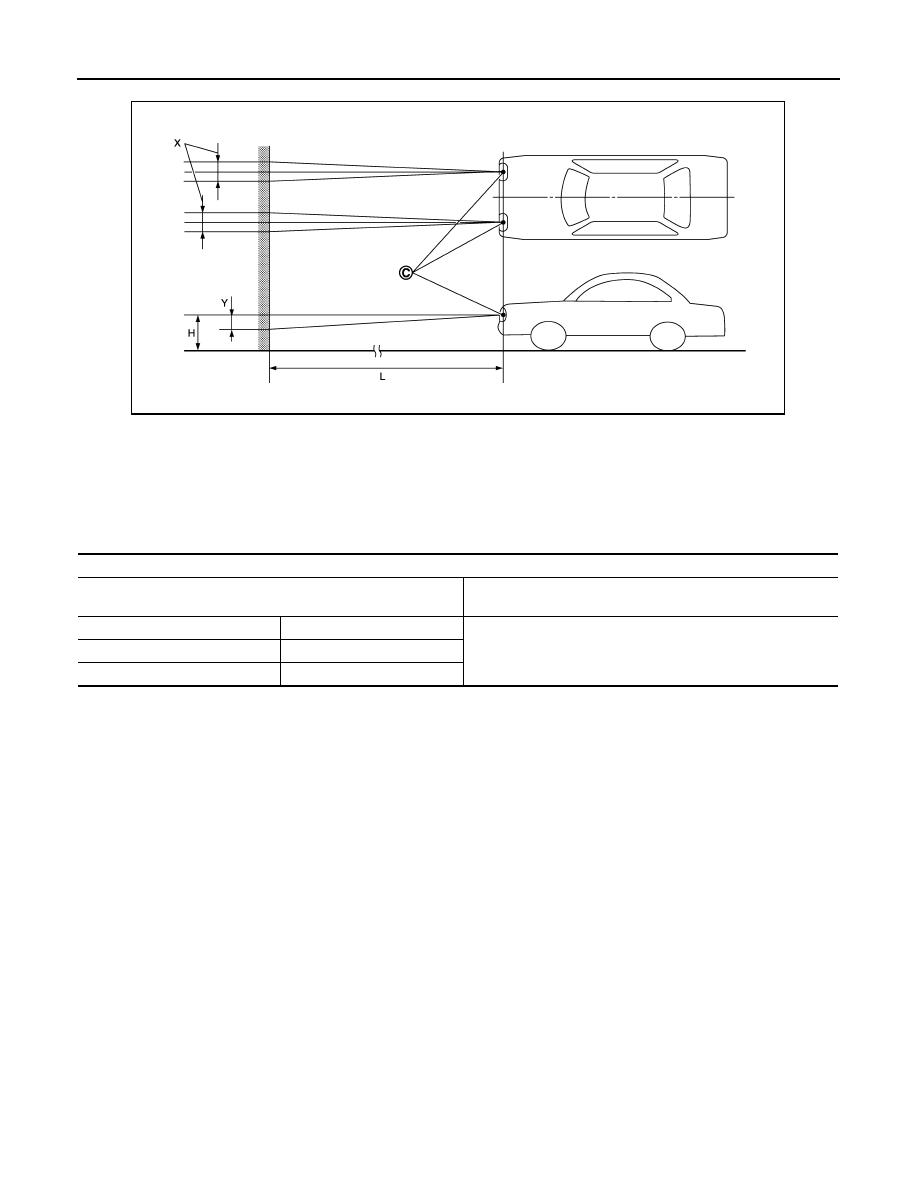

C.

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10m (32.8 ft)

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Right and left side from headlamp centerline)

Highest light axis

100 (3.94)

0-100 (3.94)

Target light axis

120 (4.72)

Lowest light axis

150 (5.91)

JPLIA1062ZZ

CHASSIS MAINTENANCE

MA-31

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

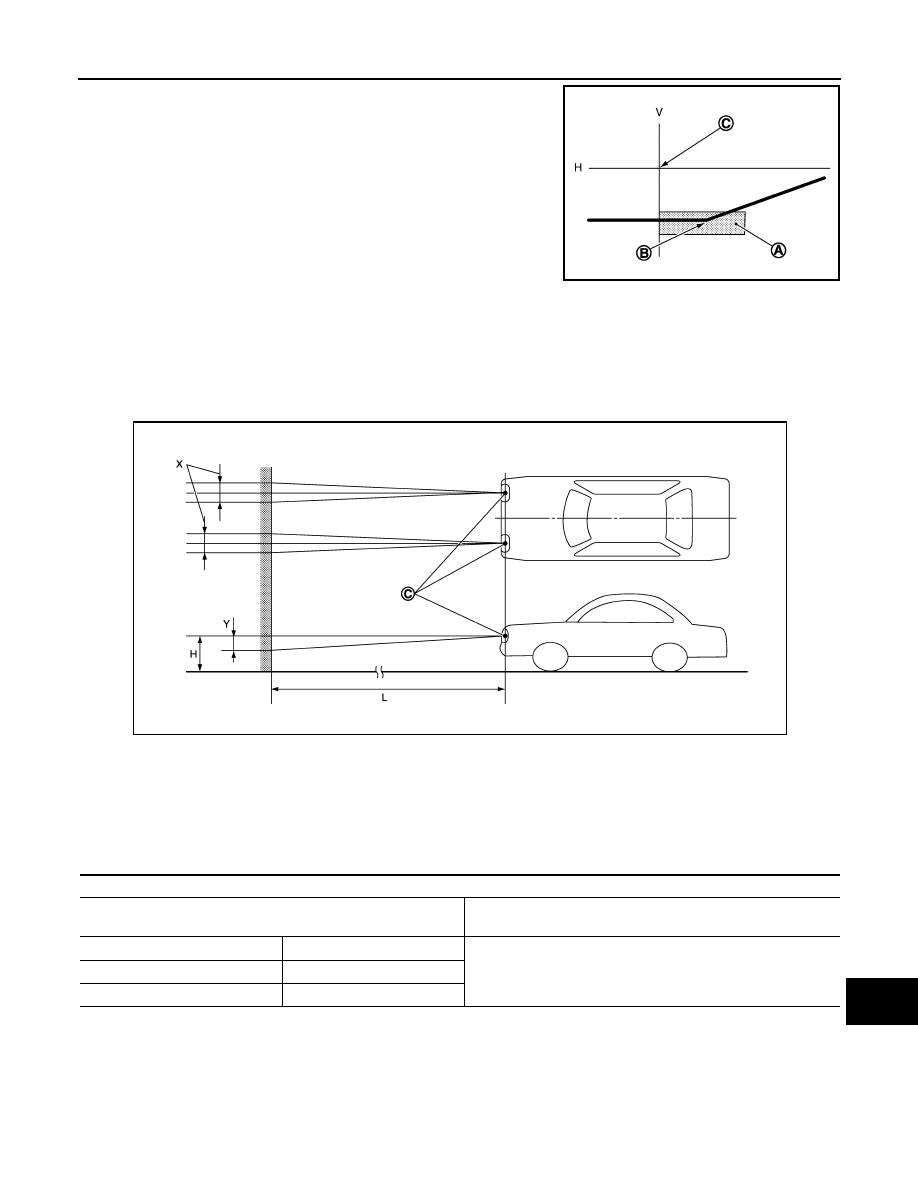

High beam distribution on the screen

Unit: mm (in)

EXHAUST SYSTEM

JSLIA0030ZZ

A.

Aiming adjustment area

B.

Elbow point

C.

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

C.

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10m (32.8 ft)

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Right and left side from headlamp centerline)

Highest light axis

106 (4.17)

0-100 (3.94)

Target light axis

120 (4.72)

Lowest light axis

164 (6.46)

JPLIA1062ZZ

MA-32

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

EXHAUST SYSTEM : Inspection

INFOID:0000000003862426

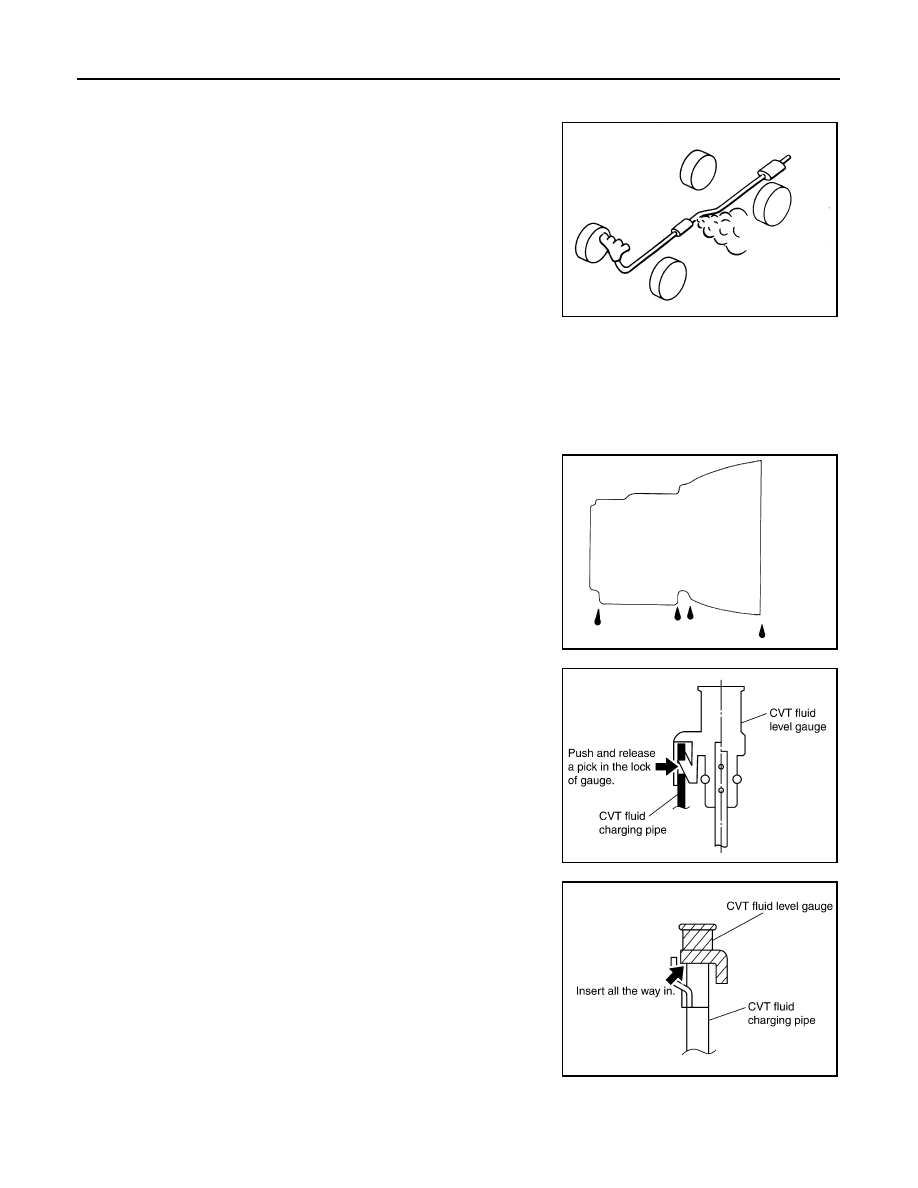

Check exhaust pipes, muffler and mounting for improper attachment,
leakage, cracks, damage or deterioration.
• If anything is found, repair or replace damaged parts.

CVT FLUID: RE0F10A

CVT FLUID: RE0F10A : Inspection

INFOID:0000000003862427

CHECKING CVT FLUID

The fluid level should be checked with the fluid warmed up to 50 to 80

°

C (122 to 176

°

F). The fluid level check

procedure is as follows:
1.

Check for fluid leakage.

2.

With the engine warmed up, drive the vehicle in an urban area.
When ambient temperature is 20

°

C (68

°

F), it takes about 10

minutes for the CVT fluid to warm up to 50 to 80

°

C (122 to

176

°

F).

3.

Park the vehicle on a level surface.

4.

Apply parking brake firmly.

5.

With engine at idle, while depressing brake pedal, move shift
selector throughout the entire shift range.

6.

Pull out the CVT fluid level gauge from the CVT fluid charging
pipe after pressing the tab on the CVT fluid level gauge to
release the lock.

7.

Wipe fluid off the CVT fluid level gauge. Insert the CVT fluid
level gauge rotating 180

°

 from the originally installed position,

then securely push the CVT fluid level gauge until it meets the
top end of the CVT fluid charging pipe.

CAUTION:

When wiping away the CVT fluid level gauge, always use
lint-free paper, not a cloth rag.

SMA211A

SMA146B

SCIA1933E

SCIA1931E
