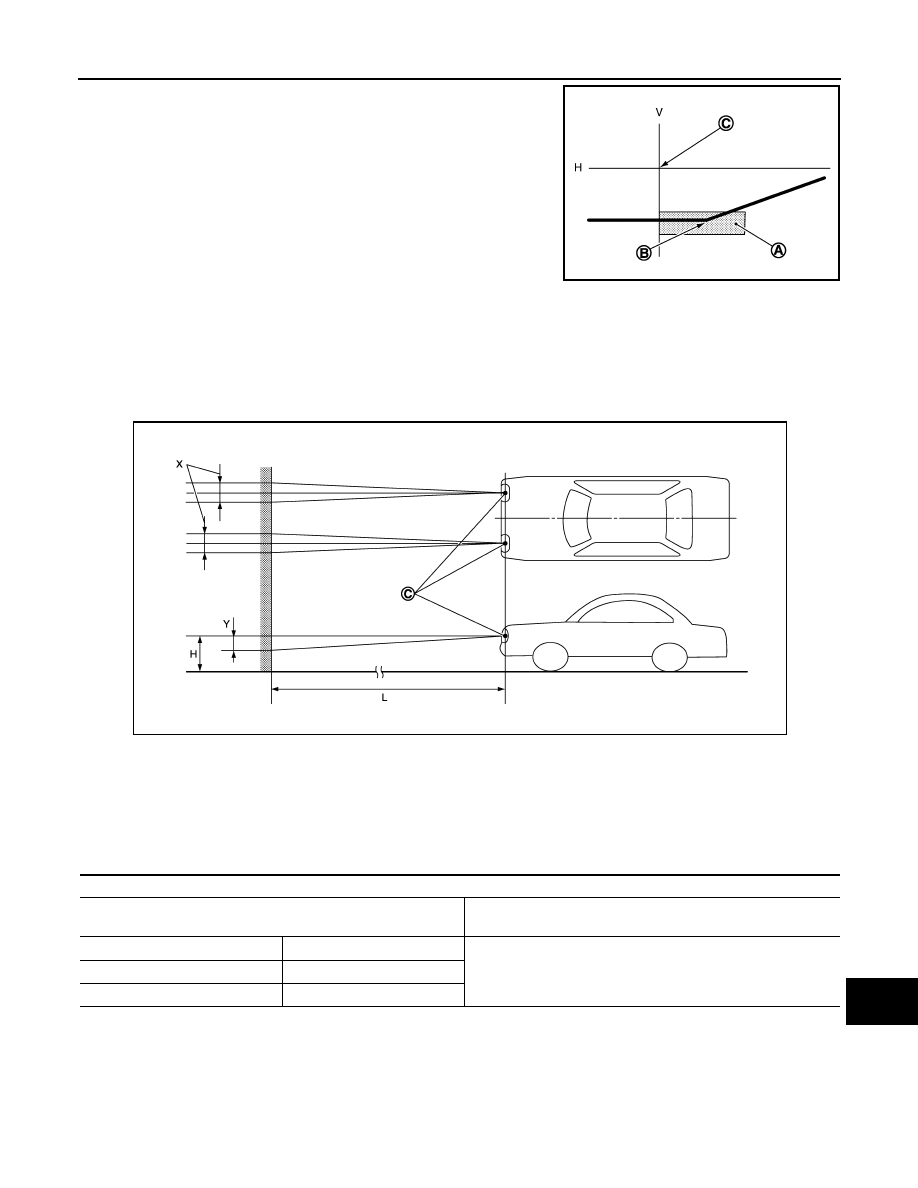

Low beam distribution on the screen

Unit: mm (in)

HEADLAMP AIMING ADJUSTMENT (XENON TYPE) : Aiming Adjustment Procedure
(High Beam)

INFOID:0000000003862422

1.

Place the screen.
NOTE:
• Stop the vehicle at the perpendicular angle to the wall.

JSLIA0030ZZ

A.

Aiming adjustment area

B.

Elbow point

C.

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

C.

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10m (32.8 ft)

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Right and left side from headlamp centerline)

Highest light axis

100 (3.94)

0-100 (3.94)

Target light axis

120 (4.72)

Lowest light axis

150 (5.91)

JPLIA1062ZZ

MA-26

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

• Set the screen so that it is perpendicular to a level load surface.

2.

Face the vehicle squarely toward the screen and make the distance between the headlamp center and
the screen 10 m (32.8 ft).

3.

Start the engine and illuminate the headlamp (HI).
NOTE:
Block light from the headlamp that is not being adjusted with a thick fabric or another object, so that it
does not reach the adjustment screen.

CAUTION:

Do not cover lens surface with tape, etc. because it is made from plastic.

4.

Use the aiming adjustment screw to adjust the elbow point projected by the low beams on the screen, so
that it is within the aiming adjustment area.

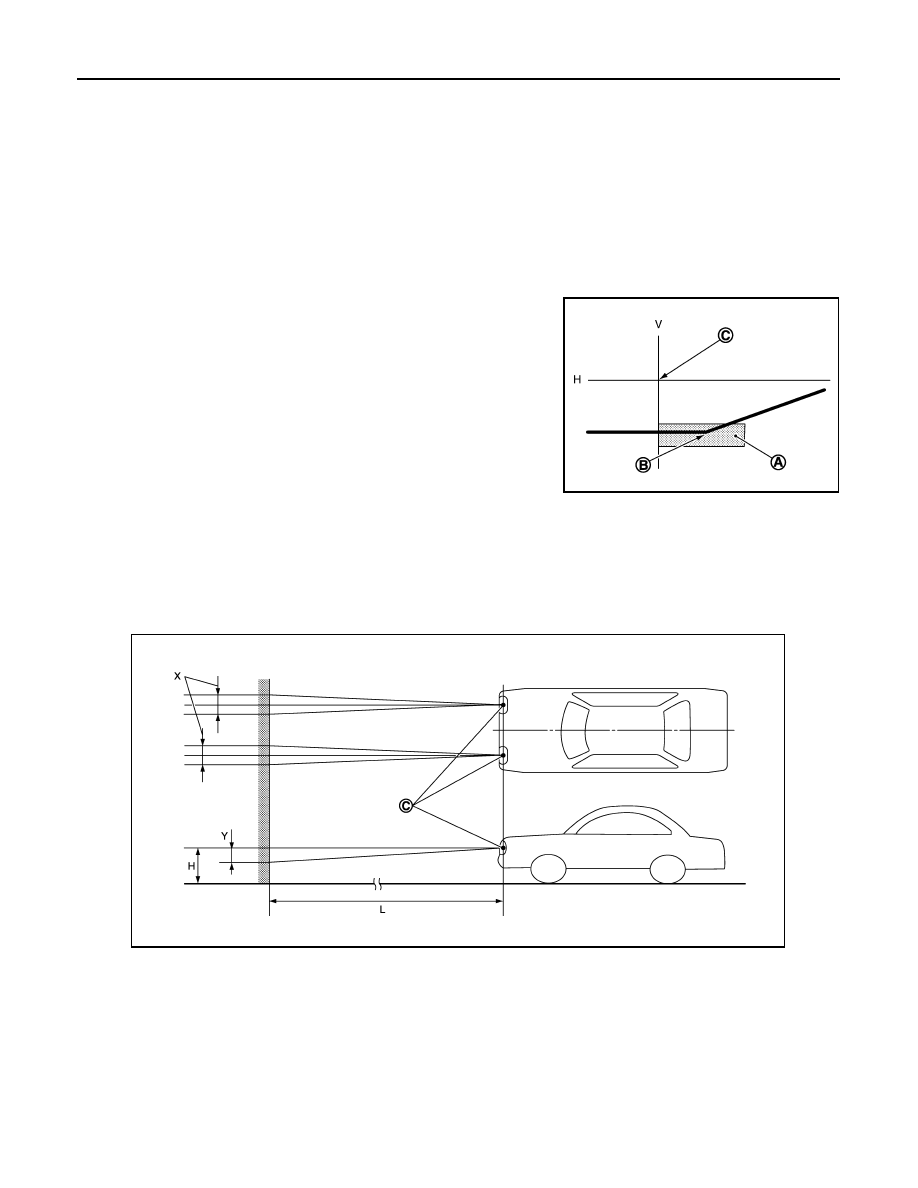

High beam distribution on the screen

JSLIA0030ZZ

A.

Aiming adjustment area

B.

Elbow point

C.

Headlamp center

H.

Horizontal center line of headlamp

V.

Vertical center line of headlamp

C.

Vertical center line of headlamp H.

Horizontal center line of headlamp

L.

Distance from headlamp center to screen

X.

Aiming adjustment area
(lateral)

Y.

Aiming adjustment area
(Vertical)

Distance from headlamp center to screen (L)

: 10m (32.8 ft)

JPLIA1062ZZ

CHASSIS MAINTENANCE

MA-27

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

B

MA

N

O

A

Unit: mm (in)

HEADLAMP AIMING ADJUSTMENT (HALOGEN TYPE)

HEADLAMP AIMING ADJUSTMENT (HALOGEN TYPE) : Description

INFOID:0000000003862423

PREPARATION BEFORE ADJUSTING

NOTE:
• For details, refer to the regulations in your own country.
• Perform aiming if the vehicle front body has been repaired and/or the headlamp assembly has been

replaced.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to the specification.
• Fill with fuel, engine coolant and each oil.
• Maintain the unloaded vehicle condition. (Remove luggage from the passenger compartment and the trunk

room.)
NOTE:
Do not remove the temporary tire, jack and on-vehicle tool.

• Wipe out dirt on the headlamp.

CAUTION:

Never use organic solvent (thinner, gasoline etc.)

• Ride alone on the driver seat.
• Headlamp aiming switch sets to “0”.

AIMING ADJUSTMENT SCREW

Aiming adjustment area

Vertical direction (Y)

(Lower side from headlamp center height)

Lateral direction (X)

(Right and left side from headlamp centerline)

Highest light axis

106 (4.17)

0-100 (3.94)

Target light axis

120 (4.72)

Lowest light axis

164 (6.46)

MA-28

< ON-VEHICLE MAINTENANCE >

CHASSIS MAINTENANCE

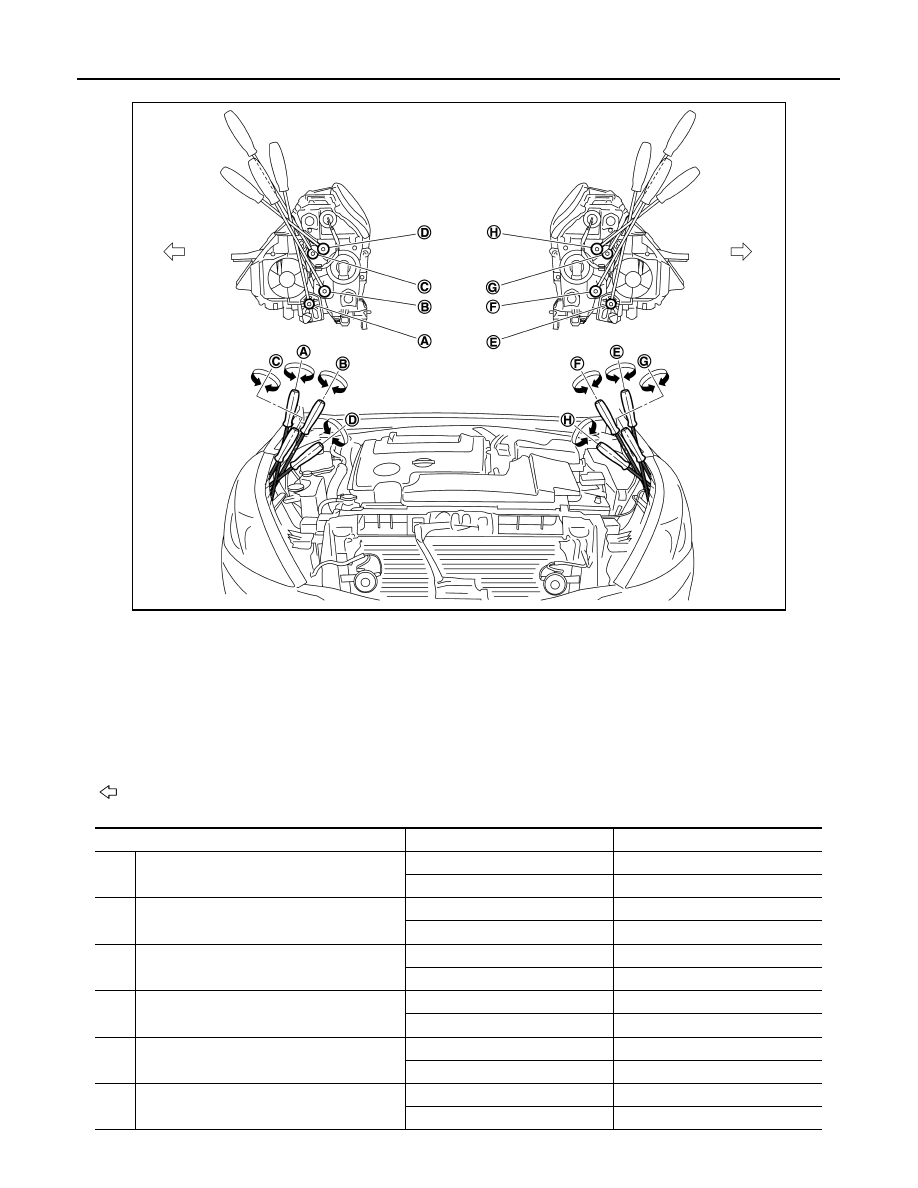

JPLIA1104ZZ

A.

Headlamp (LO) RH
(UP/DOWN) adjustment screw

B.

Headlamp (HI) RH
(UP/DOWN) adjustment screw

C.

Headlamp (LO) RH
(UP-OUTSIDE/DOWN-INSIDE)
adjustment screw

D.

Headlamp (HI) RH
(UP-INSIDE/DOWN-OUTSIDE)
adjustment screw

E.

Headlamp (LO) LH
(UP/DOWN) adjustment screw

F.

Headlamp (HI) LH
(UP/DOWN) adjustment screw

G.

Headlamp (LO) LH
(UP-OUTSIDE/DOWN-INSIDE)
adjustment screw

H.

Headlamp (HI) LH
(UP-INSIDE/DOWN-OUTSIDE)
adjustment screw

: Vehicle center

Adjustment screw

Screw driver rotation

Facing direction

A

Headlamp (LO) RH
(UP/DOWN)

Clockwise

UP

Counterclockwise

DOWN

B

Headlamp (HI) RH
(UP/DOWN)

Clockwise

UP

Counterclockwise

DOWN

C

Headlamp (LO) RH
(UP-OUTSIDE/DOWN-INSIDE)

Clockwise

DOWN-INSIDE

Counterclockwise

UP-OUTSIDE

D

Headlamp (HI) RH
(UP-INSIDE/DOWN-OUTSIDE)

Clockwise

DOWN-OUTSIDE

Counterclockwise

UP-INSIDE

E

Headlamp (LO) LH
(UP/DOWN)

Clockwise

UP

Counterclockwise

DOWN

F

Headlamp (HI) LH
(UP/DOWN)

Clockwise

UP

Counterclockwise

DOWN
