Nissan Teana J32. Manual - part 721

INL-2

BCM (BODY CONTROL MODULE)  ..................

53

Reference Value  .....................................................

53

Wiring Diagram - BCM -  .........................................

76

Fail-safe ..................................................................

82

DTC Inspection Priority Chart ..............................

84

DTC Index ..............................................................

85

SYMPTOM DIAGNOSIS  .............................

87

INTERIOR LIGHTING SYSTEM SYMPTOMS ...

87

Symptom Table  ......................................................

87

PRECAUTION .............................................

88

PRECAUTIONS  .................................................

88

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

88

ON-VEHICLE REPAIR ................................

89

MAP LAMP  ........................................................

89

Exploded View  ........................................................

89

Removal and Installation  ........................................

89

Replacement ..........................................................

89

MOOD LAMP  .....................................................

90

MAP LAMP ................................................................

90

MAP LAMP : Exploded View  ..................................

90

FRONT DOOR GRIP .................................................

90

FRONT DOOR GRIP : Exploded View  ...................

90

FRONT DOOR GRIP : Replacement ......................

90

REAR DOOR GRIP  ...................................................

90

REAR DOOR GRIP : Exploded View  .....................

91

REAR DOOR GRIP : Replacement  ........................

91

VANITY MIRROR LAMP  ...................................

92

Exploded View  ........................................................

92

Replacement ...........................................................

92

ASHTRAY ILLUMINATION  ...............................

93

Exploded View  ........................................................

93

Replacement ...........................................................

93

GLOVE BOX LAMP ...........................................

94

Exploded View  ........................................................

94

Replacement ...........................................................

94

STEP LAMP .......................................................

95

Exploded View  ........................................................

95

Removal and Installation .........................................

95

Replacement ...........................................................

95

PERSONAL LAMP  ............................................

96

Exploded View  ........................................................

96

Removal and Installation .........................................

96

Replacement ...........................................................

96

TRUNK ROOM LAMP  .......................................

97

Exploded View  ........................................................

97

Removal and Installation .........................................

97

Replacement ...........................................................

97

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

98

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

98

Bulb Specifications ..................................................

98

DIAGNOSIS AND REPAIR WORKFLOW

INL-3

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

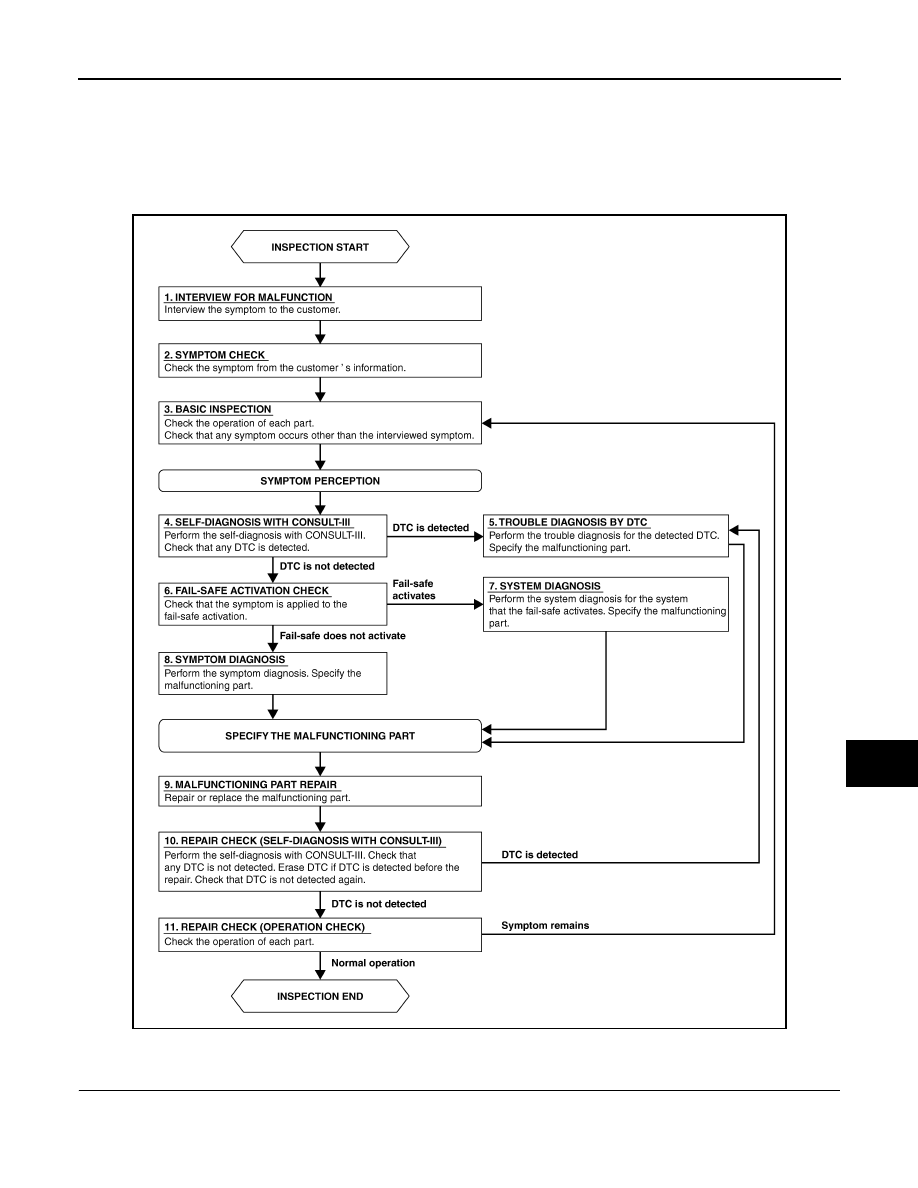

Work Flow

INFOID:0000000003774538

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the symptom to the customer.

JPLIA0313GB

INL-4

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

>> GO TO 2.

2.

SYMPTOM CHECK

Check the symptom from the customer's information.

>> GO TO 3.

3.

BASIC INSPECTION

Check the operation of each part. Check that any symptom occurs other than the interviewed symptom.

>> GO TO 4.

4.

SELF-DIAGNOSIS WITH CONSULT-III

Perform the self-diagnosis with CONSULT-III. Check that any DTC is detected.
Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 6.

5.

TROUBLE DIAGNOSIS BY DTC

Perform the trouble diagnosis for the detected DTC. Specify the malfunctioning part.

>> GO TO 9.

6.

FAIL-SAFE ACTIVATION CHECK

Check that the symptom is applied to the fail-safe activation.
Does the fail-safe activate?

YES

>> GO TO 7.

NO

>> GO TO 8.

7.

SYSTEM DIAGNOSIS

Perform the system diagnosis for the system that the fail-safe activates. Specify the malfunctioning part.

>> GO TO 9.

8.

SYMPTOM DIAGNOSIS

Perform the symptom diagnosis. Specify the malfunctioning part.

>> GO TO 9.

9.

MALFUNCTION PART REPAIR

Repair or replace the malfunctioning part.

>> GO TO 10.

10.

REPAIR CHECK (SELF-DIAGNOSIS WITH CONSULT-III)

Perform the self-diagnosis with CONSULT-III. Check that any DTC is not detected. Erase DTC if DTC is
detected before the repair. Check that DTC is not detected again.

Is any DTC detected?

YES

>> GO TO 5.

NO

>> GO TO 11.

11.

REPAIR CHECK (OPERATION CHECK)

Check the operation of each part.
Does it operate normally?

YES

>> INSPECTION END

NO

>> GO TO 3.

INTERIOR ROOM LAMP CONTROL SYSTEM

INL-5

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

FUNCTION DIAGNOSIS

INTERIOR ROOM LAMP CONTROL SYSTEM

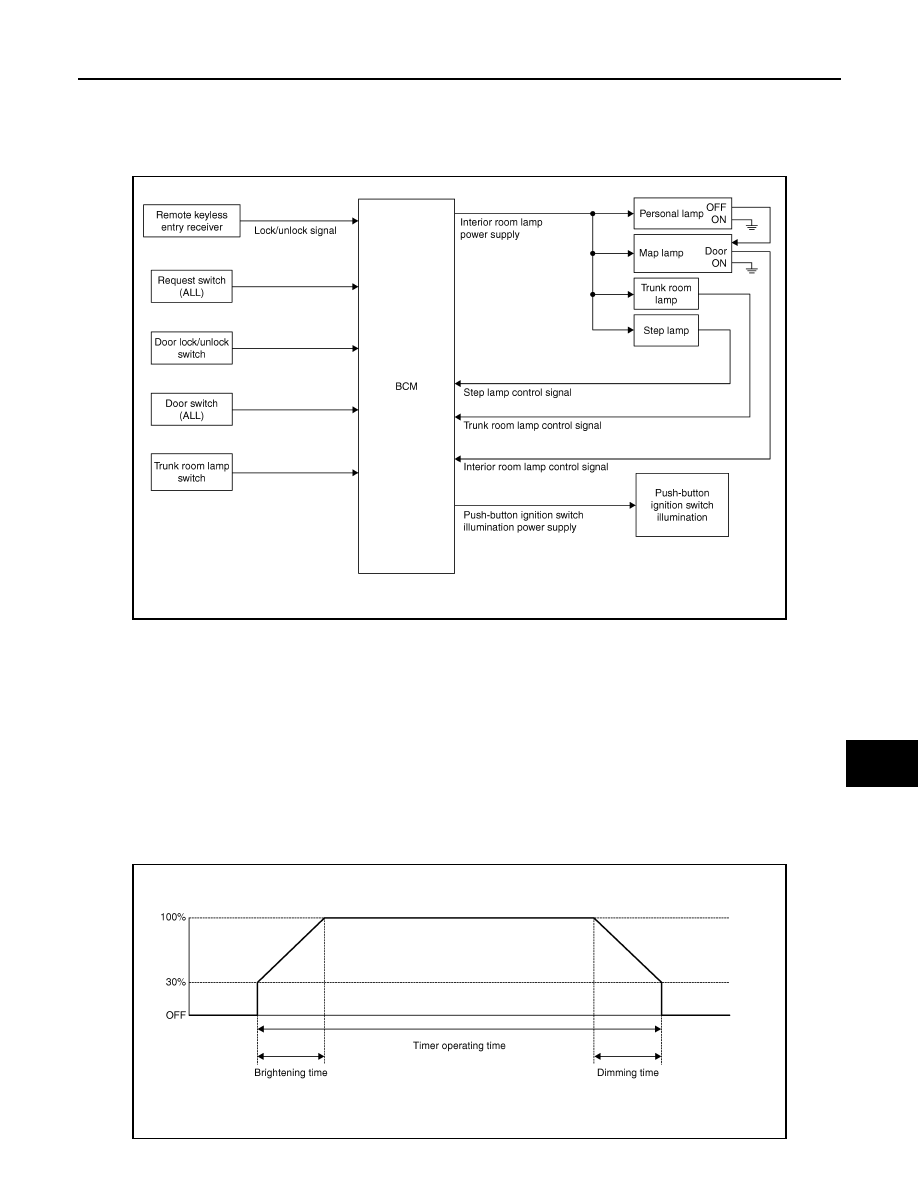

System Diagram

INFOID:0000000003774539

System Description

INFOID:0000000003774540

OUTLINE

• Interior room lamps* are controlled by interior room lamp timer control function of BCM.

*: Map lamp and personal lamp (when map lamp switch is in DOOR position).

• Step lamp is controlled by step lamp control function of BCM.
• Trunk room lamp is controlled by trunk room lamp control function of BCM.
• Push-button ignition switch illumination is controlled by the push-button ignition switch illumination control

function of BCM.

INTERIOR ROOM LAMP TIMER CONTROL

Interior Room Lamp Timer Basic Operation

JSLIA0036GB

JPLIA0093GB
