Nissan Teana J32. Manual - part 203

AV

TEL ANTENNA

AV-667

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

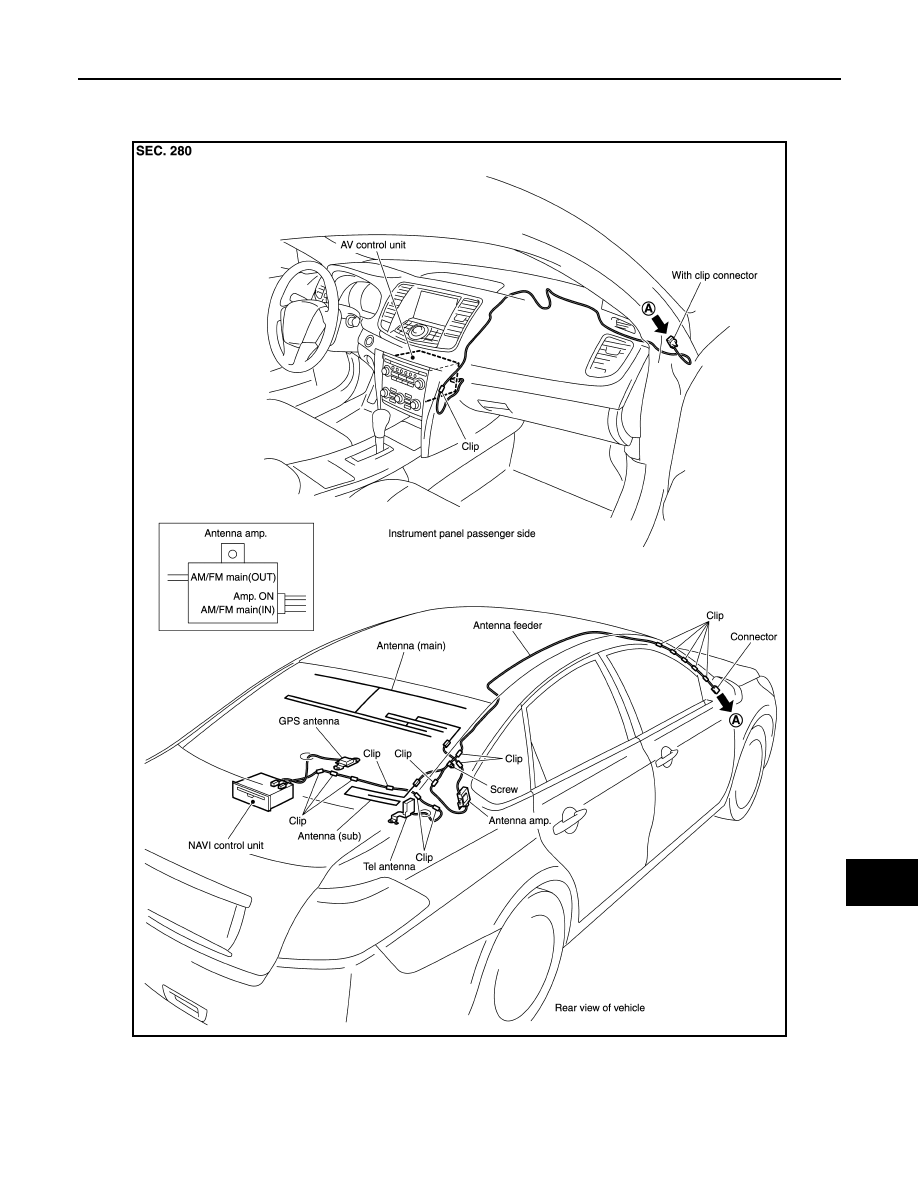

TEL ANTENNA

Harness Layout

INFOID:0000000003766014

JPNIA1054GB

AV-668

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

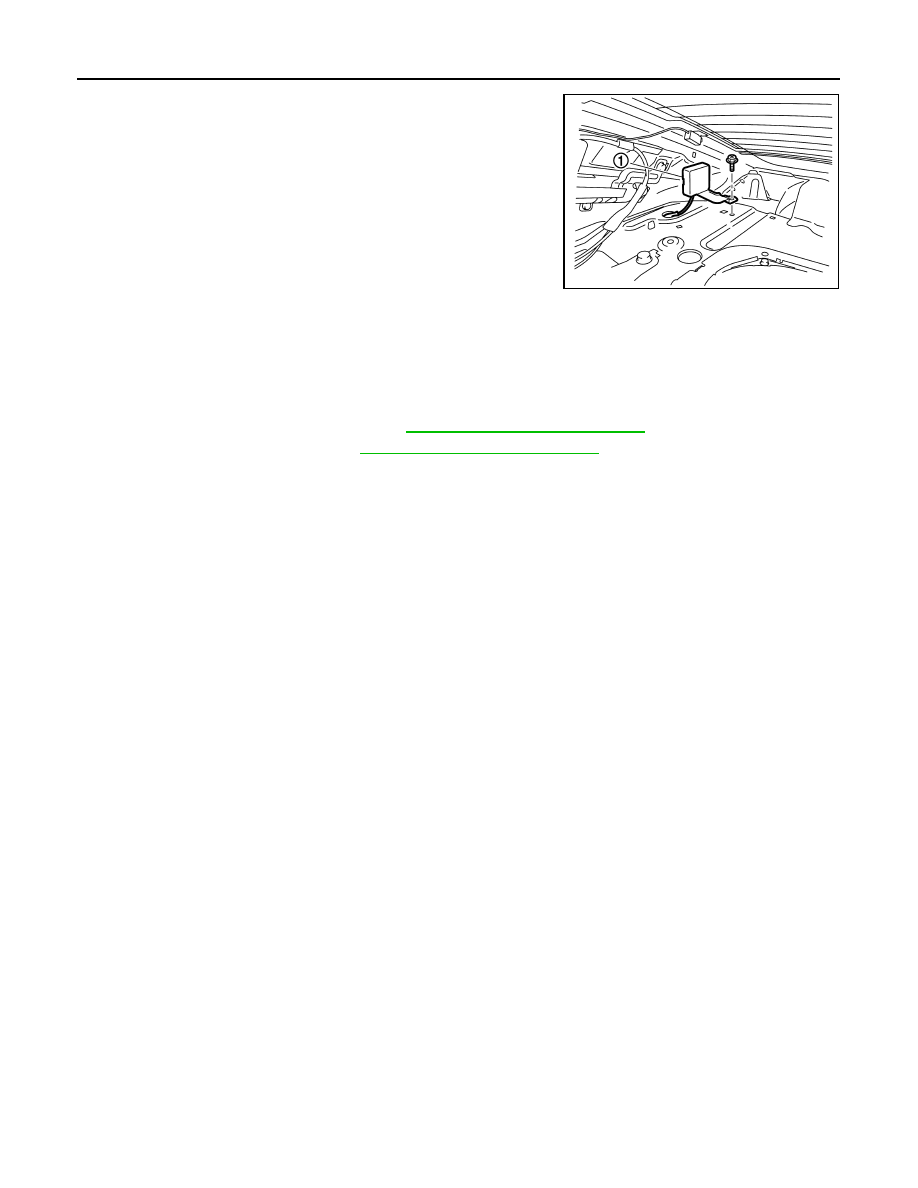

TEL ANTENNA

Exploded View

INFOID:0000000003766015

Removal and Installation

INFOID:0000000003766016

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-43, "Removal and Installation"

.

2.

Remove trunk front finisher. Refer to

INT-57, "Removal and Installation"

.

3.

Remove TEL antenna mounting nit, disconnect the TEL antenna connector.

4.

Remove TEL antenna.

INSTALLATION

Install in the reverse order of removal.

JPNIA1053ZZ

1.

TEL antenna

AV

CAMERA CONTROL UNIT

AV-669

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

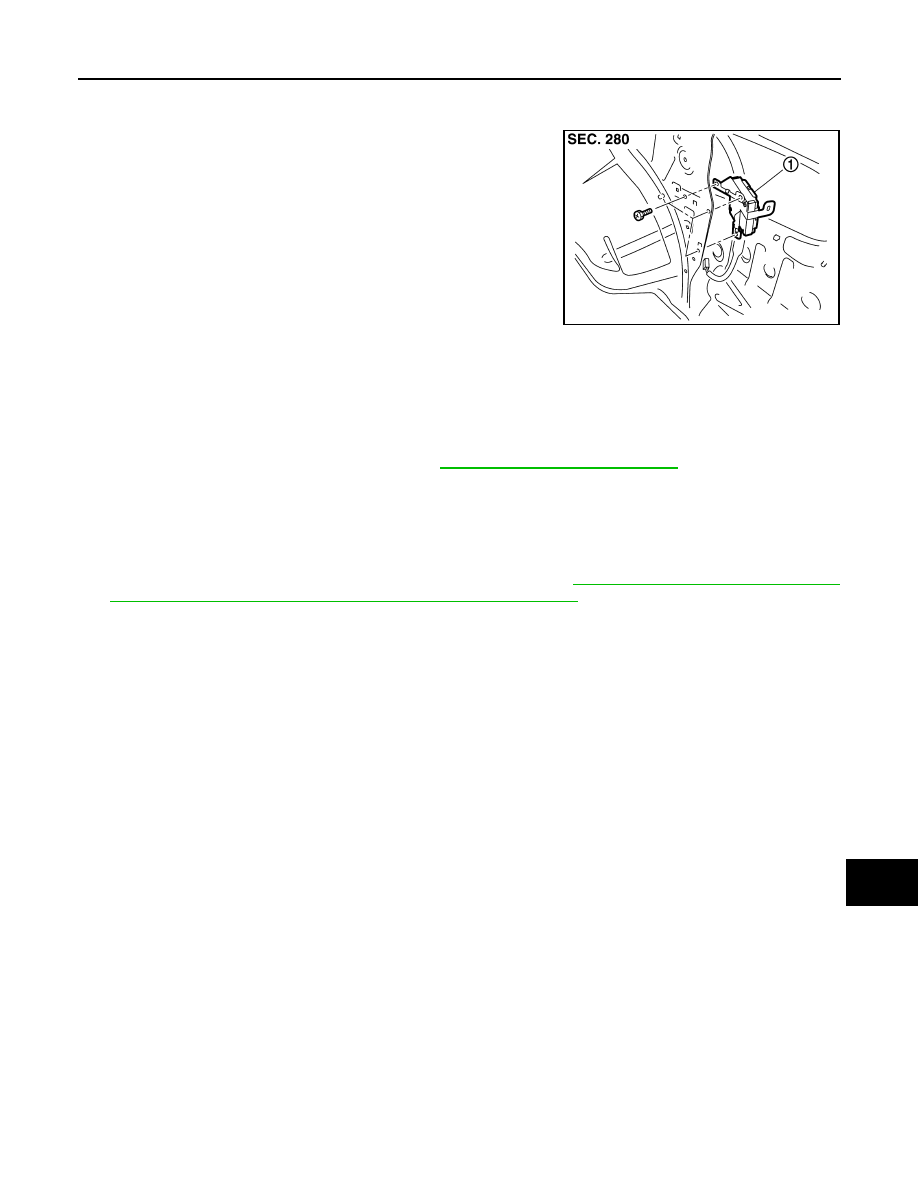

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000003766017

Removal and Installation

INFOID:0000000003766018

REMOVAL

1.

Remove rear wheelhouse finisher RH. Refer to

INT-57, "Removal and Installation"

.

2.

Remove camera control unit mounting screws, disconnect the camera control unit connector.

3.

Remove camera control unit.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform predicted course line center position adjustment. Refer to

AV-400, "PREDICTED COURSE LINE

CENTER POSITION ADJUSTMENT : Special Repair Requirement"

.

JPNIA1049ZZ

1.

Camera control unit

AV-670

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

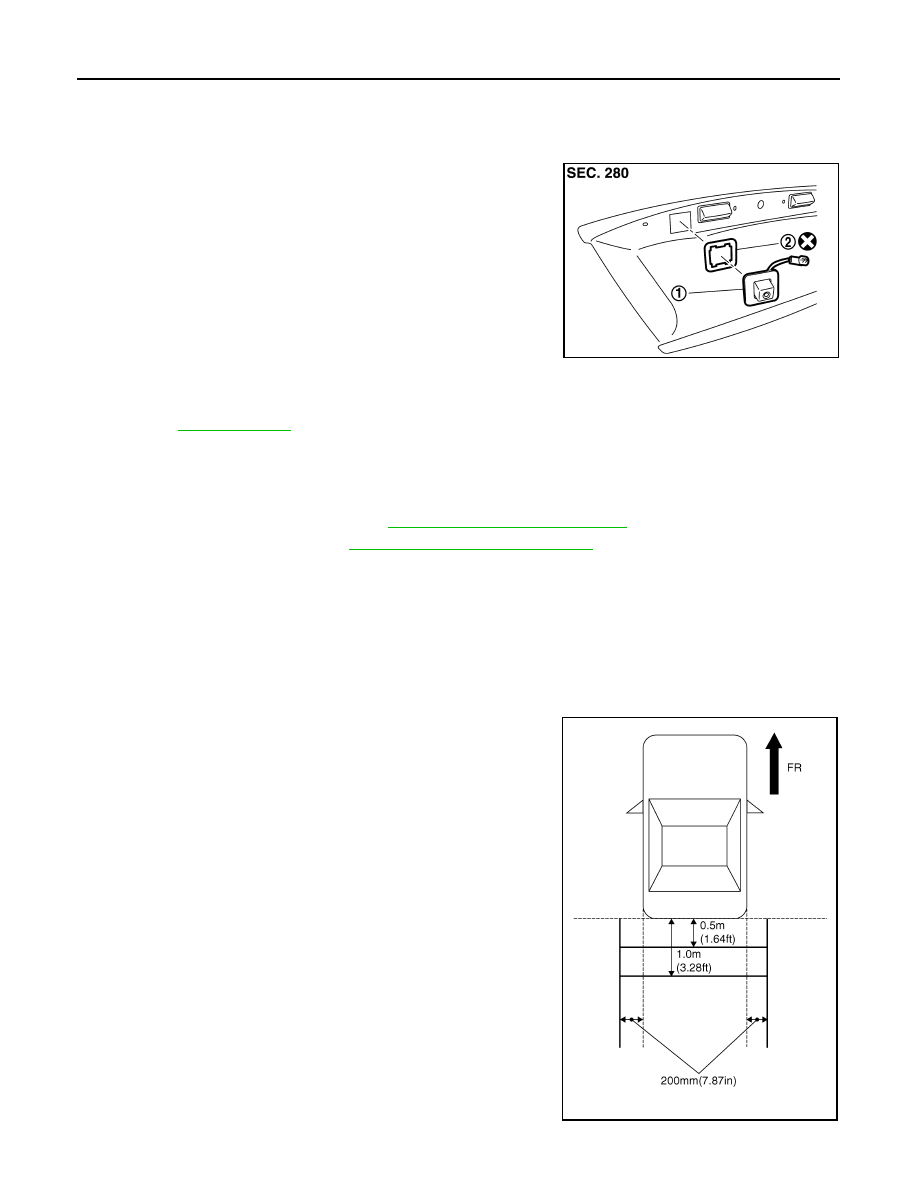

REAR VIEW CAMERA

REAR VIEW CAMERA

Exploded View

INFOID:0000000003766021

DISASSEMBLY

Removal and Installation

INFOID:0000000003766022

REMOVAL

1.

Remove trunk lid finisher inner. Refer to

INT-59, "Removal and Installation"

.

2.

Remove trunk lid finisher. Refer to

EXT-38, "Removal and Installation"

.

3.

Remove rear view camera mounting clip, disconnect the rear view camera connector.

4.

Remove rear view camera.

INSTALLATION

1.

Installation is the reverse order of removal.

Adjustment

INFOID:0000000003901754

Adjust the guide line position if the guide line position is shifted after installing the rear view camera.
1.

Draw lines on rearward area of the vehicle passing through the
following points: 200 mm (7.87 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion / Adjustment mode.

JPNIA1050ZZ

1.

Rear view camera

2.

Seal

Refer to

GI-4, "Components"

 for symbols in the figure.

SKIB3691E
