AV

AUXILIARY INPUT JACKS

AV-663

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

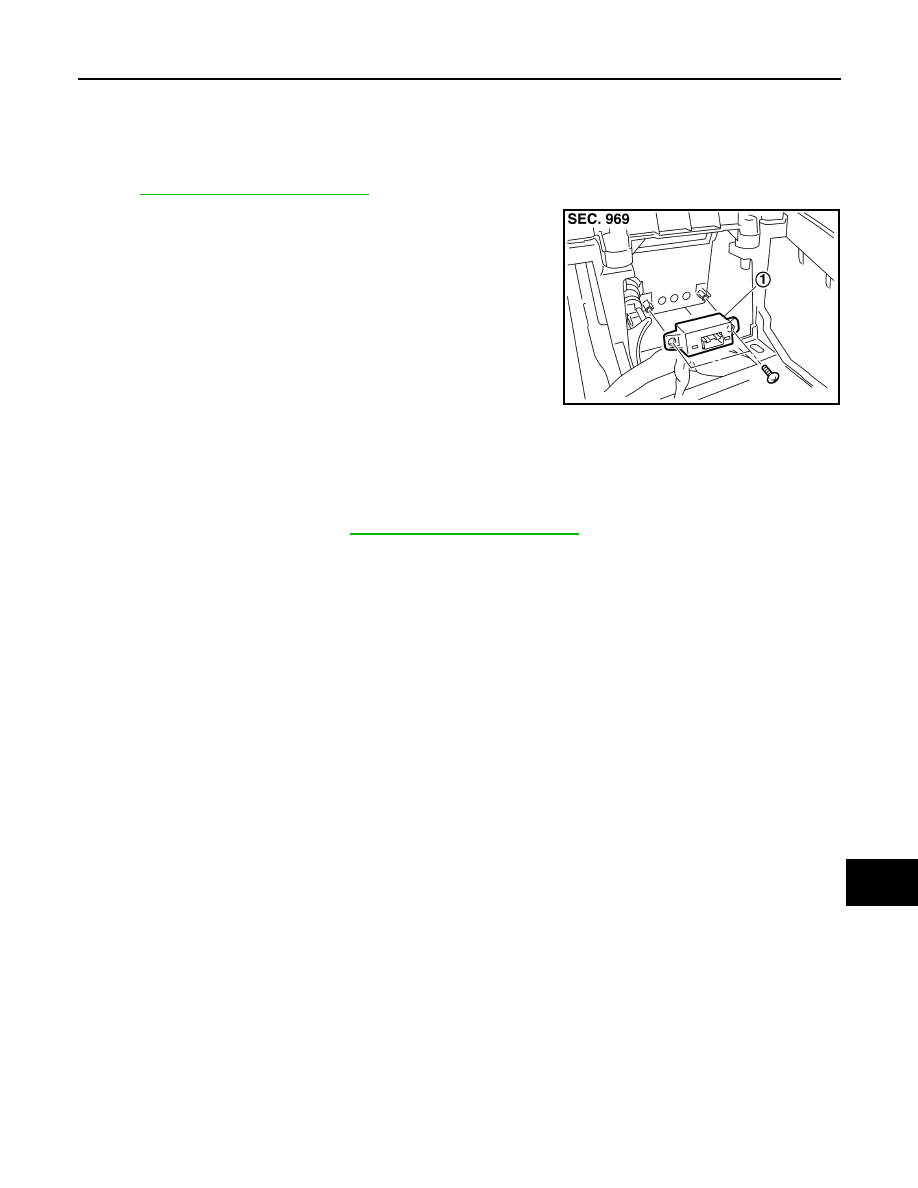

AUXILIARY INPUT JACKS

Exploded View

INFOID:0000000003766007

REMOVAL

Refer to

IP-22, "Removal and Installation"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003766008

REMOVAL

1.

Remove console finisher. Refer to

IP-22, "Removal and Installation"

.

2.

Remove auxiliary mounting screws.

3.

Remove auxiliary input jacks.

INSTALLATION

Installation is the reverse order of removal.

JPNIA1048ZZ

1.

Auxiliary input jacks

AV-664

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

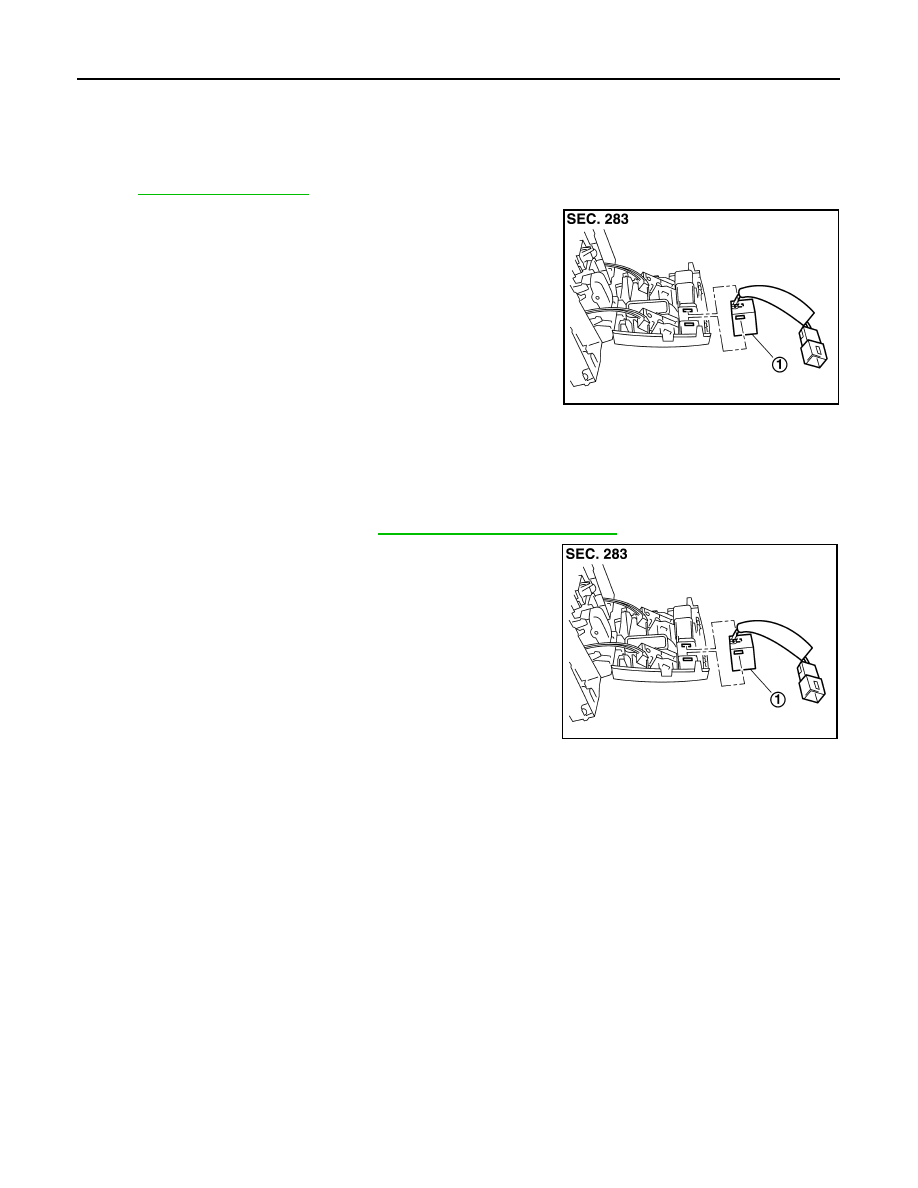

MICROPHONE

MICROPHONE

Exploded View

INFOID:0000000003766009

REMOVAL

Refer to

INL-89, "Exploded View"

.

DISASSEMBLY

Removal and Installation

INFOID:0000000003766010

REMOVAL

1.

Remove map lamp assembly. Refer to

INL-89, "Removal and Installation"

.

2.

Remove microphone(1), stretching pawls of map lamp assem-
bly.

INSTALLATION

Installation is the reverse order of removal.

JSNIA0132ZZ

1.

Microphone

JSNIA0132ZZ

AV

GPS ANTENNA

AV-665

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

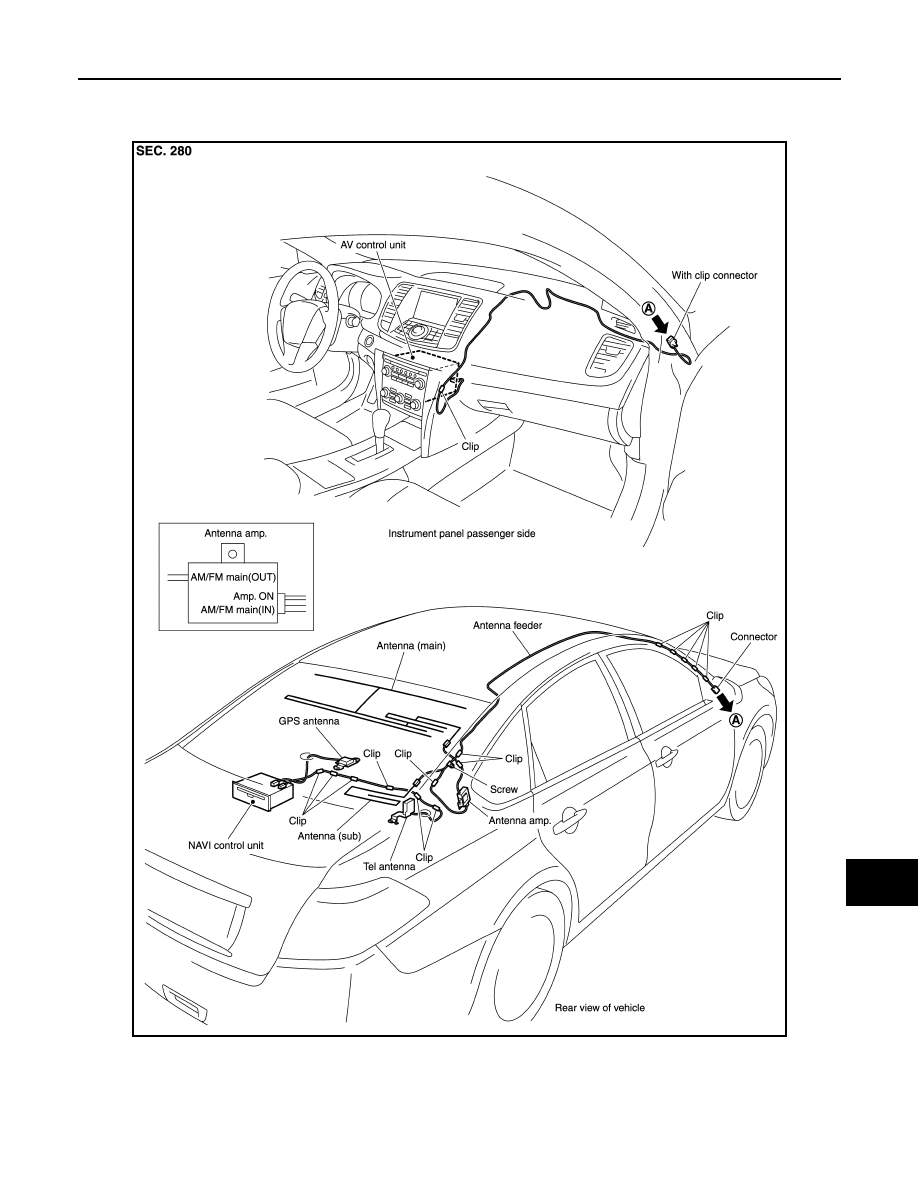

GPS ANTENNA

Harness Layout

INFOID:0000000003766011

JPNIA1054GB

AV-666

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

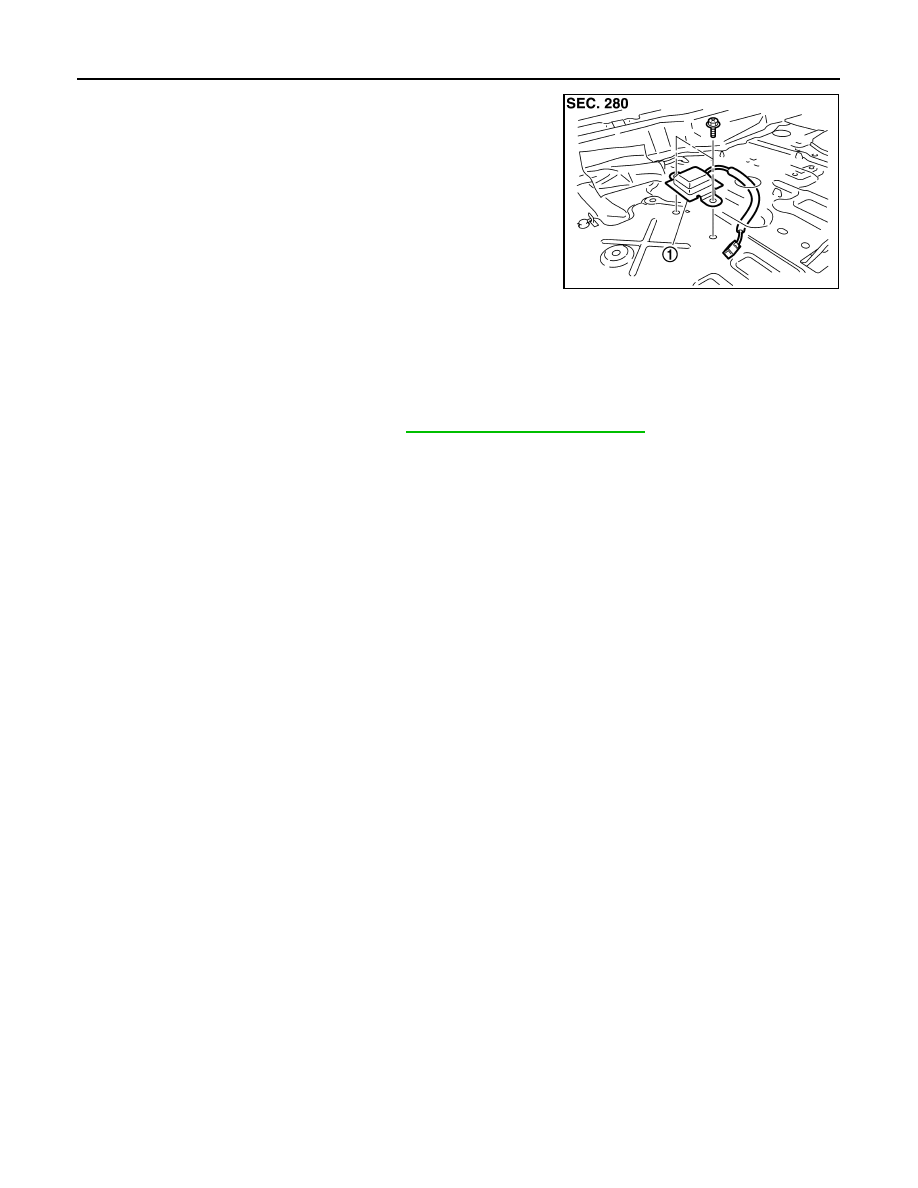

GPS ANTENNA

Exploded View

INFOID:0000000003766012

Removal and Installation

INFOID:0000000003766013

REMOVAL

1.

Remove rear parcel shelf finisher. Refer to

INT-43, "Removal and Installation"

.

2.

Remove GPS antenna mounting screws, disconnect GPS antenna connector.

3.

Remove GPS antenna.

INSTALLATION

Install in the reverse order of removal.

JPNIA1055ZZ

1.

GPS antenna
