TRANSAXLE ASSEMBLY

REMOVAL AND INSTALLATION

TRANSAXLE ASSEMBLY

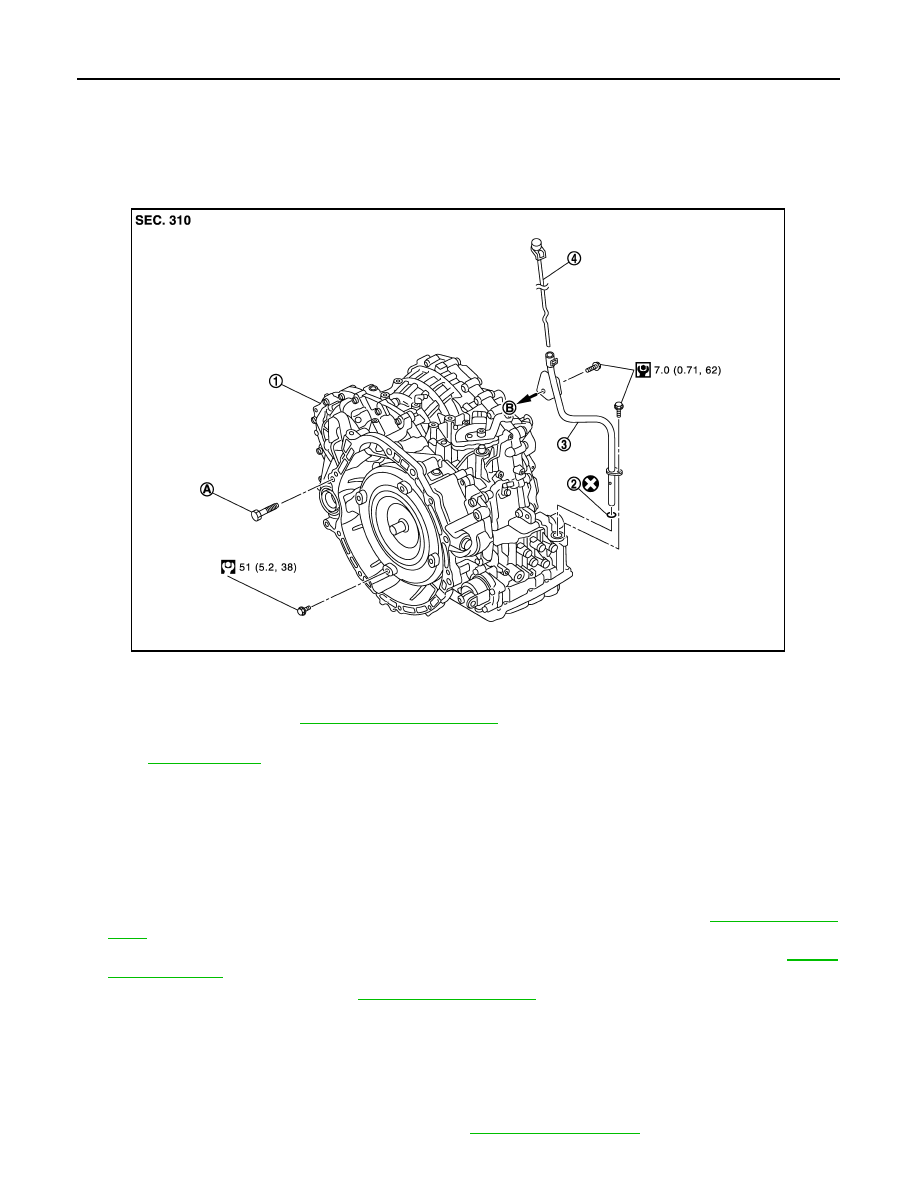

Exploded View

INFOID:0000000003806551

Removal and Installation

INFOID:0000000003806552

WARNING:

Never remove the reservoir tank cap when the engine is hot. Serious burns could occur from high
pressure engine coolant escaping from the reservoir tank.

REMOVAL

1.

Remove the engine, the transaxle assembly and front suspension member. Refer to

EM-67, "Exploded

View"

.

2.

Lift with hoist and separate engine, transaxle assembly from front suspension member. Refer to

EM-67,

"Exploded View"

.

3.

Remove air breather hose. Refer to

TM-328, "Exploded View"

.

4.

Remove CVT fluid level gauge and CVT fluid charging pipe.

5.

Disconnect the following connectors:
• Primary speed sensor connector
• Secondary speed sensor connector
• PNP switch connector
• CVT unit connector

6.

Remove crankshaft position sensor (POS). Refer to

EM-38, "Exploded View"

.

1.

Transaxle assembly

2.

O-ring

3.

CVT fluid charging pipe

4.

CVT fluid level gauge

A.

For tightening torque, refer to

TM-332, "Removal and Installation"

.

B.

To water outlet

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0736GB

TRANSAXLE ASSEMBLY

TM-333

< REMOVAL AND INSTALLATION >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

7.

Remove rear plate. Refer to

EM-38, "Exploded View"

.

8.

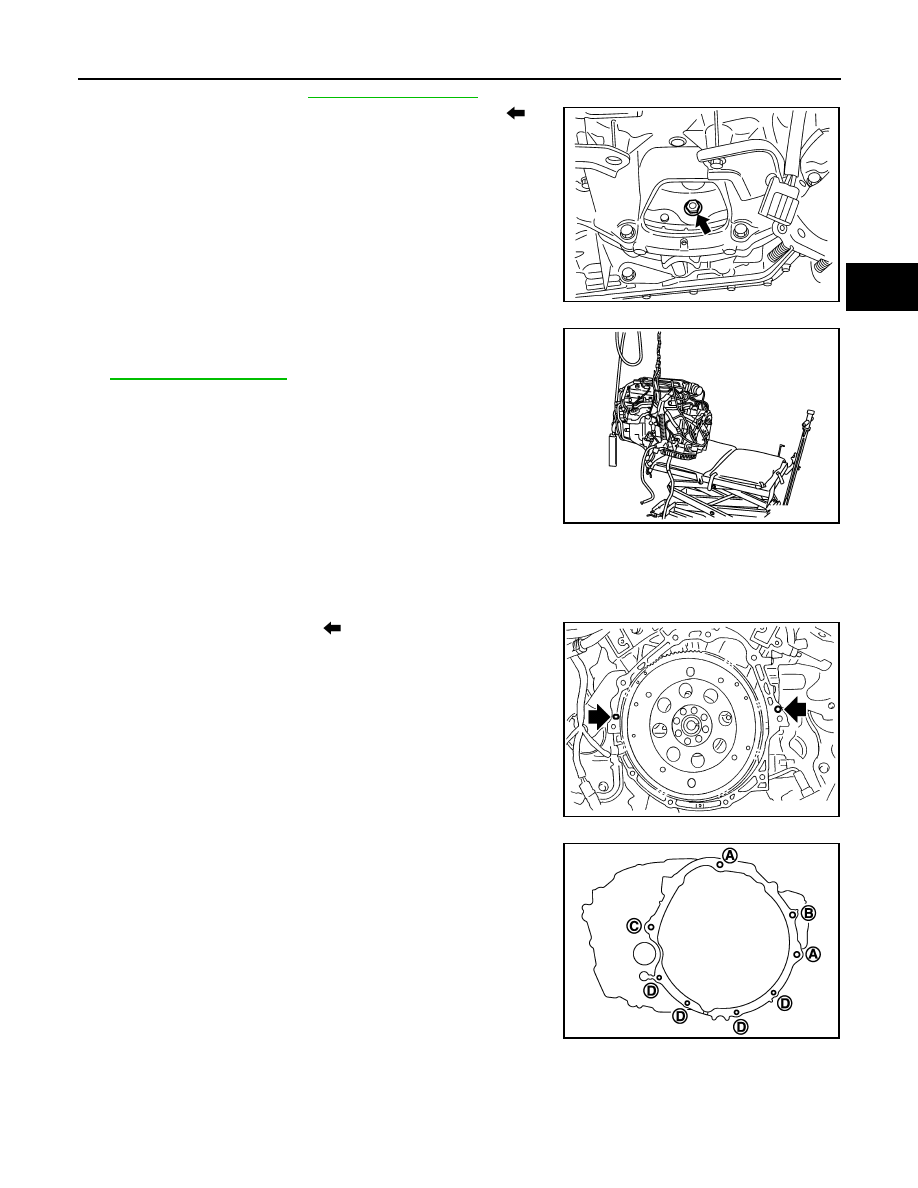

Turn crankshaft, and remove the four tightening bolts (

) for

drive plate and torque converter.

CAUTION:

When turning crankshaft, turn it clockwise as viewed from
the front of the engine.

9.

Remove transaxle assembly fixing bolts with power tool.

10. Remove transaxle assembly from engine assembly with a hoist.
11. Remove CVT fluid cooler tube from transaxle assembly. Refer to

TM-329, "Exploded View"

.

INSTALLATION

Note following, and install in the reverse order of removal.

CAUTION:

• Never reuse O-ring.
• Apply petroleum jelly to O-ring.
• Check fitting of dowel pin (

) when installing transaxle

assembly to engine assembly.

• When installing transaxle assembly to the engine assembly, attach

the fixing bolts in accordance with the following.

SCIA1861E

JPDIA0598ZZ

JPDIA0602ZZ

JPDIA0737ZZ

TM-334

< REMOVAL AND INSTALLATION >

[CVT: RE0F10A]

TRANSAXLE ASSEMBLY

• Align the position of tightening bolts (

) for drive plate with those

of the torque converter, and temporarily tighten the bolts. Then,
tighten the bolts to the specified torque.

CAUTION:

• When turning crankshaft, turn it clockwise as viewed from the

front of the engine.

• When tightening the tightening bolts for the torque converter

after fixing the crankshaft pulley bolts, confirm the tightening
torque of the crankshaft pulley mounting bolts. Refer to

EM-

53, "Removal and Installation"

.

• After converter is installed to drive plate, rotate crankshaft

several turns and check that transaxle rotates freely without
binding.

Inspection

INFOID:0000000003806553

INSPECTION BE FORE INSTALLATION

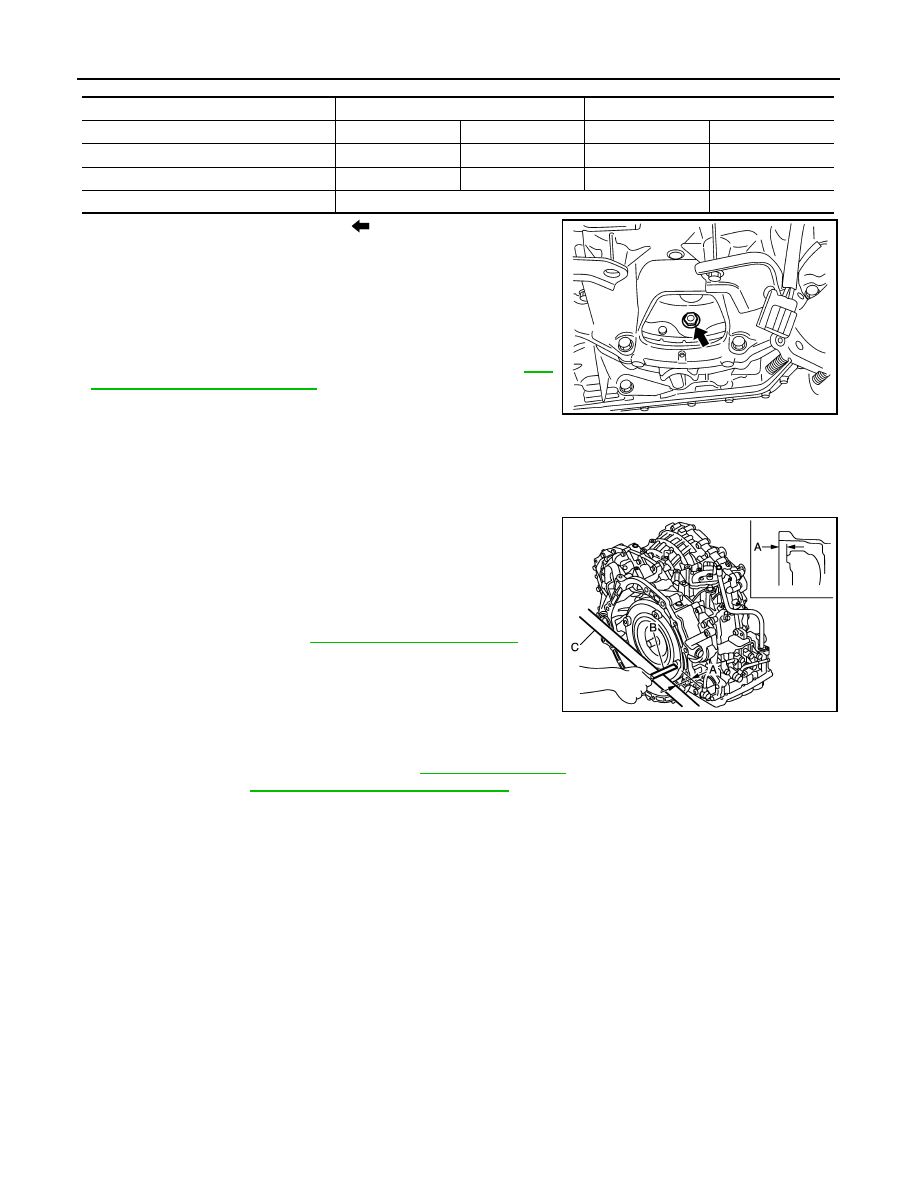

• After inserting a torque converter to the CVT, check that distance

(A) within the reference value limit.

INSPECTION AFTER INSTALLATION

• After completing installation, check the following item.
- CVT fluid leakage and CVT fluid level. Refer to

TM-304, "Inspection"

.

- CVT position. Refer to

TM-314, "Inspection and Adjustment"

.

Insertion direction

Transaxle assembly to engine assembly

Engine assembly to transaxle assembly

Bolt position

A

B

C

D

Number of bolts

2

1

1

4

Bolt length mm (in)

55 (2.17)

35 (1.38)

55 (2.17)

40 (1.57)

Tightening torque N·m (kg-m, ft-lb)

75 (7.7, 55)

50 (5.1, 37)

SCIA1861E

B

:  Scale

C

: Straightedge

Distance A

: Refer to

TM-338, "Torque Converter"

.

JPDIA0740ZZ

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

TM-335

< DISASSEMBLY AND ASSEMBLY >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

DISASSEMBLY AND ASSEMBLY

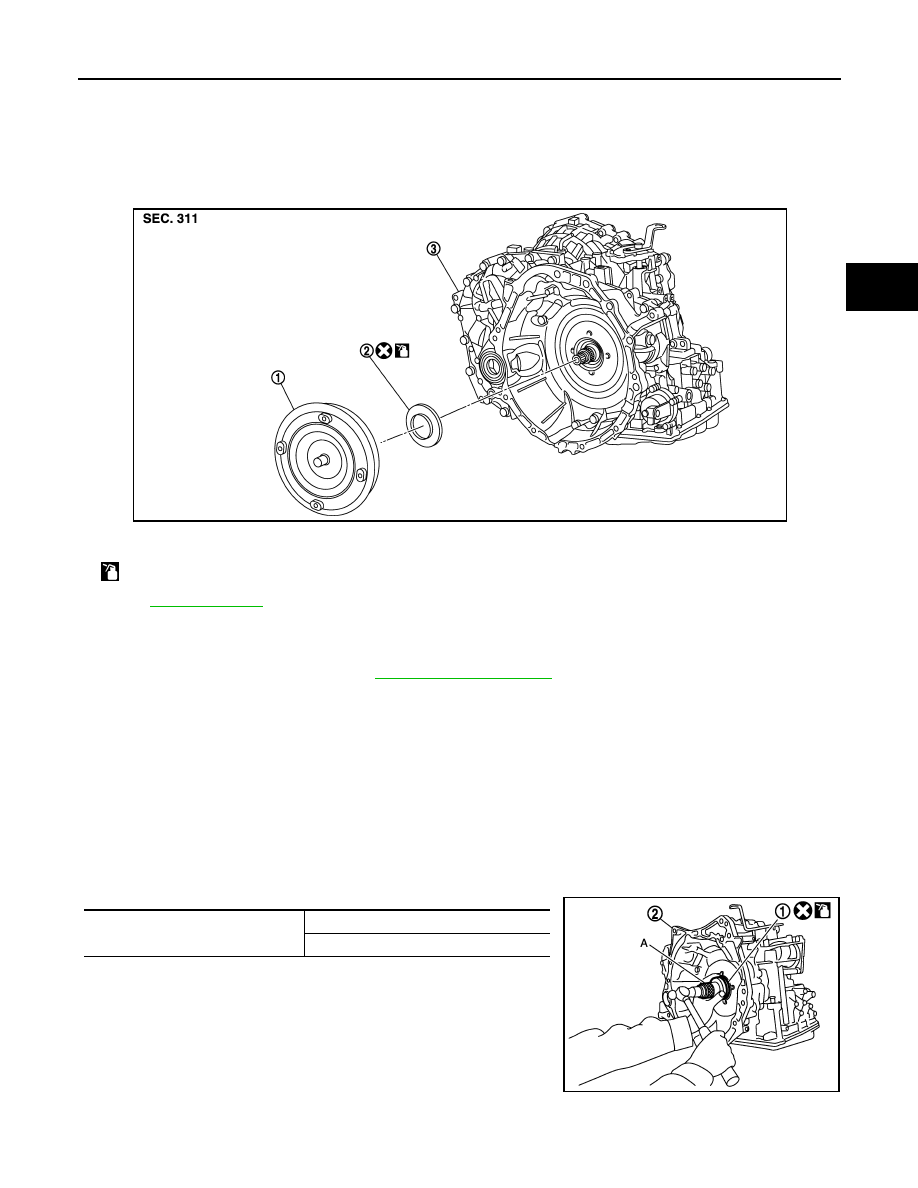

TORQUE CONVERTER AND CONVERTER HOUSING OIL SEAL

Exploded View

INFOID:0000000003806557

Disassembly

INFOID:0000000003806558

1.

Remove transaxle assembly. Refer to

TM-332, "Exploded View"

.

2.

Remove torque converter from transaxle assembly.

CAUTION:

Never damage bushing inside of torque converter sleeve when removing torque converter.

3.

Remove converter housing oil seal using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch converter housing.

Assembly

INFOID:0000000003806559

Note the following, and install in the reverse order of removal.
• Drive converter housing oil seal (1) evenly using a drift (commercial service tool) (A) so that converter hous-

ing oil seal protrudes by the dimension (B) respectively.

Unit: mm (in)

1.

Torque converter

2.

Converter housing oil seal

3.

Transaxle assembly

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols not described on the above.

JPDIA0773ZZ

Commercial service tool: A

Outer diameter: 65 (2.56)

Inner diameter: 60 (2.36)

2

: Transaxle assembly

JPDIA0766ZZ
