AIR BREATHER HOSE

AIR BREATHER HOSE

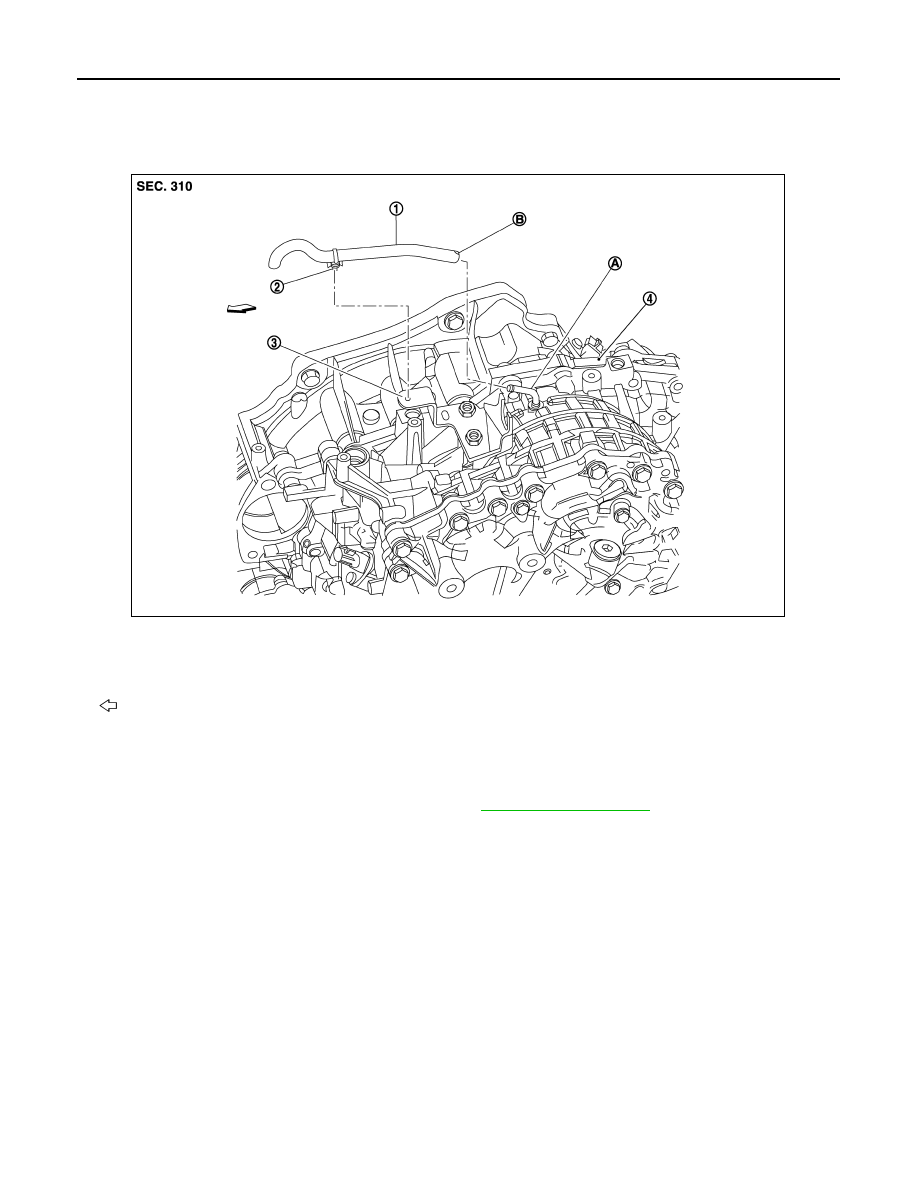

Exploded View

INFOID:0000000003806546

Removal and Installation

INFOID:0000000003806547

REMOVAL

1.

Remove air duct (inlet) and air cleaner case. Refer to

EM-26, "Exploded View"

.

1.

Remove clip from the bracket.

2.

Remove air breather hose from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

• Install air breather hose with paint mark facing upward.
• Insert air breather hose a minimum of 17 mm (0.67 in) onto air breather tube (to end of air breather

tubes radius end).

• Install air breather hose to bracket by fully inserting the clip.
• Make sure there are no pinched or restricted areas on air breather hose caused by bending or wind-

ing when installing it.

1.

Air breather hose

2.

Clip

3.

Bracket

4.

Transaxle assembly

A.

Air breather tube

B.

Paint mark

: Vehicle front

JPDIA0768ZZ

FLUID COOLER SYSTEM

TM-329

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FLUID COOLER SYSTEM

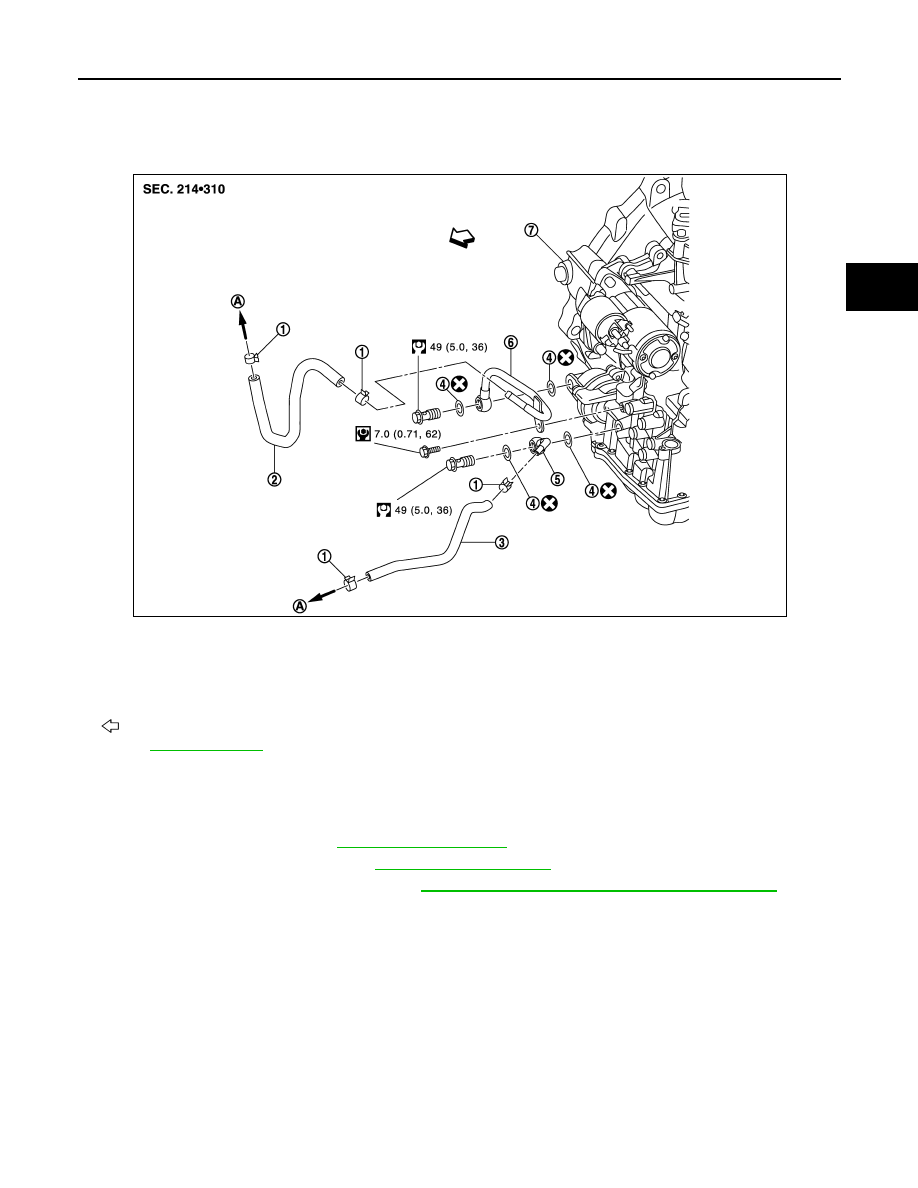

Exploded View

INFOID:0000000003886234

Removal and Installation

INFOID:0000000003886235

REMOVAL

1.

Remove air duct (inlet). Refer to

EM-26, "Exploded View"

.

2.

Remove engine under cover. Refer to

EXT-28, "Exploded View"

.

3.

Remove fender protector (left side). Refer to

EXT-22, "FENDER PROTECTOR : Exploded View"

.

4.

Remove fluid cooler hose A and fluid cooler hose B.

5.

Remove CVT fluid cooler tube from transaxle assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.

CAUTION:

Never reuse copper washer.

1.

Hose clamp

2.

Fluid cooler hose A

3.

Fluid cooler hose B

4.

Copper washer

5.

CVT fluid cooler tube

6.

CVT fluid cooler tube

7.

Transaxle assembly

A.

To radiator

: Vehicle front

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0787GB

TM-330

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

FLUID COOLER SYSTEM

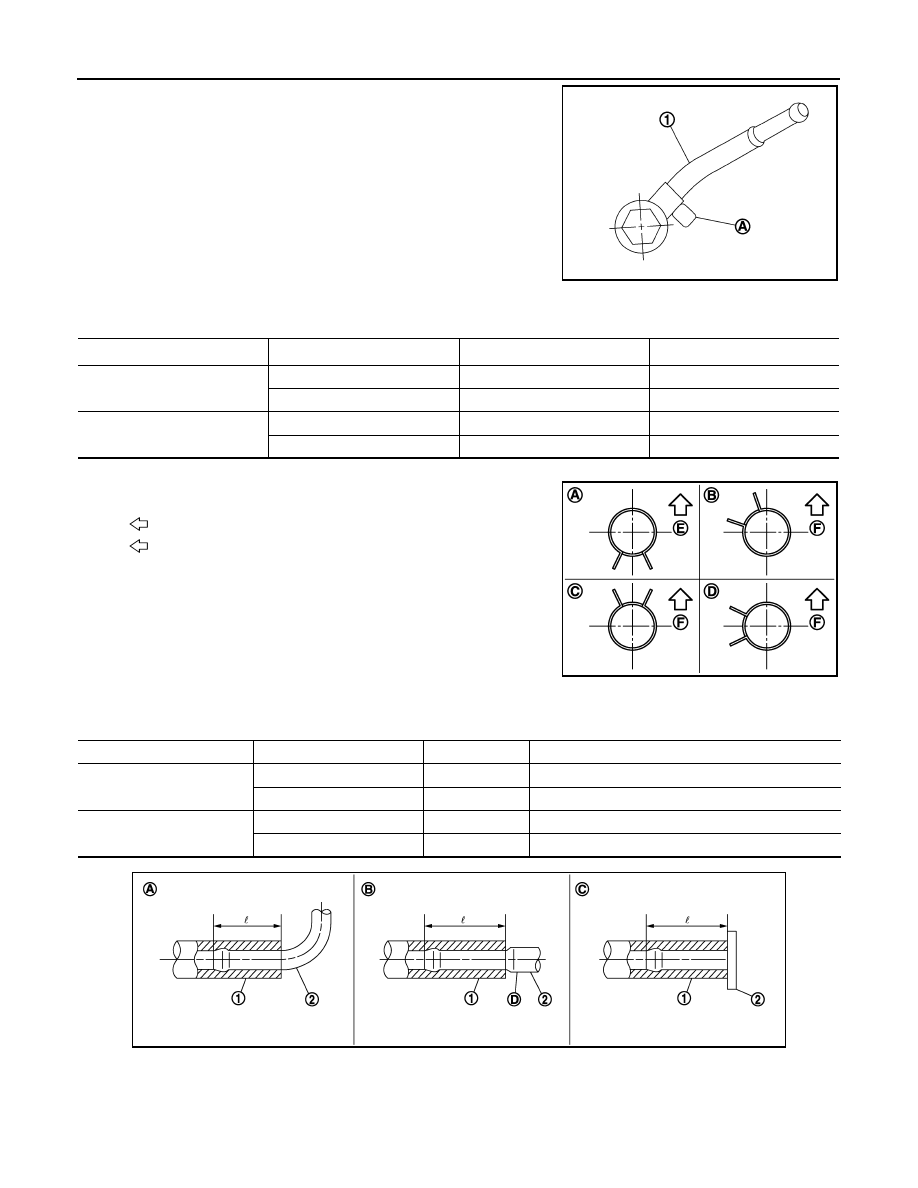

• When installing CVT fluid cooler tube (1) to transaxle assembly:
- Contact CVT fluid cooler tube a boss portion (A) of the transaxle

case.

- Tighten the bolt of CVT fluid cooler tube without moving the CVT

fluid cooler tube

• Refer to the followings when installing fluid cooler hose.

*: Refer to the illustrations for the specific position each hose clamp tab.

- The illustrations indicate the view from the hose ends.

- When installing hose clamps center line of each hose clamp tab

should be positioned as shown in the figure.

- Insert fluid cooler hose according to dimension (A) described below.

JPDIA0772ZZ

Fluid cooler hose

Hose end

Paint mark

Position of hose clamp

*

A

Radiator assembly side

Facing backward

A

CVT fluid cooler tube side

Facing upward

B

B

Radiator assembly side

Facing upward

C

CVT fluid cooler tube side

Facing upward

D

 E

: Vehicle front

 F

: Vehicle upper

JPDIA0801ZZ

(1)

(2)

Tube type

Dimension A

Fluid cooler hose A

Radiator side

A

End reaches the tube bend R position.

CVT fluid cooler tube side

B

33 mm (1.30 in) [End reaches the 2-stage bulge (D).]

Fluid cooler hose B

Radiator side

C

Insert the hose until the hose touches the radiator.

CVT fluid cooler tube side

B

33 mm (1.30 in) [End reaches the 2-stage bulge (D).]

JPDIA0860ZZ

FLUID COOLER SYSTEM

TM-331

< ON-VEHICLE REPAIR >

[CVT: RE0F10A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

- Set hose clamps (1) at the both ends of fluid cooler hose (2) with

dimension (A) from the hose edge.

- Hose clamp should not interfere with the bulge of fluid cooler tube.

Inspection

INFOID:0000000003886236

After completing installation, check for CVT fluid leakage and CVT fluid level. Refer to

TM-304, "Inspection"

.

Dimension A

: 5 – 9 mm (0.20 – 0.35 in)

SCIA8123E
