TM-156

< ON-VEHICLE REPAIR >

[CVT: RE0F09B]

CONTROL DEVICE

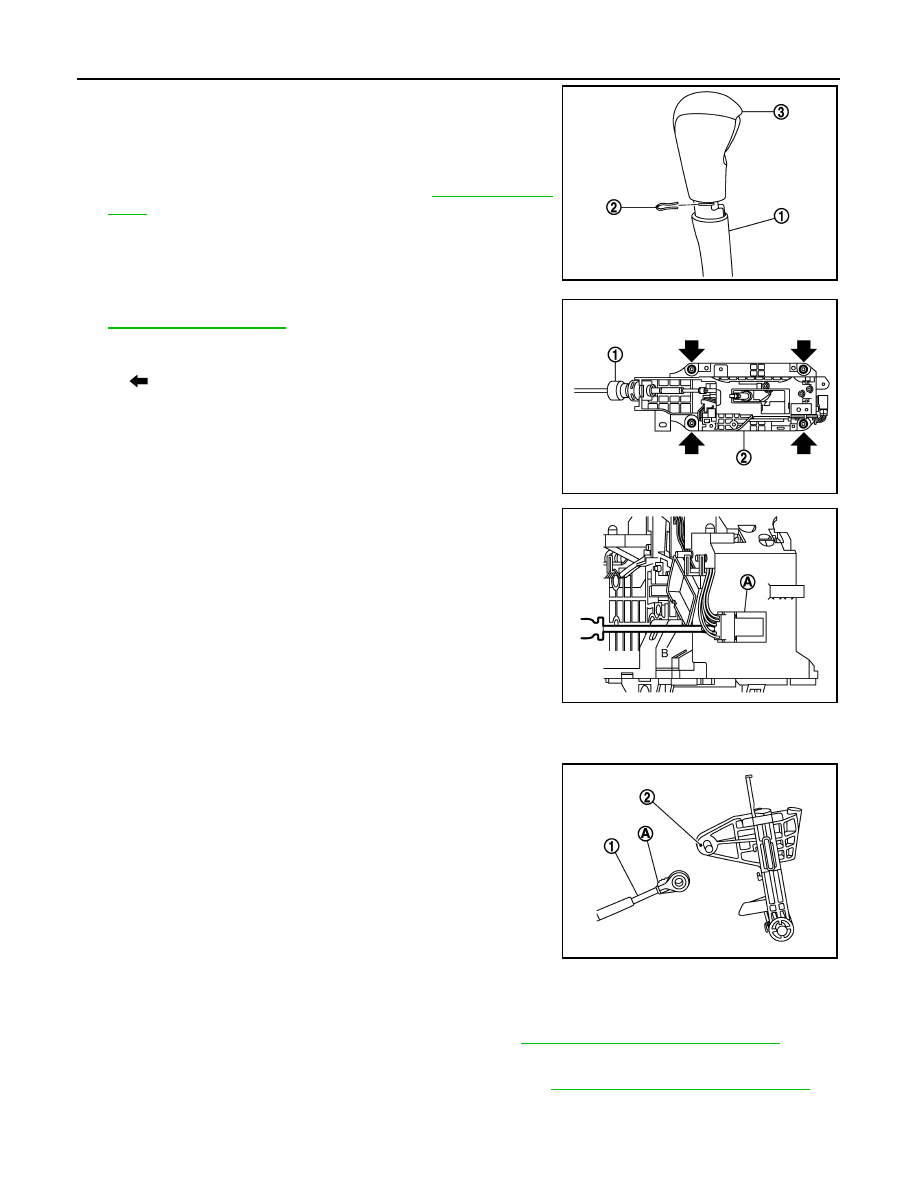

2.

Slide knob cover (1) below selector lever downward.

CAUTION:

Be careful not to damage knob cover.

3.

Pull lock pin (2) out of selector lever knob (3).

4.

Remove selector lever knob and knob cover.

5.

Remove center console assembly. Refer to

IP-22, "Exploded

View"

.

6.

Remove control cable (1) from control device assembly. Refer to

TM-157, "Exploded View"

.

7.

Remove control device assembly (2).

8.

Remove control device connector (A) using a flat-bladed screw-
driver (B).

CAUTION:

Be careful not to damage control device connector.

9.

Remove shift lock unit from control device assembly.

INSTALLATION

Note the following, and install in the reverse order of removal.
When installing control cable (1) to control device assembly (2),
check that control cable is fully pressed in with the ribbed (A) surface
facing upward.

Inspection and Adjustment

INFOID:0000000003849090

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing control device. Refer to

TM-152, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-152, "Inspection and Adjustment"

.

JPDIA0606ZZ

: Bolt

JPDIA0615ZZ

JPDIA0616ZZ

JPDIA0609ZZ

CONTROL CABLE

TM-157

< ON-VEHICLE REPAIR >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

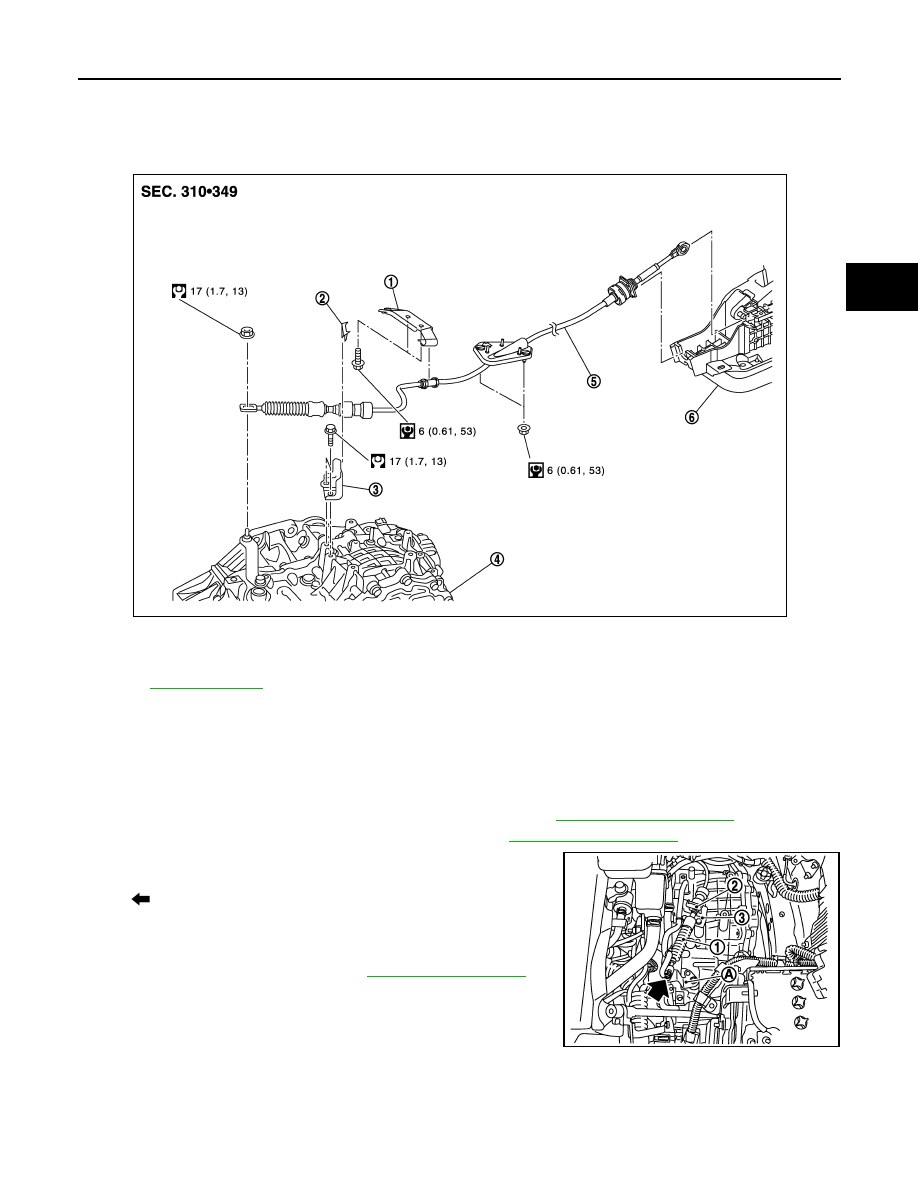

CONTROL CABLE

Exploded View

INFOID:0000000003849091

Removal and Installation

INFOID:0000000003849092

REMOVAL

CAUTION:

Check that parking brake is applied before removal/installation.

1.

Disconnect control cable from control device assembly. Refer to

TM-155, "Exploded View"

.

2.

Remove the air duct (inlet) and air cleaner case. Refer to

EM-26, "Exploded View"

.

3.

Remove control cable (1) from manual lever (A).

4.

Remove lock plate (2) from control cable.

5.

Remove control cable from bracket 2 (3).

6.

Remove exhaust front tube. Refer to

EX-5, "Exploded View"

.

7.

Remove heat plate.

1.

Bracket 1

2.

Lock plate

3.

Bracket 2

4.

Transaxle assembly

5.

Control cable

6.

Control device assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0749GB

: Nut

JPDIA0601ZZ

TM-158

< ON-VEHICLE REPAIR >

[CVT: RE0F09B]

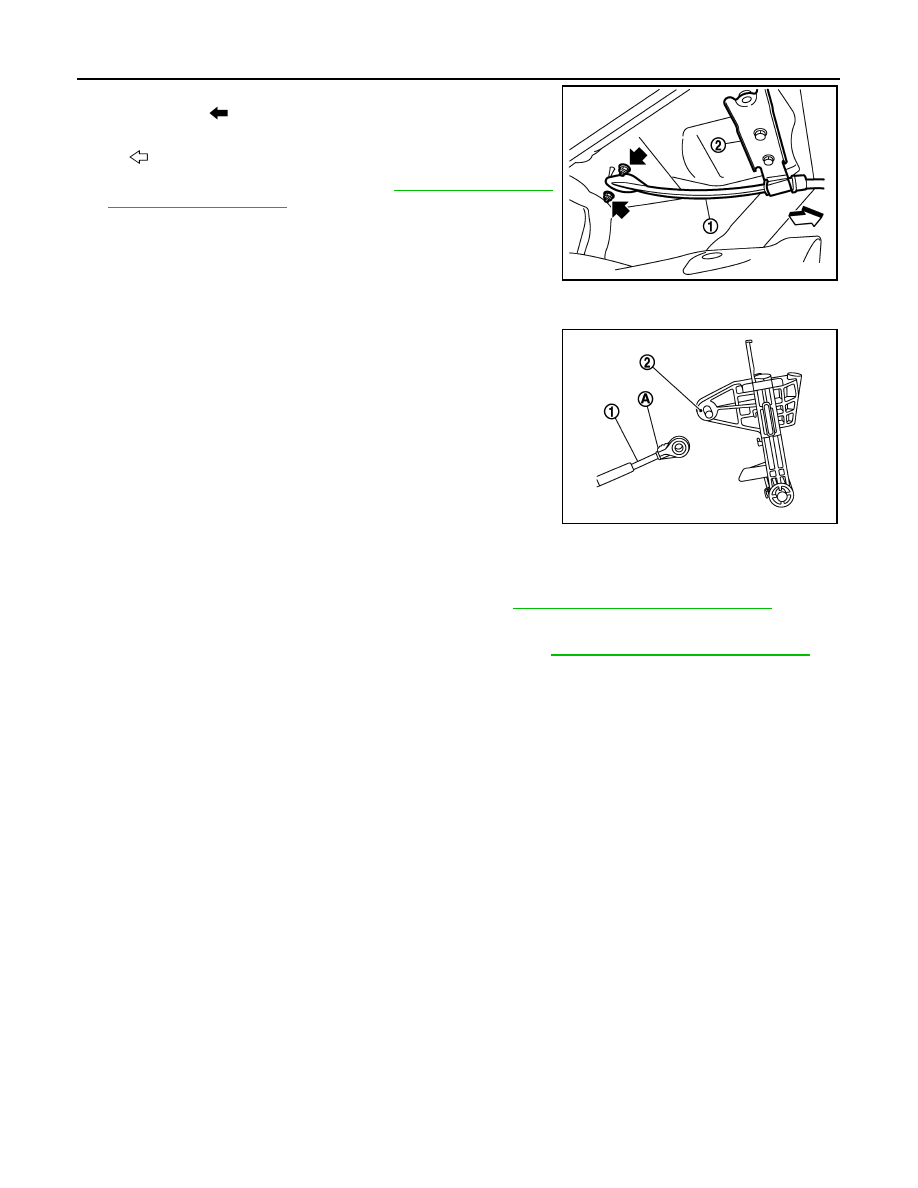

CONTROL CABLE

8.

Remove control cable (1) from bracket 1 (2).

9.

Remove nuts (

).

10. Remove rear foot duct 1 (right). Refer to

VTL-55, "REAR FOOT

DUCT 1 : Exploded View"

.

11. Remove the control cable from the vehicle.

INSTALLATION

Note the following, and install in the reverse order of removal.
When installing the control cable (1) to the control device assembly
(2), make sure that the control cable is fully pressed in with the
ribbed (A) surface facing upward.

Inspection and Adjustment

INFOID:0000000003849093

ADJUSTMENT AFTER INSTALLATION

Adjust the CVT positions after installing control cable. Refer to

TM-152, "Inspection and Adjustment"

.

INSPECTION AFTER INSTALLATION

Check the CVT positions after adjusting the CVT positions. Refer to

TM-152, "Inspection and Adjustment"

.

: Vehicle front

JPDIA0752ZZ

JPDIA0609ZZ

OIL PAN

TM-159

< ON-VEHICLE REPAIR >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

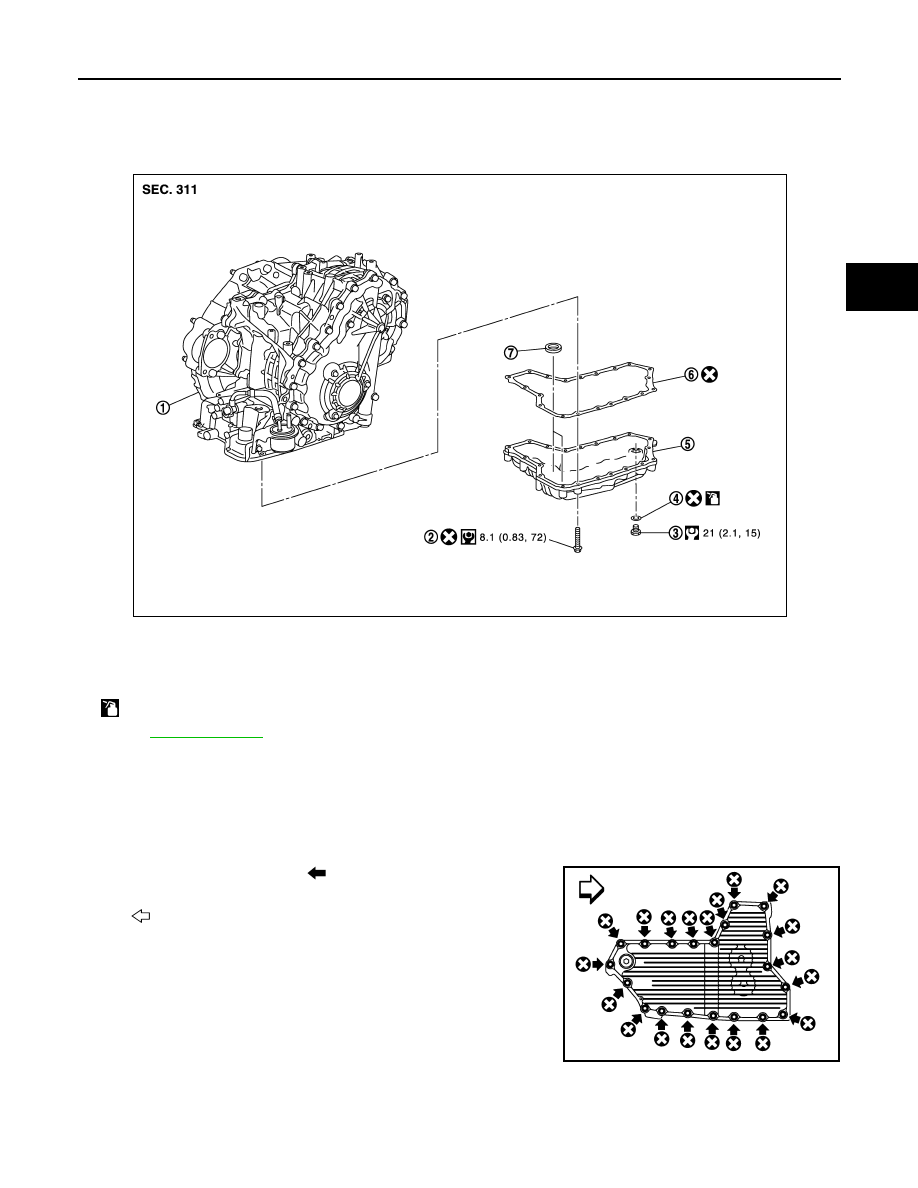

OIL PAN

Exploded View

INFOID:0000000003849094

Removal and Installation

INFOID:0000000003849095

REMOVAL

1.

Remove drain plug.

2.

Remove O-ring from drain plug.

3.

Remove oil pan fitting bolts (

).

4.

Remove oil pan.

1.

Transaxle assembly

2.

Oil pan fitting bolt

3.

Drain plug

4.

O-ring

5.

Oil pan

6.

Oil pan gasket

7.

Magnet

: Apply CVT Fluid NS-2.

Refer to

GI-4, "Components"

 for symbols in the figure.

JPDIA0608GB

: Vehicle front

SCIA8135J
