MT-34

[RS6F93R]

RATIOS

RATIOS

PFP:XX000

RENAULT Gearbox

XXXX0000102

Main gear: Input gear

NISSAN Gearbox

XXXX0000029

Main gear: Input gear

Suffix

First

Second

Third

Fourth

Fifth

Sixth

Final

Reverse

gear

ND0-000

13:41

18:35

28:39

36:38

42:34

49:33

14:57

37:38

ND0-001

13:41

19:34

31:37

40:34

47:31

50:27

15:58

37:38

ND0-002

12:41

19:35

31:39

38:36

45:33

48:29

15:58

37:38

ND0-003

14:49

18:35

28:39

36:38

42:34

49:33

14:57

37:38

ND0-008

13:41

19:34

31:37

40:34

47:31

50:27

14:57

37:38

ND0-014

13:41

18:35

28:39

36:38

52:45

56:41

16:70

37:38

ND0-015

14:49

18:35

28:39

36:38

52:45

56:41

16:70

37:38

ND0-016

14:49

18:35

28:39

36:38

52:45

56:41

14:57

37:38

Suffix

First

Second

Third

Fourth

Fifth

Sixth

Final

Reverse

gear

ND0-101

13:41

19:34

31:37

40:34

47:31

50:27

14:57

37:38

CONSUMABLES

MT-35

[RS6F93R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

CONSUMABLES

PFP:XX000

Description

XXXX0000104

Types

Packaging

Parts Department No.

Component

Gearbox oil

Immerse all parts

RHODORSEAL

100 g tubes

77 01 404 452

Housing assembly

LOCTITE 518

24 ml syringe

77 01 421 162

Back-up lamp switch threading

MT-36

[RS6F93R]

PARTS TO BE REPLACED SYSTEMATICALLY

PARTS TO BE REPLACED SYSTEMATICALLY

PFP:XX000

Description

XXXX0000113

If they have been removed:

●

the lip seals,

●

the O-rings,

●

the gear supporting rings,

●

the roll pins,

●

the blanking cover cap,

●

the sliding gear hub springs,

●

the gearbox edge bolts coated with LOCTITE.

CHECKING

MT-37

[RS6F93R]

D

E

F

G

H

I

J

K

L

M

A

B

MT

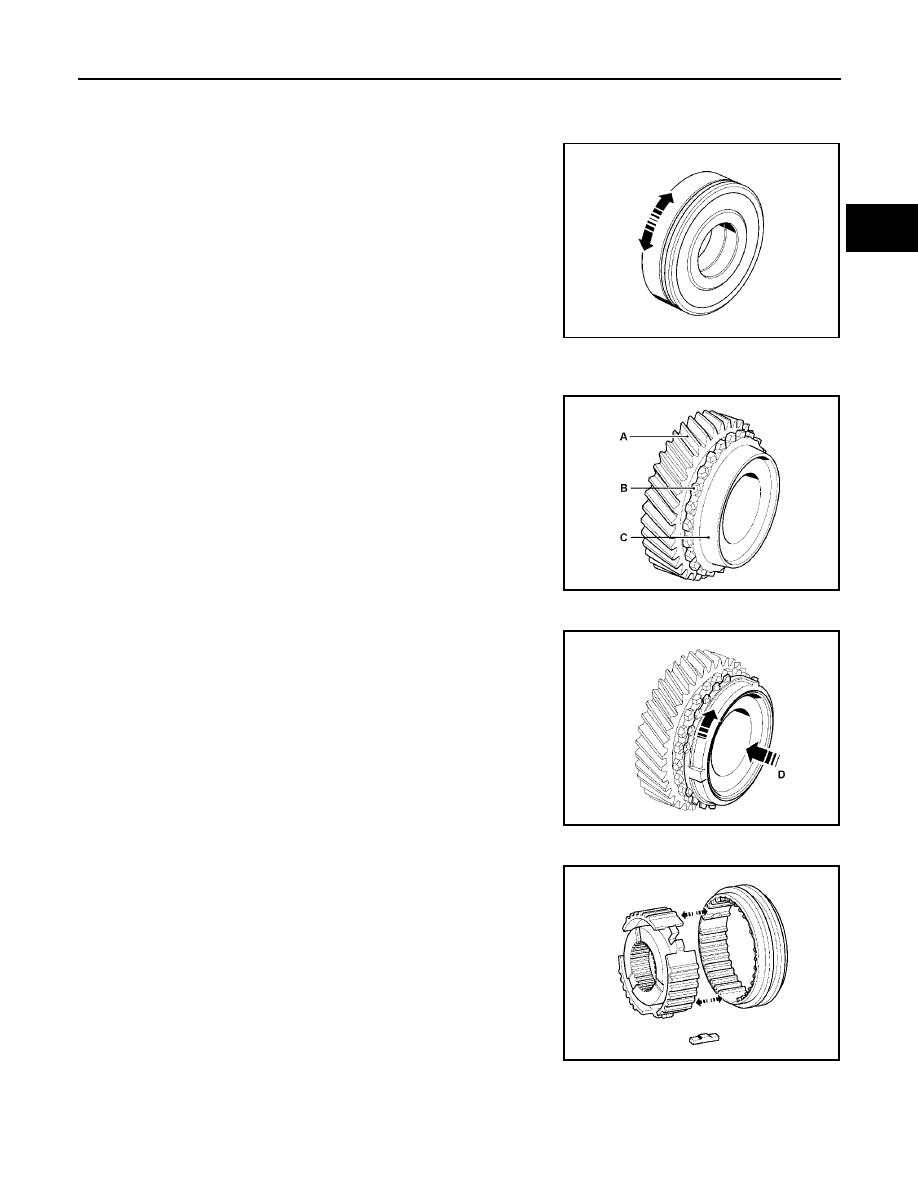

CHECKING

PFP:XX000

Bearings

XXXX0000115

Check that the bearings show no signs of damage and that they turn
evenly. Replace them if necessary.

Gearing

XXXX0000116

NOTE:
The inspection focuses mainly on the appearance of the teeth, espe-
cially in terms of claw chamfers.

1.

Check that the teeth (A) are not broken or chipped.

2.

Check that the claws (B) are not broken, chipped or worn.

3.

Check that the friction cone (C) shows no scratches or blueness.

Also ensure that there are no signs of grating or unusual wear on the
surfaces of the shafts or the inner sides of the sprockets.

Synchronizer Ring

XXXX0000117

Check that the grooves and ridges on the ring are not worn or dam-
aged.

1.

Checking put the ring onto the gear cone.

2.

Checking rotate the ring while applying force in the direction of
the cone (D).

3.

Checking the ring should lock against the cone.

Otherwise, replace the synchronizer ring.

Sliding Gear Hub

XXXX0000118

Make sure the sliding gear turns smoothly in the hub.
Check the condition of the synchronization rollers.

Systematically replace the sliding gear hub springs.

MCIB0017E

MCIB0018E

MCIB0019E

MCIB0020E
