Nissan Primera P12. Manual - part 363





BRAKE SWITCH

EC-637

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

16.

CHECK INTERMITTENT INCIDENT

Refer to

EC-408, "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT"

.

>> INSPECTION END

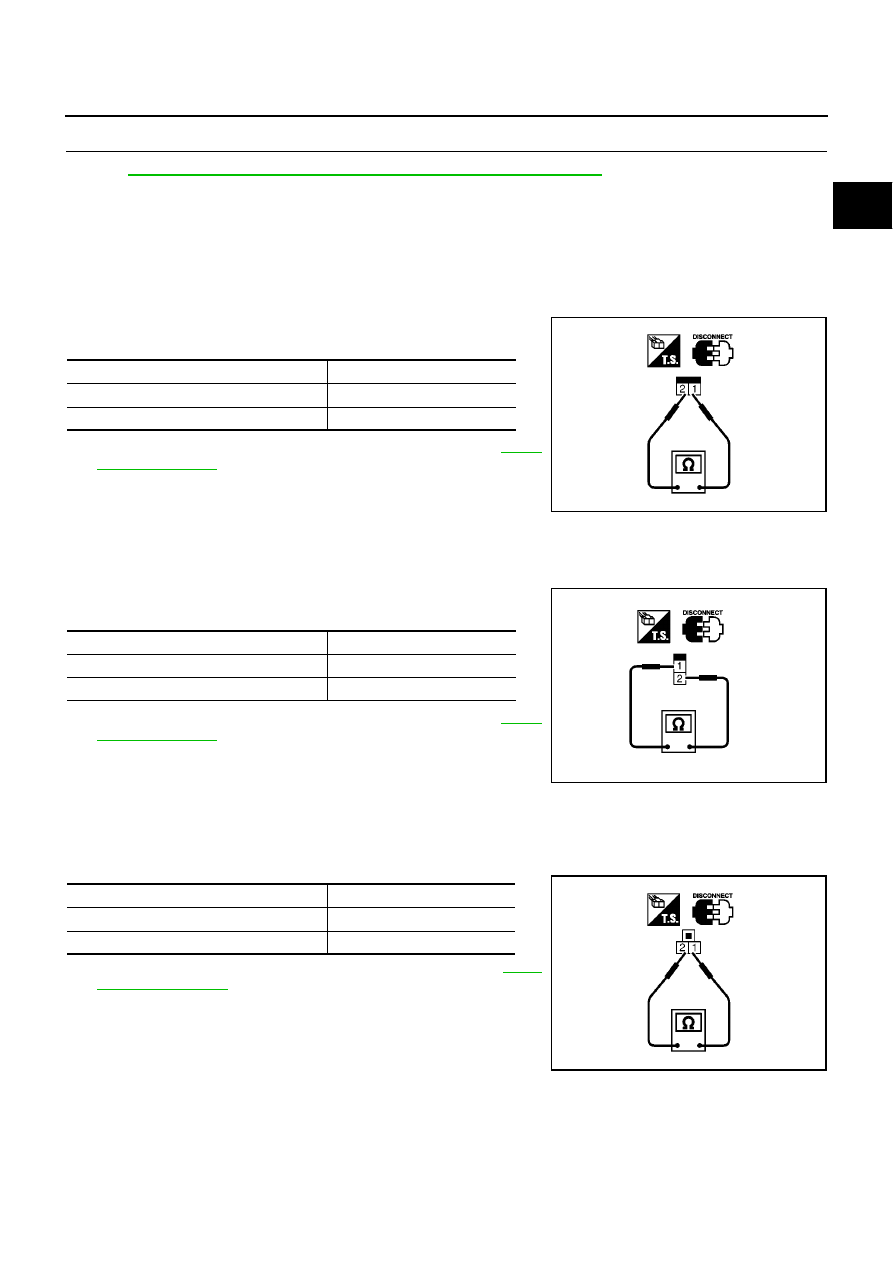

Component Inspection

EBS016LP

STOP LAMP SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect stop lamp switch harness connector.

3.

Check harness continuity between stop lamp switch terminals 1
and 2 under the following conditions.

If NG, adjust stop lamp switch installation, refer to

BR-6,

"BRAKE PEDAL"

, and perform step 3 again.

ASCD BRAKE SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect ASCD brake switch harness connector.

3.

Check harness continuity between ASCD brake switch terminals
1 and 2 under the following conditions.

If NG, adjust ASCD brake switch installation, refer to

BR-6,

"BRAKE PEDAL"

, and perform step 3 again.

ASCD CLUTCH SWITCH

1.

Turn ignition switch OFF.

2.

Disconnect ASCD clutch switch harness connector.

3.

Check harness continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

If NG, adjust ASCD clutch switch installation, refer to

CL-5,

"CLUTCH PEDAL"

, and perform step 3 again.

Condition

Continuity

When brake pedal is fully released.

Should not exist.

When brake pedal is depressed.

Should exist.

PBIB0118E

Condition

Continuity

When brake pedal is fully released.

Should exist.

When brake pedal is depressed.

Should not exist.

MBIB1083E

Condition

Continuity

When clutch pedal is fully released.

Should exist.

When clutch pedal is depressed.

Should not exist.

SEC024D

EC-638

[YD (WITHOUT EURO-OBD)]

PNP SWITCH

PNP SWITCH

PFP:32006

Description

EBS015D2

When the gear position is in Neutral, park/neutral position is ON. ECM detects the position because the conti-
nuity of the line (the “ON” signal) exists.

CONSULT-II Reference Value in Data Monitor Mode

EBS015D3

Specification data are reference values.

ECM Terminals and Reference Value

EBS015D4

Specification data are reference values and are measured between each terminal and ground.

CAUTION:

Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

MONITOR ITEM

CONDITION

SPECIFICATION

P/N POSI SW

Ignition switch: ON

Shift lever: Neutral position

ON

Except above

OFF

TERMI-

NAL

NO.

WIRE

COLOR

ITEM

CONDITION

DATA

(DC Voltage)

110

G/OR

Park/Neutral position
switch

[Ignition switch ON]

Gear position is Neutral

Approximately 0V

[Ignition switch ON]

Except the above gear position

BATTERY VOLTAGE
(11 - 14V)

PNP SWITCH

EC-639

[YD (WITHOUT EURO-OBD)]

C

D

E

F

G

H

I

J

K

L

M

A

EC

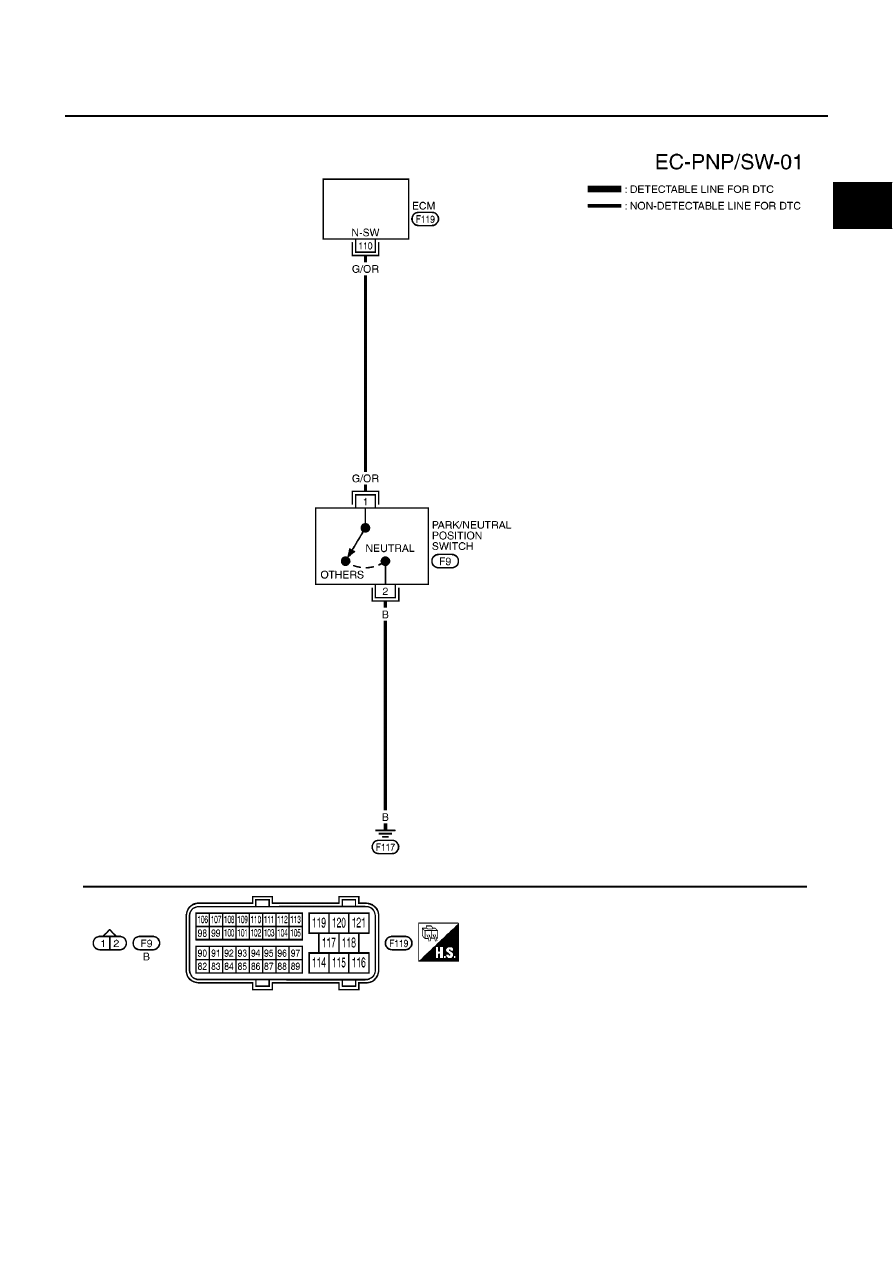

Wiring Diagram

EBS015D5

MBWA0389E

EC-640

[YD (WITHOUT EURO-OBD)]

PNP SWITCH

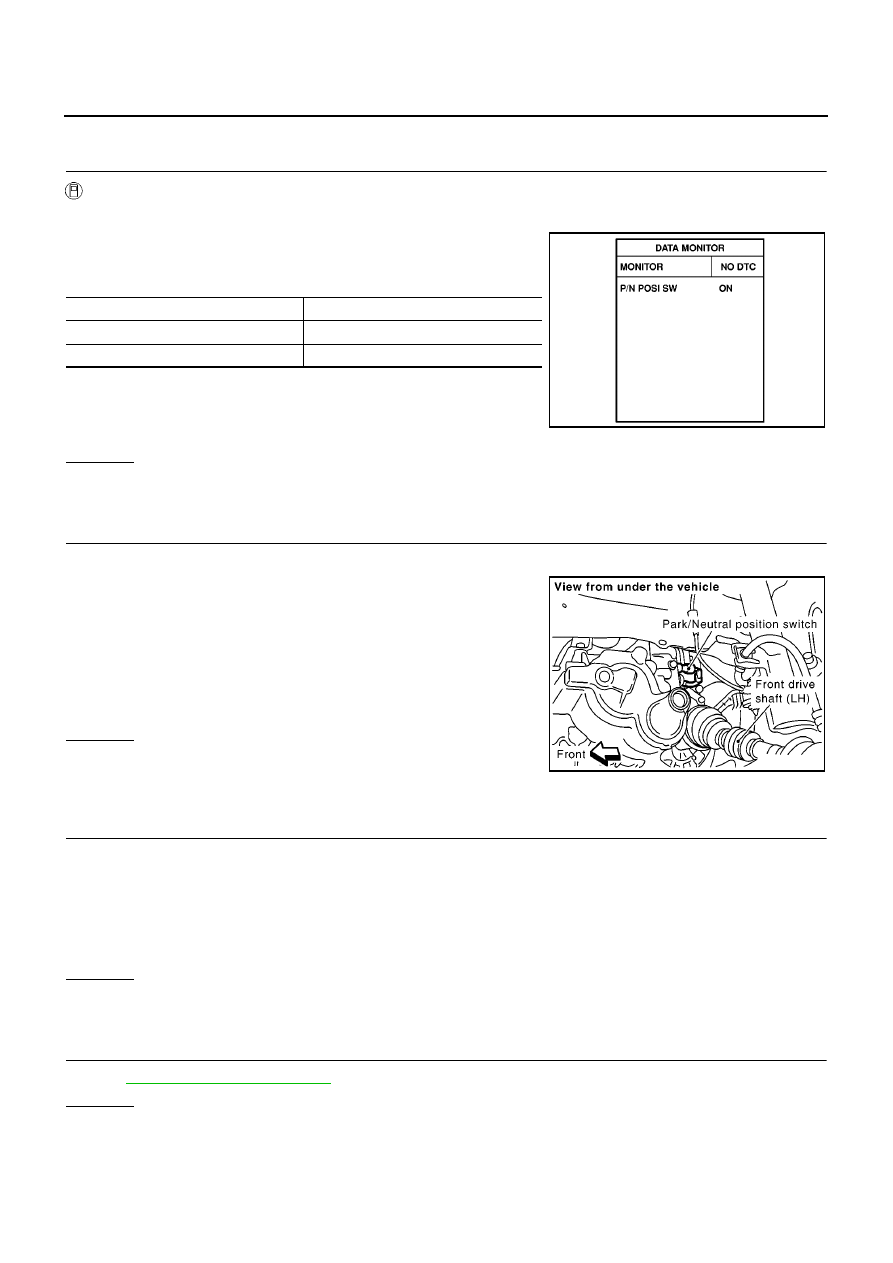

Diagnostic Procedure

EBS015D6

1.

CHECK OVERALL FUNCTION

With CONSULT-II

1.

Turn ignition switch ON.

2.

Select “P/N POSI SW” in “DATA MONITOR” mode with CON-
SULT-II.

3.

Check “P/N POSI SW” signal under the following conditions.

OK or NG

OK

>> INSPECTION END

NG

>> GO TO 2.

2.

CHECK PNP SWITCH GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect park/neutral position (PNP) switch harness connec-
tor.

3.

Check harness continuity between PNP switch terminal 2 and
ground.
Refer to Wiring Diagram.

4.

Also check harness for short to power.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit or short to power in harness or con-

nectors.

3.

CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Disconnect ECM harness connector.

2.

Check harness continuity between ECM terminal 110 and PNP switch terminal 1.
Refer to Wiring Diagram.

3.

Also check harness for short to ground and short to power.

OK or NG

OK

>> GO TO 4.

NG

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK PARK/NEUTRAL POSITION SWITCH

Refer to

MT-12, "POSITION SWITCH"

.

OK or NG

OK

>> GO TO 5.

NG

>> Replace park/neutral position switch.

Shift lever position

P/N POSI SW

Neutral position

ON

Except the above position

OFF

SEF212Y

Continuity should exist.

MBIB1088E

Continuity should exist.
